Raritan Dominion DSAM-4 Device Server

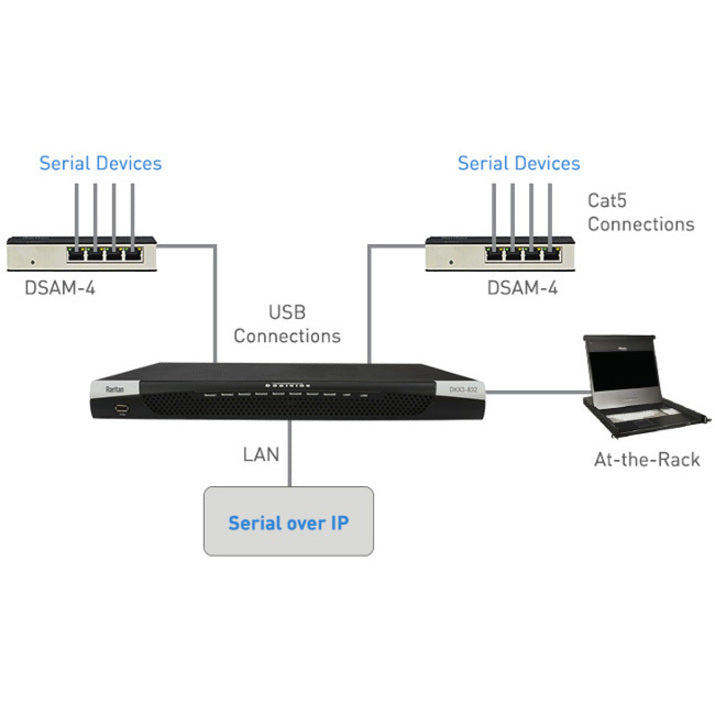

The Dominion Serial Access Modules (DSAM) allow users to connect serial devices with Java-free user access from the Dominion KX III, KVM-over-IP switch. The 2 and 4 port DSAM modules connect to the Dominion KX III switch's USB ports. They provide "true serial access" with copy and paste capability for up to 8 simultaneous connections to serial devices like LAN switches, routers and Linux/Unix servers.
The DSAMs are simple and easy to deploy. They do not require power from devices, do not use KVM ports or sessions and do not require rollover cables, power adapters or rack space. They are a perfect solution when Serial-over-IP access is needed for up to 8 network switches or Unix/Linux servers near a KX III switch.
- Auto DTE/DCE detection
- Java-Free HTML Access
- Up to 230,400 baud
- SSH Client, putty use
- Up to 8 ports per Dominion KX III
- Up to 8 serial sessions perb Dominion KX III
- Remote power control with Raritan PX iPDU
- Zero U Mounting
- Connect via USB to Dominion KX III
- Powered from the Dominion KX III
Product Type: Device Server
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: Raritan
Form Factor: Rack-mountable
Manufacturer: Legrand Group
Product Model: DSAM-4
Product Name: Dominion DSAM-4 Device Server
Product Line: Dominion
Manufacturer Part Number: DSAM-4
Manufacturer Website Address: http://www.legrand.us
Package Contents:
- Dominion DSAM-4 Device Server
- Bracket
