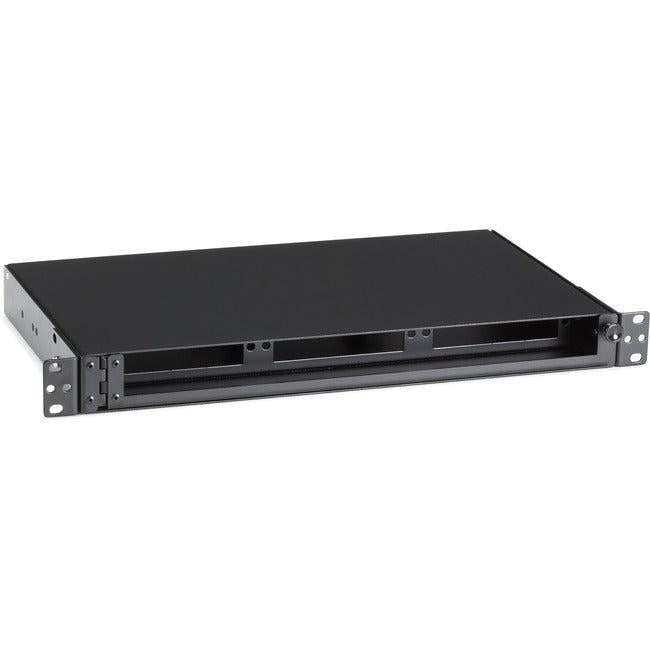

Black Box Rackmount Fiber Shelf, 1U, 3-Adapter Panel
- Panels are recessed horizontally.
- Splice tray stud enables you to install pigtail splice strays.
- Compact and rugged enough for commercial applications.
- Corrosion-resistant powder coating finish.
- Constructed of 16-gauge steel housing.
- Features (2) fiber Kevlar® clamps to hold the fiber in place coming into the box.
With this shelf, you can organize and protect fiber connections and splice trays in your 19" or 23" rackmount fiber applications. This shelf is particularly useful in cabinets and racks where little space is available. It accepts three snap-in Adapter Panels or MPO Cassettes for connections. The cable punchouts are aligned for easy stacking of shelves. Plus, fiber Kevlar clamps on the outside rear hold the fiber in place as it enters the box.

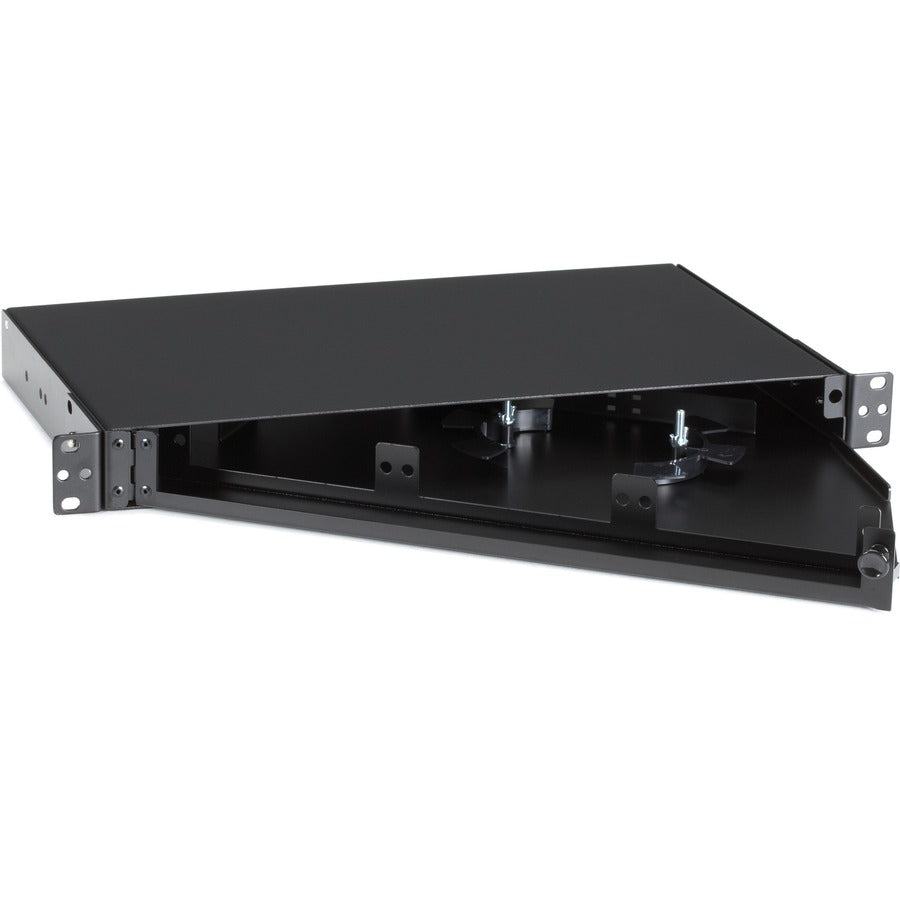

The adapter panels are recessed horizontally in the swing-out tray for superior patch cord protection. A splice tray stud enables you to install pigtail splice trays.

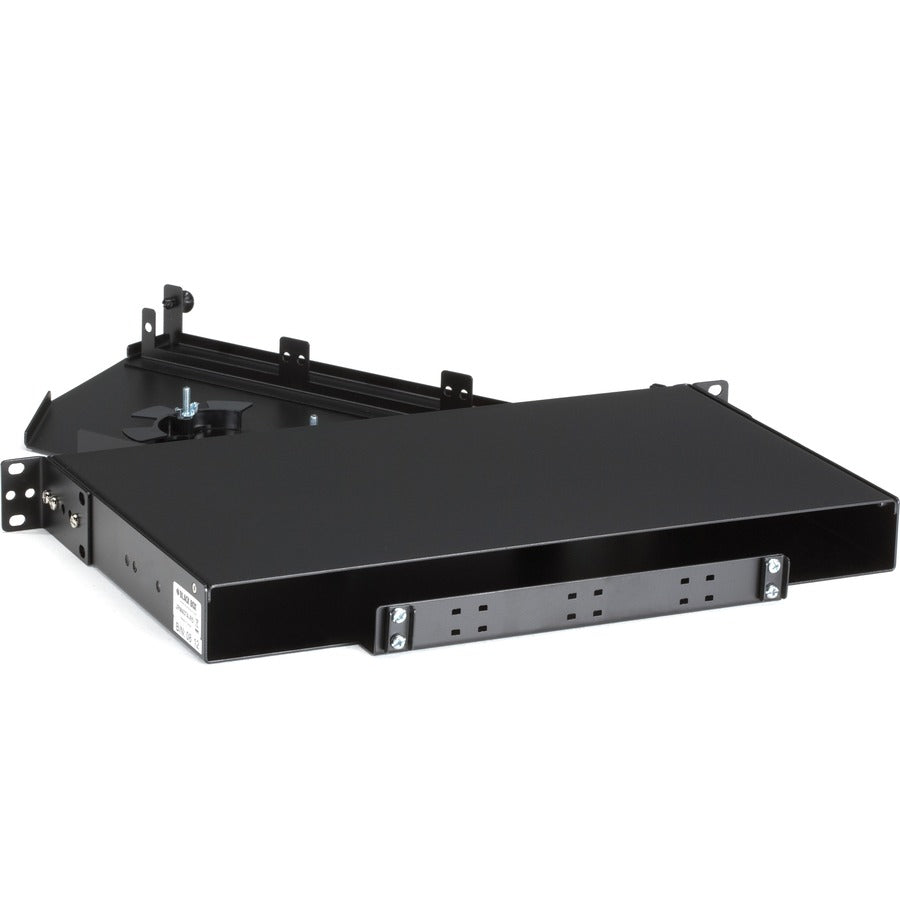

The Rackmount Fiber Shelf comes with rackmount brackets that are adjustable for mounting in cabinets and two-post racks. They're set for 19" racks but can be reversed for use in 23" racks.
- Guaranteed for life!

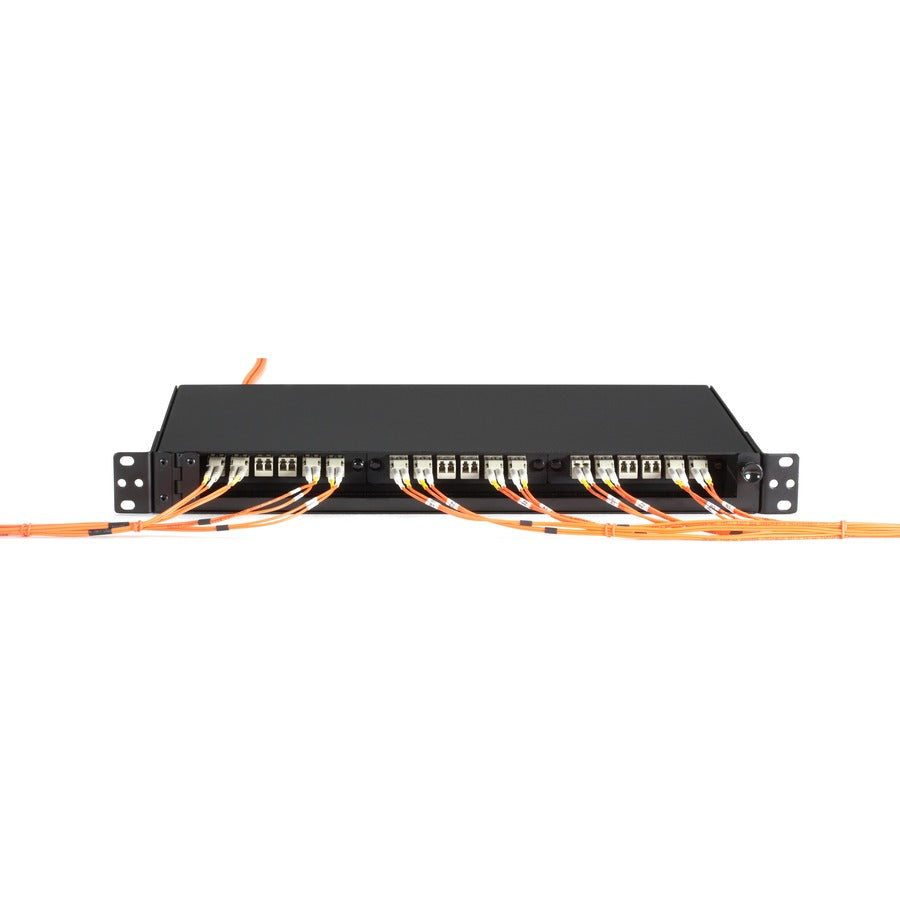

- Accepts three snap-in Adapter Panels or MPO Fiber Casettes. (Each adapter panel has 6 or 12 connectors, for a total of 18 to 36 fiber terminations).
- Organize and protect fiber connections and splice trays in 19" and 23" cabinets and two-post racks
- Provides termination for optical cables on the premises or in a central office.
Product Type: Patch Enclosure
Product Condition: New
Product Color: Black
Product Material: Cold-rolled Steel (CRS)
Product Series: JPM4000
Rack Width: 23"
Rack Height: 1U
Brand Name: Black Box
Form Factor: Rack-mountable
Manufacturer: Black Box Corporation
Product Model: JPM407A-R5
Product Name: Rackmount Fiber Shelf, 1U, 3-Adapter Panel
Manufacturer Part Number: JPM407A-R5
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- Rackmount Fiber Shelf, 1U, 3-Adapter Panel
- 4 x 10-32 Cuphead Screws
- 4 x 12-24 Cuphead Screws
- 4 x 4-Inch Cable Ties
- 30 x 3-Inch Cable Ties
- Red "Danger" Sticker that Warns you of Laser Hazard
- 6 x 1-Inch Stick-on Rectangular Cable Holders
- 2 x Black Spool Rings for Cable Management
- User's Manual
Limited Warranty: Lifetime
Weight (Approximate): 10.36 lb
