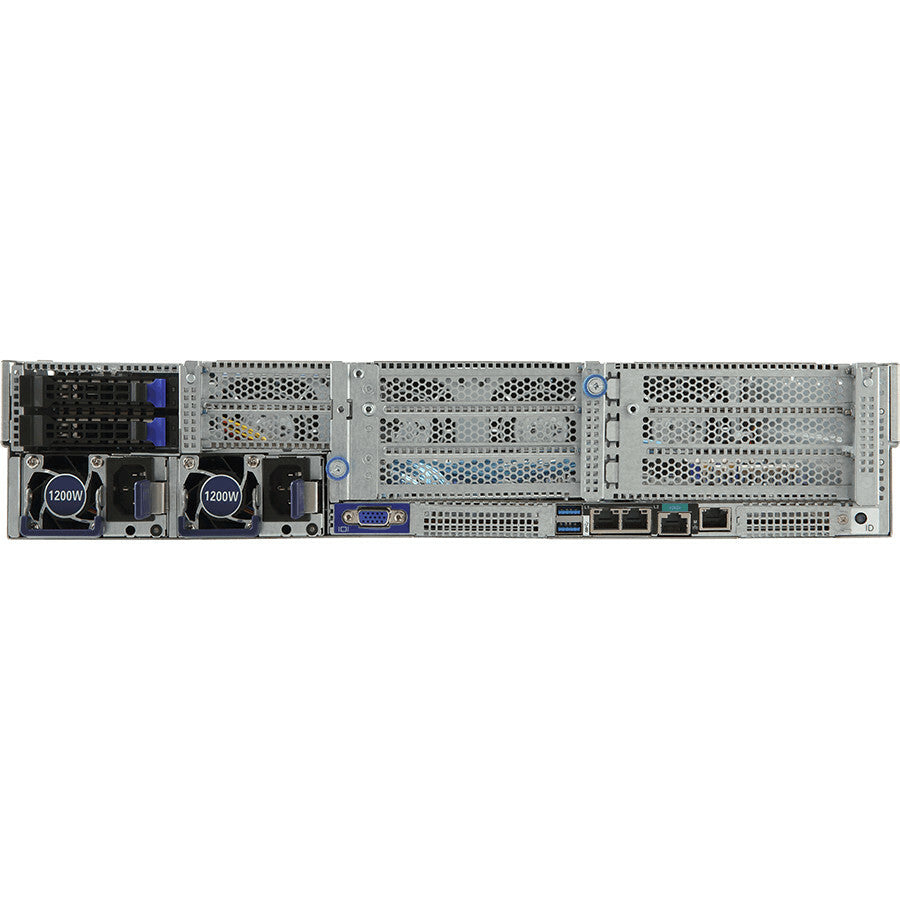

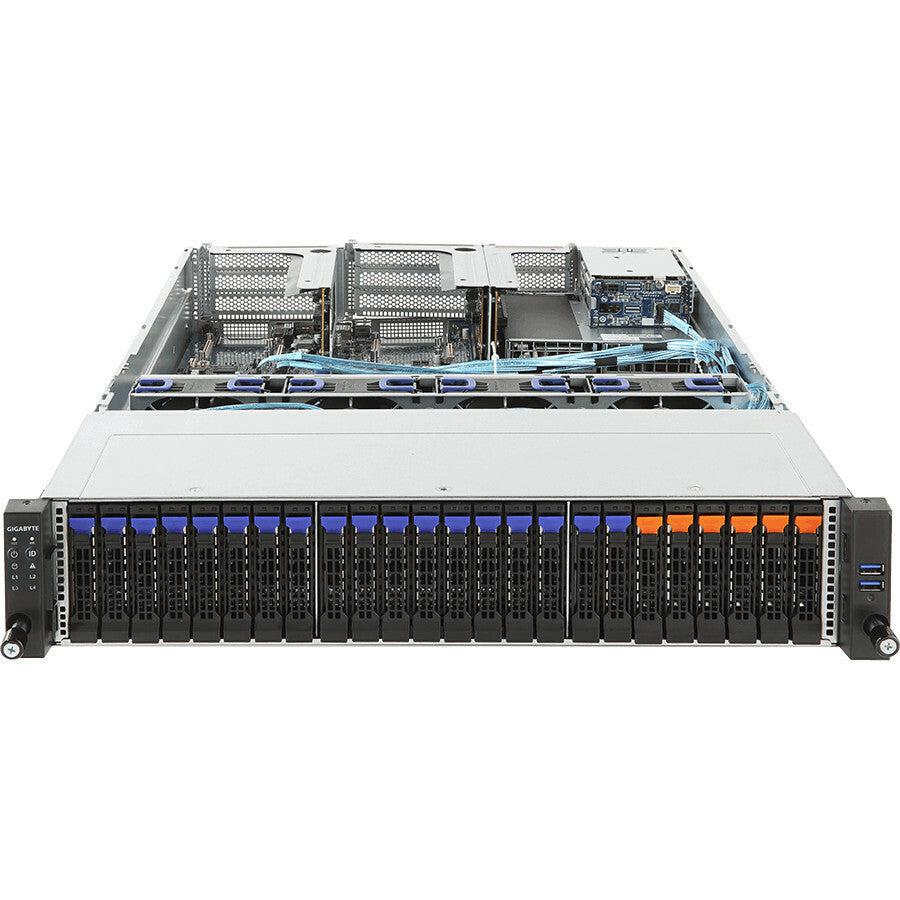

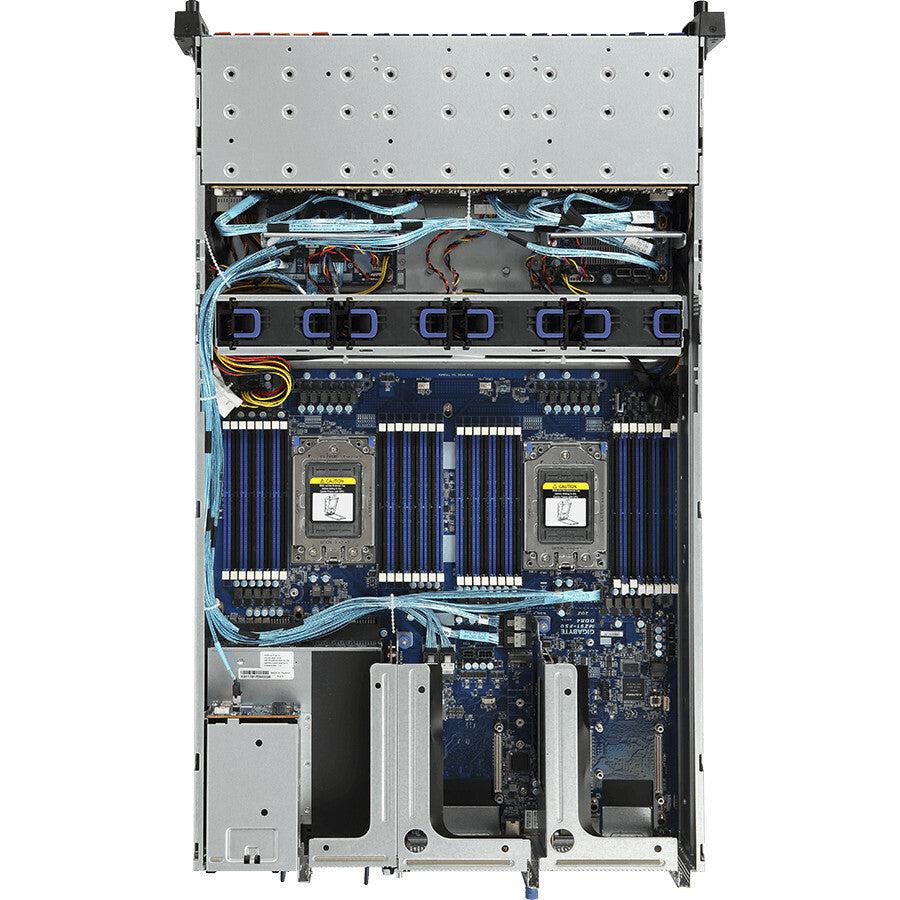

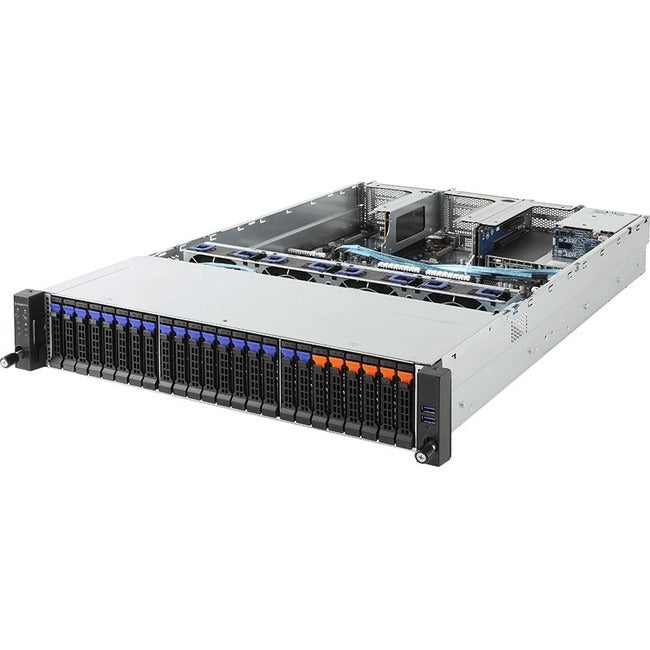

Gigabyte R281-Z91 Barebone System - 2U Rack-mountable - Socket SP3 - 2 x Processor Support
AMD EPYC™
The New x86 Option
AMD's return to the CPU segment delivers a whole new value proposition to the x86 world. Built on GIGABYTE's extensive design expertise across a range of chipset platforms, this AMD EPYC™ platform is already receiving acclaim for its high specification:
- Memory
- I/O
- Network connectivity
This platform is intended as an alternative for builders in the x86 space and packs a real punch in flexibility and expansion options.
CPU Key Features
-
Memory Optimization
Memory speed of up to 2666MHz (at 1DPC)
Total memory capacity of 4TB supported -
PCIe Lanes
Up to 128 lanes in both 1P and 2P offerings providing the highest expandability options of any x86 platform -
Cores / Power
CPU power is managed at the core level, meaning that power is allocated only for specific workload needs -
Security
Proprietary AMD security on chip
Comprehensive I/O
Both single- and dual-socket CPUs come equipped with 128x PCIe lanes, providing extensive I/O options. This is a huge improvement in I/O vs. incumbent x86 offerings.
Increased I/O allows for flexibility in extending your storage, networking or compute to a level previously unattainable with standard server motherboards.
In addition, the integrated nature of the processor - designed as a system-on-chip (SoC) - means that there is no need for a separate PCH and less additional switches needed for expansion lanes.
Modularized Backplanes
GIGABYTE's systems have a uniform backplane that is able to support exchangeable expanders offering both SAS and U.2 (or a combination) to allow for custom add-ons to meet different application needs.
Dense, High Speed Storage Support
Onboard U.2 + M.2
GIGABYTE AMD EPYC™ platforms are designed to support U.2 and M.2 storage devices. Both use the NVMe protocol, taking advantage of the fast bandwidth of PCIe Gen3 x 4 lanes to deliver up to 32 Gb/s data transfer speeds, over 4 times the performance of SATA 3, giving you more flexibility to integrate some of the most dense and fastest storage devices on the market into your system.
Data Security
TPM 2.0 Module
GIGABYTE's EPYC™ platform is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).
Carefully Selected Components
GIGABYTE's passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE's server motherboards are built with ultra long lasting components for the highest reliability attainable which allows us to offer some of the most durable servers in the industry.
Ease of Deployment and Management
GIGABYTE is always responsive to market needs and user-friendly solutions, including:
- Tool-less rail kit included as a default across all new server models
- In-house designed proprietary tool-less sleds for 3.5" HDDs to allow for easy swapping
- Supplying multiple connector options and tools where appropriate
Efficient, Reliable Power Supply
GIGABYTE SERVER AMD EPYC™ servers are designed to guarantee high conversion efficiency regardless of load. Redundant 80 Plus 'Titanium' or 'Platinum' PSUs, combined with GIGABYTE's precision engineering, translates to super efficient power usage which maximizes the system's power : performance ratio and reduces OPEX for the user.
- Perform computational tasks effectively accrediting the EPYC processor
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Connect USB-enabled devices via 5 USB ports
- 12Gb/s SAS interface for high speed and reliability
Product Type: Barebone System
Environmentally Friendly: Yes
Environmental Certification: RoHS
Rack Height: 2U
Brand Name: Gigabyte
Form Factor: Rack-mountable
Manufacturer: GIGABYTE Technology, Inc
Product Model: R281-Z91
Product Name: R281-Z91 (rev. 100)
Manufacturer Part Number: R281-Z91
Manufacturer Website Address: http://www.gigabyte.us
Packaged Quantity: 1
Package Contents:
- R281-Z91 (rev. 100)
- 2 x CPU heatsinks
- 1 x Rail kit
Limited Warranty: 1 Year
Weight (Approximate): 48.50 lb
