All other audio options are supported, integrated Audio converter for simultaneous digital and analog audio output on all audio output channels
5 display modes 4 in 1 out HDMI switch

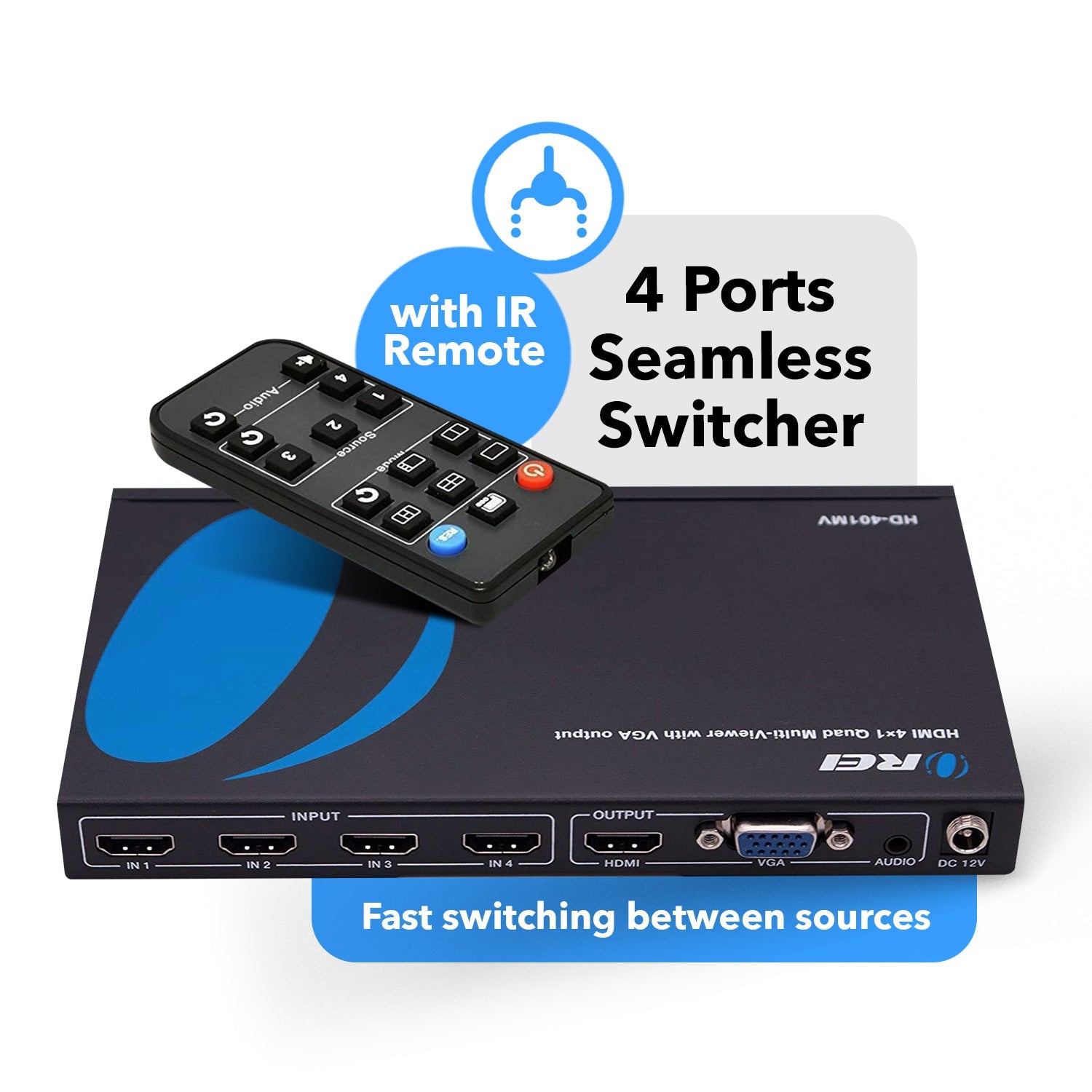

This HDMI switcher designed with 4 Input ports and 1 output port, you can choose the HDMI signal source by the IR remote control and front panel buttons
Supports 4 HDMI input sources to an HD TV or display with real-time fast seamless switching up to 1080p
VGA Output
This HDMI matrix switch is compatible with gaming consoles such as PlayStation, Xbox One, Nintendo, Roku, DVD, blue ray, players Amazon fire TV, cable TV, Chromecast, and so many other HDMI devices

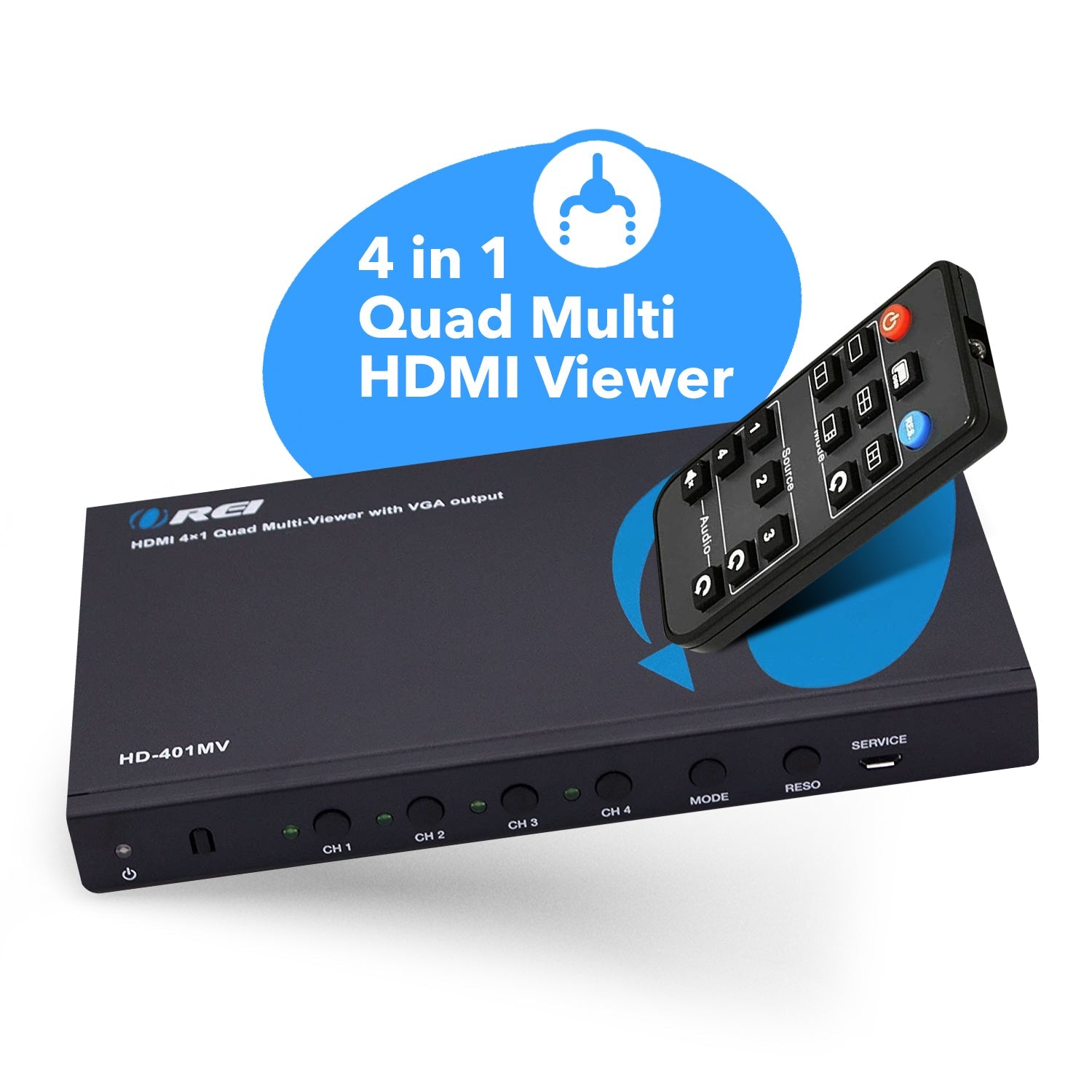

Control via panel buttons and the remote control

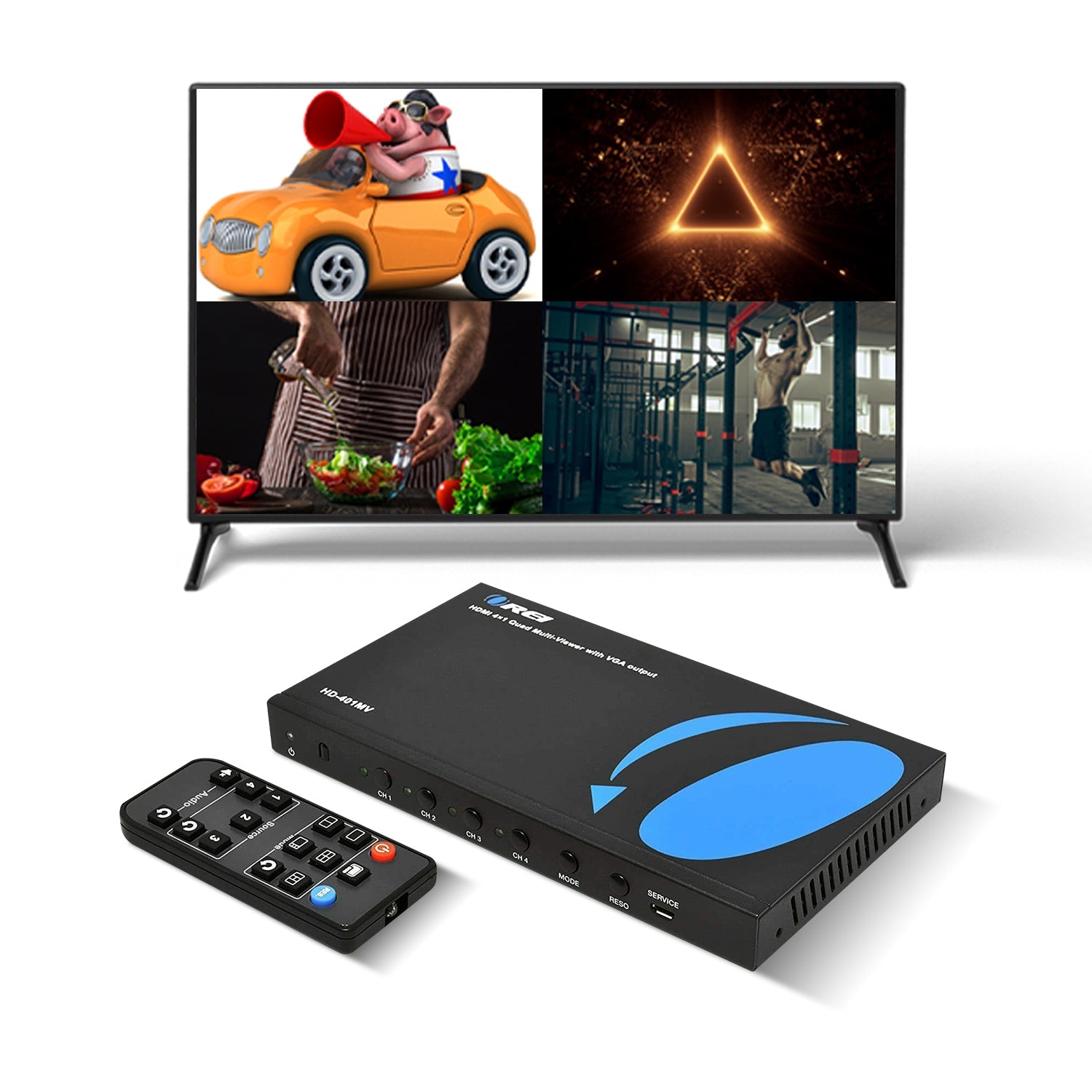

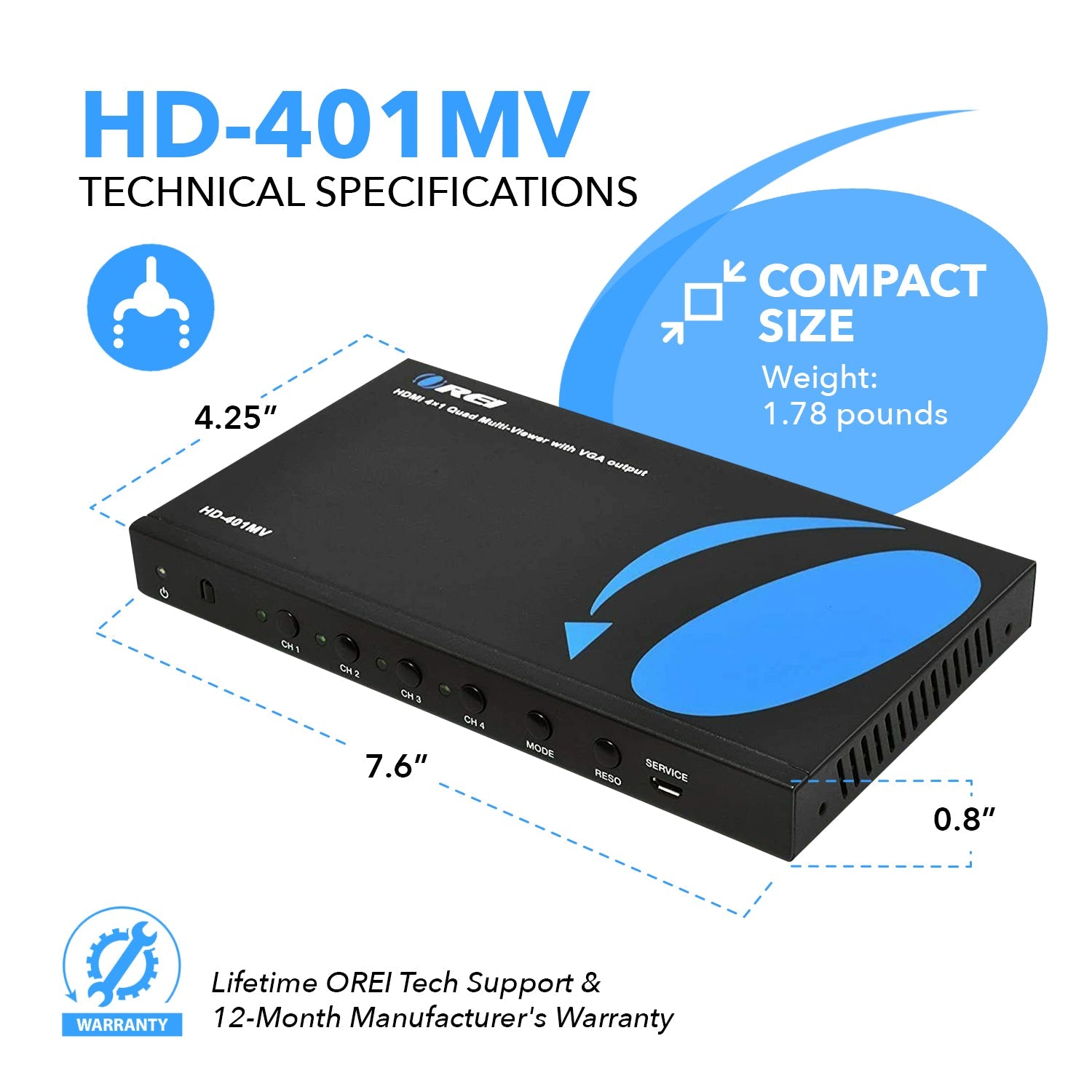

The OREI HD-401MV the high-performance 4x1 quad multi-viewer can display four routes HDMI HD input contents on one HDMI screen and one VGA screen simultaneously. It supports analog audio output that can select a different input source. It has five multi-view display mode.

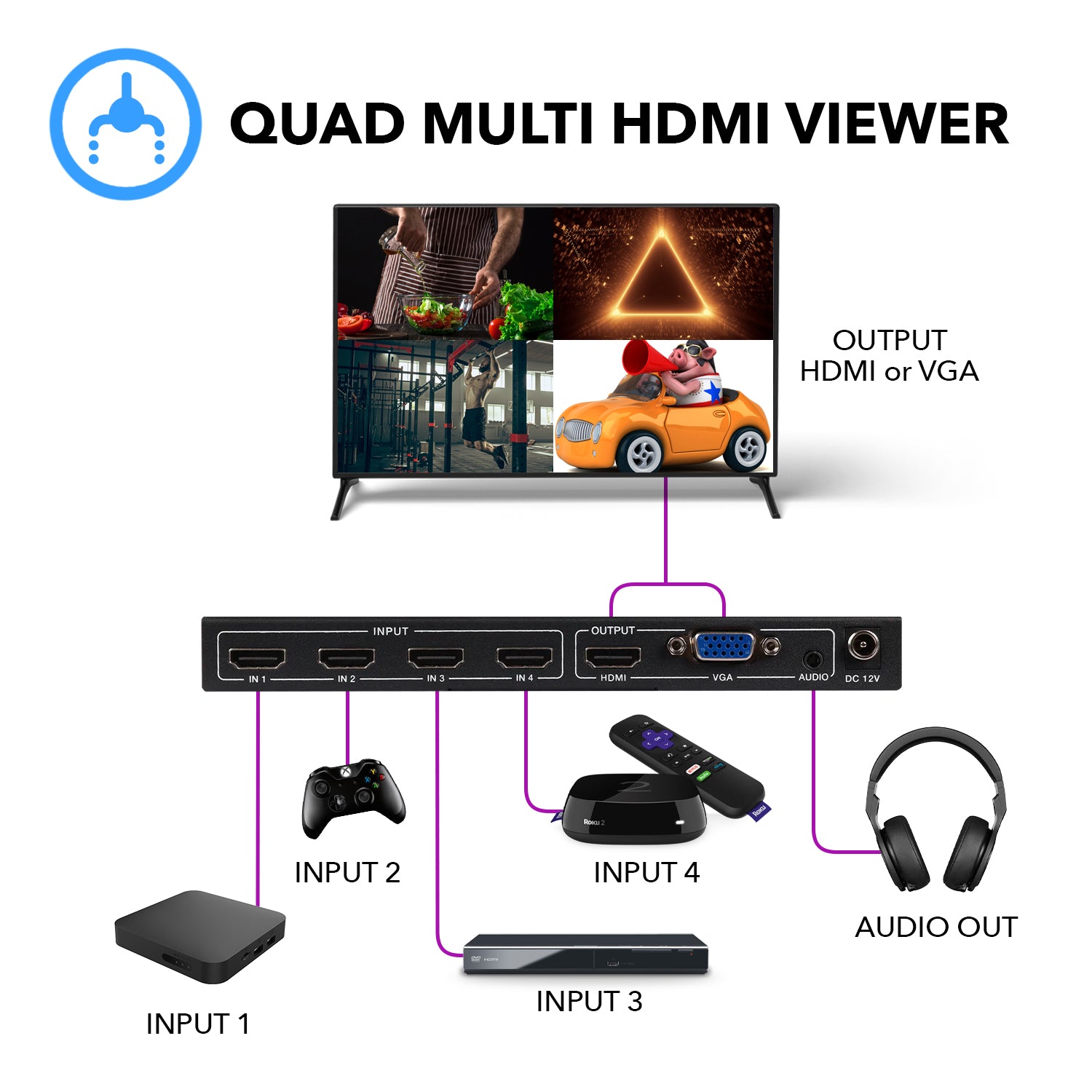

HD-401MV is a 4 port HDMI switcher for your cable receiver, directly, gaming console, PlayStation, Nintendo Switch, and home theater setup. It supports 4 HDMI inputs and 1 HDMI output, allowing for HDMI 1.4, along with HD and compatibility on all HDMI. Output resolution can be adjusted, and the maximum resolution is up to 1920×1080@60Hz. The product can be controlled via panel buttons and remote control.
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet. However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, our switchers aren't compatible with capture cards
Yes, the included power adapter does support 220V
Please email us on info@orei.com
The button on the front panel labeled CH1, CH2, CH3 and CH4 can be pressed to switch between the different inputs in the different display modes
The HD-401MV HDMI switch supports the following input resolutions (480p~1080P60, 800x600~1920x1080). The maximum output resolution is up to 1080P@60Hz (1920x1080P@60Hz, 1280x720P@60Hz). The refresh rate and FPS is 1080P60
Unfortunately, its not possible to turn off the OSD message completely on the switcher
[/tab1]
[shortdes]
4 Inputs - 1 output HDMI Multiviewer switch
Video resolution up to 1080p@60Hz

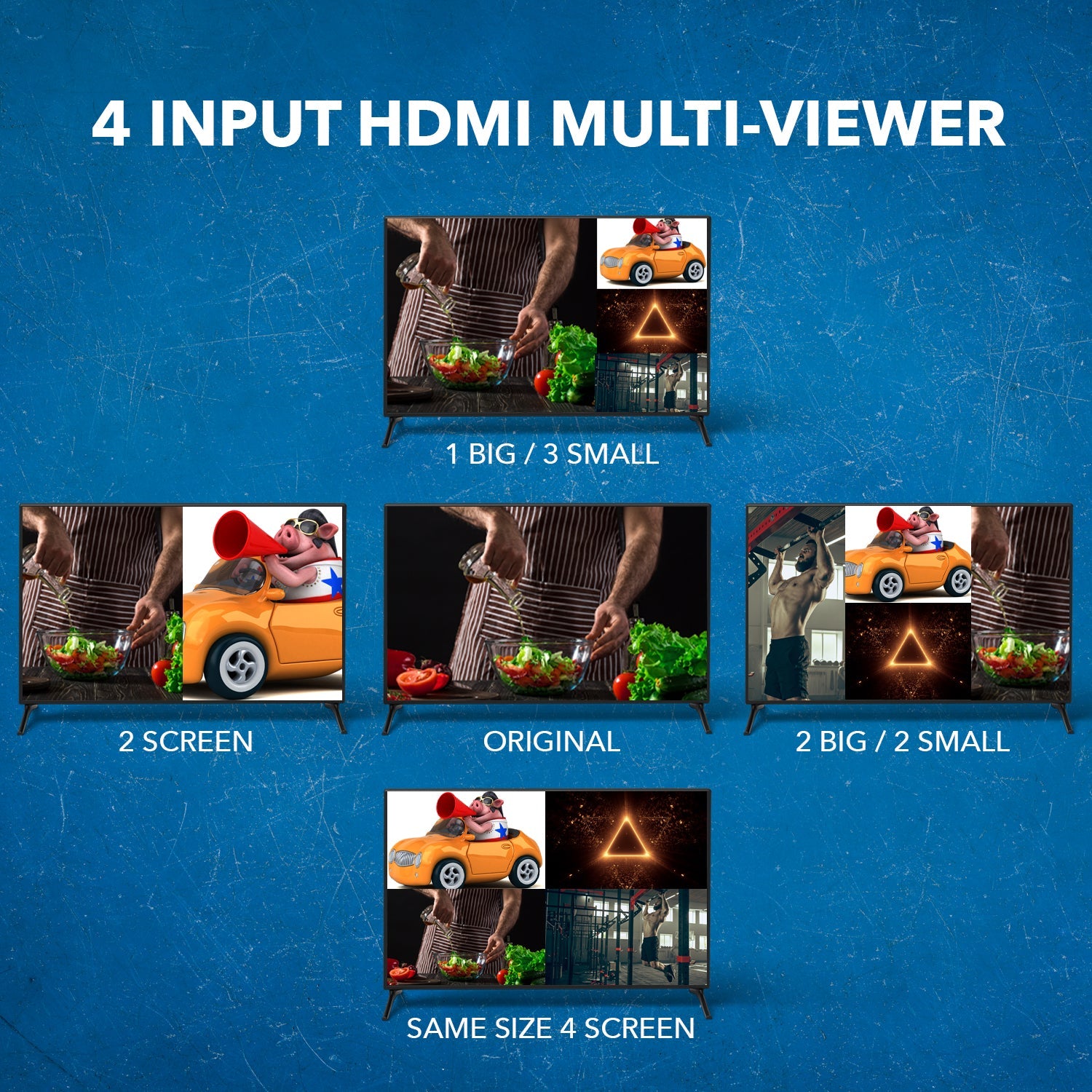

Supports 5 display mode
Compliance: HDMI 1.4 - HDCP 1.4
[/shortdes]
General Information
UPC
850008956607
