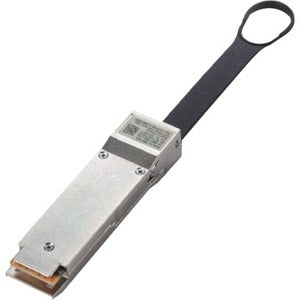

Legrand 100Gb/s QSFP28 Optical Transceiver
Mellanox® MMA1B00-C100 is a 4-channel, pluggable, QSFP28 optical transceiver, designed for use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant.
The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd.
The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds:
-Temperature with warning/alarm
-Supply voltage with warning/alarm
-Laser bias current
-Transmitted optical power with warning/alarm
-Received optical power with warning/alarm
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- Typically used for short distance, multi-mode fiber optic is ideal to carry data and transmit audio/video applications within a building
- 100 Gigabit Ethernet - High bandwidth performance, ease of use and reliable connectivity
- With 100GBase-SR4 technology, get up to 100Gbps data transfer rate over optical fiber cable
Product Type: QSFP28
Brand Name: Legrand
Form Factor: Hot-pluggable
Manufacturer: Legrand Group
Product Name: 100Gb/s QSFP28 Optical Transceiver
Manufacturer Part Number: MMA1B00-C100D-L
Manufacturer Website Address: http://www.legrand.us
