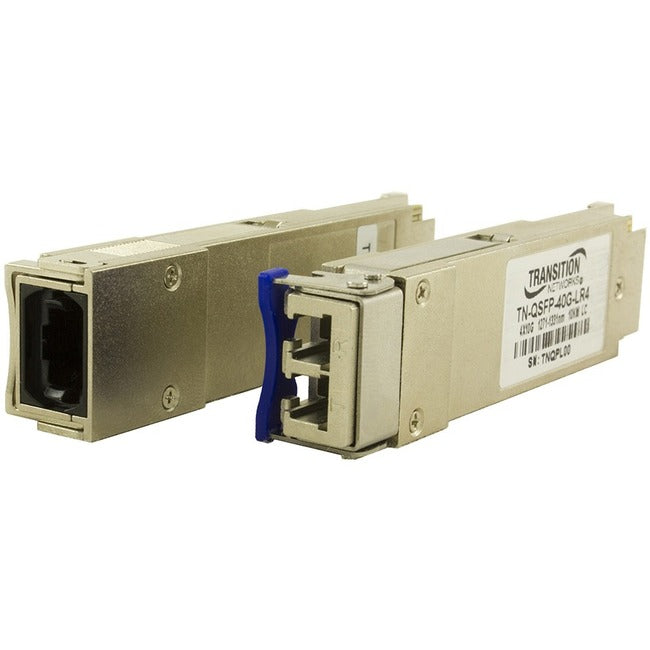

Transition Networks Cisco Compatible 40G QSFP+
The Transition Networks TN-QSFP-40G-xx series 40G QSFP+ optical transceivers are designed to install in any QSFP+ port allowing for 40GBase-X interfaces to the network through the QSFP+ connector. The TN-QSFP-40G-xx transceivers are Cisco compatible and are designed for bi-directional serial-optical data communication such as 40G Ethernet.
- High capacity: up to 44.4 Gbps per module
- Compliant with SFF 8436 QSFP+ MSA
- Single +3.3 V Power Supply
- RoHS Compliant (all models)
- Low Power Dissipation : SR4< 1.5 Watts, LR4 < 3.5w
- 40GBase-SR4: 4 lanes, up to 11.1Gbps per lane, Standard MPO connector
- 40GBase-LR4: 4 wavelength CWDM Mux/Demux design, up to 11.1Gbps per wavelength, Duplex LC connector
- Digital Diagnostic Monitoring
- Class 1 Laser International Safety Standard IEC 60825 Compliant
Product Type: QSFP+
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Taiwan
Product Series: TN-QSFP-40G-xx
Brand Name: Transition Networks
Compatibility: MSA Compliant
Manufacturer: Transition Networks, Inc
Product Model: TN-QSFP-40G-LR4-3
Product Name: Cisco Compatible 40G QSFP+
Manufacturer Part Number: TN-QSFP-40G-LR4-3
Manufacturer Website Address: http://www.transition.com
Limited Warranty: Lifetime
