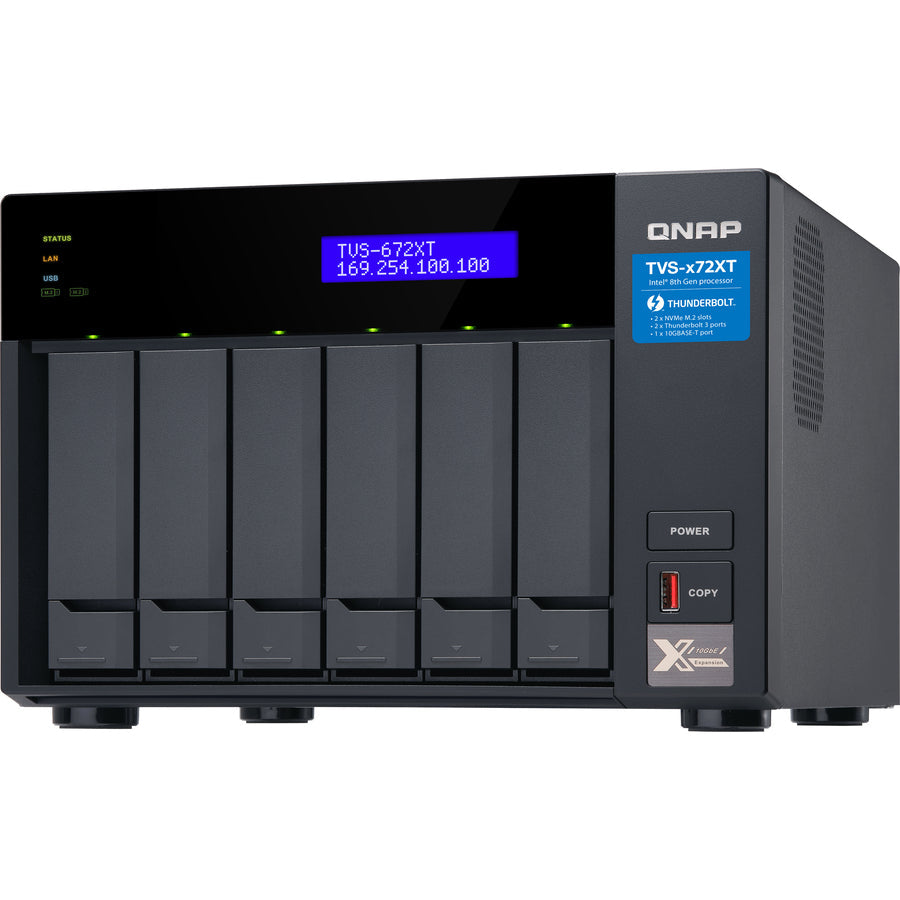

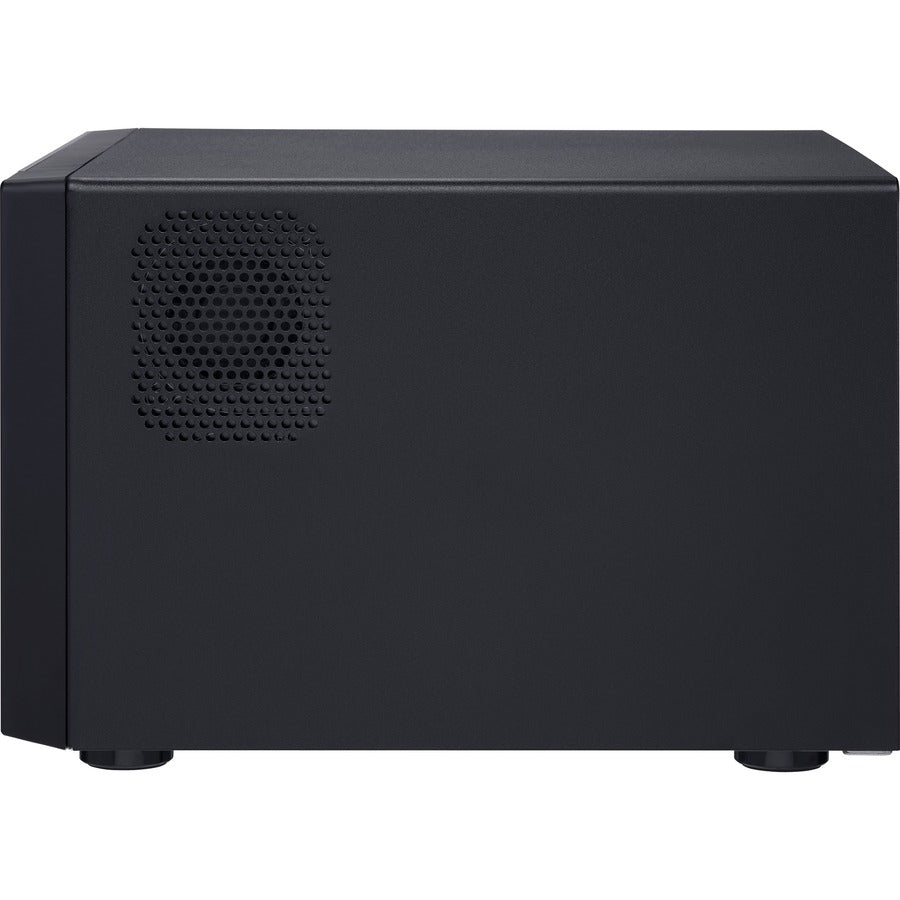

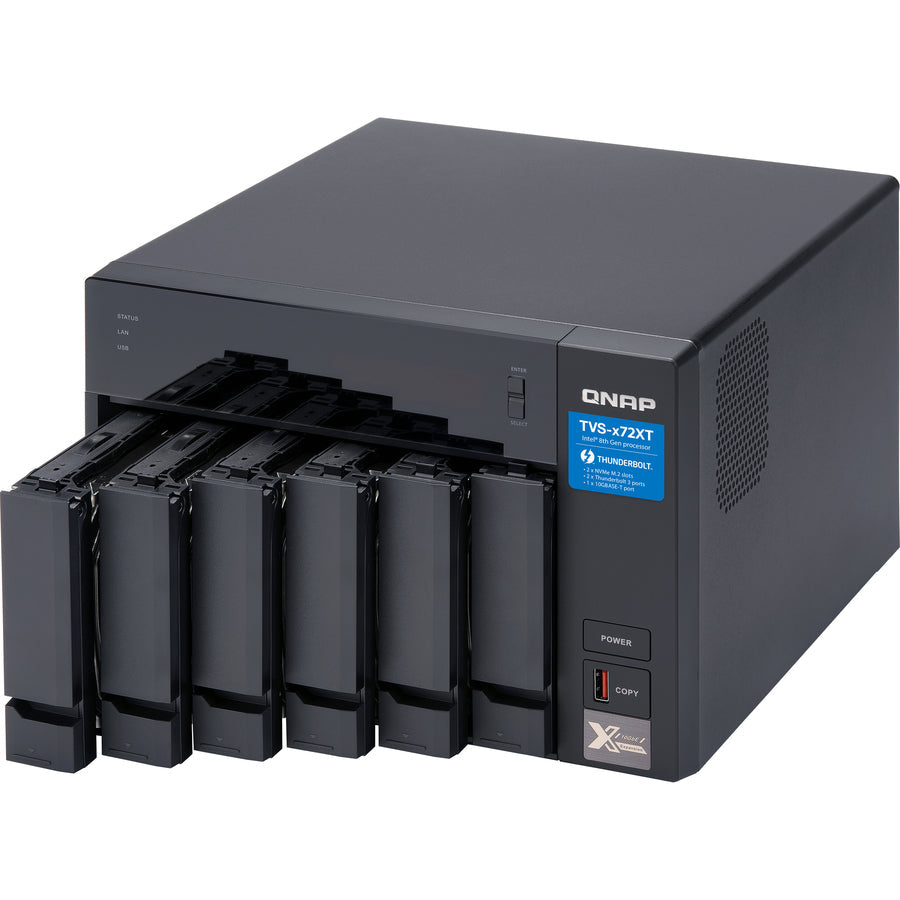

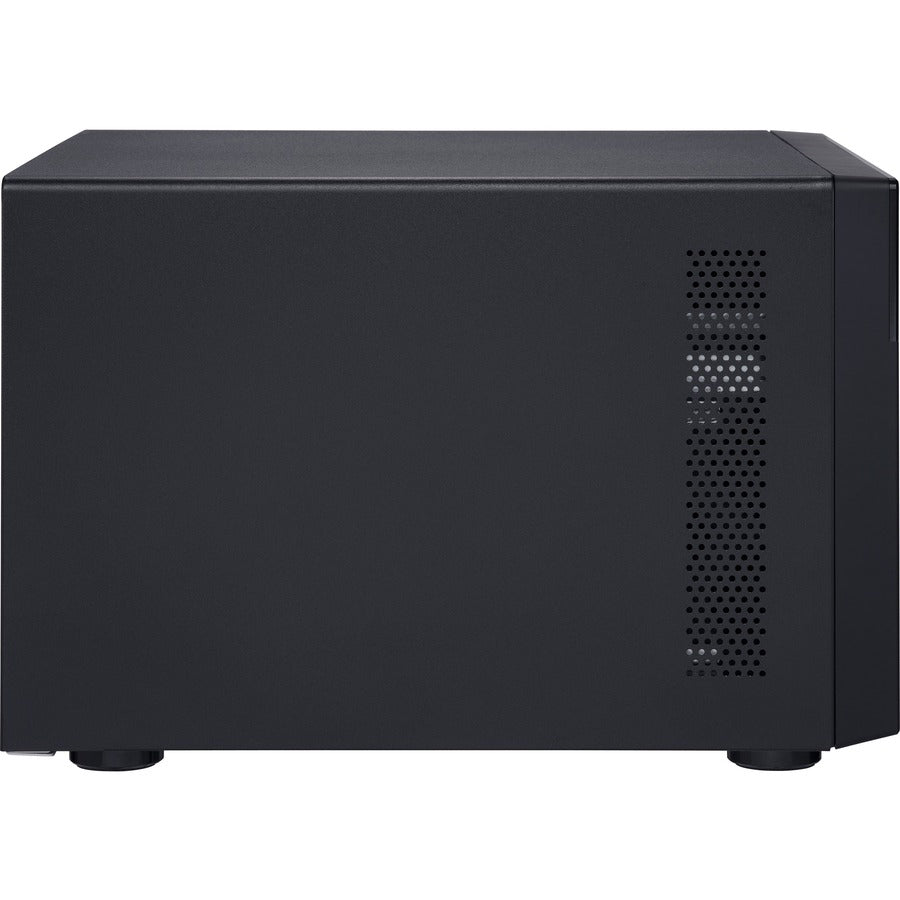

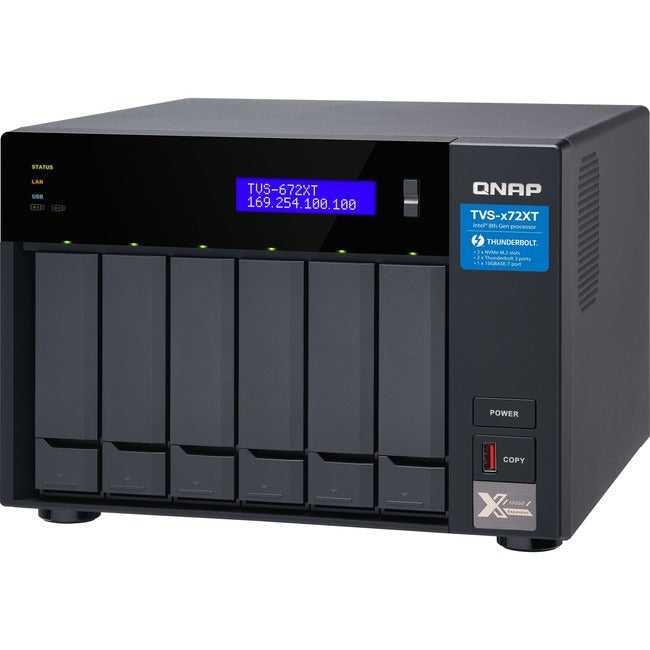

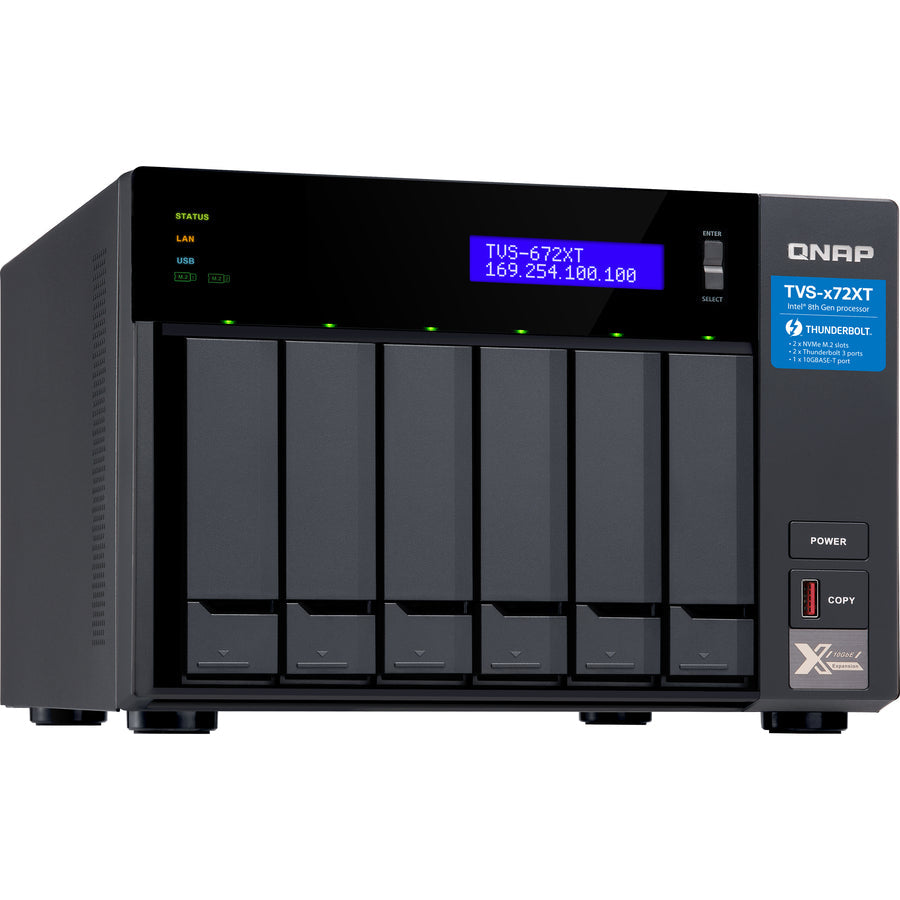

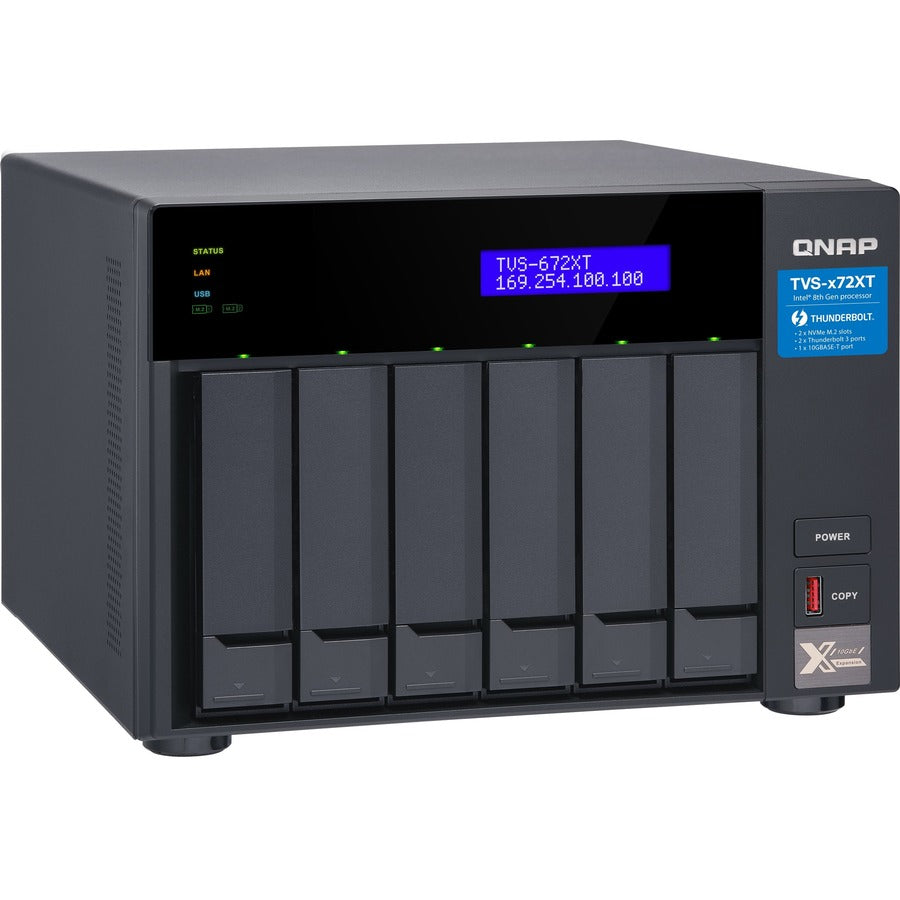

QNAP TVS-672XT-I3-8G SAN/NAS/DAS Storage System
Breakthrough performance and outstanding connectivity with 10GbE, Thunderbolt 3, and M.2 PCIe NVMe SSD slots
Powered by an 8th generation Intel® Core™ processor, the high-performance TVS-672XT NAS features both 10GBASE-T and Thunderbolt™ 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-672XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-672XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!
-
High-speed Thunderbolt™ 3 with SMB protocol, allowing Mac® and Windows® users to collaborate on media editing.
-
5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices.
-
PCIe expandability allows the use of an entry-level graphics card to accelerate NAS video processing and GPU computing.
-
Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency.
-
4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output.
-
Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
Fast and flexible Thunderbolt™ 3 and 10GBASE-T connectivity
The TVS-672XT adopts the powerful 8th generation Intel® Core™ i3 8100T quad-core 3.1 GHz processor with 8 GB dual-channel DDR4 memory (upgradable to 32 GB) to deliver outstanding performance. It provides two Gigabit and one 5-speed 10GBASE-T port (10G/5G/2.5G/1G/100M), supports SATA 6Gb/s drives, and features AES-NI encryption for delivering high performance while also maintaining the security of your data. You can also connect USB Type-C devices through the Thunderbolt™ 3 ports to transfer large media files across devices, providing you with a more efficient workflow.
Extend NAS functionality with a graphics card and other PCIe devices
The TVS-672XT features two PCIe Gen 3 slots (the first slot is pre-installed with a Thunderbolt™ 3 card) that allow for the usage of various expansion cards to expand application potential.
-
Graphics cards Accelerate NAS video processing and empower GPGPU tasks. GPUs can also be passed-through to virtual machines.
-
QM2 M.2 SSD/10GbE cards Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.
-
10GbE/ 40GbE adapters Enable lightning-fast throughput for bandwidth-demanding tasks such as virtualization, massive data transmission, and fast backup/restoration.
-
Wireless network cards Use the QNAP QWA-AC2600 wireless adapter with WirelessAP Station to transform the TVS-672XT into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.
Obtain performance benefits from M.2 SSD caching
Besides using 2.5-inch SSDs for caching, you can utilize the two M.2 SSD slots built in to the TVS-672XT for installing PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs with 2280 form factors (M.2 SSDs are sold separately).
- Smart and responsive Intel Core i3 3.10 ghz, now switch between multiple applications in a swift second
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Through RAID levels (0, 1, 5, 6, 10, 50, jbod), RAID provides data reliability, fault tolerance and improves overall performance
Product Type: SAN/NAS/DAS Storage System
Brand Name: QNAP
Form Factor: Tower
Manufacturer: QNAP Systems
Product Model: TVS-672XT-I3-8G
Product Name: TVS-672XT-I3-8G SAN/NAS/DAS Storage System
Manufacturer Part Number: TVS-672XT-I3-8G-US
Manufacturer Website Address: http://www.qnap.com
Package Contents:
- TVS-672XT-I3-8G SAN/NAS/DAS Storage System
- 2 x Gigabit Ethernet Cables
- 1 x 10Gbase-T Ethernet Cable
- Flat Head Screw (for 2.5" HDD )
- Flat Head Screw (for 3.5" HDD)
- 2 x M.2 SSD Heatsink
- 1 x Power Cord
- Quick Installation Guide (QIG)
