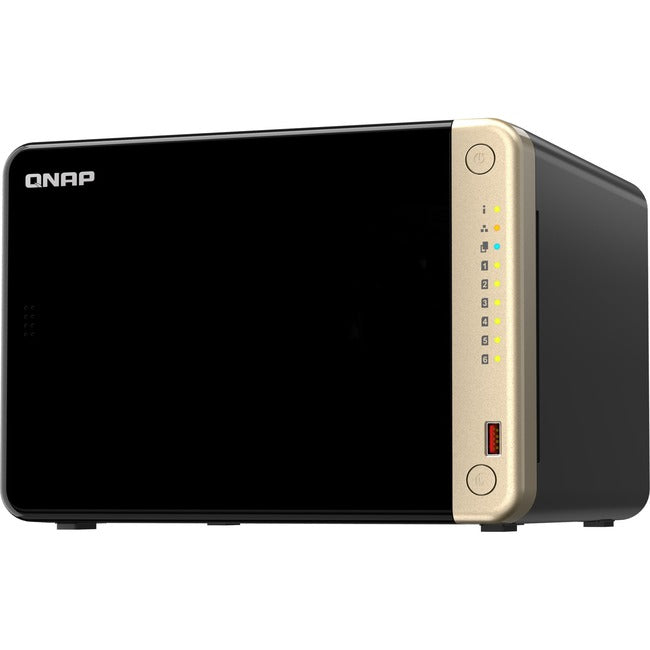

QNAP Turbo NAS TS-664-4G SAN/NAS Storage System
TS-664 | Intel quad-core dual-port 2.5GbE NAS supports M.2 SSD caching and PCIe expandability for high-speed transmission and Virtualization applications
Powered by an Intel® Celeron® N5105/N5095, quad-core processor (burst up to 2.9GHz), the TS-664 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-664 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-664 comes with 4GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.
Powered by an Intel® Celeron® N5105/N5095, quad-core processor (burst up to 2.9GHz), the TS-664 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-664 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-664 comes with 4GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.
-
2.5GbE connectivity Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
-
M.2 SSD caching Dual M.2 PCIe Gen 3 slots enable NVMe SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.
-
PCIe expandability Install a PCIe Gen3 x2 card to expand the core functionality of the TS-664, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.
-
License-free virtualized environment Host multiple containerized apps to run a wide range of applications and services.
-
Drives Auto-Tiering Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.
-
4K HDMI 4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience.
Quad-core high performance and up to 16GB RAM
The TS-664 is powered by an Intel Celeron N5105 / N5095 quad-core processor and supports up to 16 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.
- SAN/NAS Storage System offers maximum storage efficiency and convenience
- Can hold 6 HDDs simultaneously
- Through RAID levels (0, 1, 5, 6, 10, 50, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for dependable data storage with maximum usability
- Through RAID levels (0, 1, 5, 6, 10, 50, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Tower form factor is least expensive and highly configurable with maximum dependability
- 2.5 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- It's qts 5.0.1 operating system offers powerful platform to efficiently run routine applications
Product Type: SAN/NAS Storage System
Additional Warranty Information: The TS-664 is backed by a 3-year warranty at no additional cost.
Country Of Origin: Taiwan
Product Series: TS-x64
Brand Name: QNAP
Form Factor: Tower
Manufacturer: QNAP Systems
Product Model: TS-664-4G
Product Name: Turbo NAS TS-664-4G SAN/NAS Storage System
Product Line: Turbo NAS
Manufacturer Part Number: TS-664-4G-US
Manufacturer Website Address: http://www.qnap.com
Package Contents:
- Turbo NAS TS-664-4G SAN/NAS Storage System
- 1 x Ethernet Cable
- 1 x Power Cord
- 18 x Flat Head Screw (for 3.5" HDD)
- 18 x Flat Head Screw (for 2.5" HDD)
- Quick Installation Guide (QIG)
- AC Adapter
Limited Warranty: 3 Year
Weight (Approximate): 6.39 lb
