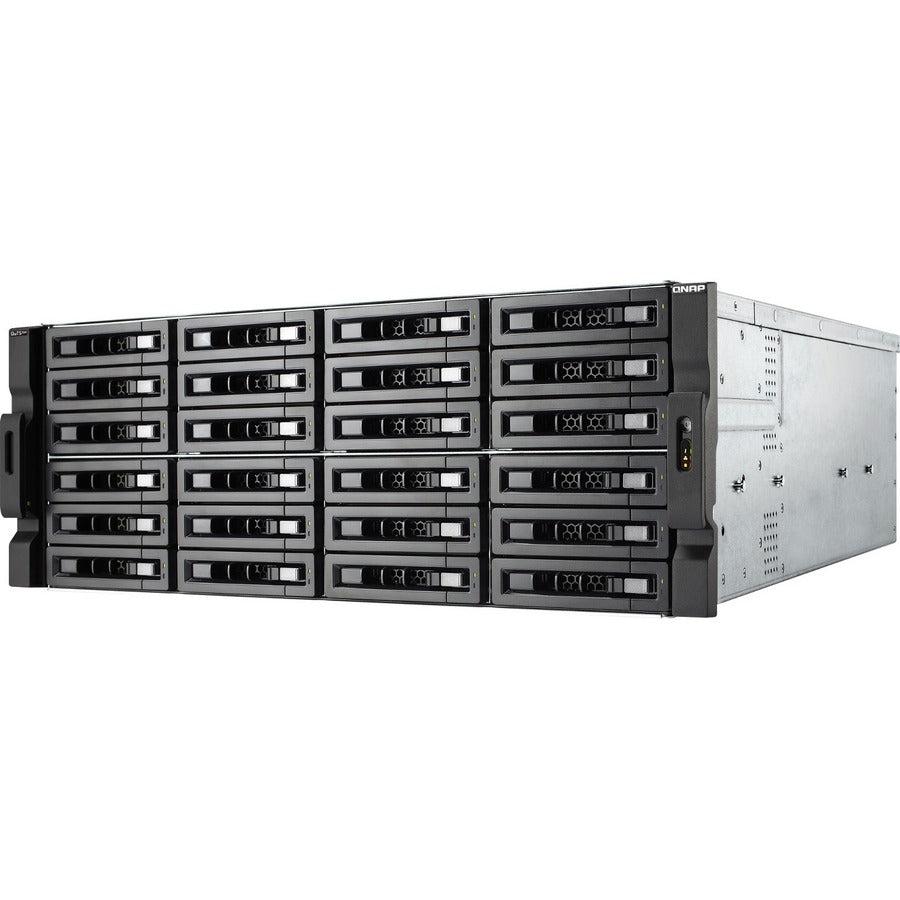

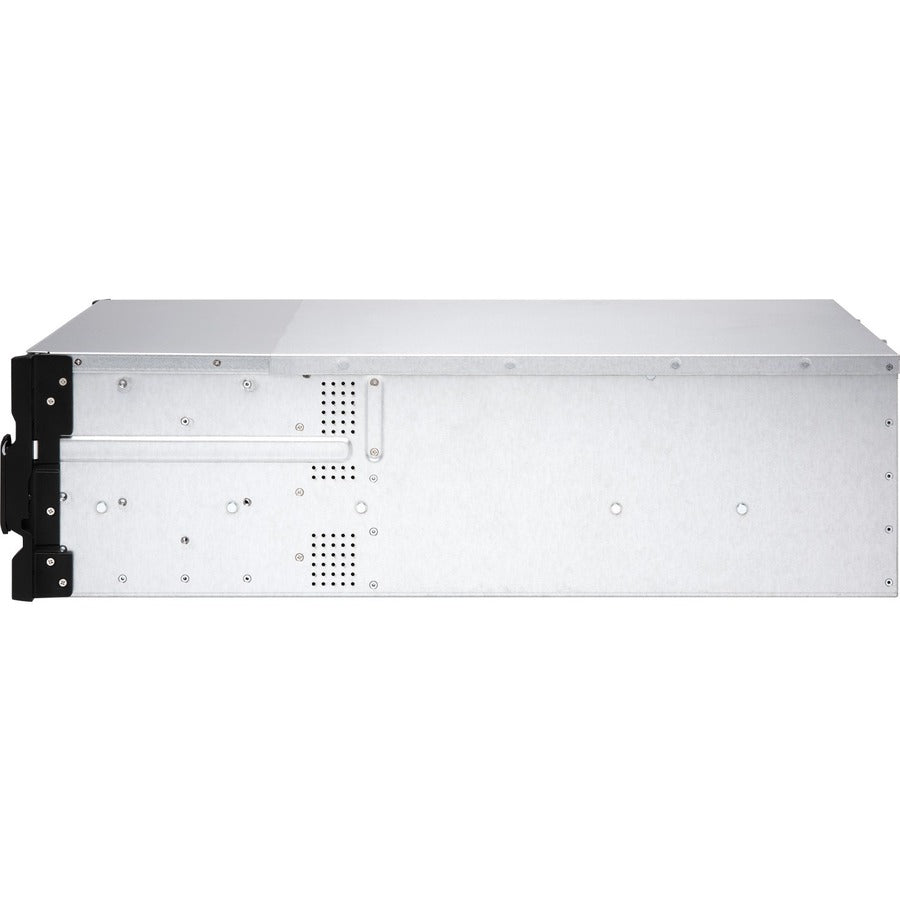

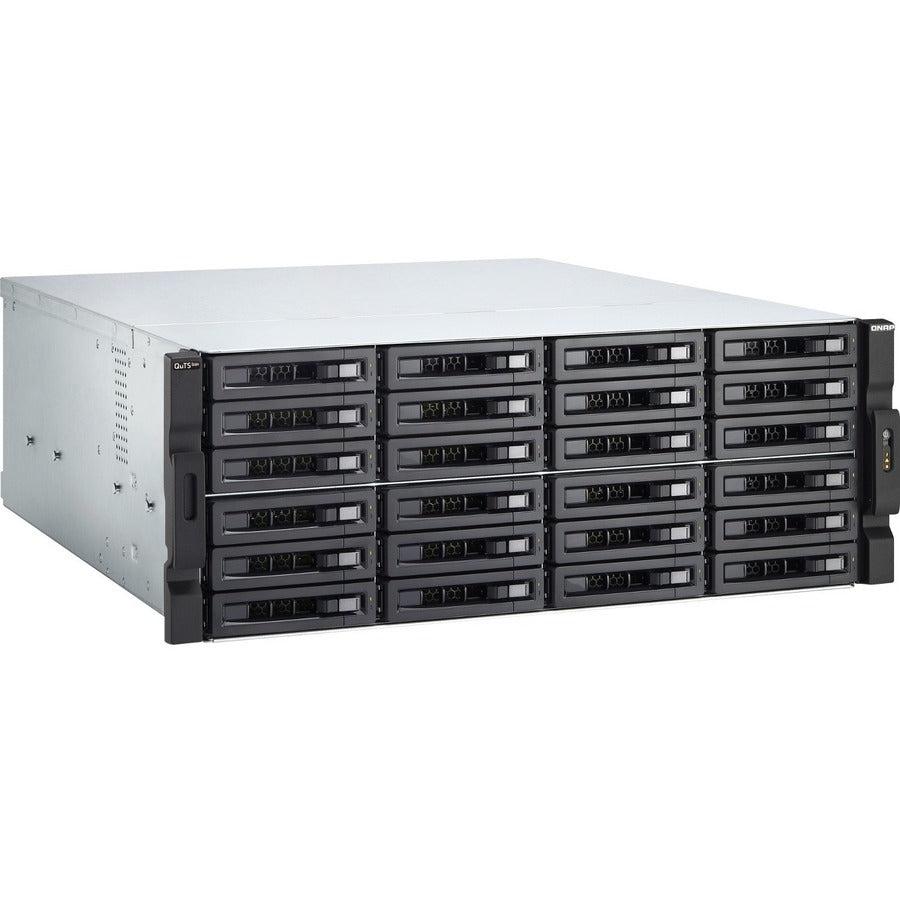

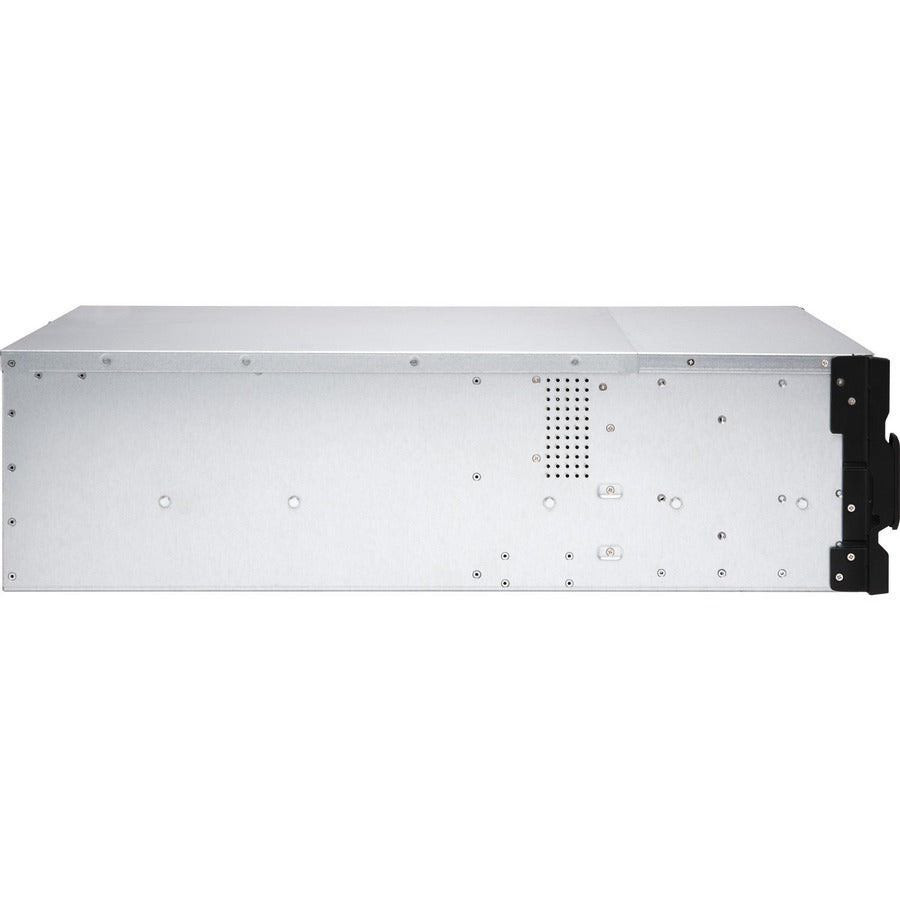

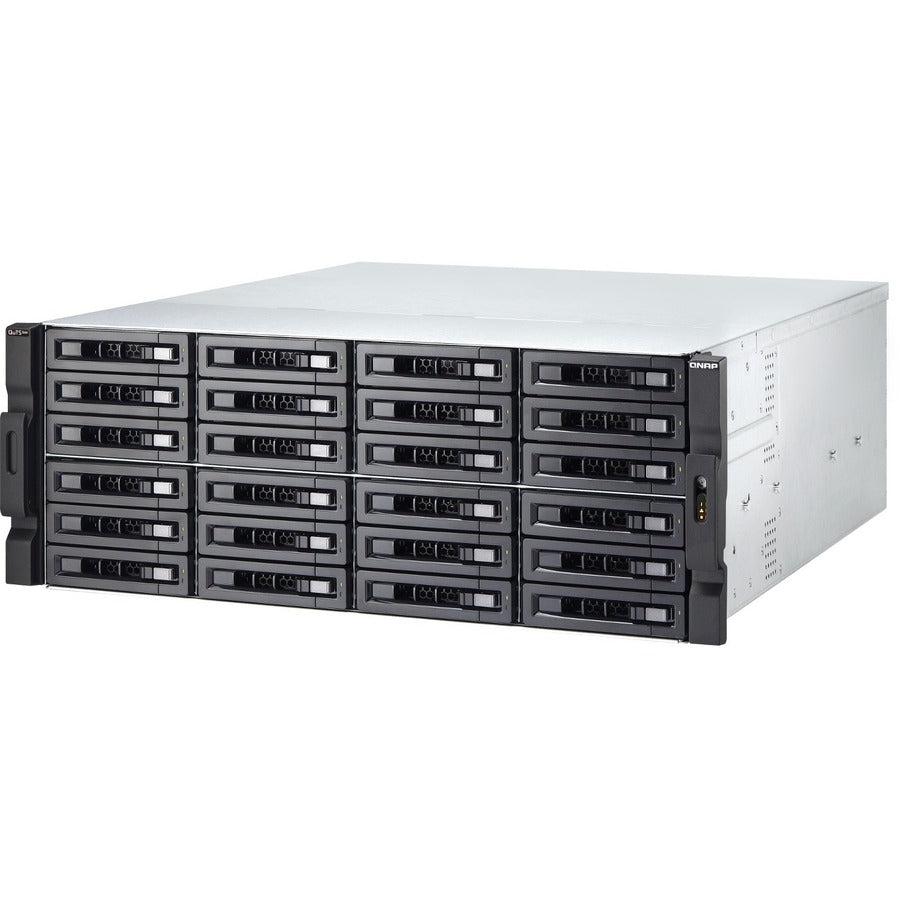

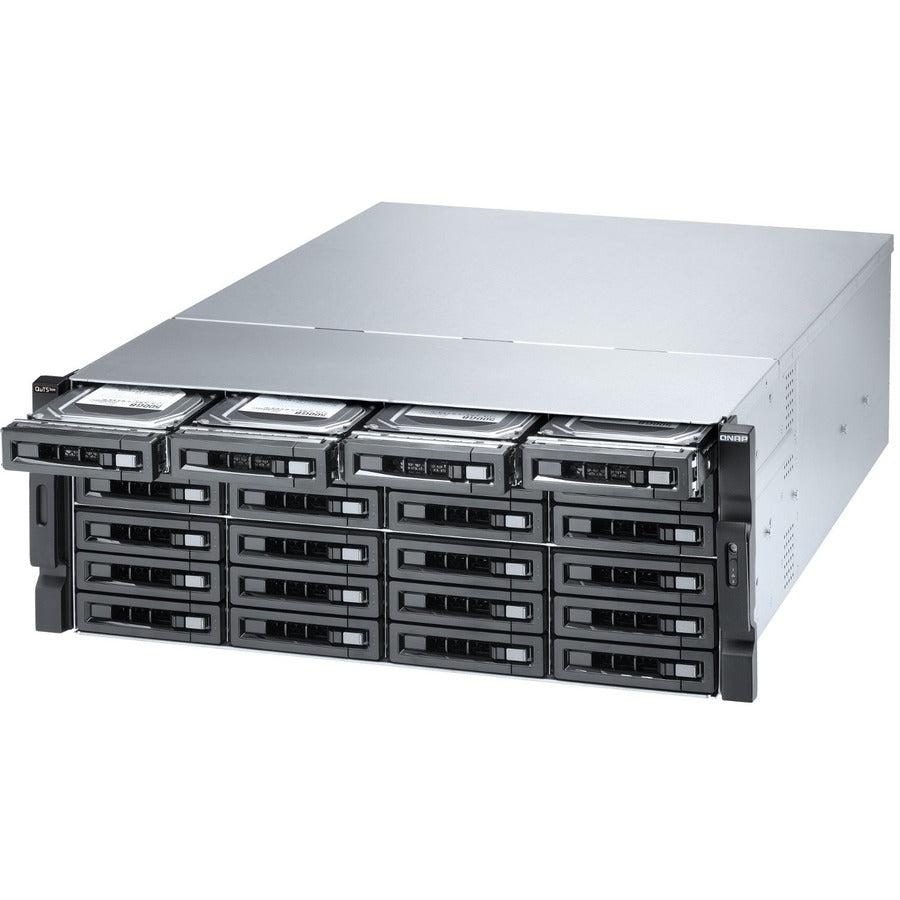

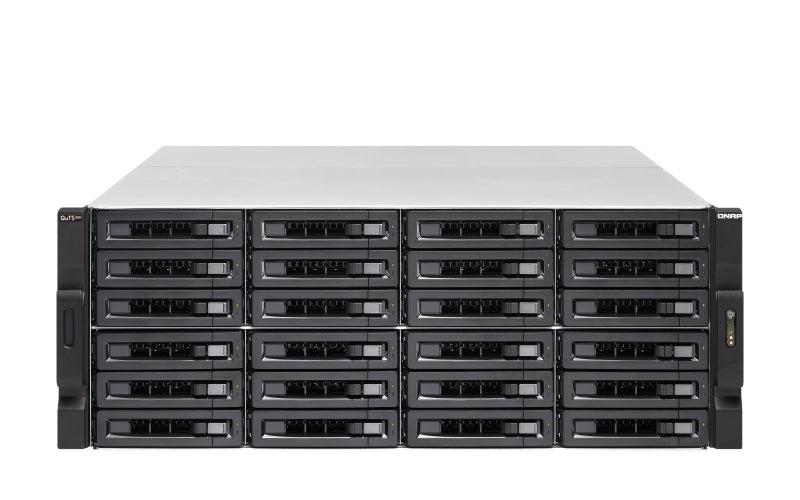

Qnap Ts-H2483Xu-Rp Nas Rack (4U) Ethernet Lan Black E-2236

4U, Intel Xeon E-2236 (6x 3.4GHz), 128GB DDR4, 5GB Flash, 24x 2.5"/3.5" SATA, 6x RJ-45, 2x 10GbE SFP+, 2x Type-C USB 3.2 Gen2, 4x Type-A USB 3.2 Gen2

QNAP TS-h2483XU-RP. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Processor family: Intel Xeon E, Processor manufacturer: Intel, Processor model: E-2236. Internal memory: 128 GB, Internal memory type: DDR4, Maximum RAM supported: 128 GB. Ethernet LAN data rates: 1000,10000 Mbit/s. Fiber optic connector: SFP+

The QuTS hero NAS TS-h2483XU-RP is powered by an Intel® Xeon® E processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory to deliver server-grade performance with dependable reliability. Running the ZFS-based QuTS hero operating system, the TS-h2483XU-RP supports near-limitless snapshots, real-time SnapSync, block-level inline data deduplication, and inline data compression. The TS-h2483XU-RP helps your business achieve reliable service-level agreement performance, whether as a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.

Intel® Xeon® E processors deliver extraordinary performance
Powered by an Intel® Xeon® E-2236 6 cores/12 threads 3.4 GHz processor (Burst up to 4.8 GHz), the TS-h2483XU-RP has enormous processing power to drive virtual machine performance. Combined with 128 GB DDR4 ECC memory and a redundant power supply, the TS-h2483XU-RP delivers cost-effective server-grade performance for complex multitasking and dependable reliability in enterprise IT environments.

10GbE connectivity for high-speed data transfer
The TS-h2483XU-RP provides four Gigabit RJ45 ports, and also supports 10GbE connectivity with a pre-installed dual-port 10GBASE-T network expansion card and a dual-port 10GbE SFP+ SmartNIC to satisfy bandwidth-demanding applications (including virtualization, large file sharing, and high-speed backup and recovery). QNAP also offers numerous options of managed and unmanaged 10GbE switches with 10GbE SFP+/RJ45 and Multi-Gigabit NBASE-T™ support, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.

Abundant I/O capability with PCIe expansion
The TS-h2483XU-RP features 5 PCIe slots that enable using numerous expansion cards for greater application potential.

ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Tiered storage configuration for a QuTS hero NAS
Follow these steps to acquire optimal storage efficiency and performance for QuTS hero.

Inline data deduplication, compression, and compaction drives Big Data storage efficiency
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h2483XU-RP optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.

Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

All-in-one virtual machine and container hosting solution
You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

License-free VMware® and Hyper-V backup appliance
With Hyper Data Protector, the TS-h2483XU-RP becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 service operation.

Move business data to the cloud and enjoy low latency access to cloud-based data
The TS-h2483XU-RP perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the TS-h2483XU-RP, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.

High-performance, reliable storage solution for virtualization
- Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments.
- Supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.

Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h2483XU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
