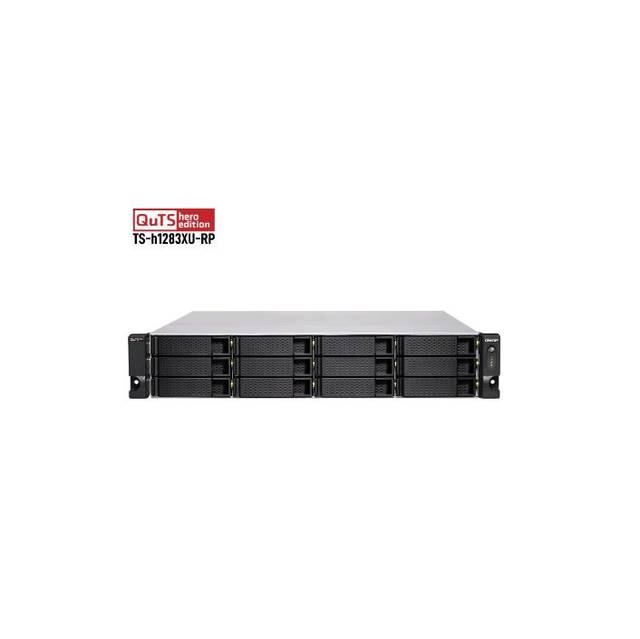

Name: Qnap Ts-H1283Xu-Rp-E2236-128G-Us Intel Xeon E-2236 3.4Ghz 128Gb Ddr4 12-Bay 2U Rackmount Quts Hero Nas
Brand: QNAP
SKU: TS-H1283XU-RP-E2236-128G-US
Price: 10358.00 CAD
Availability: InStock

Qnap Ts-H1283Xu-Rp-E2236-128G-Us Intel Xeon E-2236 3.4Ghz 128Gb Ddr4 12-Bay 2U Rackmount Quts Hero Nas

Roll over image to zoom in Click on image to zoom

Mfr Part Number:TS-H1283XU-RP-E2236-128G-US
Hardware:
- CPU:Intel Xeon E-2236 6-core/12-thread 3.4 GHz processor (burst up to 4.8 GHz)
- CPU Architecture:64-bit x86
- Floating Point Unit:Yes
- Encryption Engine:Yes(AES-NI)
- System Memory:128 GB UDIMM DDR4 ECC (4 x 32GB)
- Maximum Memory:128 GB (4 x 32 GB)
- Memory Slot: 4 x Long-DIMM DDR4
- Flash Memory:5GB (Dual boot OS protection)
- Drive Bay:12 x 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive Compatibility:3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
- Hot-swappable:Yes
- SSD Cache Acceleration Support:Yes
- LAN Port:
  - 4x Gigabit Ethernet Port (RJ45)
  - 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port
- Wake on LAN (WOL):Yes
- Jumbo Frame:Yes
- PCIe Slot: 4

  - Slot 1: PCIe Gen 2 x4 (PCH)

  - Slot 2: PCIe Gen 3 x8 (CPU)

  - Slot 3: PCIe Gen 3 x4 (CPU)

  - Slot 4: PCIe Gen 3 x4 (CPU)
- USB 3.2 Gen 2 (10Gbps) Port:
  - 2 x Type-C USB 3.2 Gen 2 10Gbps
  - 4 x Type-A USB 3.2 Gen 2 10Gbps
- LED Indicators: HDD 1-12, Status, LAN, storage expansion port status
- Buttons:Power, Reset
- Operating temperature:0 - 40 C (32F - 104F)
- Storage Temperature:-20 - 70C (-4F - 158F)
- Relative Humidity:5-95% RH non-condensing, wet bulb: 27C (80.6F)
- Sound Level:40.6 db(A)
- System Warning:Buzzer
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory:10000
Operating System:QuTS hero 4.5.0 (embedded Linux)
Supported File Systems:
- Internal hard drive (ZFS)
- External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT)
Network & Virtual Switch:
- TCP/IP: Dual stack (IPv4 and IPv6)
- Jumbo frame
- DHCP server and client
- RADVD
- USB Wi-Fi adapter
- Static Route
- NCSI (Network Connectivity Status Indicator)
- DDNS settings (Customize & Multiple Service )
- Port trunking (Link aggregation, supports 7 modes)
  - failover
  - Load balancing
- Virtual switch
  - Network Address Translation (NAT)
  - Spanning Tree Protocol (STP)
  -Thunderbolt to Ethernet converter (T2E)
  - Software-Defined Switch mode
Security:
- Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
- Host access control for shared folders (CIFS/SMB)
- AES 256-bit folder-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
- 256-bit external drive encryption (AES)
- Importing of SSL certificates from Lets Encrypt
- Instant alerts through email, SMS, push service, audio, and LCD panel
- 2-step verification
Storage Management:
- RAID Hot Spare and Global Hot Spare
- RAID Rebuild Speed Customization
- Pool Over-provisioning
- SSD TRIM
- Disk auto S.M.A.R.T. data migration
- Disk bad block scan and S.M.A.R.T test.
- Disk bad block recovery
- Disk secure data erase
- Ironwolf Health Management
- Checksum for end-to-end data integrity
- Silence error detection and self-healing
- Pool scrub for data verification
- Share folder quota management
- Online share expansion
- Share type conversion
- Share shrink
- Inline deduplication for shared folder/LUN
- Inline compression for shared folder/LUN
- WORM (Write Once Read Many) for shared folder
- Storage expansion using QNAP expansion units
- JBOD enclosure roaming
- SSD read-only cache
- SSD read cache and write log
- Supported RAID types
  - Storage pool with RAID 0, 1, 5, 6, 10, 50, 60, Triple Parity, Triple Mirror
- Storage pools
  - The maximum single storage pool size is 1 PB
  - The maximum storage pool number is 128
- Storage space utilization
  - The maximum single shared folder/ LUN capacity is 1 PB
  - The maximum shared folder number is 256
- Snapshots: The maximum number of snapshots varies depending on installed memory

  - Share and LUN snapshots

  - Snapshot Dashboard

  - Snapshot Manager

  - Snapshot local restore and revert

  - Snapshot Clone

  - Snapshot Replica and Snapshot Vault

  - Snapshot remote restore and revert

  - Unified Snapshot Directory

  - Support for Windows Previous Versions (CIFS/SMB)

  - Snapshot Agent for Microsoft Windows and VMware vSphere

  - The maximum number of system snapshots is 65,536

  - The minimum Snapshot Interval is 1 min
Form Factor:2U Rackmount
Power Supply Unit:500W(x2), 100-240V
Power Consumption -Operating Mode, Typical:105.12 W
Fan:System fan: 2 x 60mm, 12VDC
Dimensions (HxWxD):3.48 18.98 22.13 inch
Weight (Net):25.9 lbs
All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers

General Information

UPC	885022018673
