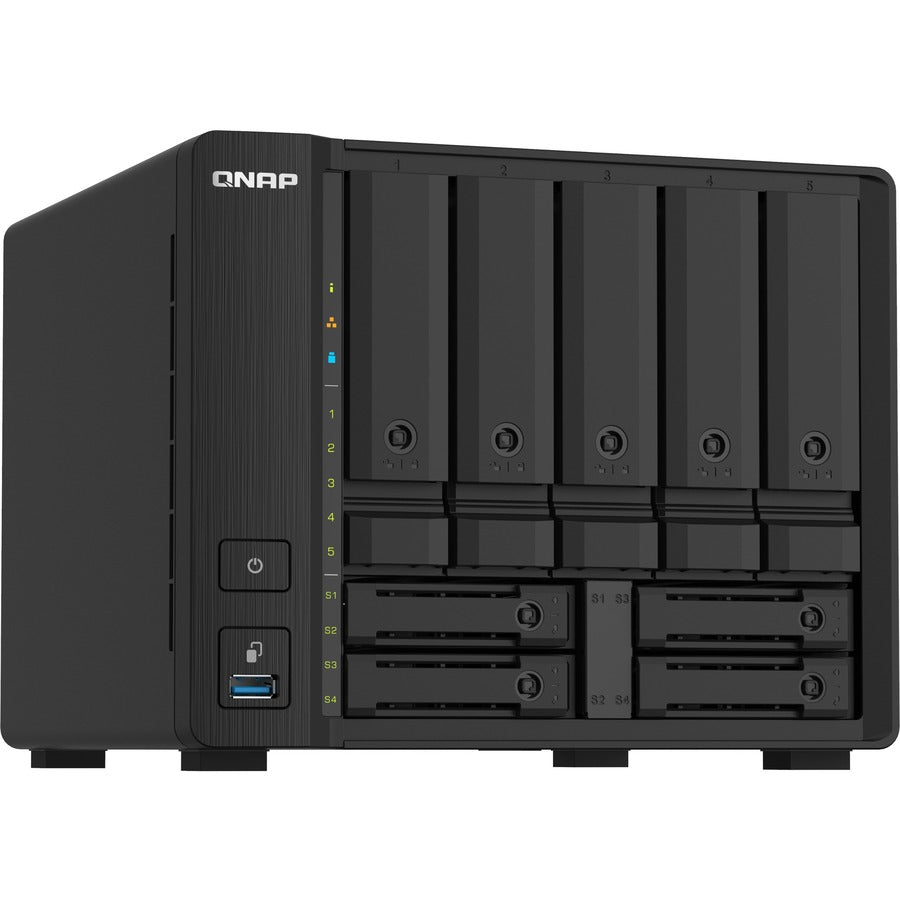

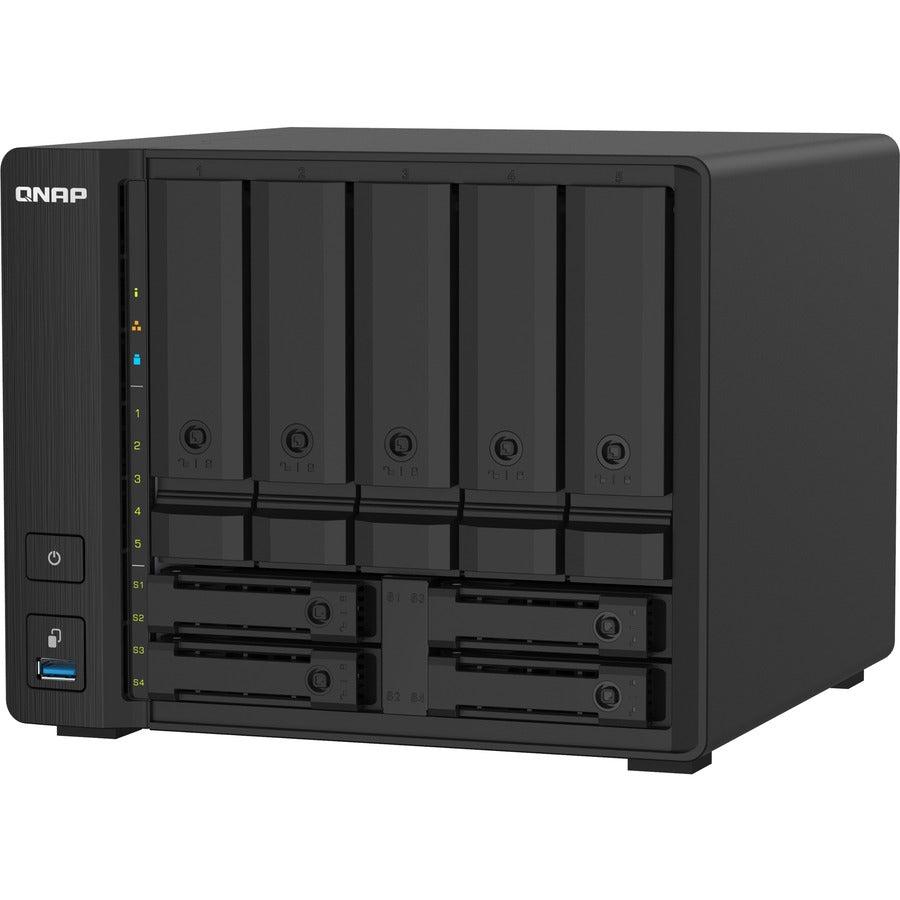

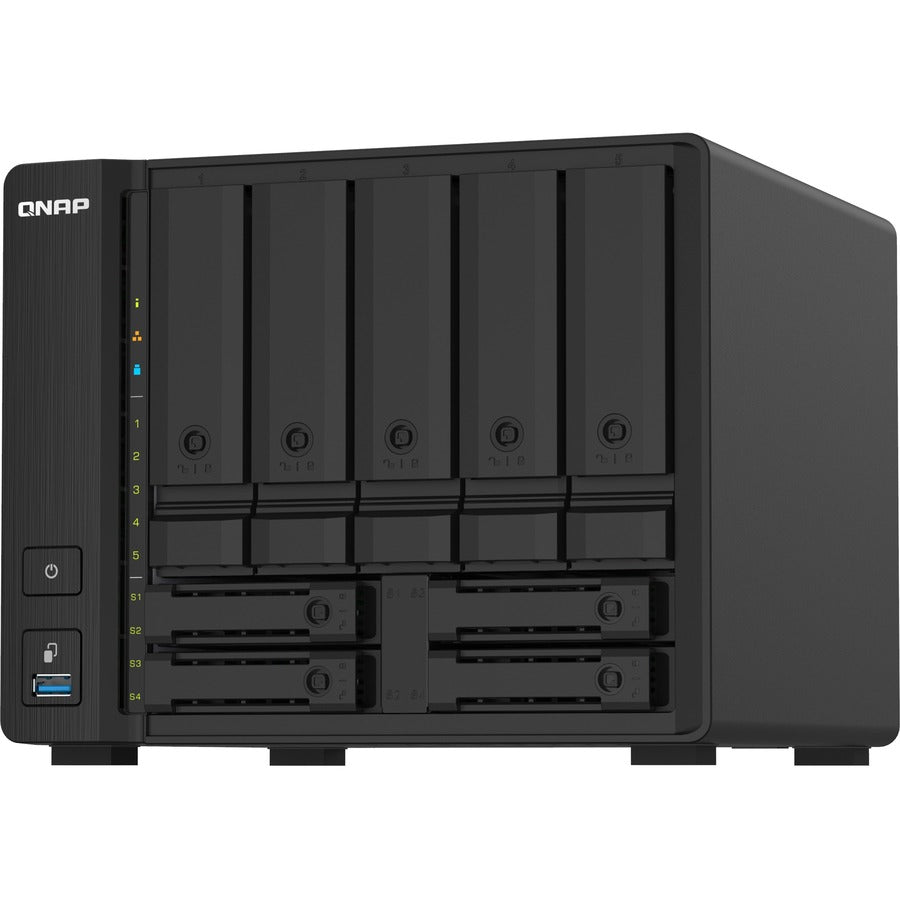

Name: Qnap Ts-932Px-4G-Us Annapurnalabs Alpine Al324 Arm Cortex-A57 1.7Ghz/ 4Gb Ddr4/ 10Gbe Sfp+/ 9 Sata3/ Usb3.2/ 9 Bay Desktop Nas For Smbs
Brand: QNAP
SKU: TS-932PX-4G-US
Price: 1010.00 CAD
Availability: InStock

Qnap Ts-932Px-4G-Us Annapurnalabs Alpine Al324 Arm Cortex-A57 1.7Ghz/ 4Gb Ddr4/ 10Gbe Sfp+/ 9 Sata3/ Usb3.2/ 9 Bay Desktop Nas For Smbs

Roll over image to zoom in Click on image to zoom

Mfr Part Number: TS-932PX-4G-US
Hardware:
- CPU: AnnapurnaLabs Alpine AL324 ARM Cortex-A57 quad-core 1.7GHz processor
- CPU Architecture: 64-bit ARM
- Floating Point Unit: Yes
- Encryption Engine: Yes
- System Memory: 4 GB SODIMM DDR4 (1 x 4 GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x SO-DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 5x 3.5-inch+ 4 x 2.5-inch SATA 6Gb/s
- Drive Compatibility:
  - 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  - 2.5-inch bays: 2.5-inch solid state drives
- Hot-swappable: Yes
- LAN Port:
  - 2 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M) (also support 10M)
  - 10 Gigabit Ethernet Port: 2 x 10GbE SFP+
- Wake on LAN (WOL): Yes
- Jumbo Frame: Yes
- USB: 3 x USB 3.2 Gen 1 port
- LED Indicators: System Status, LAN, USB, HDD1~5, SSD1-4
- Buttons: Power, Reset, USB Copy
- Operating temperature: 0 - 40 C (32F - 104F)
- Storage Temperature: -20 - 70C (-4F - 158F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27C (80.6F)
- Sound Level: 18.6 db(A)
- System Warning: Voice prompts or Buzzer
- Kensington Security Slot: Yes
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 700
Operating System: QTS 4.4.2 (embedded Linux)
Supported File Systems:
- Internal hard drive (EXT4)
- External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT)
Network & Virtual Switch:
- TCP/IP: Dual stack (IPv4 and IPv6)
- Jumbo frame
- Port trunking (Link aggregation)

  - failover

  - Load balancing
- DHCP server and client
- RADVD
- USB Wi-Fi adapter
- Virtual switch

  - Network Address Translation (NAT)

  - Spanning Tree Protocol (STP)

  - Software-Defined Switch mode
- Static Route
- NCSI (Network Connectivity Status Indicator)
- DDNS settings (Customize & Multiple Service)
Security:
- Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
- Host access control for shared folders (CIFS/SMB)
- AES 256-bit volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
- 256-bit external drive encryption (AES)
- Importing of SSL certificates from Lets Encrypt
- Instant alerts through email, SMS, push service, and audio
- 2-step verification
Storage Management:
- Supported RAID types: RAID 0, 1, 5, 6, 10, 50, 60, JBOD, Single
- RAID Hot Spare and Global Hot Spare
- RAID Rebuild Speed Customization
- Online RAID capacity expansion
- Online RAID level migration
- SSD RAID Over-provisioning
- SSD RAID Performance evaluation (with SSD Profiling Tool)
- SSD TRIM for RAID 0,1,10
- Bitmap support
- Disk auto S.M.A.R.T. data migration
- Disk bad block scan and S.M.A.R.T test.
- Disk bad block recovery
- Disk secure data erase
- Ironwolf Health Management
- Storage pools
- Qtier Data Tiering Technology

  - Automatic or scheduled data tiering

  - IO-aware auto tiering

  - Shared folder tiering on demand
- Flexible volumes and LUNs with thin provisioning and space reclaiming

  - If the NAS has less than 4GB RAM, then the maximum volume capacity is 144TB.

  - If the NAS has at least 4GB RAM, then the maximum volume capacity is 250TB.
- Online volume expansion
- Volume type conversion
- Volume shrink
- Storage space utilization
- Snapshots-The maximum number of snapshots varies depending on installed memory.

  - Volume and LUN snapshots

  - Snapshot Dashboard

  - Snapshot Manager

  - Snapshot local restore and revert

  - Snapshot Clone

  - Snapshot Replica and Snapshot Vault

  - Snapshot remote restore and revert

  - Unified Snapshot Directory

  - Support for Windows Previous Versions (CIFS/SMB)

  - Snapshot Agent for Microsoft Windows and VMware vSphere
- Storage expansion using QNAP expansion units
- JBOD enclosure roaming
- SSD read-only and read-write cache
- SSD write-only cache
Form Factor: Tower
Power Supply Unit: External, 120 W, AC 100 to 240 V
Fan: 1 x 140mm, 12VDC
Dimensions (HxWxD): 7.19 8.84 8.82 inch
Weight (Net): 7.47 lbs
All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers

General Information

Manufacturer	QNAP Systems
Manufacturer Part Number	TS-932PX-4G-US
Manufacturer Website Address	http://www.qnap.com
Brand Name	QNAP
Product Model	TS-932PX-4G
Product Name	Compact 9-bay NAS with 10GbE SFP+ and 2.5GbE for Smoother File Applications
Product Type	SAN/NAS Storage System
UPC	885022019984

Processor

Processor Manufacturer	Annapurna Labs
Processor Type	Alpine
Processor Model	AL-324
Processor Core	Quad-core (4 Core)
Processor Speed	1.70 GHz

Ethernet Technology	10 Gigabit Ethernet

Total Number of USB Ports	3
Number of USB 3.2 Gen 1 Ports	3
Network (RJ-45)	Yes

Operating System	QTS 4.4.2

Power Description

Maximum Power Supply Wattage	120 W

Height	7.2"
Width	8.8"
Depth	8.8"
Weight (Approximate)	7.47 lb

Miscellaneous

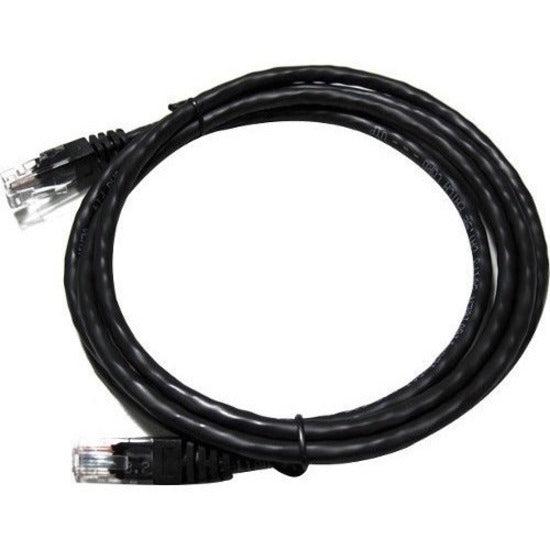

Package Contents	Compact 9-bay NAS with 10GbE SFP+ and 2.5GbE for Smoother File Applications 1 x Ethernet Cable AC Adapter 1 x Power Cord 32 x Flat Head Screws (for 3.5" HDD) 24 x Flat Head Screws (for 2.5" HDD) Quick Installation Guide (QIG) 2 x Drive Tray Keys

Warranty

Limited Warranty	2 Year
