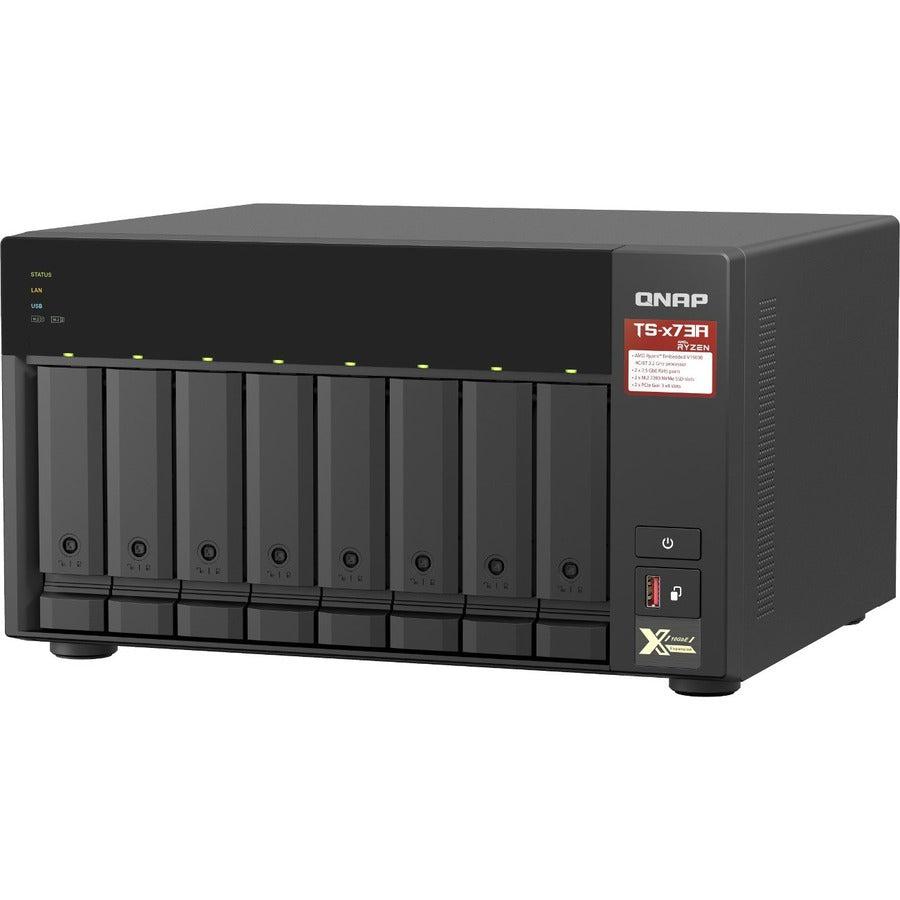

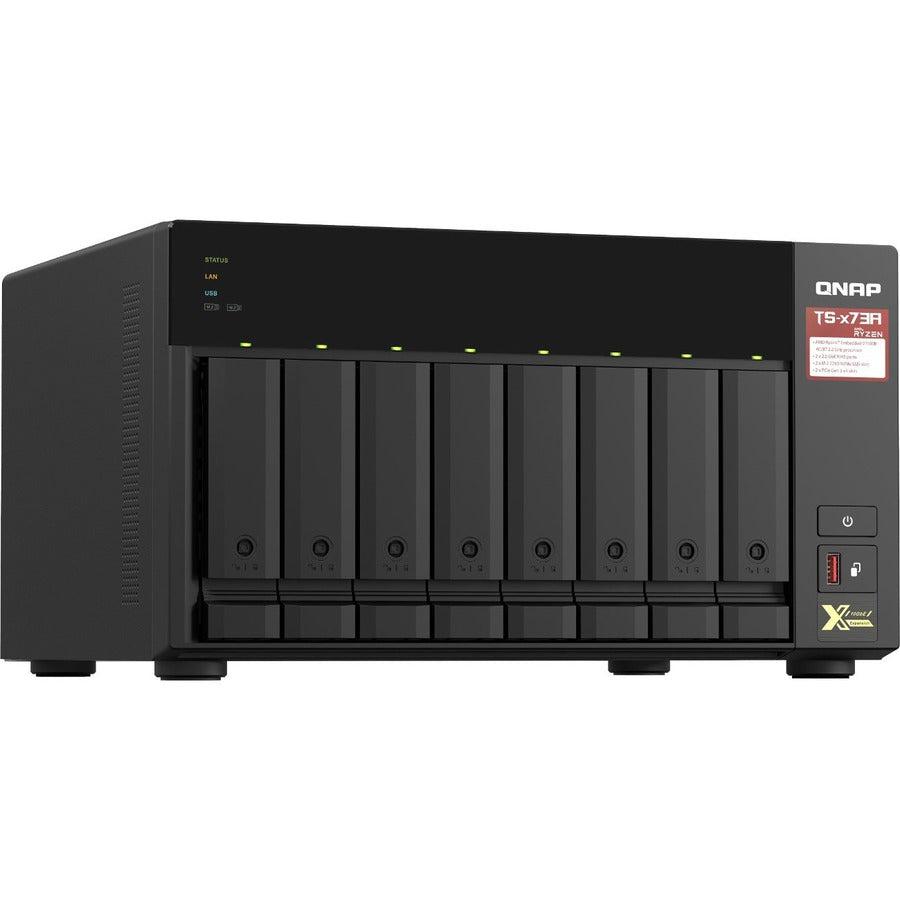

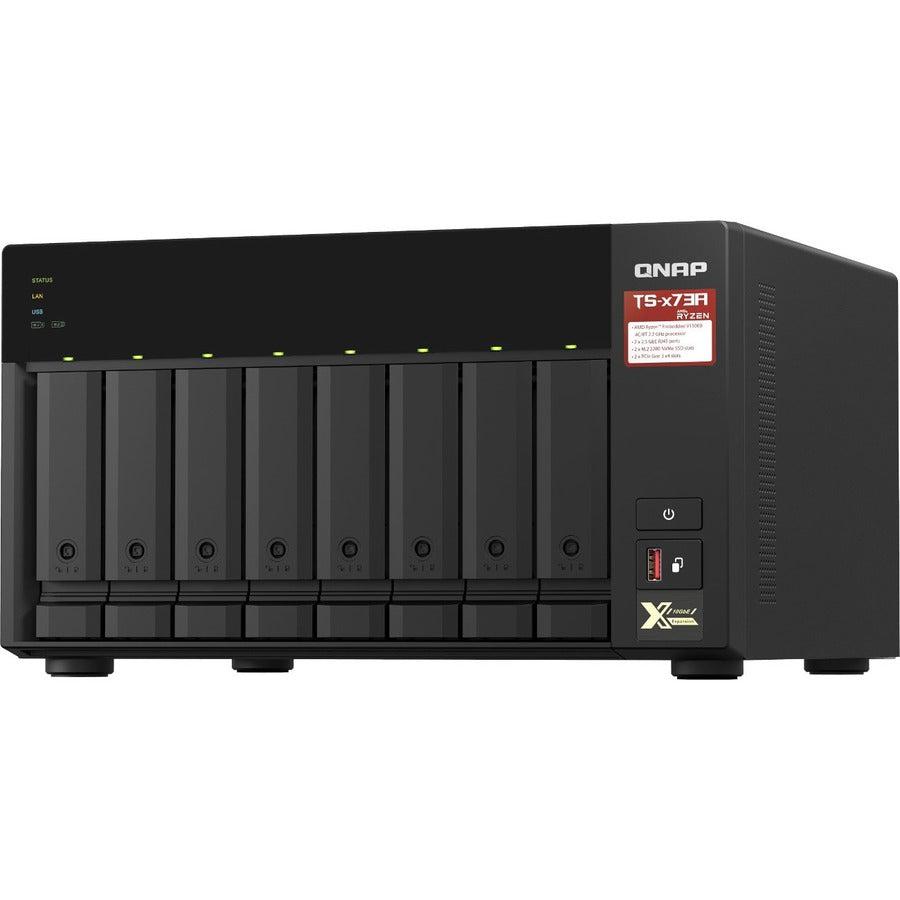

Name: Qnap Ts-873A-8G-Us Amd Ryzen Embedded V1500B 2.2Ghz/ 8Gb Ddr4/ 8-Bay Nas Supports M.2 Nvme Ssd And Pcie Expansion
Brand: QNAP
SKU: TS-873A-8G-US
Price: 1607.00 CAD
Availability: InStock

Qnap Ts-873A-8G-Us Amd Ryzen Embedded V1500B 2.2Ghz/ 8Gb Ddr4/ 8-Bay Nas Supports M.2 Nvme Ssd And Pcie Expansion

Roll over image to zoom in Click on image to zoom

Mfr Part Number: TS-873A-8G-US
Hardware:
- CPU: AMD Ryzen Embedded V1500B quad-core 2.2 GHz processor
- CPU Architecture: 64-bit x86
- Graphic Processors: Optional via a PCIe adapter
- Floating Point Unit: Yes
- Encryption Engine: AES-NI
- Hardware-accelerated Transcoding: Optional via a PCIe adapter
- System Memory: 8 GB SO-DIMM DDR4 (1 x 8 GB)
- Maximum Memory: 64 GB (2 x 32 GB)
- Memory Slot: 2 x SO-DIMM DDR4, Support ECC memory
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
- Hot-swappable: Yes
- M.2 SSD Slot: 2 x M.2 2280 PCIe Gen3 x1 slots(The M.2 SSD is not included as standard. M.2 SSD operations can easily generate excessive heat. )
- SSD Cache Acceleration Support: Yes
- LAN Port:
  - 2 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M)
  - 5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via a PCIe adapter
  - 10 Gigabit Ethernet Port: Optional via a PCIe adapter
- Wake on LAN (WOL): Yes
- Jumbo Frame: Yes
- PCIe Slot: 2

  - Slot 1: PCIe Gen 3 x4

  - Slot 2: PCIe Gen 3 x4
- USB 3.2 Gen 2 (10Gbps) Port: 3 x Type-A USB 3.2 Gen 2 10Gbps, 1 x Type-C USB 3.2 Gen 1 5Gbps
- IR Sensor: Yes (QNAP RM-IR004)
- HDMI Output: Optional via a PCIe adapter
- LED Indicators: Status/Power, USB, LAN, Drive 1-8, M.2 SSD 1-2
- Buttons: Power, Reset, USB Auto Copy
- Operating temperature: 0 - 40 C (32F - 104F)
- Storage Temperature: -20 - 70C (-4F - 158F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27C (80.6F)
- Sound Level: 23 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 2000
Operating System: QTS 4.5.2 (embedded Linux)
Supported File Systems:
- Internal hard drive (EXT4)
- External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT)
Network & Virtual Switch:
- TCP/IP: Dual stack (IPv4 and IPv6)
- Jumbo frame
- Port trunking (Link aggregation)

  - Failover

  - Load balancing
- DHCP server and client
- RADVD
- USB Wi-Fi adapter
- Virtual switch

  - Network Address Translation (NAT)

  - Spanning Tree Protocol (STP)

  - Software-Defined Switch mode
- Static Route
- NCSI (Network Connectivity Status Indicator)
- DDNS settings (Customize & Multiple Service )
Security:
- Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
- Host access control for shared folders (CIFS/SMB)
- AES 256-bit folder-based and volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
- AES 256-bit volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
- 256-bit external drive encryption (AES)
- Importing of SSL certificates from Lets Encrypt
- Instant alerts through email, SMS, and push service
- 2-step verification
Storage Management:
- Supported RAID types

  - RAID 0, 1, 5, 6, 10, 50, 60, JBOD, Single
- RAID Hot Spare and Global Hot Spare
- RAID Rebuild Speed Customization
- Online RAID capacity expansion
- Online RAID level migration
- SSD RAID Over-provisioning
- SSD RAID Performance evaluation (with SSD Profiling Tool)
- SSD TRIM for RAID 0,1,10
- Bitmap support
- Disk auto S.M.A.R.T. data migration
- Disk bad block scan and S.M.A.R.T test
- Disk bad block recovery
- Disk secure data erase
- Ironwolf Health Management
- Storage pools

  - The maximum single storage pool size is 308 TB

  - The maximum storage pool number is 128
- Qtier Data Tiering Technology

  - Automatic or scheduled data tiering

  - IO-aware auto tiering

  - Shared folder tiering on demand
- Flexible volumes and LUNs with thin provisioning and space reclaiming

  - The maximum single volume capacity is 250 TB

  - The maximum volume number is 128
- Online volume expansion
- Volume type conversion
- Volume shrink
- Storage space utilization
- Snapshots

  - Volume and LUN snapshots

  - Snapshot Dashboard

  - Snapshot Manager

  - Snapshot local restore and revert

  - Snapshot Clone

  - Snapshot Replica and Snapshot Vault

  - Snapshot remote restore and revert

  - Unified Snapshot Directory

  - Support for Windows Previous Versions (CIFS/SMB)

  - Snapshot Agent for Microsoft Windows and VMware vSphere

  - The maximum number of snapshots varies depending on installed memory.
- Storage expansion using QNAP expansion units
- JBOD enclosure roaming
- SSD read-only and read-write cache
- SSD write-only cache
- SSD Cache supports Single, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 configuration. The maximum cache size depends on installed memory. Cache capacity and RAM requirement

  - 512GB 1GB, 1TB 4GB, 2TB 8GB, 4TB 16GB
Form Factor: Tower
Power Supply Unit: 250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption-HDD Sleep Mode: 25.668 W
Power Consumption-Operating Mode, Typical: 54.067 W
Fan:
- System fan: 2 x 120mm
- CPU fan: 1 x 60mm
Dimensions (HxWxD): 7.41 12.96 11.06 inch
Weight (Net): 14.9 lbs

General Information

Manufacturer	QNAP Systems
Manufacturer Part Number	TS-873A-8G-US
Manufacturer Website Address	http://www.qnap.com
Brand Name	QNAP
Product Series	TS-x73A
Product Model	TS-873A-8G
Product Name	TS-873A-8G NAS Storage System
Product Type	NAS Storage System
UPC	885022020911

Processor

Processor Manufacturer	AMD
Processor Type	Ryzen
Processor Model	V1500B
Processor Core	Quad-core (4 Core)
Processor Speed	2.20 GHz

Ethernet Technology	2.5 Gigabit Ethernet

Total Number of USB Ports	4
Number of USB 3.2 Gen 1 Ports	1
Network (RJ-45)	Yes

Operating System	QTS/QuTS hero

Power Description

Maximum Power Supply Wattage	250 W

Height	7.4"
Width	13"
Depth	11.1"
Weight (Approximate)	14.90 lb

Miscellaneous

Package Contents	TS-873A-8G NAS Storage System 1 x Ethernet Cable 1 x Power Cord 24 x Flat Head Screws (for 3.5" HDD) 24 x Flat Head Screws (for 2.5" HDD) 2 x M.2 SSD Heatsinks 2 x Drive Tray Keys Quick Installation Guide (QIG)

Warranty

Limited Warranty	3 Year

Canada: Prices in CAD. Ships nationwide in 2–5 business days. GST/HST/PST calculated at checkout. Shipping policy.

Qnap Ts-873A-8G-Us Amd Ryzen Embedded V1500B 2.2Ghz/ 8Gb Ddr4/ 8-Bay Nas Supports M.2 Nvme Ssd And Pcie Expansion

Description

Qnap Ts-873A-8G-Us Amd Ryzen Embedded V1500B 2.2Ghz/ 8Gb Ddr4/ 8-Bay Nas Supports M.2 Nvme Ssd And Pcie Expansion
