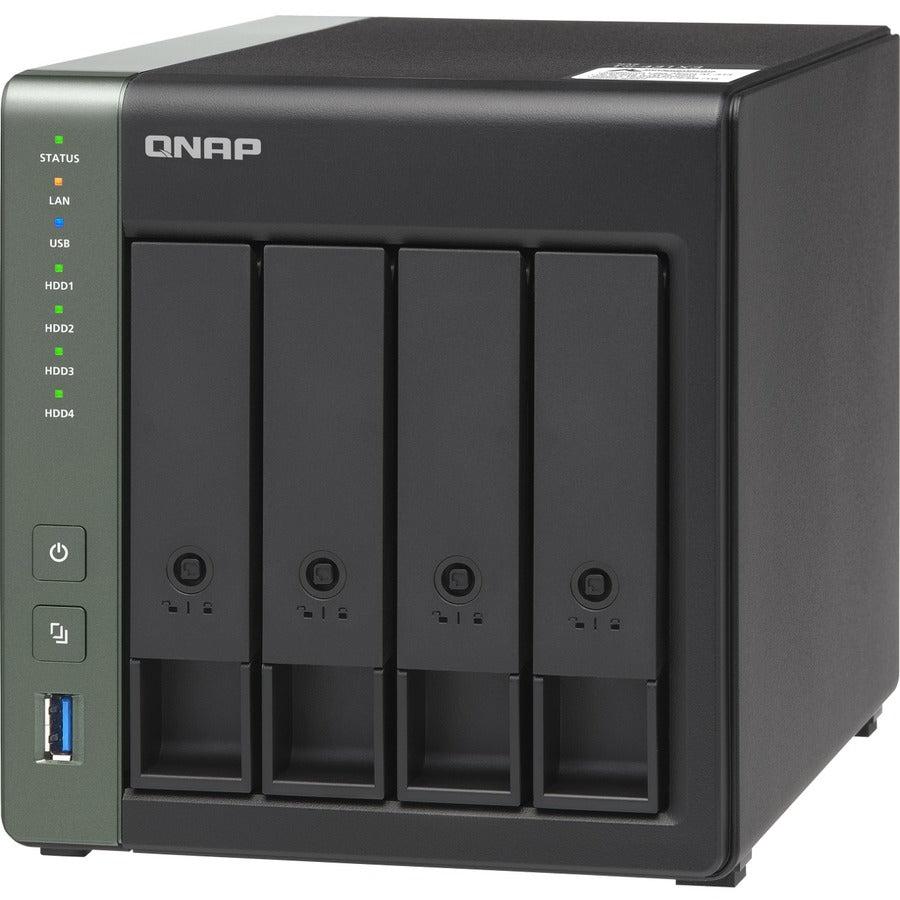

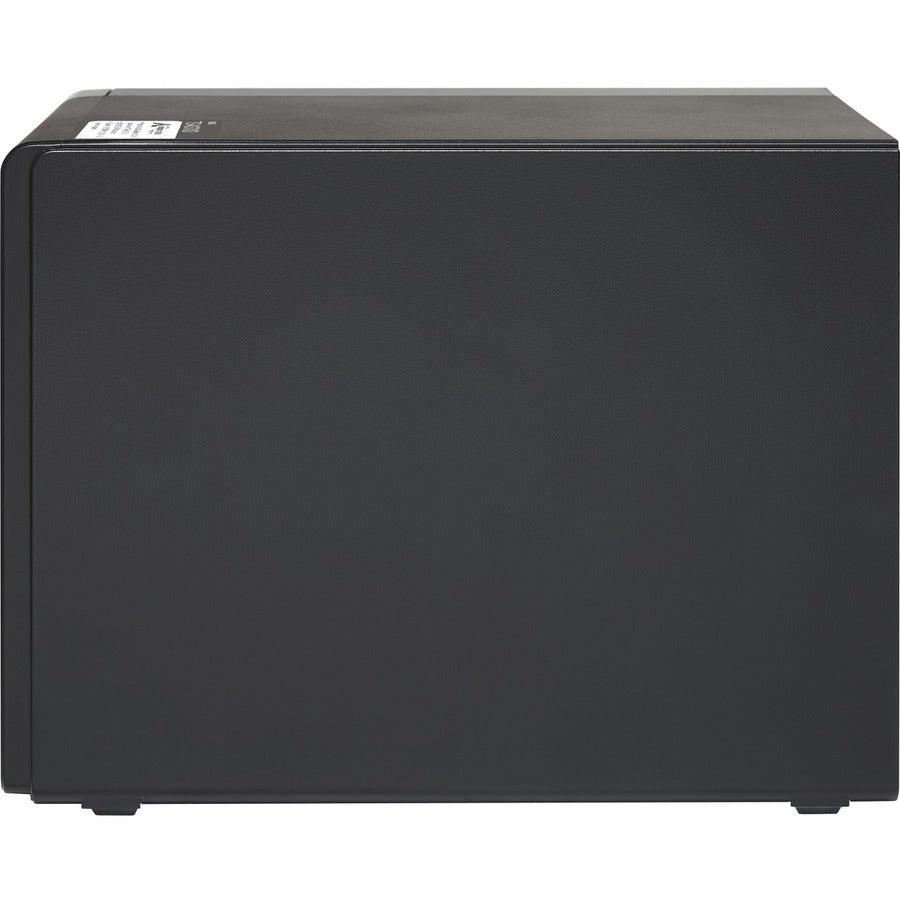

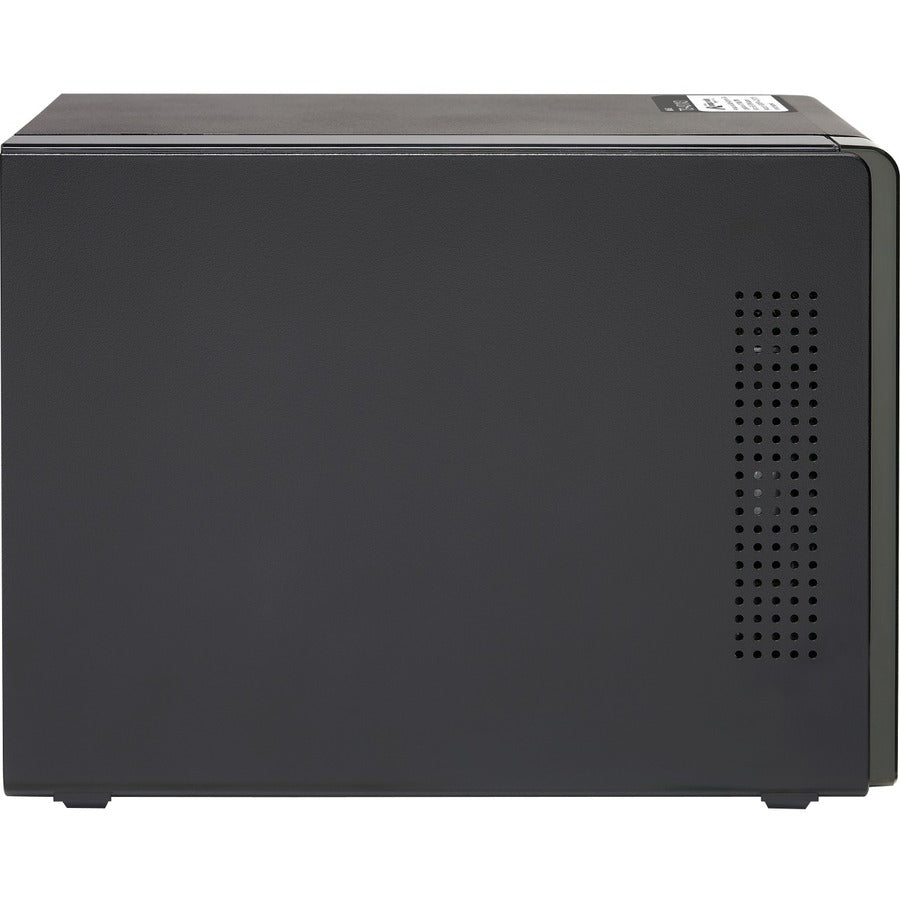

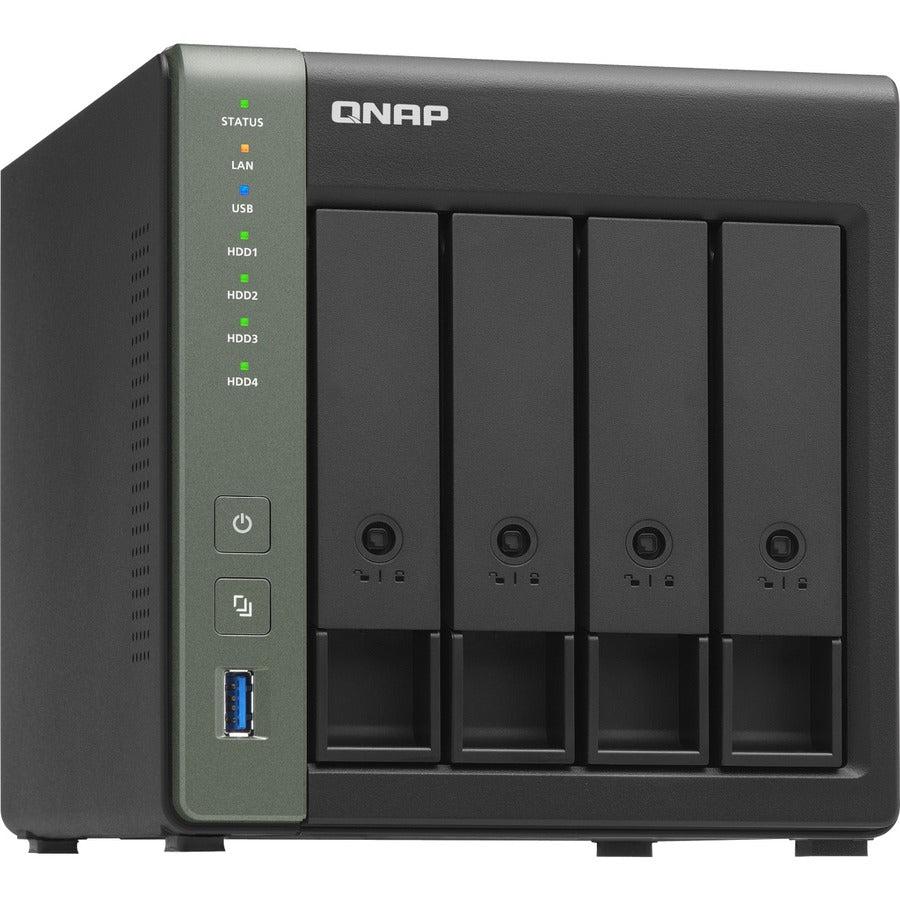

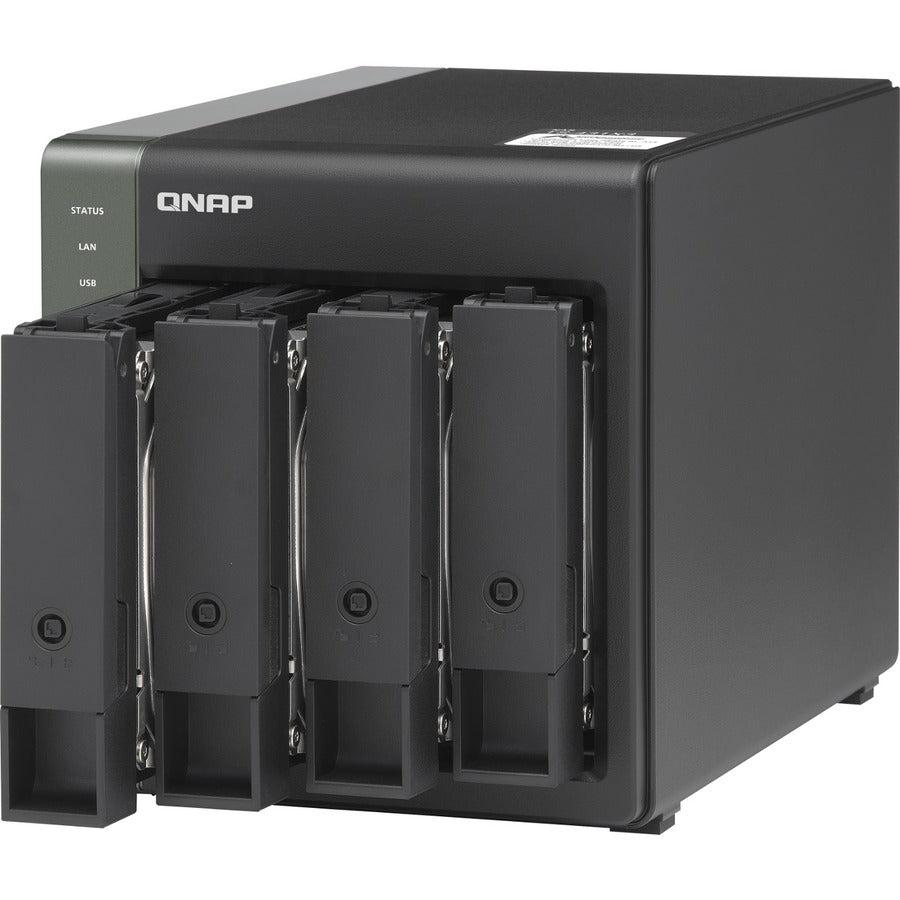

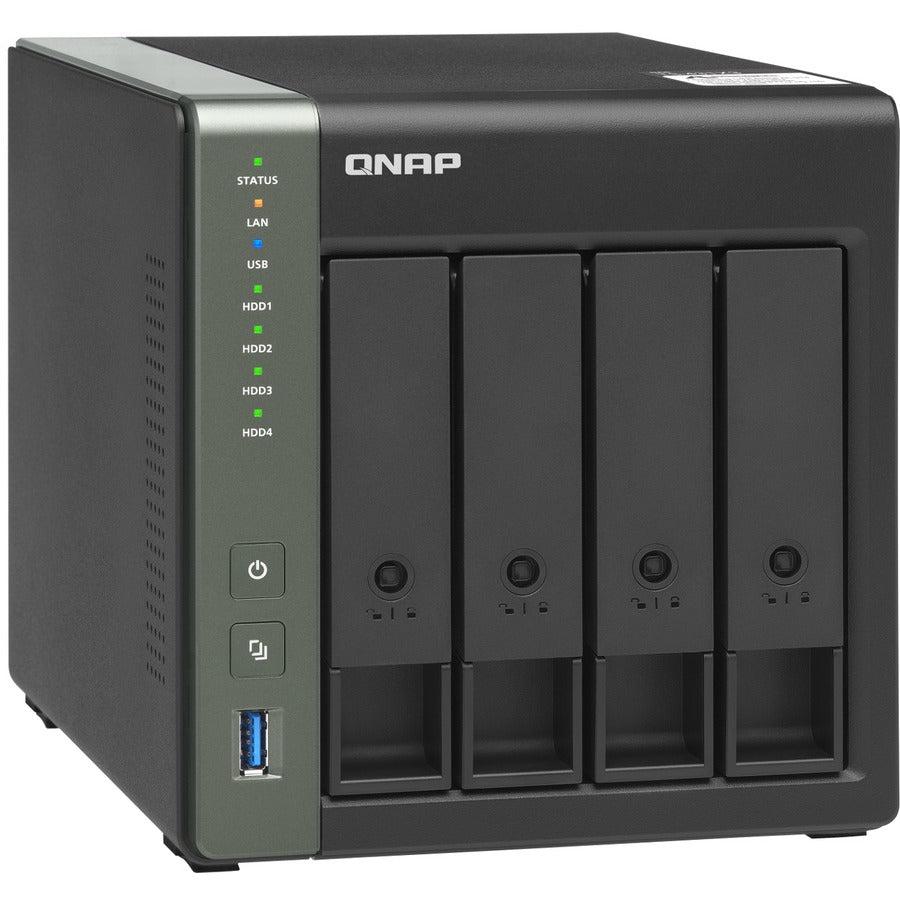

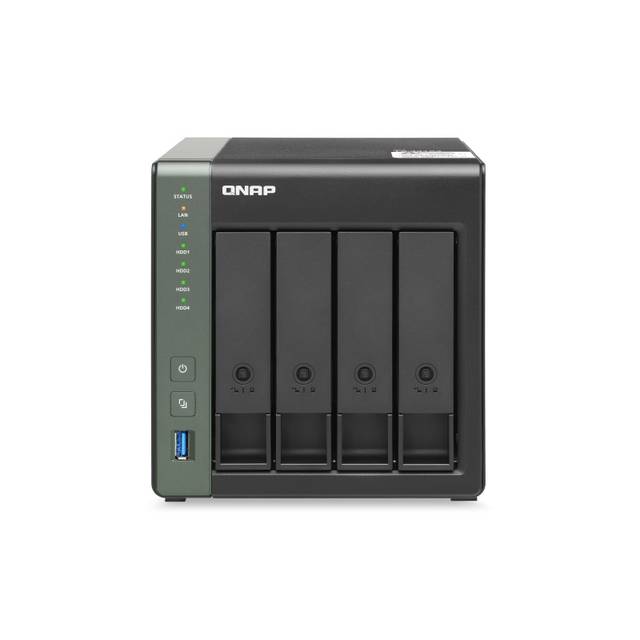

Name: Qnap Ts-431X3-4G-Us Annapurnalabs Al314 4-Core 1.7Ghz 4Gb Ddr3 4-Bay Nas W/ Built-In 10Gbe Sfp+ And 2.5Gbe Rj45 Ports For Smb
Brand: QNAP
SKU: TS-431X3-4G-US
Price: 858.00 CAD
Availability: InStock

Qnap Ts-431X3-4G-Us Annapurnalabs Al314 4-Core 1.7Ghz 4Gb Ddr3 4-Bay Nas W/ Built-In 10Gbe Sfp+ And 2.5Gbe Rj45 Ports For Smb

Roll over image to zoom in Click on image to zoom

Mfr Part Number:TS-431X3-4G-US
Hardware:
- CPU:AnnapurnaLabs, an Amazon company Alpine AL314, 4-core, 1.7GHz
- CPU Architecture:32-bit ARM
- Floating Point Unit:Yes
- Encryption Engine:Yes
- System Memory:4 GB SODIMM DDR3 (1 x 4 GB)
- Maximum Memory:8 GB (1 x 8 GB)
- Memory Slot: 1 x SO-DIMM DDR3
- Flash Memory:512 MB (Dual boot OS protection)
- Drive Bay:4x 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive Compatibility:
  -3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
- Hot-swappable:Yes
- SSD Cache Acceleration Support:Yes
- LAN Port:
  -1xGigabit Ethernet Port (RJ45)
  - 1 x 2.5 Gigabit Ethernet Port (2.5G/1G/100M)
  - 10 Gigabit Ethernet Port: 1 x 10GbE SFP+
- Wake on LAN (WOL):Yes
- Jumbo Frame:Yes
- USB:3 xUSB 3.2 Gen 1 port
- LED Indicators:Power, Status, LAN, USB, HDD1-4
- Buttons:Power, Reset, USB Auto Copy
- Operating temperature:0 - 40 C (32F - 104F)
- Storage Temperature:-20 - 70C (-4F - 158F)
- Relative Humidity:5-95% RH non-condensing, wet bulb: 27C (80.6F)
- System Warning:Buzzer
- Kensington Security Slot:Yes
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory:400
Operating System:QTS 4.4.2 (embedded Linux)
Supported File Systems:
- Internal hard drive (EXT4)
- External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT)
Network & Virtual Switch:
- TCP/IP: Dual stack (IPv4 and IPv6)
- Jumbo frame
- Port trunkingLink aggregation
  - failover
  - Load balancing
- DHCP server and client
- RADVD
- USB Wi-Fi adapter
- Virtual switch
  - Network Address Translation (NAT)
  - Spanning Tree Protocol (STP)
  - Software-Defined Switch mode
- Static Route
- NCSI (Network Connectivity Status Indicator)
- DDNS settings (Customize & Multiple Service )
Security:
- Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
- Host access control for shared folders (CIFS/SMB)
- AES 256-bit volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
- 256-bit external drive encryption (AES)
- Importing of SSL certificates from Lets Encrypt
- Instant alerts through email, SMS, push service, and audio
- 2-step verification
Storage Management:
- Supported RAID types: RAID 0, 1, 5, 6, 10, JBOD, Single
- RAID Hot Spare and Global Hot Spare
- RAID Rebuild Speed Customization
- Online RAID capacity expansion
- Online RAID level migration
- SSD RAID Over-provisioning
- SSD RAID Performance evaluation (with SSD Profiling Tool)
- SSD TRIM for RAID 0,1,10
- Bitmap support
- Disk auto S.M.A.R.T. data migration
- Disk bad block scan and S.M.A.R.T test.
- Disk bad block recovery
- Disk secure data erase
- Ironwolf Health Management
- Storage pools
- Flexible volumes and LUNs with thin provisioning and space reclaiming
  - If the NAS has less than 4GB RAM, then the maximum volume capacity is 144TB
  - If the NAS has at least 4GB RAM, then the maximum volume capacity is 250TB
- Online volume expansion
- Volume type conversion
- Volume shrink
- Storage space utilization
- Snapshots: The maximum number of snapshots varies depending on installed memory
  - Volume and LUN snapshots
  - Snapshot Dashboard
  - Snapshot Manager
  - Snapshot local restore and revert
  - Snapshot Clone
  - Snapshot Replica and Snapshot Vault
  - Snapshot remote restore and revert
  - Unified Snapshot Directory
  - Support for Windows Previous Versions (CIFS/SMB)
- Storage expansion using QNAP expansion units
- JBOD enclosure roaming
- SSD read-only and read-write cache
- SSD write-only cache
Form Factor:Tower
Power Supply Unit:90W Adapter, 100-240V
Fan:1 x 120mm, 12VDC
Dimensions (HxWxD):6.65 6.3 8.62 inch
Weight (Net):4.43 lbs
All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers

General Information

Manufacturer	QNAP Systems
Manufacturer Part Number	TS-431X3-4G-US
Manufacturer Website Address	http://www.qnap.com
Brand Name	QNAP
Product Series	TS-x31X
Product Model	TS-431X3-4G
Product Name	Cost-effective Business NAS with Integrated 10GbE SFP+ Port
Product Type	SAN/NAS Storage System
UPC	0885022018888

Processor

Processor Manufacturer	Annapurna Labs
Processor Type	Alpine
Processor Model	AL-314
Processor Core	Quad-core (4 Core)
Processor Speed	1.70 GHz

Ethernet Technology	10 Gigabit Ethernet

Total Number of USB Ports	3
Network (RJ-45)	Yes

Operating System	QTS 4.4.2

Power Description

Maximum Power Supply Wattage	90 W

Height	6.7"
Width	6.3"
Depth	8.6"
Weight (Approximate)	4.43 lb

Miscellaneous

Package Contents	Cost-effective Business NAS with Integrated 10GbE SFP+ Port 1 x Ethernet Cable 1 x Power Cord Flat Head Screw (for 3.5" HDD) Flat Head Screw (for 2.5" HDD) Adapter 2 x Drive Tray Keys Quick Installation Guide (QIG)

Warranty

Limited Warranty	2 Year
