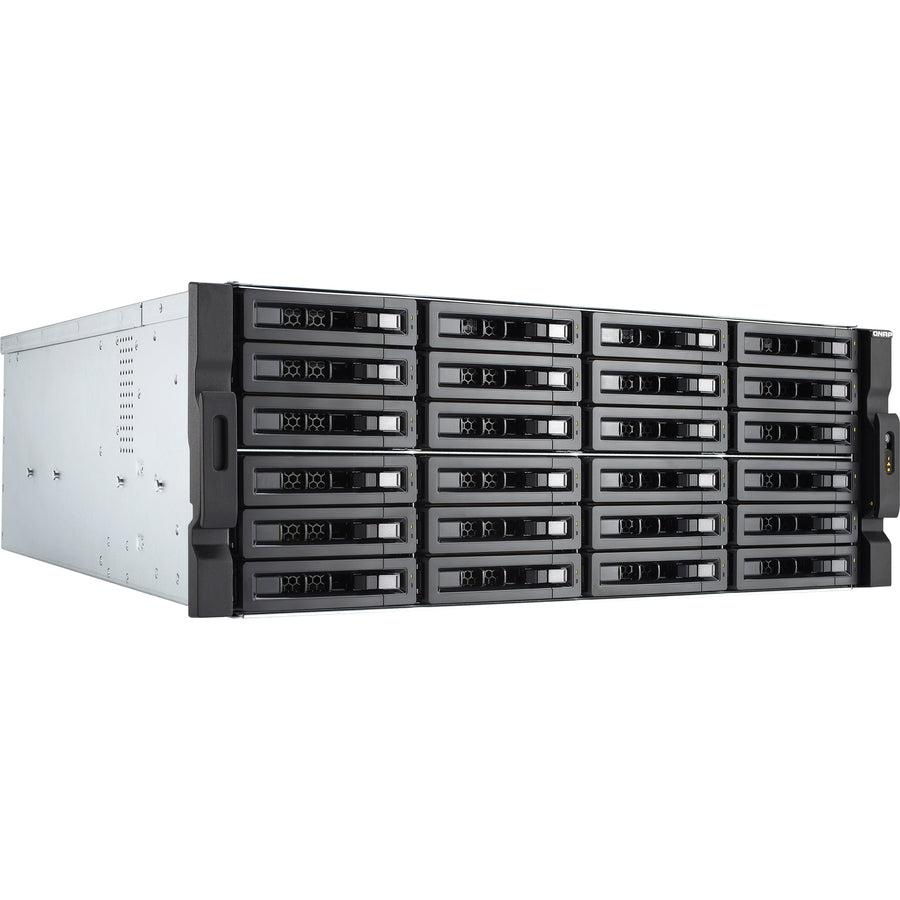

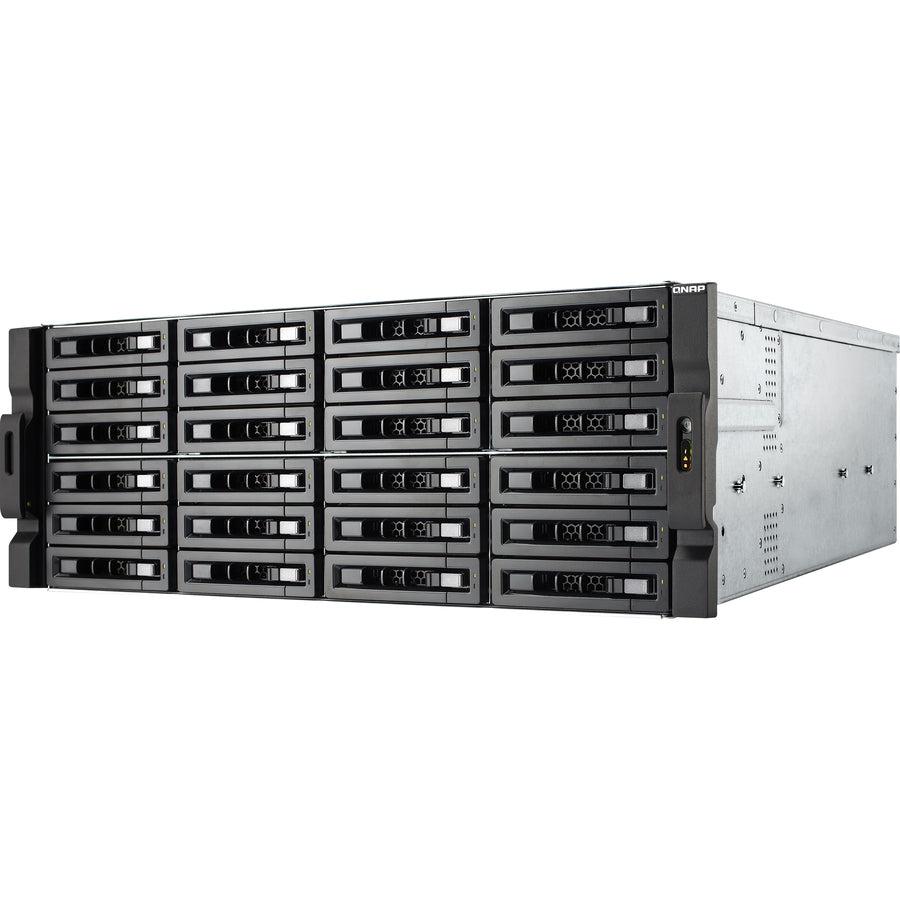

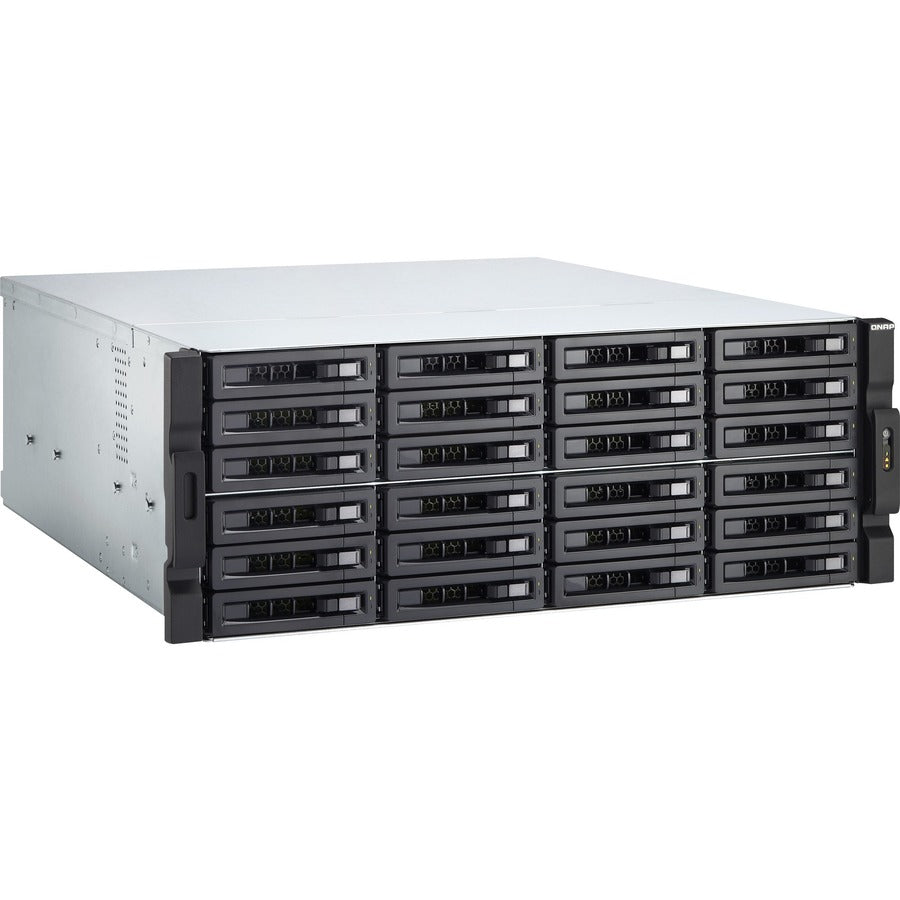

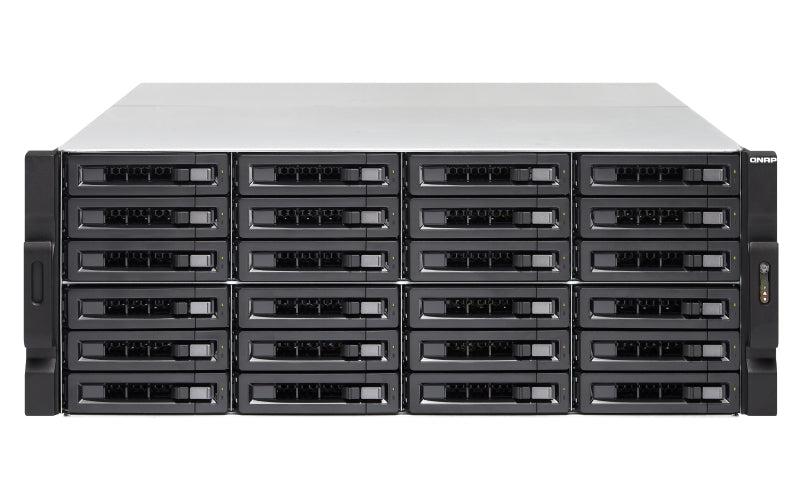

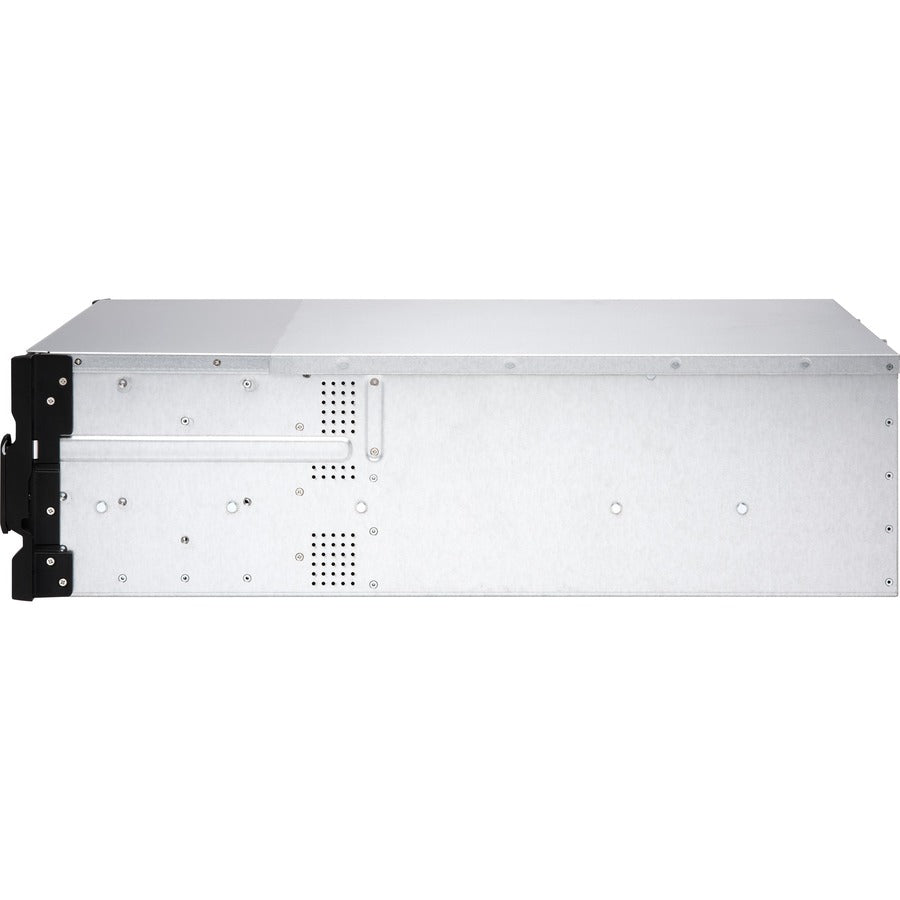

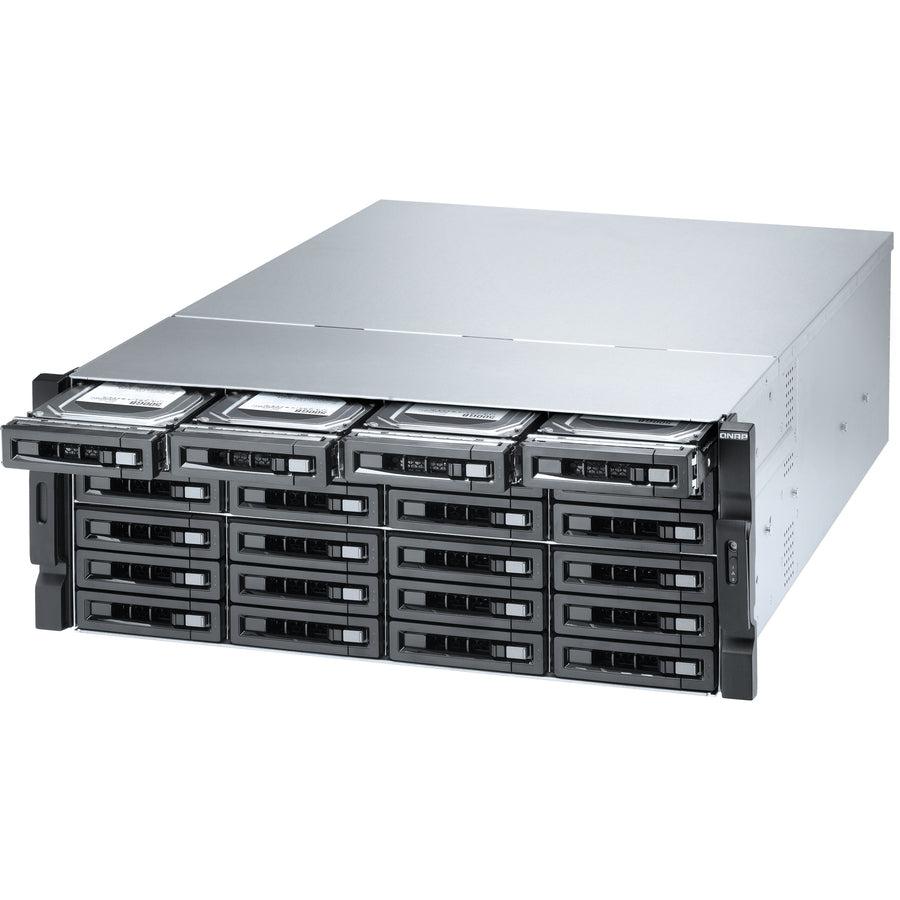

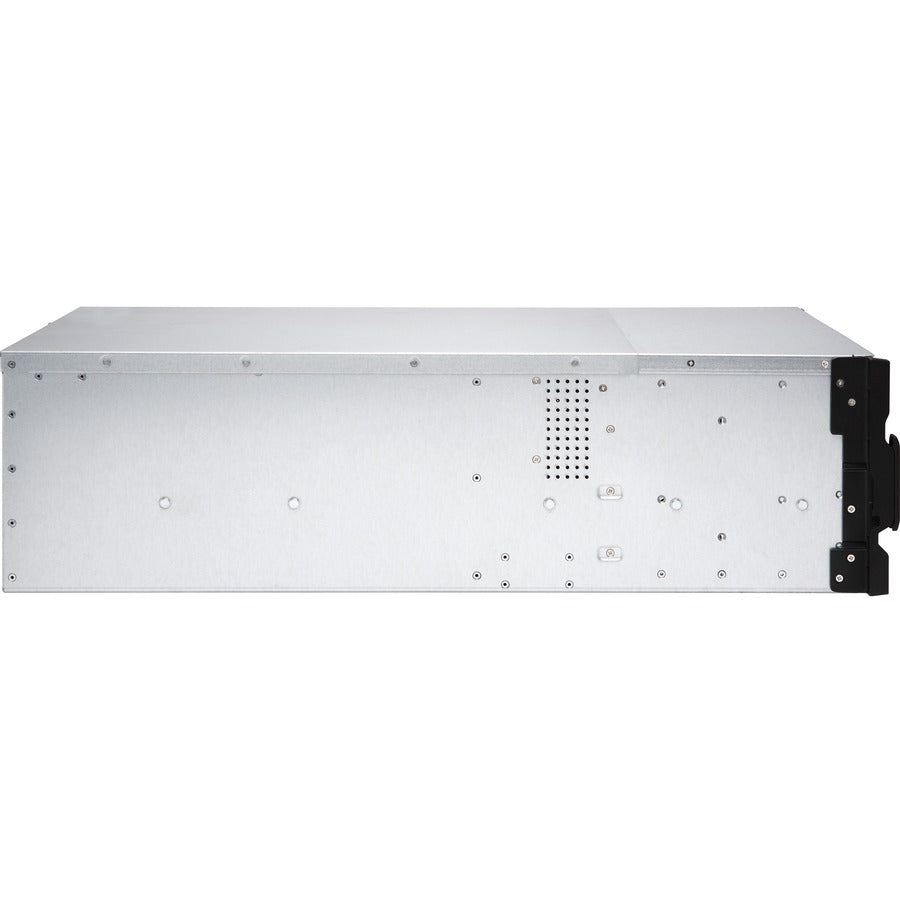

Qnap Ts-2477Xu-Rp Nas Rack (4U) Ethernet Lan Black 2600

AMD Ryzen 5 2600, 8 GB DDR4, 2 x 10GbE SFP+, 2 x RJ45, 2 x USB 3.1 Gen 2, 4 x USB 3.0 Type-A, 4U, 2 x 800W

QNAP TS-2477XU-RP. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA III, Storage drive sizes supported: 2.5,3.5". Processor family: AMD Ryzen™ 5, Processor frequency: 3.4 GHz, Processor boost frequency: 3.9 GHz. Internal memory: 8 GB, Internal memory type: DDR4, Maximum RAM supported: 64 GB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: TCP/IP, IPv4, IPv6. Fiber optic connector: SFP+

Ryzen™-based rackmount NAS with up to 8 cores/16 threads and integrated dual 10GbE SFP+ ports to optimize system performance
Powered by AMD’s powerful Ryzen™ processor, the TS-2477XU-RP is capable of boosting virtual machine performance with up to 8 cores/16 threads and Turbo Core up to 4.1 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-2477XU-RP. The TS-2477XU-RP also features a redundant power supply to ensure maximum system uptime.

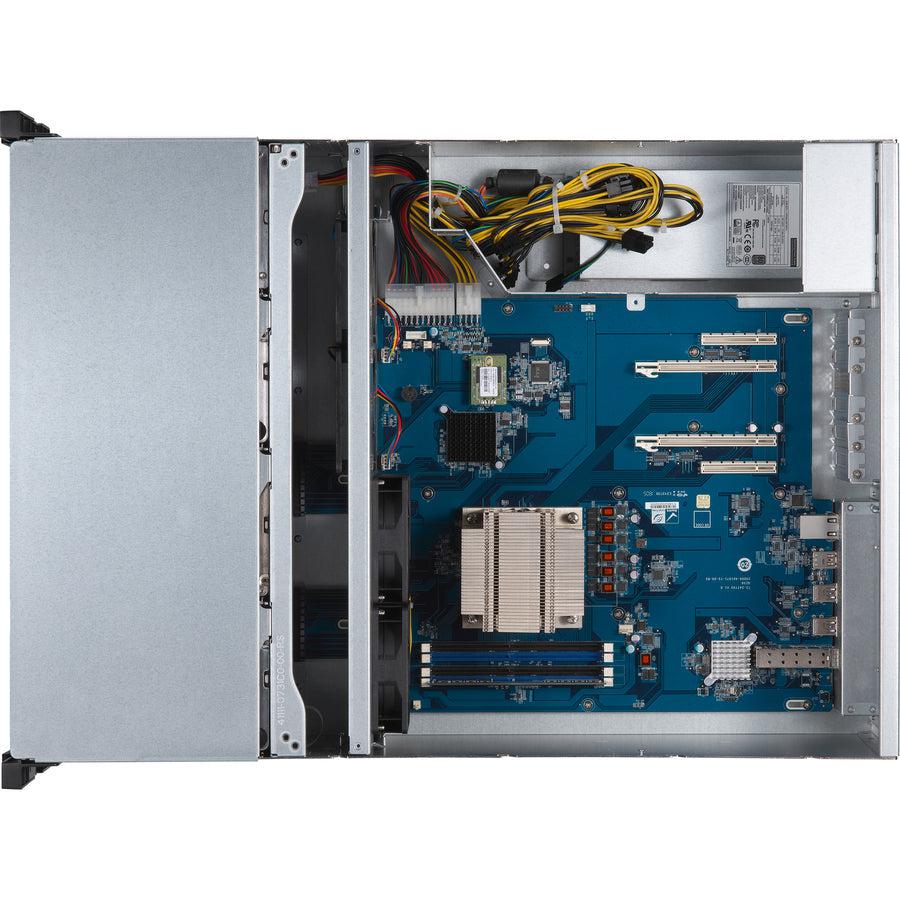

Top-class hardware engineering with high I/O expandability
The hardware design of the TS-2477XU-RP provides exceptional system performance and expandability to fulfill diverse application requirements.

Absolute performance with AMD Ryzen™ and up to 64GB RAM
Powered by a high-performance AMD Ryzen™ 5 2600 or AMD Ryzen™ 7 2700 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-2477XU-RP delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-2477XU-RP.

Dual-channel Memory to deliver power-smart performance
The TS-2477XU-RP supports dual-channel DDR-4 memory and four Long-DIMM slots. When using paired memory modules, the TS-2477XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64GB RAM) of the TS-2477XU-RP, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.

Extend NAS functionality with PCIe slots
The TS-2477XU-RP features four PCIe slots* that allow for installing 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or compatible wireless network cards for greater application potential.

10GbE/ 40GbE adapters
Install 10GbE/40GbE adapters to support lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.

QM2 card with M.2 SSD/10GbE support
Install QNAP's innovative QM2 card to add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.

Wireless network cards
Install QNAP's wireless network card (QWA-AC2600) to work with WirelessAP Station to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.

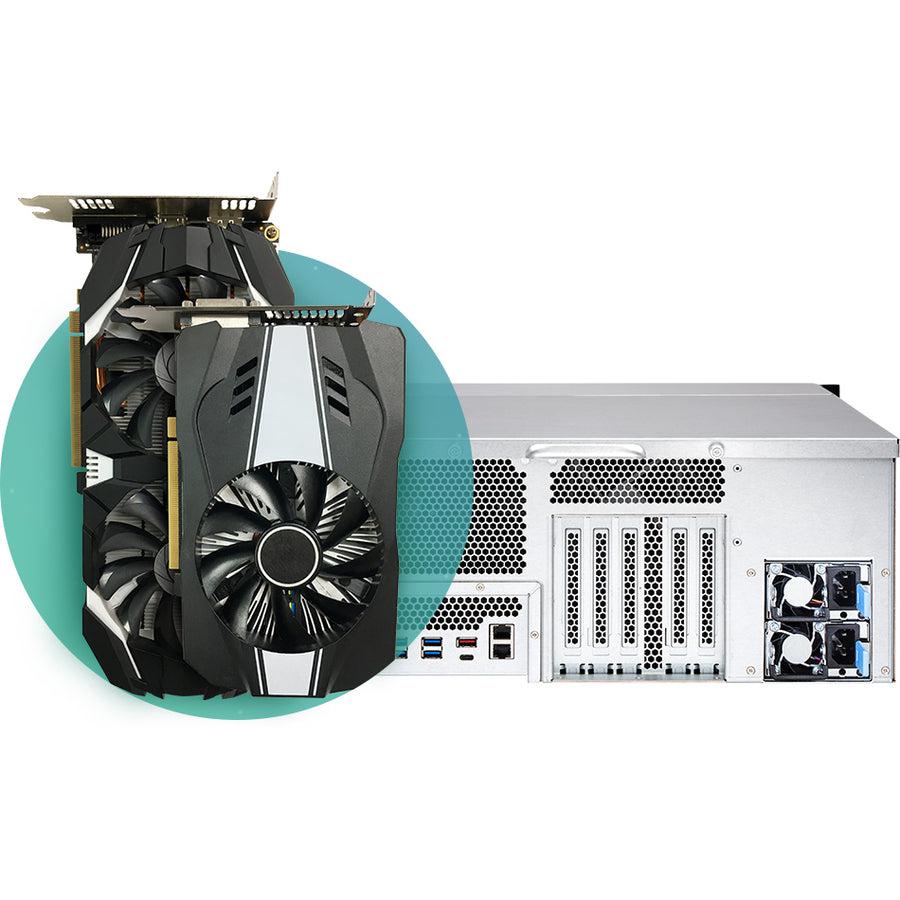

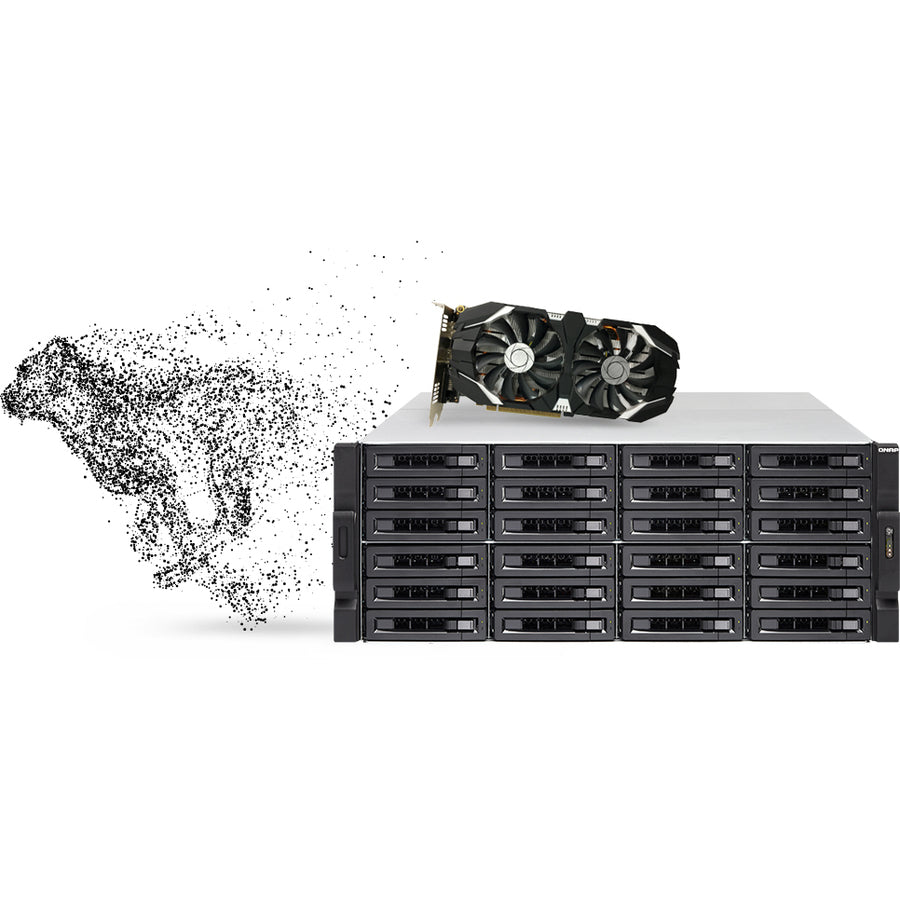

Fuel GPU-accelerated computing with an 800W power supply
Graphics cards are optimized for graphical calculations and transformations, but require significantly more power compared with other hardware components. The TS-2477XU-RP provides PCIe slots and an 800W power supply with a 8-pin (6+2) power connector and a 6-pin power connector to support an AMD Radeon™ or NVIDIA® graphics card for use in boosting imaging processing in QTS and to improve the performance of virtual machines via GPU passthrough.

Run multiple graphics cards in your TS-2477XU-RP to unleash greater potential
Featuring four PCIe slots, the TS-2477XU-RP allows you to insert up to two high-end graphics cards that work cooperatively to deliver incredible computing performance over a single graphics card. It helps lead to greater potential for accelerating NAS video processing and GPU computing, empowering data-intensive AI machine learning, and realizing GPU-passthrough to VMs.

GPU-accelerated NAS for AI machine learning
The TS-2477XU-RP provides cutting-edge capabilities to help organizations develop cost-efficient AI-oriented Big Data storage solutions. Combined with a high-end graphics card and QNAP's “QuAI” AI developer package, the AMD Ryzen-based TS-2477XU-RP can be leveraged to quickly build, train, and optimize AI model-based services, beneficial for exploring intelligent services and greater business value.

SSD caching and auto tiering enable 24/7 optimized storage efficiency
The TS-2477XU-RP provides four PCIe slots that allow for installing QNAP's innovative QM2 cards to add M.2 SSD applications ,such as SSD caching, to the NAS. Using an SSD cache boosts overall system performance, and is perfect for improving the overall workflow of random IOPS demanding applications such as virtualization. Qtier™ Technology empowers the TS-2477XU-RP with auto tiering that further helps continuously optimize storage efficiency across M.2 SSD, SSD, high-capacity SATA drives, and the optional PCIe NVMe SSD with around-the-clock acceleration. The new Qtier™ 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

Performance & reliability. Your wise choice.
The TS-2477XU-RP supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services.

Optimized performance for VMware Virtualization with iSER
With the built-in dual 10GbE ports that natively features Mellanox® ConnectX-4, the TS-2477XU-RP supports the iSCSI Extensions for RDMA (iSER) protocol to boost data transfer performance of the TS-2477XU-RP as VMware® ESXi storage and to reduce the CPU load of the ESXi server. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.

Block-based iSCSI LUN: Ideal choice for virtualization storage
The TS-2477XU-RP supports block-based iSCSI LUN that provides a more reliable and isolated environment than file-based LUN. Supporting VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016, the TS-2477XU-RP provides a high-performance, reliable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.

Host multiple virtual QTS systems on a single NAS
Based on Virtualization Station, vQTS allows for creating isolated virtual QTS systems to provide benefits for resource segregation, multi-tenant environments, and flexible application deployment. vQTS can also help optimize power usage, costs, and physical space. You can host multiple independent QTS systems on the TS-2477XU-RP, while each virtual QTS can be used by different departments and teams with their own privilege settings and application environments, realizing greater business flexibility in management and applications.

Upgrade your IT environment with QNAP's fast and affordable 10GbE Switch!
QNAP 10GbE/NBASE-T™ unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network you can enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia). QNAP also provides a 10GbE PCIe network expansion card for Windows®/Linux® PCs to take advantage of high-speed LAN environments.

QTS–Intelligent, intuitive and creative NAS operating system
With modularized multiple applications and functions, QTS enhances management efficiency, personal productivity, multimedia, and much more, making your NAS experience easier, efficient, and more flexible! The new Qboost provides a NAS optimization tool that helps accelerate applications, free up system resources, and schedule applications. The built-in App Center with hundreds of install-on-demand apps realizes far more extensive NAS functionality. QTS breaks the barriers of devices, platforms, and geography to bring you optimized cloud experiences and incorporates advanced features.

Optimized collaboration with seamless file sharing and sync
The TS-2477XU-RP centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with Qsync (a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization) any file uploaded to the TS-2477XU-RP will be made available for all linked devices, such as computers, laptops or mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.

Complete backup planning
The TS-2477XU-RP provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.

The new QVR Pro surveillance solution
QNAP’s new QVR Pro surveillance solution allows you to arrange a dedicated, independent storage space for surveillance data on TS-2477XU-RP and leverage the advantages of scalability and storage manageability from QTS. With QVR Pro, camera management, storage space allocation, camera live viewing and playback is greatly simplified. You can also use the QVR Pro Client mobile app to monitor your cameras from anywhere, or use a USB webcam as an ONVIF network camera with the QUSBCam2 app.

Flexible and economical storage expansion
You need an easy solution to increase storage capacity when running out of space. QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth.
