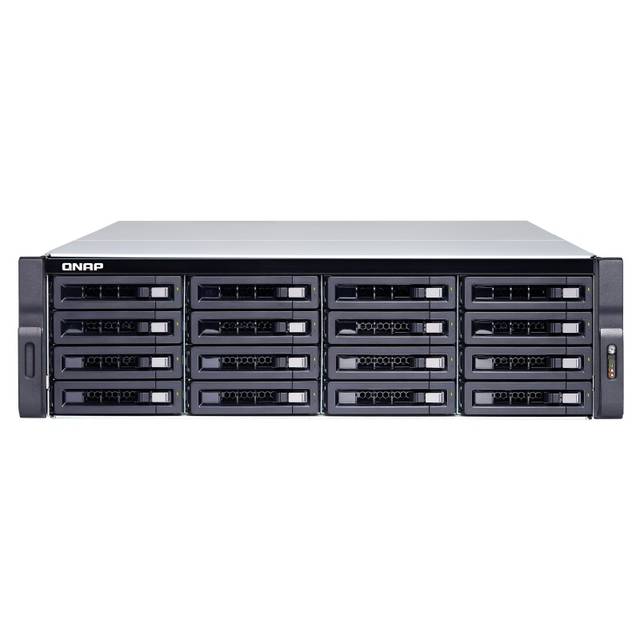

Name: Qnap Ts-1683Xu-Rp-E2124-16G-Us Intel Xeon E-2124 3.3Ghz/ 16Gb Ddr4/ 6Gbe/ 16Sata/ Usb3.1/ 16-Bay 3U Rackmount Nas For Enterprise
Brand: QNAP
SKU: TS-1683XU-RP-E2124-16G-US
Price: 8933.00 CAD
Availability: InStock

Qnap Ts-1683Xu-Rp-E2124-16G-Us Intel Xeon E-2124 3.3Ghz/ 16Gb Ddr4/ 6Gbe/ 16Sata/ Usb3.1/ 16-Bay 3U Rackmount Nas For Enterprise

Roll over image to zoom in Click on image to zoom

Mfr Part Number: TS-1683XU-RP-E2124-16G-US
Hardware:
- CPU: Intel Xeon E-2124 Processor (3.3GHz, Burst Up to 4.3GHz, quad-core)
- CPU Architecture: 64-bit x86
- Floating Point Unit
- Encryption Engine: AES-NI
- System Memory: 16GB (2x 8GB) UDIMM DDR4 ECC
- Maximum Memory: 64GB (4x 16GB)
- Memory Slots: 4x DDR4 long DIMM
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 16x 3.5-inch
- Drive Compatibility: 3.5-inch bays - 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
- Hot-swappable
- SSD Cache Acceleration Support
- LAN Port: 4x RJ45 LAN Ports, 2x 10GbE SFP+ SmartNIC port
- Jumbo Frame
- PCIe Slot: 4 slots. Slot 1: PCIe Gen2 x4 (PCH), Slot 2: PCIe Gen3 x8 (CPU), Slot 3: PCIe Gen3 x4 (CPU), Slot 4: PCIe Gen3 x4 (CPU)
- USB: 2x Type-C USB 3.1 Gen2 5V/3A 10Gbps, 4x Type-A USB 3.1 Gen2 5V/1A 10Gbps
- LED Indicators: HDD 1-16, Status, LAN, storage expansion port status
- Buttons: Power, Reset
- Sound Level: 53 db(A)
- System Warning: Buzzer
- Operating System: QTS 4.3.5 (embedded Linux)
Network & Virtual Switch:
- TCP/IP - Dual Stack (IPv4 & IPv6)
- Jumbo frame
- Port trunking (Link aggregation)
  - failover
  - Load balancing
- DHCP server and client
- RADVD
- USB Wi-Fi adapter
- Virtual switch
  - Network Address Translation (NAT)
  - Spanning Tree Protocol (STP)
  - Software-Defined Switch mode
- Static Route
- NCSI (Network Connectivity Status Indicator)
- DDNS settings (Customize & Multiple Service )
Security:
- Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
- Host access control for shared folders (CIFS/SMB)
- AES 256-bit folder-based and volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
- 256-bit external drive encryption (AES)
- Importing of SSL certificates from Lets Encrypt
- Instant alerts through email, SMS, push service, audio
- 2-step verification
Storage Management:
- Supported RAID types: RAID 0, 1, 5, 6, 10, 50, 60, JBOD, Single
- RAID Hot Spare and Global Hot Spare
- RAID Rebuild Speed Customization
- Online RAID capacity expansion
- Online RAID level migration
- SSD RAID Over-provisioning
- SSD RAID Performance evaluation (with SSD Profiling Tool)
- Bitmap support
- Disk auto S.M.A.R.T. data migration
- Disk bad block scan and S.M.A.R.T test.
- Disk bad block recovery
- Disk secure data erase
- Ironwolf Health Management
- Storage pools
- Qtier Data Tiering Technology
  - Automatic or scheduled data tiering
  - IO-aware auto tiering
  - Shared folder tiering on demand
- Flexible volumes and LUNs with thin provisioning and space reclaiming
- Online volume expansion
- Volume type convert
- Volume shrink
- Storage space utilization
- Snapshots
  - Volume and LUN snapshots
  - Snapshot Dashboard
  - Snapshot Manager
  - Snapshot local restore and revert
  - Snapshot Clone
  - Snapshot Replica and Snapshot Vault
  - Snapshot remote restore and revert
  - Unified Snapshot Directory
  - Support for Windows Previous Versions (CIFS/SMB)
  - Snapshot Agent for Microsoft Windows and VMware vSphere
- Storage expansion using QNAP expansion units
- JBOD enclosure roaming
- SSD read-only and read-write cache
- SSD write-only cache
File System:
- Internal HDD: EXT4
- External HDD: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
Form Factor: 3U Rackmount
Fan: System: 4x 9.2cm fan (12V DC)
Power Supply: 2x 500W, 100-240V
Power Consumption: Operating Mode, Typical - 130.43 W
Dimensions (WxDxH): 18.94 x 22.58 x 5.12 inch
Weight: 30.34 lbs

General Information

UPC	885022016556

Canada: Prices in CAD. Ships nationwide in 2–5 business days. GST/HST/PST calculated at checkout. Shipping policy.

Qnap Ts-1683Xu-Rp-E2124-16G-Us Intel Xeon E-2124 3.3Ghz/ 16Gb Ddr4/ 6Gbe/ 16Sata/ Usb3.1/ 16-Bay 3U Rackmount Nas For Enterprise

Description

Qnap Ts-1683Xu-Rp-E2124-16G-Us Intel Xeon E-2124 3.3Ghz/ 16Gb Ddr4/ 6Gbe/ 16Sata/ Usb3.1/ 16-Bay 3U Rackmount Nas For Enterprise
