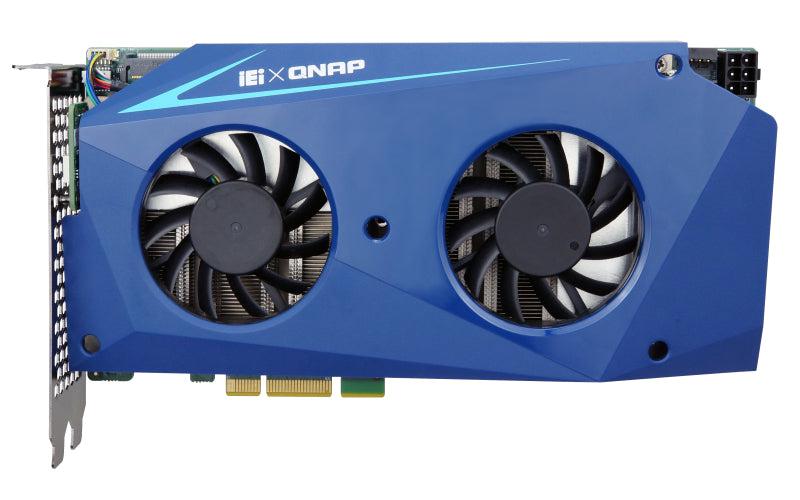

Qnap Mustang-200 1.8 Ghz Intel® Celeron® 8 Gb Flash

PCIe 2.0 x4, 2x Intel Celeron 3865U (1.8GHz), 2x 4GB DDR4(2x 2GB), Intel HD Graphics 610, 8GB eMMC

QNAP Mustang-200. Processor frequency: 1.8 GHz, Processor family: Intel® Celeron®, Processor model: 3865U. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Maximum internal memory: 32 GB. Total storage capacity: 8 GB, Storage media: Flash. On-board graphics adapter model: Intel® HD Graphics 610, On-board graphics adapter family: Intel® HD Graphics. Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000,10000 Mbit/s, Supported protocols: Proxy client Protocols: SMB (1 / 2.0 / 2.1 / 3), AFP, NFS v2/v3/v4, FTP, FTPS, SFTP, TFTP,...

As QNAP NAS evolves to support a wider range of applications (including surveillance, virtualization, and AI) you not only need more storage space on your NAS, but also require the NAS to have higher processing power. Just as we can scale storage to meet higher requirements, QNAP provides the ability to expand the processing capabilities of your NAS. With a dual-CPU processor and an independent operating environment on a single PCIe card (2.0, x4), the Mustang-200 can be installed in a compatible QNAP NAS (or PC) to provide a flexible performance boost to your IT infrastructure and applications.

Dual-CPU on one card
The innovative QNAP Mustang-200 computing accelerator card (PCIe 2.0 x4) features a dual CPU (including Intel® Core™ i5 / Core™ i7 / Celeron®) and graphics chip. By installing the card in your NAS, you can effectively increase the computing power and transcoding efficiency by the same power as two NAS. Each CPU on the card has a 10GbE network chip and has independent IP, allowing you to connect to external networks using any network interface on the host NAS. You can mount host storage space through iSCSI or VJBOD for the Mustang-200. The application operation is independent from the NAS QTS, so that when you operate different applications on the Mustang-200, there will be no performance interference. Models with Intel® Core™ i5 / Core™ i7 CPUs also have built-in M.2 SSD, providing additional options for faster and smoother application performance.

Use a single interface to allocate storage space and networking resources. Easily manage and view sub systems when multiple Mustang-200 are installed in the NAS.

Mount host storage space easily through iSCSI or VJBOD to ensure you don’t have to worry about running out of space when operating multiple applications.

Equipped with dual CPUs, the Mustang-200's computing power equals two NAS. Developers can create various applications on the card without interfering with other applications.

Small in size, high in performance
The Mustang-200 can be installed in a QNAP NAS or a PC to expand the system’s processing capabilities. When undergoing high-speed data processing, the Mustang-200's CPU and M.2 SSD cooling modules can help dissipate excessive heat to ensure stable operations.

mQTS – the QTS on the Mustang-200
The Mustang-200 is small in size yet provides complete functionality. It is powered by the intuitive and intelligent mQTS operating system and allows you to enjoy the same range of applications as seen in QTS. You can install a variety of applications on-demand through the built-in App Center, import other app stores, or perform secondary development on the Mustang-200 to explore further application potential.

Easy management of multiple cards
The Mustang Card Manager assists in centrally managing all of the Mustang-200 (subsystems) installed in your host NAS. You can monitor system status, configure network and storage resources, and connect to mQTS directly through the Mustang Card Manager for more detailed system configuration and application deployment.

Install on a NAS: get the processing power of 3 x CPUs
Install a Mustang-200 in QNAP NAS and instantly gain the processing power from the three CPUs to operate a variety of applications and enjoy enhanced productivity. You can run a virtual machine or a container application in two subsystems on the Mustang-200 and let the host NAS focus on running performance-demanding applications such as file processing or multimedia processing. By deploying different applications using independent system resources, you can ensure that each application does not interfere with each other, and each work group can use different QTS. IT resource allocations can be more flexible to meet individual needs.

Install on a PC: destroy performance bottlenecks
Install a Mustang-200 in your PC to empower performance-demanding applications. Using the QVR Pro surveillance applications as an example, the Mustang-200 can greatly improve the image processing capability of a host PC.
