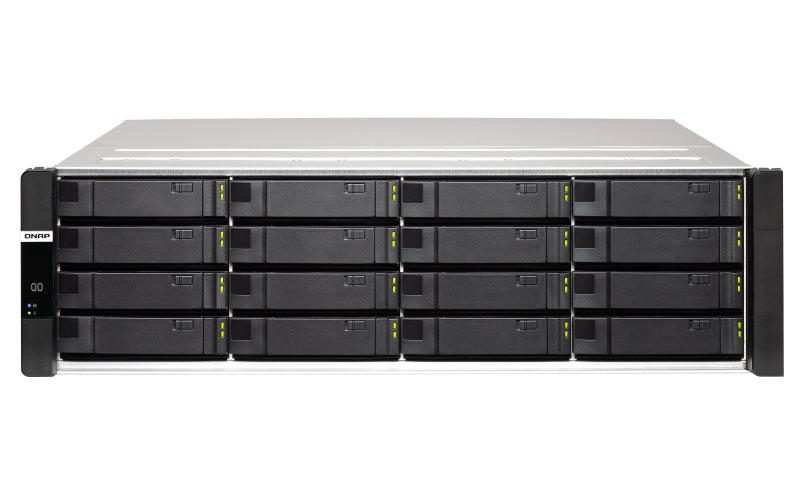

Qnap Es1686Dc Nas Rack (3U) Ethernet Lan Black D-2142It

Intel Xeon D-2142IT, 48 GB DDR4, 16 x 3.5-inch, RJ45 x 3, SFP+ x 4, PCIe x 2, USB 3.0 x 2, 3U

QNAP ES1686DC. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA III, Serial Attached SCSI (SAS), Storage drive sizes supported: 2.5,3.5". Processor family: Intel® Xeon® D, Processor manufacturer: Intel, Processor model: D-2142IT. Internal memory: 48 GB, Internal memory type: DDR4, Maximum RAM supported: 512 GB. Ethernet LAN data rates: 1000,10000 Mbit/s, Ethernet LAN data rate supported (max): 10000 Mbit/s, Supported network protocols: TCP/IP, IPv4, IPv6, CIFS/SMB2/SMB3, NFS v3/NFS v4, FTP, FTPS, TFTP, HTTP, HTTPS, SSH, iSCSI, SNMP,.... Fiber optic connector: SFP+

Delivering enterprise high availability, the ES1686dc Enterprise ZFS NAS features Intel® Xeon® D processors, dual active controllers, up to 512 GB DDR4 ECC memory, SAS 12Gb/s, and ZFS that supports logical volume management. The ES1686dc runs the latest QES 2.1.0 operating system that supports near-limitless snapshots, SnapSync, block-level data deduplication, and inline data compression. Whether being used as a mission-critical file server, virtualization server, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup & recovery, the ES1686dc helps your business to achieve service-level agreements for performance and uptime.

Active-Active high availability with optimal storage efficiency
In Active-Active storage system architecture, both controllers are able to provide a complete range of services, which is different from the Active-Standby architecture of single-controller systems. The Active-Active architecture does not have the disadvantage of idle computing resources. To leverage the strengths of the ES1686dc Active-Active controller architecture, it is recommended to create multiple storage pools and distribute their ownership between both controllers. This allows simultaneous output from both controllers for better load balancing.

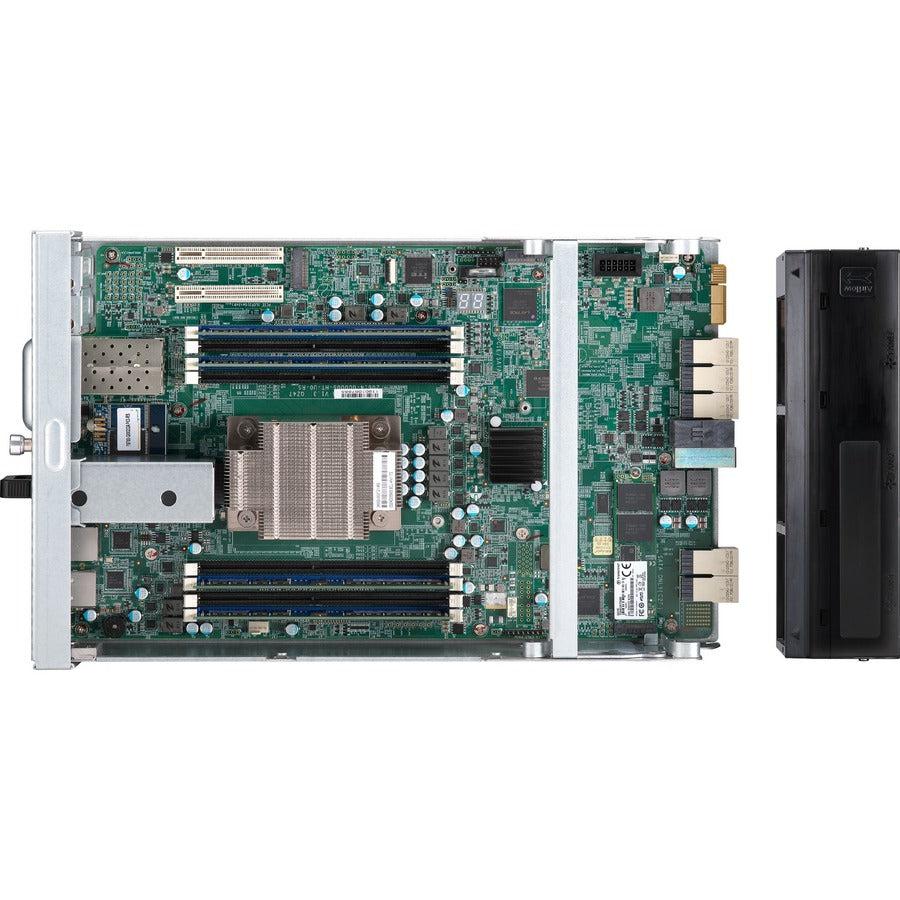

Intel® Xeon® D dual-controller ensures high availability and failure-resistant service

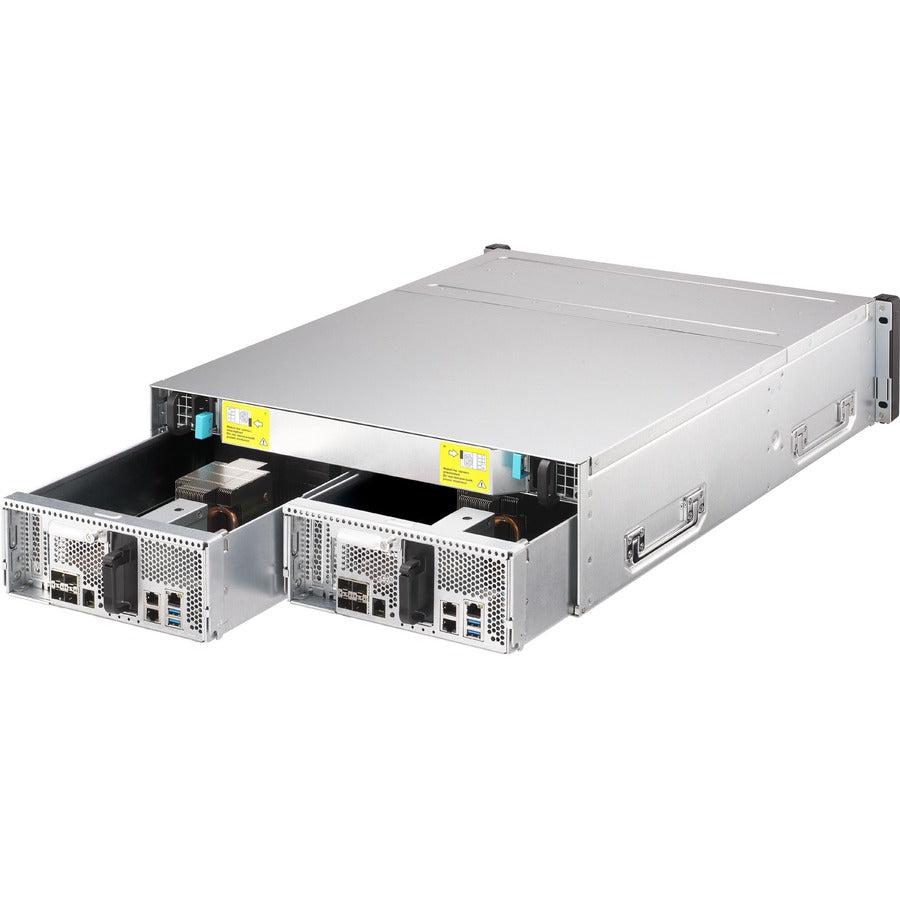

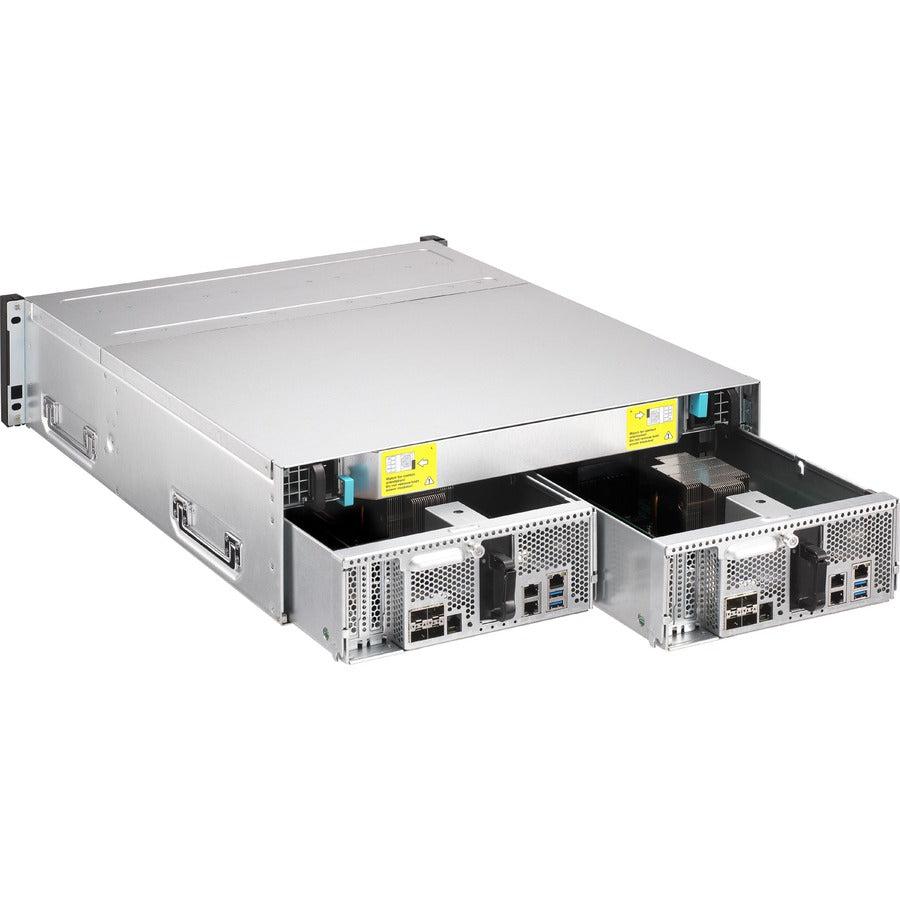

Powered by two Intel® Xeon® D processors, the ES1686dc features a dual active-active controller architecture that provides failover/failback operations as the standby controller can quickly take over if one controller breaks down. Redundant hot-swappable power supplies and cooling fans are also included to provide businesses with near-zero downtime high availability. The ES1686dc connects to the JBOD enclosure (EJ1600 v2) via the dual-path mini-SAS design to sustain continuous operations even if a JBOD cable is disconnected. Designed around redundancy, the ES1686dc is the best realization of reliable enterprise storage for uninterrupted mission-critical enterprise tasks and productivity.

Multi-level cache technology with both read and write
The ES1686dc simultaneously supports main memory read cache (L1 ARC), SSD secondary read cache (L2 ARC), and memory write cache (ZFS Intent Log) to meet performance demands for various enterprise applications.

PCIe expansion for 40GbE high-speed networks
The ES1686dc provides two PCIe Gen3 x8 slots connected to the CPU, allowing you to install lightning-fast 10GbE/40GbE network cards to boost virtualization, media streaming, and other bandwidth-demanding applications. Installing Mellanox® Smart NICs further adds support for iSER for improved VMware® virtualization performance. You can also install a QM2 expansion card (QM2-4P-384) to add four additional M.2 2280 PCIe NVMe SSD slots to burst reading performance with SSD caching, or a SAS expansion card (SAS-12G2E) for connecting up to seven 16-bay EJ1600 v2 expansion enclosures to seamlessly expand the potential storage capacity over 1PB, with unprecedented performance of up to 48Gbps per host connection.

Dual controller NAS: High reliability and high availability
“Reliability” is the priority for mission-critical business applications. The ES1686dc adopts dual active-active controllers to provide the most reliable base for business IT storage.

Leverage the 6Gbps SAS to SATA drive adapter
While SATA 6Gb/s SSDs provide high-performance yet affordable storage, the lack of dual-port support makes them unsuitable for dual-controller environments. The QDA-SA adapter is designed for QNAP Enterprise ZFS NAS, and allows the use of a SATA 6Gb/s drive in a 3.5-inch SAS drive bay - providing the ability to expand storage capacity by using cost-effective SATA drives. By installing a SATA drive with the QDA-SA into the dual-controller ES1686dc, the SATA drive can share these SAS dual-port advantages to ensure a high-availability, fault-tolerant enterprise storage environment.

QES 2.1.0: ZFS-based, and optimized for all flash performance
The ES1686dc features the QES (QNAP Enterprise Storage) 2.1.0 operating system, which is based on the simple and efficient FreeBSD kernel and the ZFS file system that has been proven through years of experience to be most suitable for high-end enterprise applications. Not only does QES 2.1.0 provide reliable data protection, recovery, and business-class features, it is optimized for flash storage and is capable of driving outstanding performance for all-flash storage arrays to accelerate mission-critical services and eliminate challenges in VDI environments. QES 2.1.0 also comes with Quality of Service (QoS) capabilities that help ensure consistent primary storage performance in multi-application environments. Continuing the same user experience with the intuitive QTS operating system, QES provides business users with an easy learning curve for quick implementation within IT infrastructures.

Unleashed SSD potential – cost-effective and agile with ultimate performance
QES 2.1.0 features QNAP’s exclusive Write Coalescing algorithm that further optimizes all-flash performance in ZFS, providing a highly cost-effective all-flash solution for enterprise-class data management and mission-critical services.

Deduplication and compression to maximize VDI storage performance
In VDI environments where there could be over 90% duplicate data from OS images and applications that are spread over virtual desktops, the QES-powered ES1686dc provides businesses with the most cost-effective remote virtual desktop platform and mission-critical information warehousing.

Self-Healing ensures data integrity and reliability
Designed with a focus on data integrity, a fundamental aspect of storage security and reliability, the QES-based ES1686dc uses its end-to-end checksums to detect and correct silent data corruption caused by hardware defects, bugs in firmware or metadata errors. If integrity violations are detected, QES automatically repairs the damage using data from the other mirror before the data is passed to applications.

Streamlined remote backups with nearly limitless snapshots and SnapSync
The ES1686dc supports up to 65,535 snapshots for iSCSI LUN and shared folders (if 1 snapshot is created every hour, 24 snapshots per day, then up to 7 years worth of snapshots can be created without needing to delete any) and replicates snapshots to remote servers by using the block-level SnapSync. In the event of a primary site failure, SnapSync assists businesses to resume essential services in the shortest possible time.

Create VMware/Windows backups for VSS-Aware applications using QNAP Snapshot Agent
QNAP Netbak Replicator is easy-to-use and VSS-aware backup software, helping businesses to create complete backups in data centers and virtualization environments without needing additional software. To build a QNAP Snap Agent and VSS Hardware Provider operating environment, all applications (including VSS Service, Requestor, Provider and QNAP Snap Agent) can be deployed with VSS-Aware applications on the same server, and the minimal requirements are only one ES1686dc and one server for it to be operational.

Compatible with VMware, Microsoft and Citrix virtualization, and supports iSER
The ES1686dc supports VMware® vSphere® 6.5, Windows Server® 2016, and Citrix XenServer® 7.0 for flexible deployment and management in virtualization environments. It also supports VMware® VAAI and Microsoft® ODX to increase performance by offloading server loading for ESXi® server and Hyper-V® respectively. The QNAP vSphere Client plug-in, Web plug-in and QNAP SMI-S provider are also supported to increase the efficiency of operations and management in virtualization applications. The ES1686dc and VMware® ESXi server installed with Mellanox® Smart NICs that support iSER can acquire iSER advantages to offload CPU workloads with boosted VMware® virtualization performance.

QES is OpenStack Ready to explore out-of-the-box enterprise cloud services
QES supports OpenStack® Cinder and Manila file sharing services. With the QNAP Cinder Driver, the ES1686dc can provide block-level storage space to virtual machines. It not only accelerates the deployment of virtual machines and enhances virtual machine image access efficiency through iSCSI, but it is also easier to integrate into commercial cloud storage platforms, providing businesses with a flexible, easy-to-use, and low-cost storage solution.
