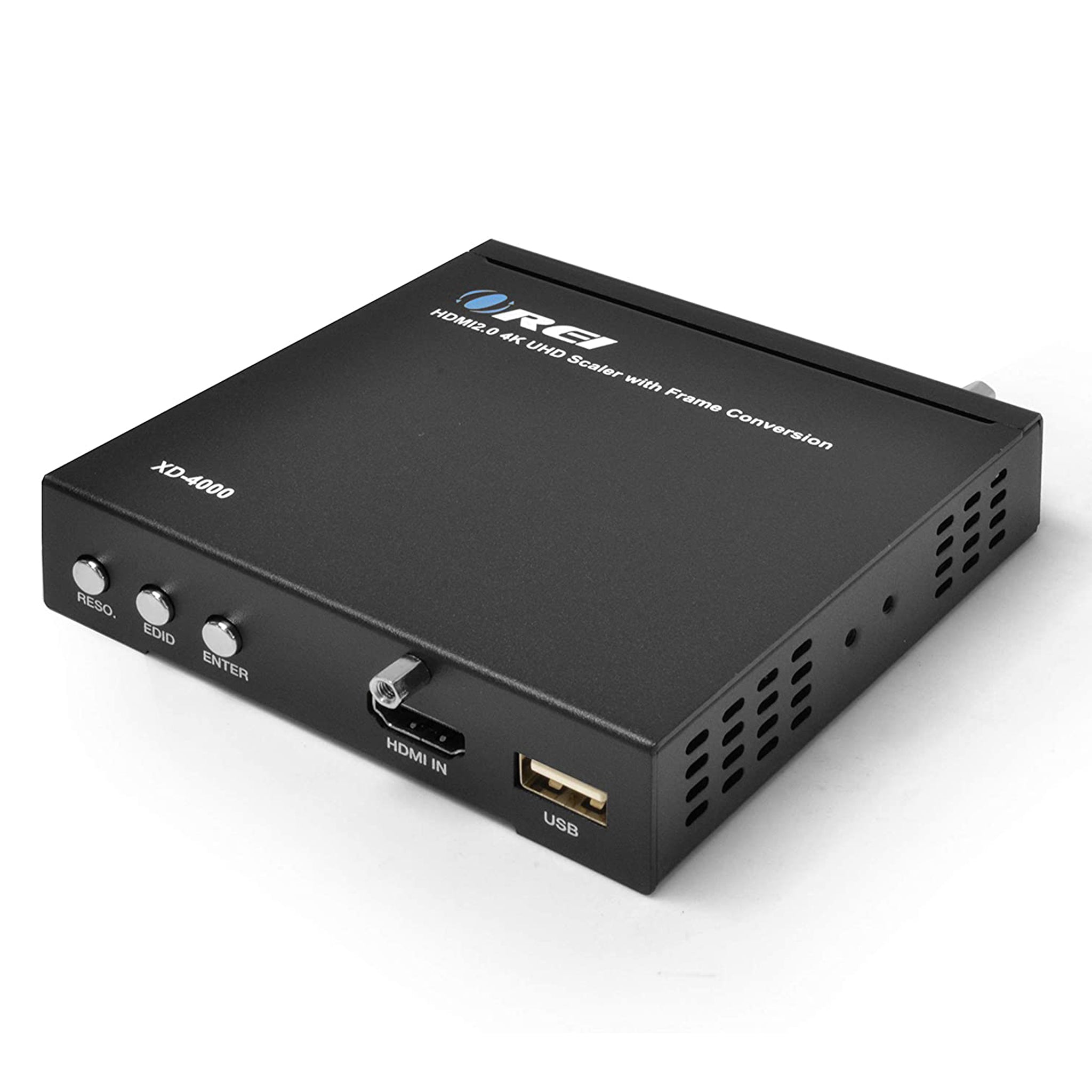

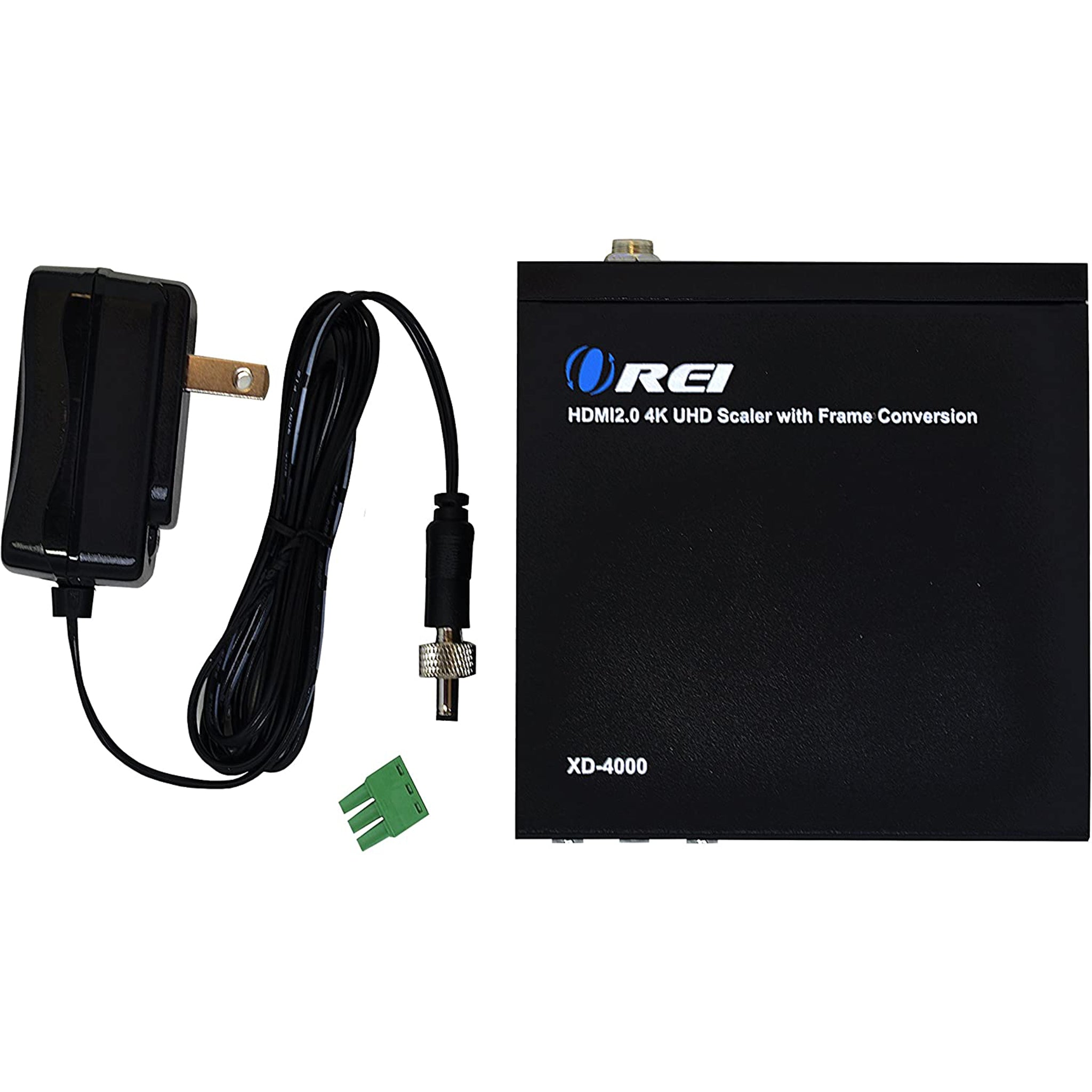

OREI XD-4000: 4K HDMI PAL to NTSC Converter with Scaler
Key Features:
HDMI 2.0b (18Gbps), HDCP 1.4/2.2 compliant
UP scaling video resolution up to 4K2K@50/60Hz (YUV444)
Downscaling video resolution up to 1024x768@60Hz
Exacts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
Supports Dolby True HD, Dolby Digital Plus, and DTS - HD Master Audio plus LPCM(up to 192kHz)
Front panel buttons, OSD and RS-232 Control
Manually Set output to a specific resolution
Adaptive de-interlacing support
Ideal for the purpose where the resolution is mismatched or experiencing EDID or HDCP issues

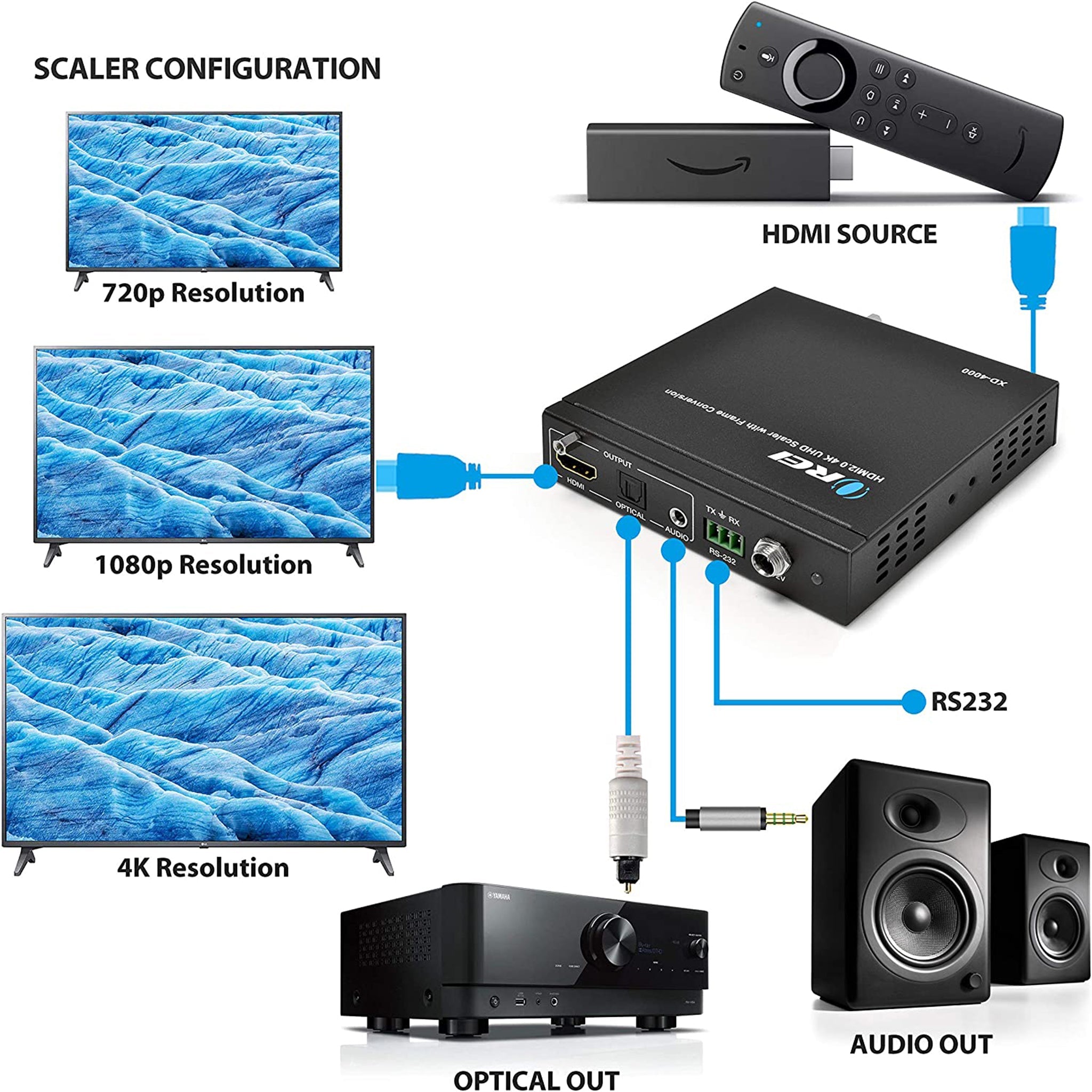

This scaler is a high performance, HDMI 2.0, HDCP 1.4/2.2 compliant scaler capable of upscale and downscale among Ultra HD/4K, Full HD, and HD resolutions with frame converting support. It accepts a wide range of resolutions from 480i up to 4K@60Hz4:4:4 and output resolutions up to 4K@60Hz4:4:4 with digital and analog audio extraction. It provides one HDMI input and one HDMI output and the scaler automatically scale any input signal to match the native resolution of the display or any connected HDMI device Or output can be set to a specific resolution. It supports a data rate up to18Gbps with 4K@60Hz 4:4:4 color format which is HDMI 2.0 specification.
The scaler features front panel buttons or OSD (On-Screen Display) menu or RS-232 control for scaler configuration.
Please contact us if you face any issues while registering for the extended warranty
The following are the ways by which you can contact us: - Via call: 847-983-4761 between Mon - Fri 9:30am - 5:00pm CST - Via email: Please email us at info@orei.com & we will respond you within 24 hours - Via contact us form: Please visit the contact us form by visiting the link to contact us: https://www.orei.com/pages/contact-us
[/tab1] [tab]

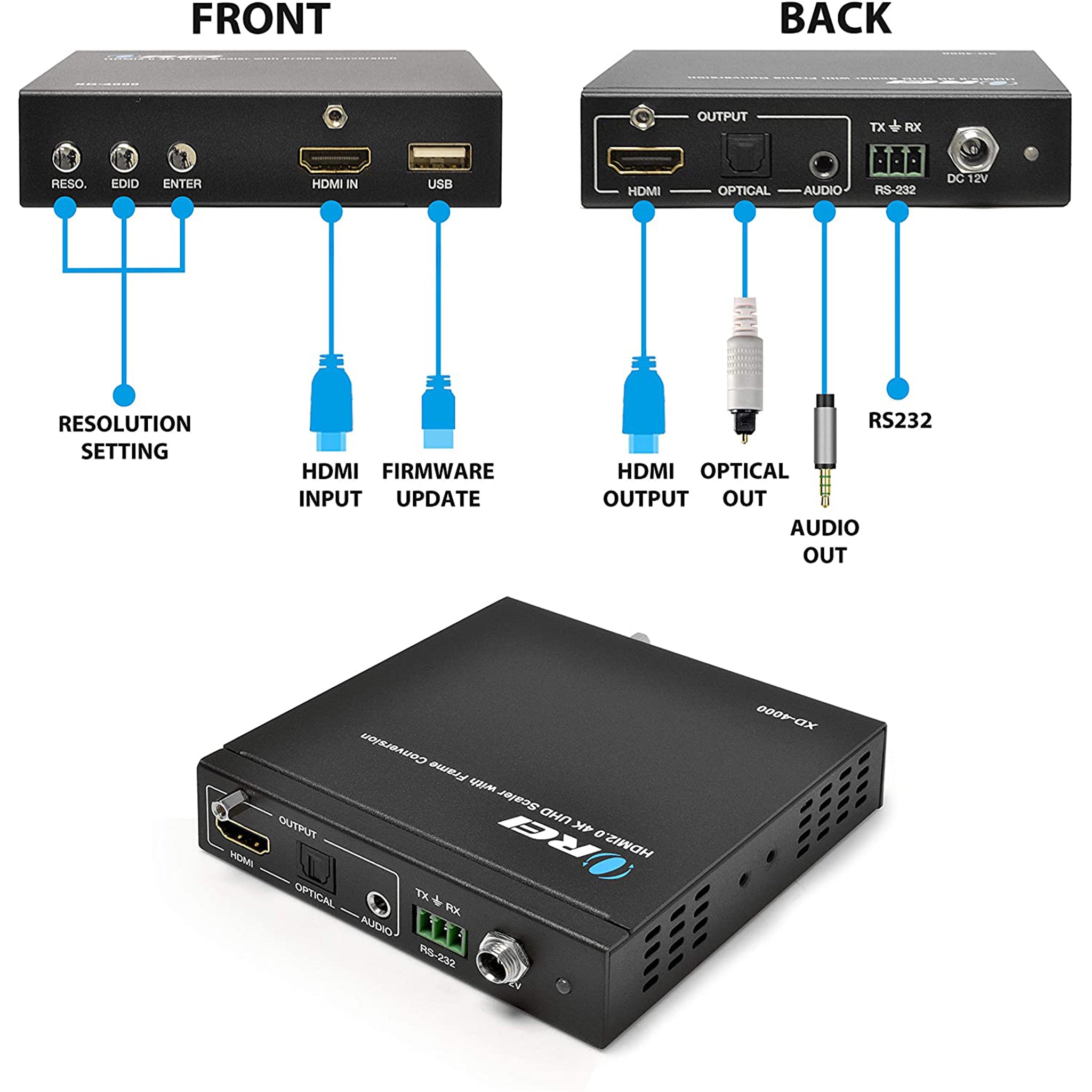

AUDIO AND VIDEO
INPUT PORTS:
1x HDMI Type A [19-pin female]
1x RS232 [Phoenix connector]
1x Firmware [Mini USB]
OUTPUT PORTS:
1x HDMI Type A [19-pin female]
1x L/R Audio Out [3.5mm Stereo Mini-jack]
1x Optical Out [S/PDIF]
COMPLIANCES
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 1.4 & HDCP 2.2
VIDEO OUTPUT
Video Bandwidth:
18 Gbps
Video Resolutions:
Up to 4K@60Hz
Color Space:
RGB, YCbCr 4:4:4, YCbCr 4:2:2YCbCr 4:2:0
Color Depth:
10-bit, 12-bit
SWITCHES
Resolutions:
Press the button to switch output resolution. Long press for 5 seconds output resolution will be set to 720p@60Hz
EDID:
Press the button to change EDID value. Long press for 5 seconds, the scaler will back to factory default setting
Enter:
Press the button to save setting, long press for 5 seconds will do software update for the scaler (The update process in last page)
