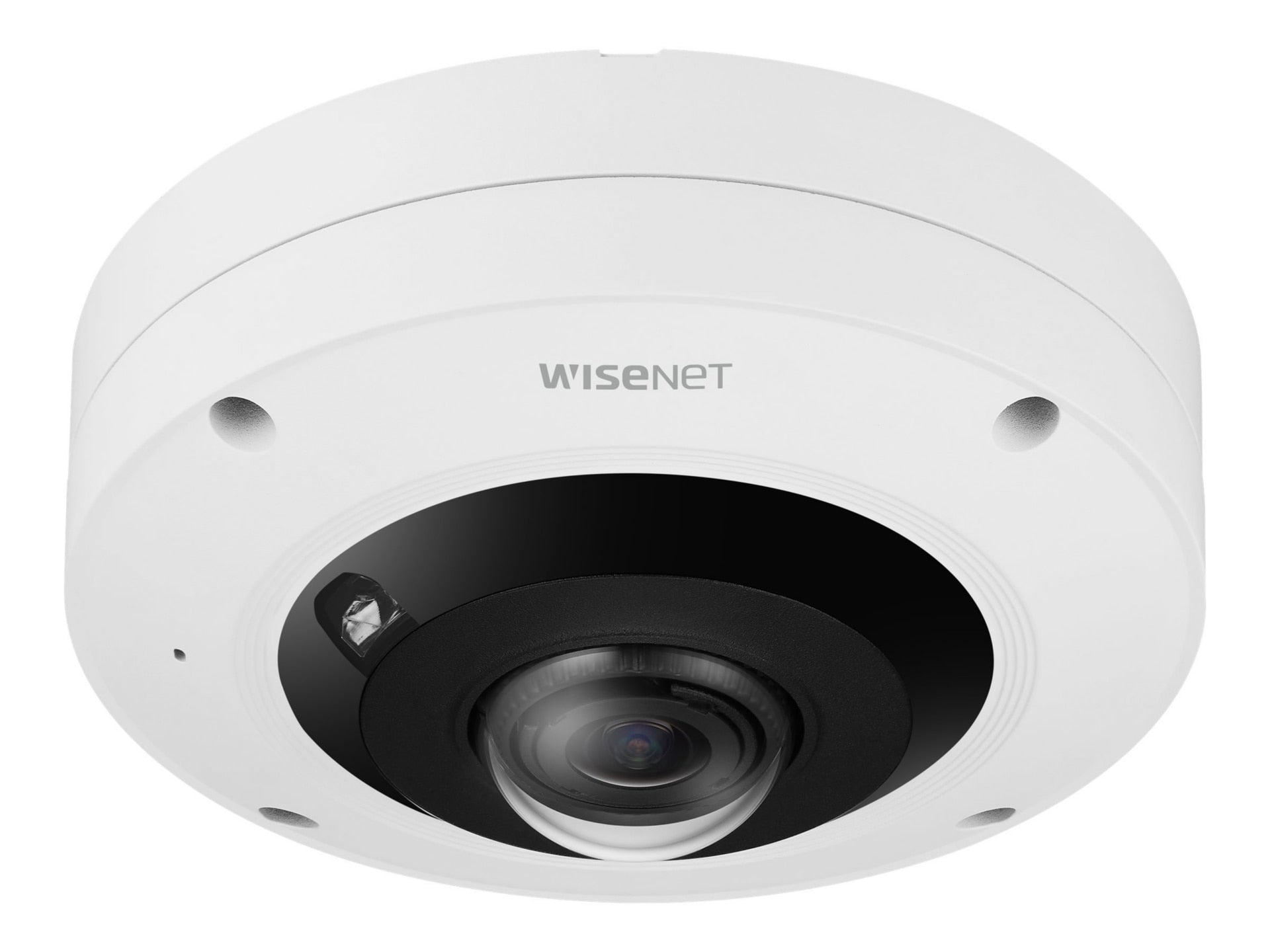

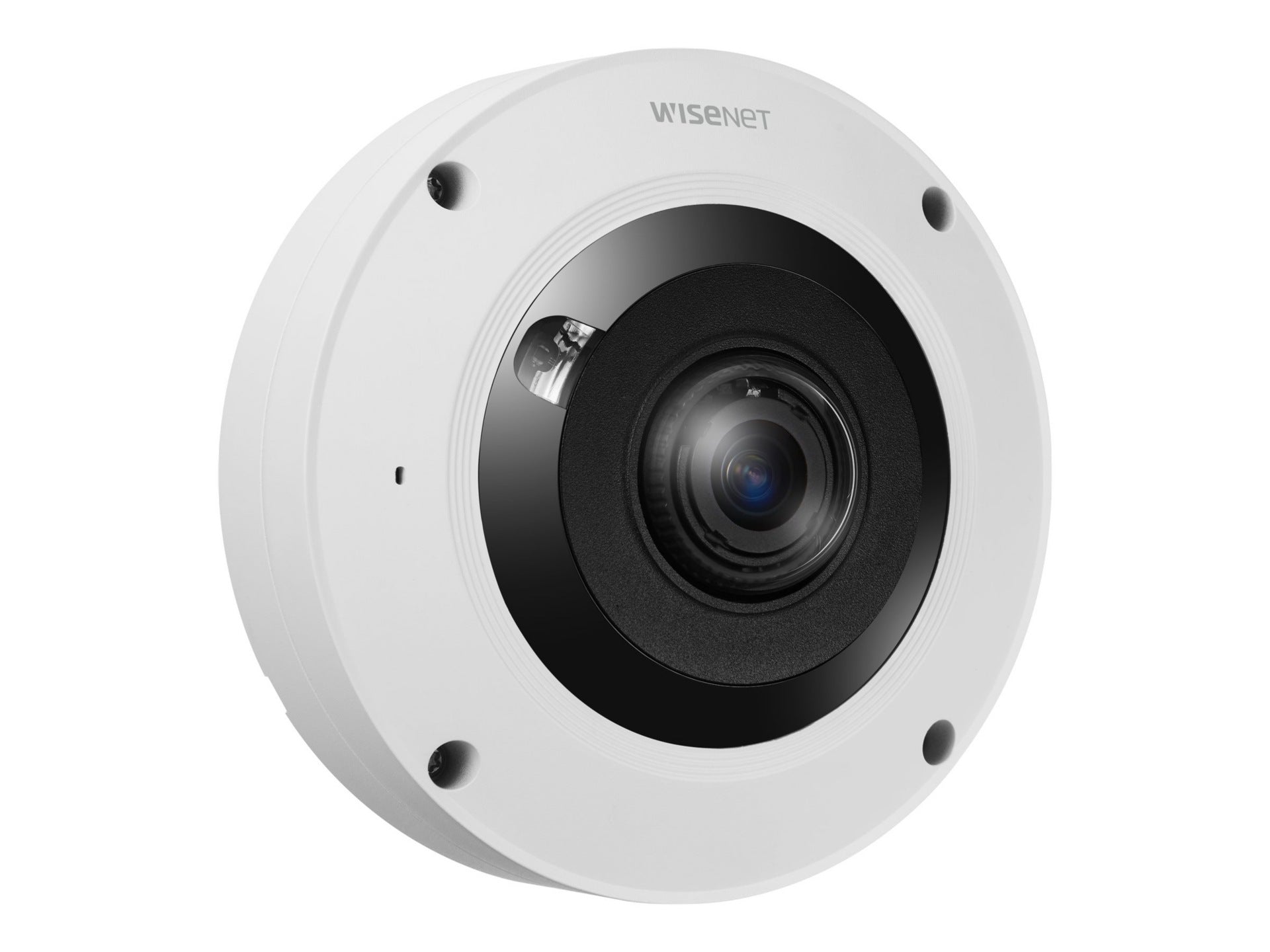

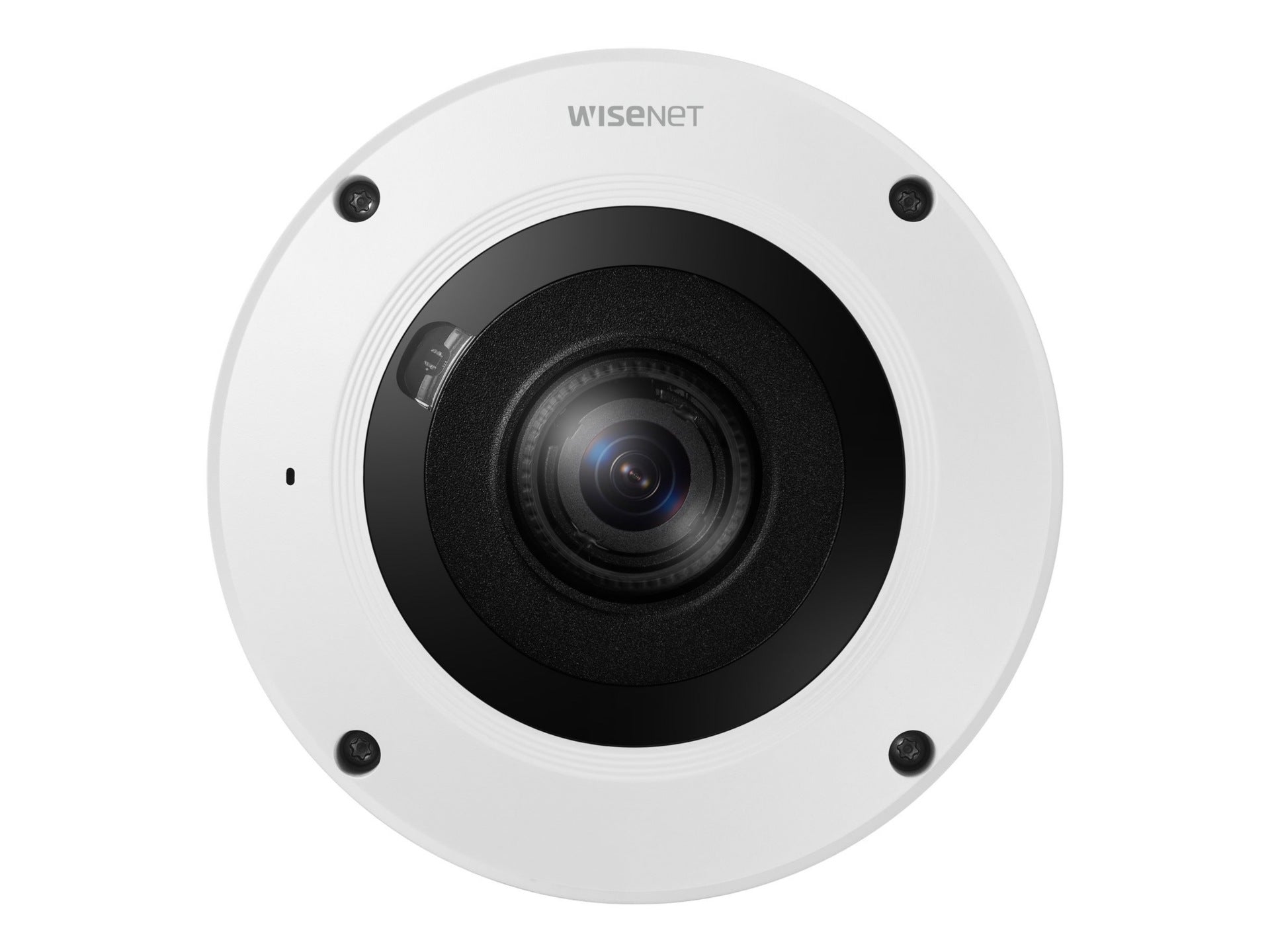

The HANWHA VISION XNF-9013RV is a high-performance surveillance camera built for professional security deployments. It combines ultra-clear imaging with intelligent analytics to deliver proactive, reliable monitoring in demanding environments.
-
Image Sensor: 1/2.3" 12MP CMOS sensor delivering crisp daytime footage and detailed 3008x3008 resolution at 30FPS
-
Lens: 1.08mm fixed focal, stereo graphic type lens with enhanced clarity for peripheral regions
-
Video Compression: Supports H.265, H.264, and MJPEG for efficient storage and bandwidth usage
-
Viewing Modes: Fisheye, Single Panorama, Double Panorama, and Quad View with onboard dewarping
-
Advanced Features: Digital PTZ, extreme 120dB WDR, WiseStream III, and Wise NR II for superior image quality
-
IR Capability: Night vision up to 42 feet (13 meters) for low‑light conditions
-
AI Analytics: Object detection (person, face, vehicle, license plate), IVA functions (virtual line/area, enter/exit, loitering, direction, intrusion), heatmap, people counting, queue management
-
Durability: Hard-coated dome with IP66, IK10, and NEMA4X ratings for weather and vandal resistance
-
Connectivity & Power: PoE+ (Wise Power) and 12VDC options with selectable I/O ports and virtual channel support
-
Cloud Compatibility: ONCLOUD compatible for seamless cloud-based management
Designed for continuous, reliable security operations, the XNF-9013RV provides expansive coverage with flexible viewing options and intelligent analytics. Its rugged build, advanced imaging, and cloud-ready integration help security teams detect, assess, and respond to incidents faster while optimizing storage and network performance.
Specs
-
Sensor: 1/2.3" 12MP CMOS
-
Max Resolution: 3008x3008 @ 30FPS
-
Lens: 1.08mm Fixed Focal, Stereo Graphic Type
-
Video Compression: H.265, H.264, MJPEG
-
IR Range: 42 ft (13 m)
-
WDR: 120 dB
-
Protection: IP66, IK10, NEMA4X
-
Power: PoE+ (Wise Power), 12VDC
-
Viewing Modes: Fisheye, Panorama (Single/Double/Quad) with onboard dewarping
-
Cloud: ONCLOUD compatible
FAQ
-
What is the maximum resolution of the camera? The camera supports a maximum resolution of 3008x3008 pixels at 30 frames per second.
-
Does the camera support night vision? Yes, it has infrared capabilities with a viewable length of up to 42 feet (13 meters).
-
What analytics features are included? It includes AI-based object detection (person, face, vehicle, license plate), IVA functions (virtual line/area, enter/exit, loitering, direction, intrusion), heatmap, people counting, and queue management.
-
Is the camera weather-resistant? Yes, it is rated IP66, IK10, and NEMA4X, ensuring protection against weather and vandalism.
-
Can this camera be integrated with cloud systems? Yes, it is ONCLOUD compatible for easy integration with cloud-based security platforms.
