Description

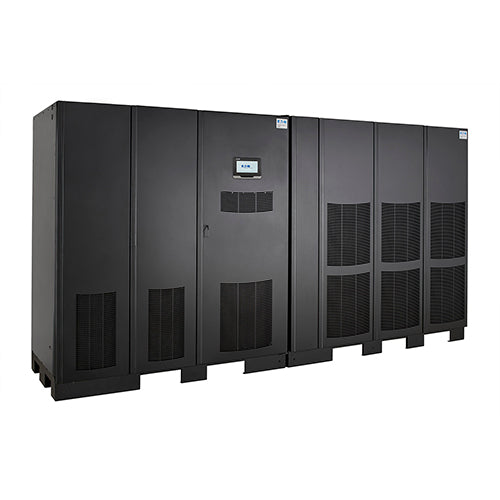

The Eaton Power Xpert™ 9395P UPS builds on the proven reliability of the Eaton 9395 UPS family, delivering up to 20% more power within the same compact footprint. Engineered with advanced three-level converter topology, the 9395P reduces component stress by operating at less than half the strain of conventional converters. The result is lower energy losses, higher efficiency, and extended system life.
In fact, upgrading from an older generation UPS to the Power Xpert 9395P can pay for itself within 2 to 3 years through significant energy and cooling savings.
Key Features & Benefits
Increased Power Density
-
Delivers 20% more power in the same footprint as the original 9395 UPS.
-
Ideal for enterprise data centers, hyperscale facilities, colocation sites, healthcare, and light industrial applications.
600V UPS Models – No External Transformer Required
-
The Power Xpert 9395P 600V models eliminate the need for bulky external transformers.
-
Saves on installation costs, reduces system complexity, and optimizes space.
Ease of Management
-

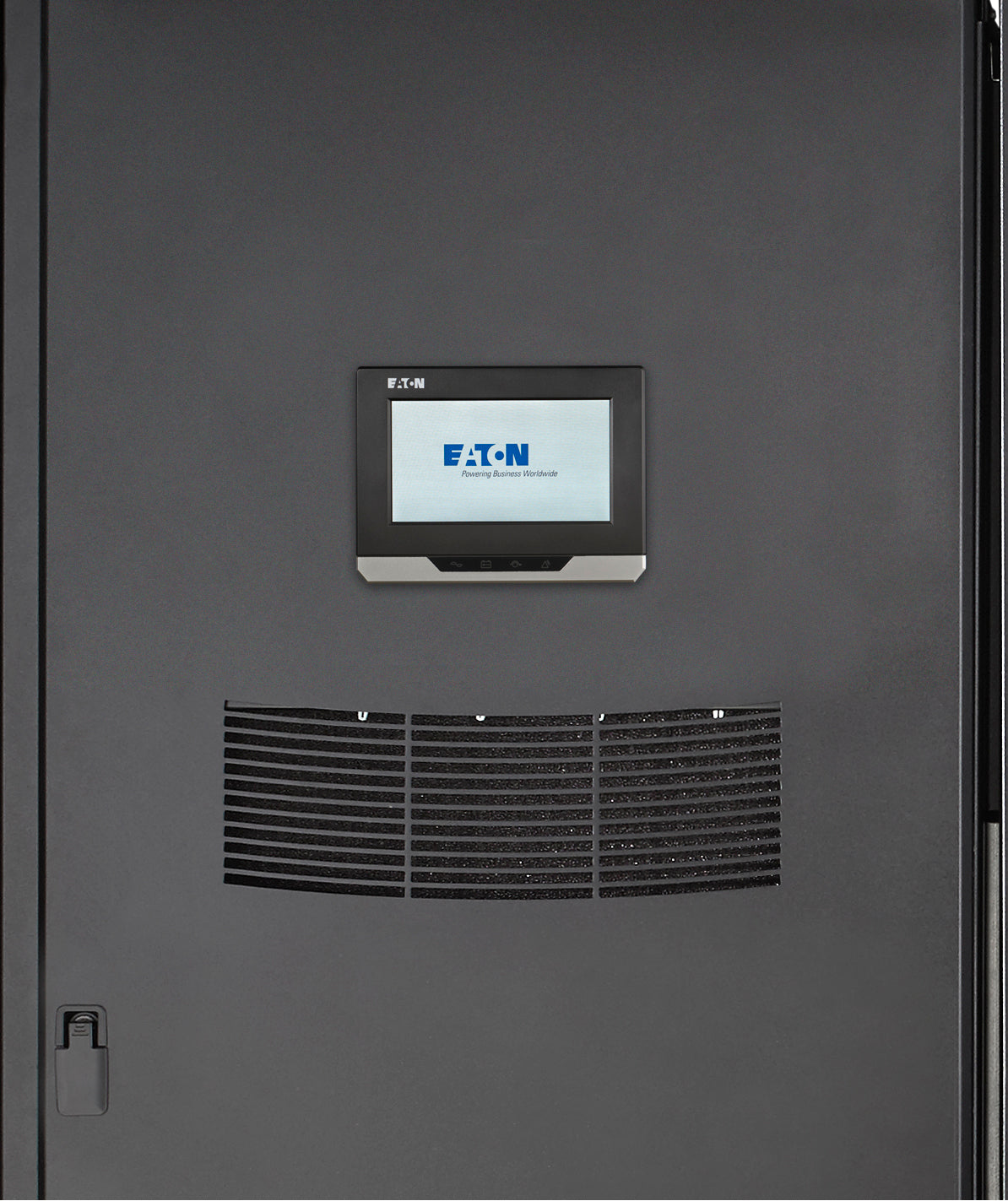

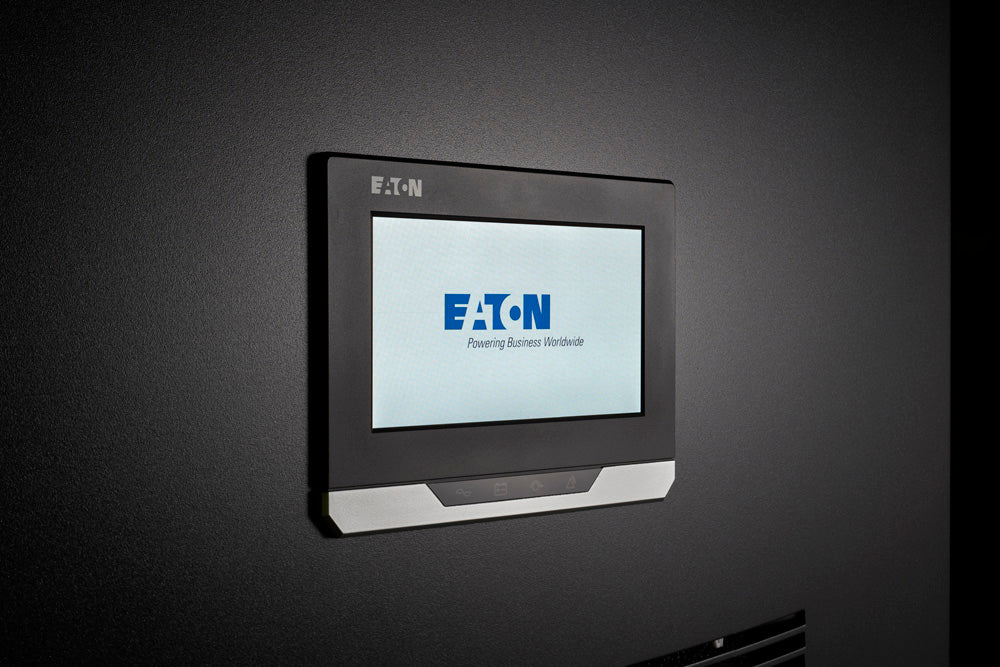

User-friendly LCD touchscreen provides detailed system status and control.
-
Integration with server virtualization platforms enables advanced power management and connectivity.
-
24/7 remote monitoring and reporting increases uptime and reduces unplanned outages.
Lithium-Ion Battery Compatibility
-
Fully compatible with Eaton’s lithium-ion UPS battery systems.
-
Also supports the Eaton 93PM UPS and other members of the 9395 UPS family.
-
Provides a lightweight, compact solution with lower maintenance requirements and longer battery lifespan.
PredictPulse Remote Monitoring
-
PredictPulse™ remote monitoring service included free for one year (with all 93PM and 9395 family units purchased after January 2022).
-
Eaton technicians install and activate PredictPulse during startup, using a secure cellular broadband modem/router for seamless setup.
-
Delivers predictive analytics and proactive service alerts for maximum uptime.
Lowest Total Cost of Ownership (TCO)
-
Reduces power and cooling costs with advanced efficiency.
-
Conserves valuable data center floor space with its compact design.
-
Helps mitigate risks of unexpected future growth costs.
Why Choose the Eaton Power Xpert 9395P UPS?
-
Up to 20% more power output in the same proven 9395 footprint.
-
Three-level converter design for unmatched efficiency and reduced stress on components.
-
Transformerless 600V design eliminates additional equipment and costs.
-
Lithium-ion battery ready, reducing long-term maintenance costs.
-
Remote monitoring and PredictPulse integration for predictive maintenance and higher reliability.
FAQs – Eaton Power Xpert 9395P UPS
Q1: What is the difference between the Eaton 9395 and the 9395P?
The 9395P UPS provides up to 20% more power density than the original 9395, while maintaining the same footprint. It also features three-level converter topology for higher efficiency and reduced energy losses.
Q2: Does the Power Xpert 9395P require an external transformer?
No. The 600V 9395P UPS models eliminate the need for an external transformer, saving space and reducing installation costs.
Q3: What battery options are available for the Eaton 9395P UPS?
The system supports both VRLA batteries and Eaton’s lithium-ion battery systems, allowing flexibility based on runtime, cost, and space requirements.
Q4: How quickly does the 9395P UPS pay for itself?
When replacing an older UPS, the 9395P can achieve payback within 2 to 3 years thanks to reduced power consumption, lower cooling requirements, and overall TCO savings.
Q5: What monitoring capabilities are included?
The UPS integrates with Eaton’s PredictPulse remote monitoring platform (included free for the first year) and offers 24/7 performance visibility, predictive maintenance insights, and real-time alerts.
Customization and flexibility
• Human Machine Interface (HMI) design allows customization display unique to your site layout
Upgrade to the Eaton Power Xpert 9395P UPS for higher efficiency, lower costs, and future-ready reliability in your critical power infrastructure.
Warranty and service plans
Power Xpert 9395P UPS technical specifications
| UPS rating (1.0 power factor) | |
| kVA | 200, 250, 275, 300, 400, 500, 550, 600, 675, 750, 825, 900, 1000, 1100, 1200 |
| kW | 200, 250, 275, 300, 400, 500, 550, 600, 675, 750, 825, 900, 1000, 1100, 1200 |
| General characteristics | |
| Efficiency |
99% with Energy Saver System Up to 97% (480V) and 96% (600V and 400V) in double-conversion |
| Parallel capability |
4 UPS units maximum for distributed bypass and 8 UPS units maximum with SBM |
| Max modules per size |
Up to 2 modules 300 kW Up to 3 modules 600 kW Up to 4 modules 900/1200 kW |
| Audible noise | As low as 75dBA @ 1 meter* |
| Altitude (max) |
1000m at 40 degree C (104 degree F) 1000m at 35 degree C (95 degree F ) when UPM capacity is above 275 kW |
| N+1 redundancy capable | Yes |
| Field upgradeable | Yes |
| System bypass module | Included |
| Control panel (LCD) | Color touchscreen |
| Battery startup | Standard |
| Frequency conversion | Standard |
| Multi-language | Standard |
| Building alarm inputs | 5 (galvanic isolated) |
| Input characteristics | |
| Voltage | 480V standard; and 400V available |
| Voltage range | +10% / -15% |
| Frequency range | 45-65 Hz |
| Power factor | 0.99 (minimum) |
| Input current distortion | <3.5% (no input filter required) |
| Soft start capability | Yes |
| Internal backfeed protection | Yes |
| Output characteristics | |
| Voltage | 480V standard; and 400V available |
| Regulation | ±1% |
| Inverter | PWM with IGBT switching |
| Voltage | THD <2% (100% linear load); <5% (non-linear load) |
| Load power factor range | Up to a .9 power factor leading without derating |
| Overload | 110% for 10 minutes, 125% for 2 minutes, 150% for 15 seconds |
| Battery | |
| Battery types | VRLA, AGM, wet cell |
| Battery voltage | 480V |
| Temperature compensation | Optional |
| Charging method | ABM technology or float, selectable |
| Dimensions and weights | |
| 225 kVA, 275 kVA |
52.4”w x 32.7”d x 73.6”h (1786 lb) |
| 225 kVA redundant, 275 kVA redundant | 73.7”w x 32.7”d x 73.6”h (2875 lb) |
| 450, 500, 550 kVA | 73.7”w x 32.7”d x 73.6”h (2977 lb) |
| 450, 550 kVA redundant | 103”w x 32.7”d x 73.6”h (4153 lb) |
| Field upgrade module, 225 or 275 kVA | 30”w x 32.7”d x 73.6”h (1176 lb) |
| 650, 750, 825 kVA | 140.9"w x 32.7"d x 73.7"h (5065 lb) |
| 650, 750, 825 kVA +1 redundant | 170.2"w x 32.7"d x 73.7"h (6365 lb) |
| 1000, 1100 kVA | 170.2"w x 32.7"d x 73.7"h (6525 lb) |
| Certifications | |
| Safety | UL1778, cUL |
| EMC | IEC 62040-2, EN50091 Class A (restricted access) |
| Options |
|
| Communication cards | Four communication bays standard. The following connectivity options can be installed at any time:
|
|
Remote inputs/outputs: Five building alarm inputs and one summary alarm contact (5A @ 120V) standard Remote monitor panel: Eight backlit status indicator lamps plus an audible horn |
|
| Software compatibility |
Eaton Intelligence Platform:
|
