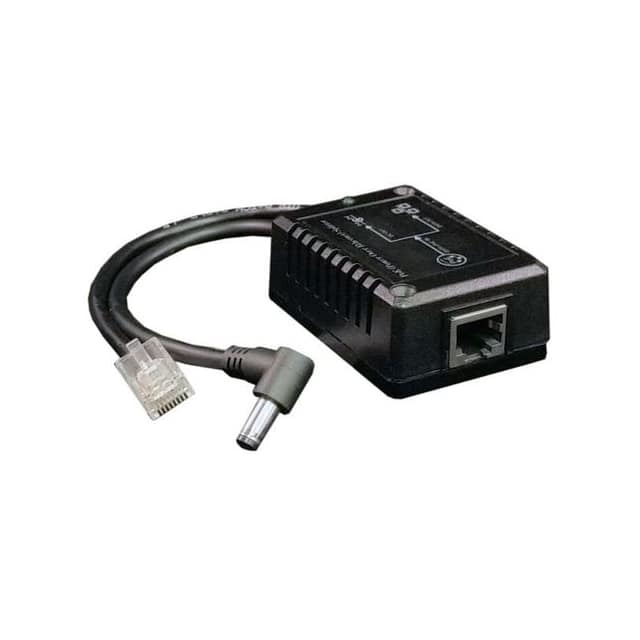

Tycon Power 802.3af PoE Splitter, 5VDC 12W Output
POE-MSPLT-4805 is a 10/100Mb splitter to power a non PoE device using PoE. It has an 802.3af/at or 48VDC Passive PoE input. The 12W DC output is via a standard 5.5mm/2.1mm barrel connector on a 6in cable. Data output is thru a 6in CAT5 cable terminated with an RJ45 connector.
These PoE splitters are the perfect solution for running 5VDC devices like switches and sensors from a 802.3af or 802.3at or 48VDC Passive PoE source. Wide -25 to +50C temperature range enables outdoor applications when mounted in weatherproof enclosures.
Inputs and outputs are isolated. They have protections for short circuit and over-current.
Product Type: PoE Splitter
Certifications & Standards:
- IEEE 802.3af
- IEEE 802.3at
- FCC Class B NE55022 Class B
Product Series: POE-MSPLT
Brand Name: Tycon Power
Length: 2.6"
Manufacturer: Tycon Power Systems
Product Name: 802.3af PoE Splitter, 5VDC 12W Output
Manufacturer Part Number: POE-MSPLT-4805
Manufacturer Website Address: http://www.tyconpower.com
Limited Warranty: 1 Year
Weight (Approximate): 2.19 oz
