Plugable USB C Dock with 85W Charging Compatible with Thunderbolt 3 and USB-C MacBooks and Select Windows Laptops

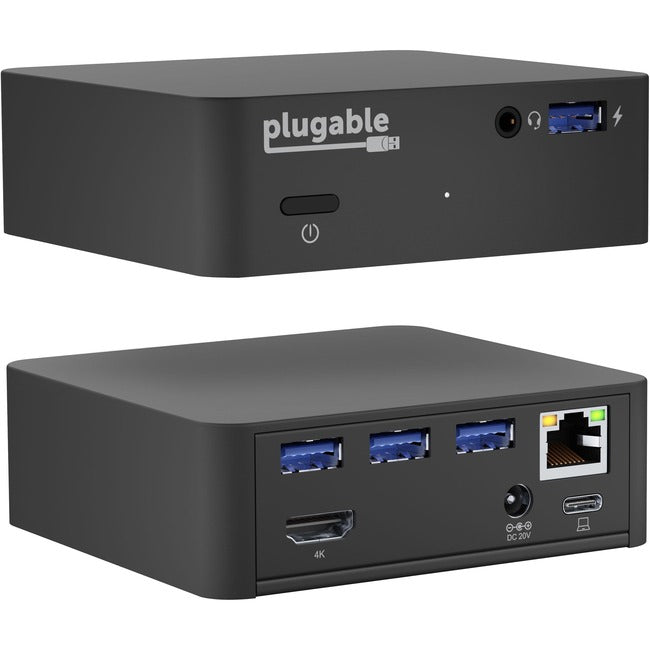

With its diminutive size and support for 85W of laptop charging (Power Delivery), the Plugable USB-C Mini Docking Station (UD-CAM) remains one of Plugable's smallest yet powerful USB-C docks available.
Plugable is an industry leader in Docking Station products, and this smaller form-factor dock should not be underestimated. Utilizing innovations introduced with USB 3.1, this dock is one of the first to use "Alternate Mode" from the USB-C specifications for one of the display outputs.
This dock supports USB Power Delivery, enabling the dock to charge a laptop, 2-in-1, or Windows tablet connected to it (up to 85W).
Note: Please read the information below for details regarding display output types and system requirements for the best compatibility, even with newer systems. USB-C or Thunderbolt 3 system with support for USB Alt Mode video output and/or PD charging is required for this docking station; not all systems or USB-C ports support these features. The dock will not work properly if adapted to USB 3.0 to connect to the computer or tablet.
When attached to a fully compatible USB-C or Thunderbolt 3 system, the UD-CAM supports Windows 10, 8.x, and 7, macOS, and Chrome OS.
Display and Charge
- 1x HDMI 1.4
- Up to 85W of USB Power Delivery
Drive a single HDMI display output at a maximum resolution of 4K 30Hz (2560x1600 and lower at 60Hz) on compatible USB-C Alt Mode systems.
Note: DisplayPort (DP) monitors are not supported.
If your device supports USB Power Delivery (USB PD), this dock supports up to 85W of charging to your host device.

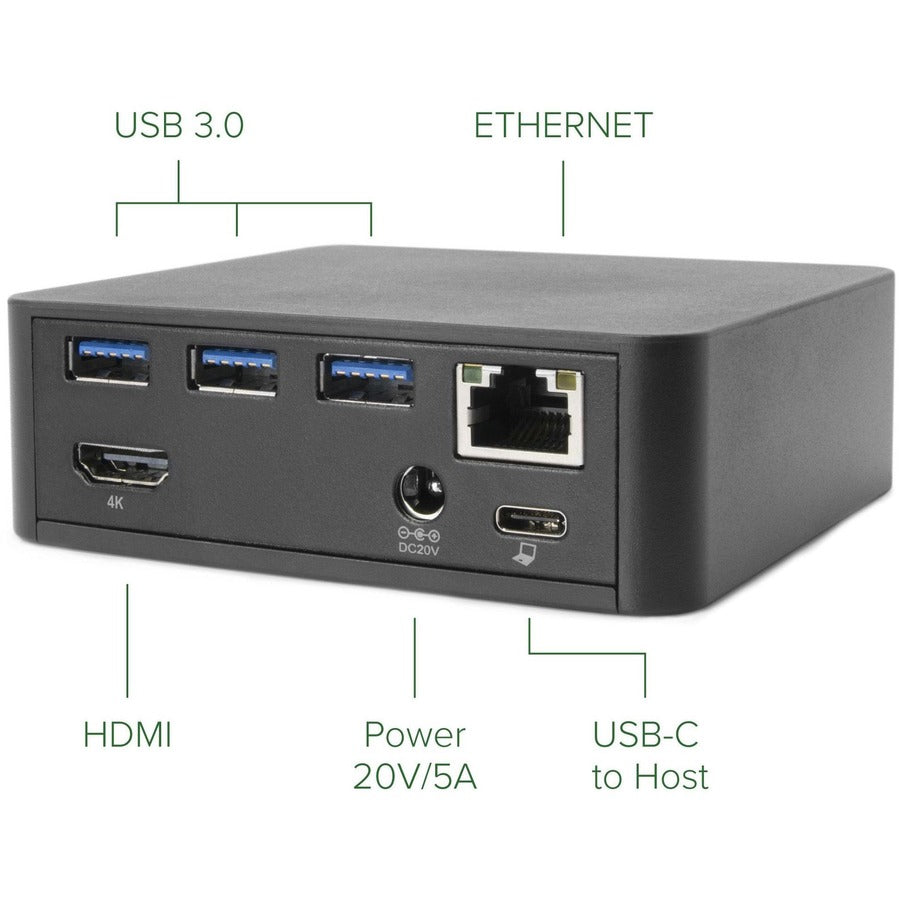

Connect
- 4x USB 3.0 Ports
- 1x Gigabit Ethernet
- 1x 3.5mm Audio Jack (TRRS) (Headphone and Microphone)
Get back your USB, audio, and network connections, or just make it easier to leave things plugged in at your main work area, and reconnect them, with one cable from the dock.
Mount

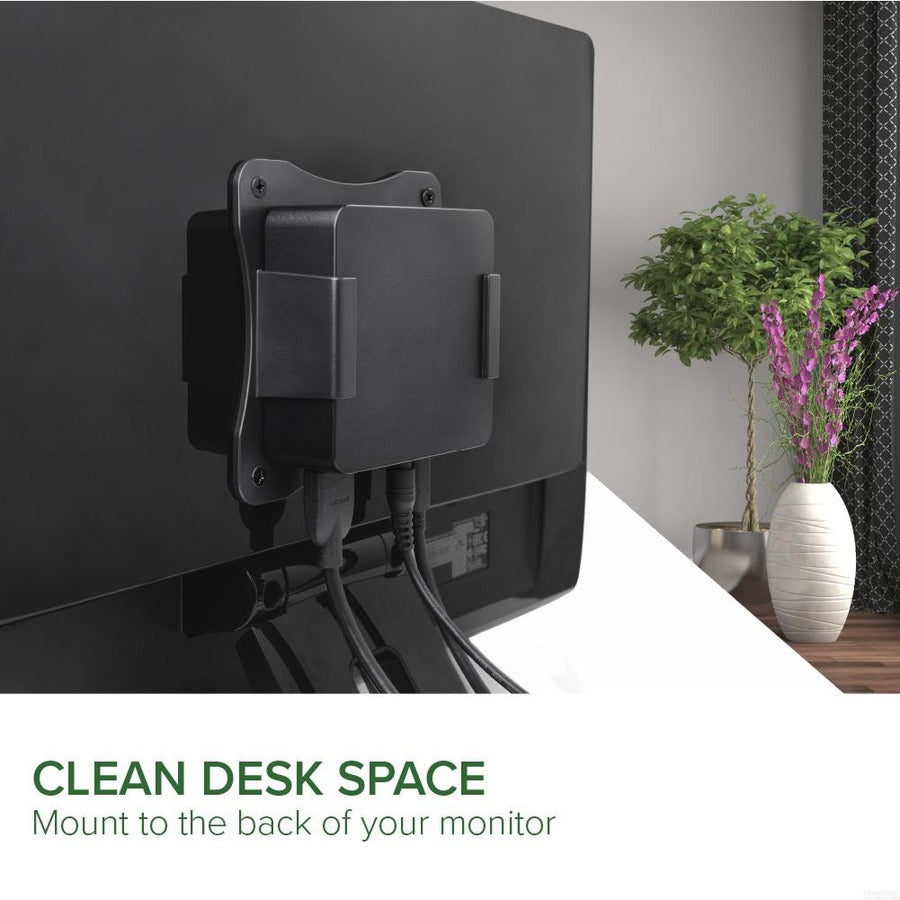

Easily mount this dock on the back of your monitor to keep your desk clutter free and save desk space for the things that matter most.
With the included VESA mount, this dock gives you the flexibility to use the dock on your desk or on the back of a compatible VESA monitor.
More from the Manufacturer
- Supports display resolutions up to 4K@30Hz
- USB-C Power Delivery provides up to 85W of charging power to host system

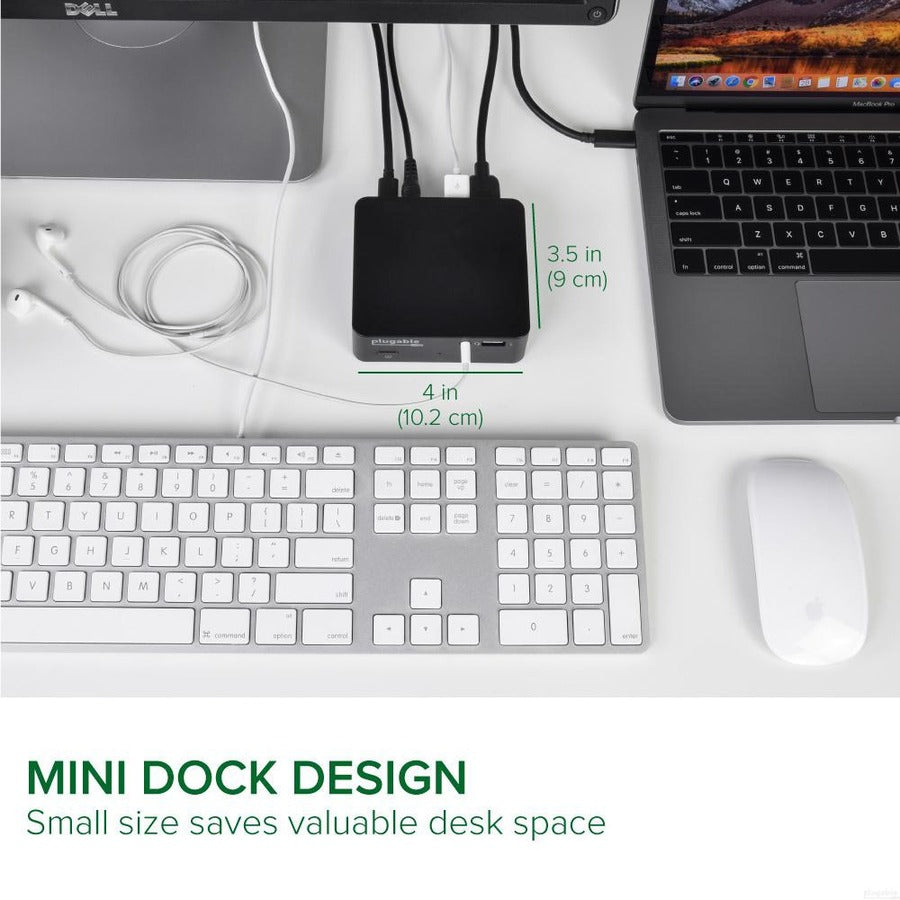

- Small form factor, big functionality
Product Type: Docking Station
Country Of Origin: Taiwan
Brand Name: Plugable
Compatibility:
Acer Notebook:
Apple Notebooks:
- MacBook 12" Retina 2016
- MacBook Pro 13" Late 2016 (non Touch Bar)
- MacBook Pro 15" Late 2016 (with Touch Bar)
- Macbook Pro 13" Early 2018 (with Touch Bar)
ASMedia Controller:
ASUS Notebook:
- Vivobook Max X541NA-PD1003Y
Dell Notebooks:
- Latitude 5580
- Latitude 7280
- XPS 13 9350 (Intel 6th Gen CPU)
- XPS 13 9360 (Intel 7th Gen CPU)
- XPS 15 9550 (Intel 6th Gen CPU)
- XPS 15 9560 (Intel 7th Gen CPU)
- XPS 15 9570
HP Products:
- Spectre X360 Convertible 13-AC0XX
- Chromebook 13 G1 (TPN-Q176)
- Elite Folio G1
- Elite X2 1012 G1
Huawei Notebooks:
Lenovo Products:
- Yoga 720 13" 1st gen
- Yoga 900 113ISK
- Yoga 910 14"
- Yoga 920
- Miix 720
- X1 Carbon 5th Gen
Microsoft Notebook:
Google Notebook:
Samsung Notebook:
- Chromebook Plus (XE513C24)
https://docs.google.com/spreadsheets/d/1y1BcngYaXtfc-mk-JjJ2j3XzmrRV_DaqaN7uxiAsFEw/htmlembed?gid=0&range=A1:CC999&widget=false&gridlines=true&chrome=false
Manufacturer: Plugable Technologies
Product Model: UD-CAM
Product Name: USB-C Mini Docking Station with 85W Power Delivery
Manufacturer Part Number: UD-CAM
Manufacturer Website Address: http://www.plugable.com
Packaged Quantity: 1

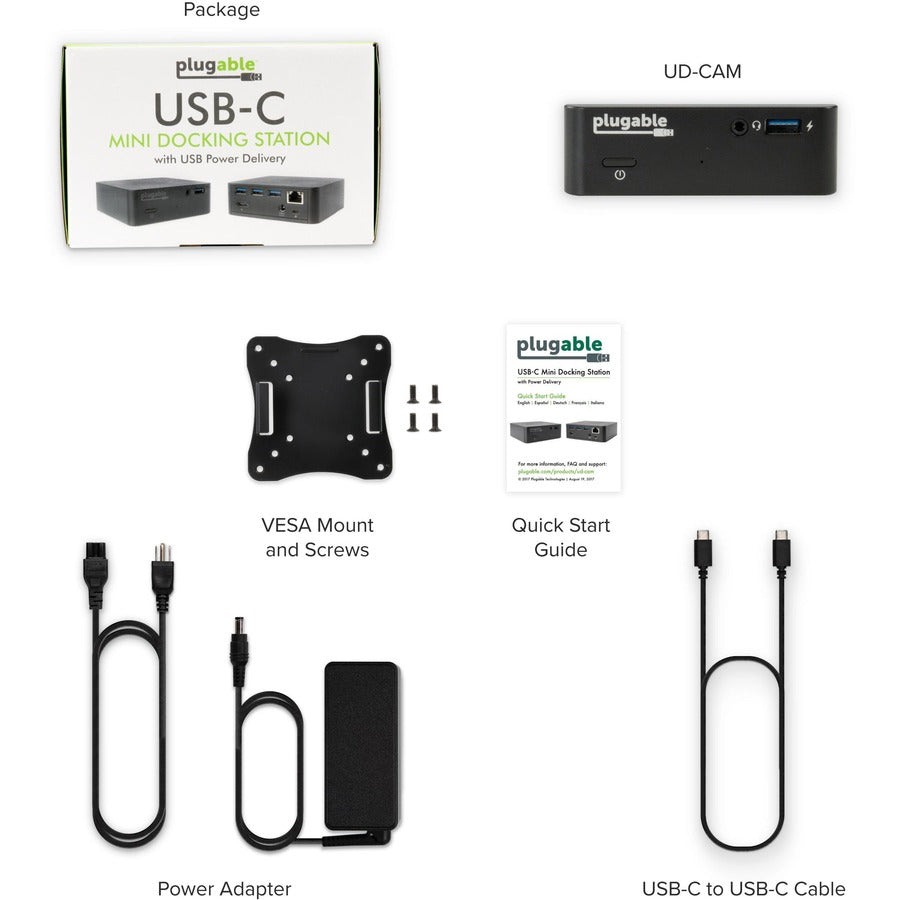

Package Contents:
- USB-C Mini Docking Station with 85W Power Delivery
- 1 x USB-C to USB-C Cable
- 1 x Power Adapter
- 1 x VESA Mount + Screws
Limited Warranty: 2 Year
