Plugable Docking Station
The Plugable smallest dock can drive an external HDMI display while having access to three USB ports and a wired Ethernet connection -- all through a single high-speed USB-C connection.
Performance

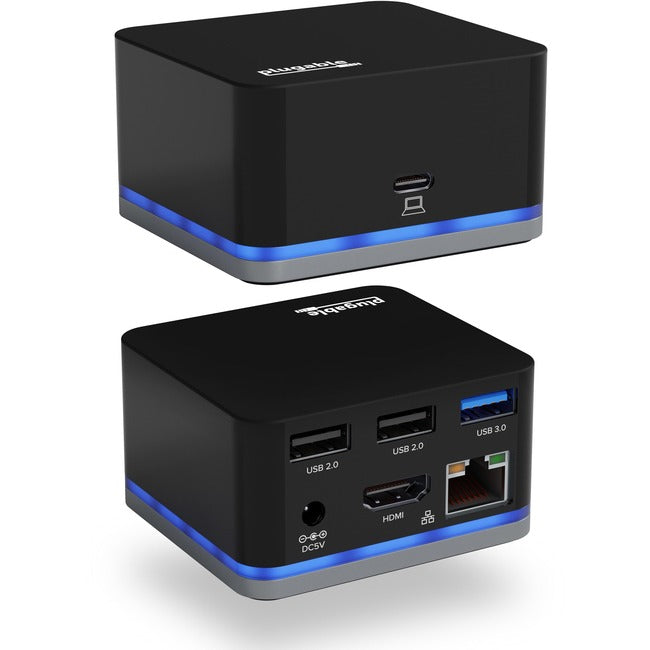

Meet Plugable's smallest USB-C docking station yet. The UD-CUBE. With this small laptop dock extend the connectivity and usability of your USB-C system with the mobile UD-CUBE that fits in the palm of your hand.
Compatibility
The portable docking station UD-CUBE is compatible with USB-C and Thunderbolt 3 equipped Windows, Mac and Chromebook systems that support Alt Mode video and acts as a port replicator stations multiple devices. Please see the System Requirements below for more details about exceptions.
The UD-CUBE is not for charging your host system. Please see Power and Charging below for more details.
System Requirements
While most USB-C systems support at least a single display output over USB-C via Alt Mode (which converts through the HDMI port on the dock), not all USB-C ports are created equal. Please refer to your system manual to ensure that your USB-C port supports Alternate Mode (Alt Mode) video

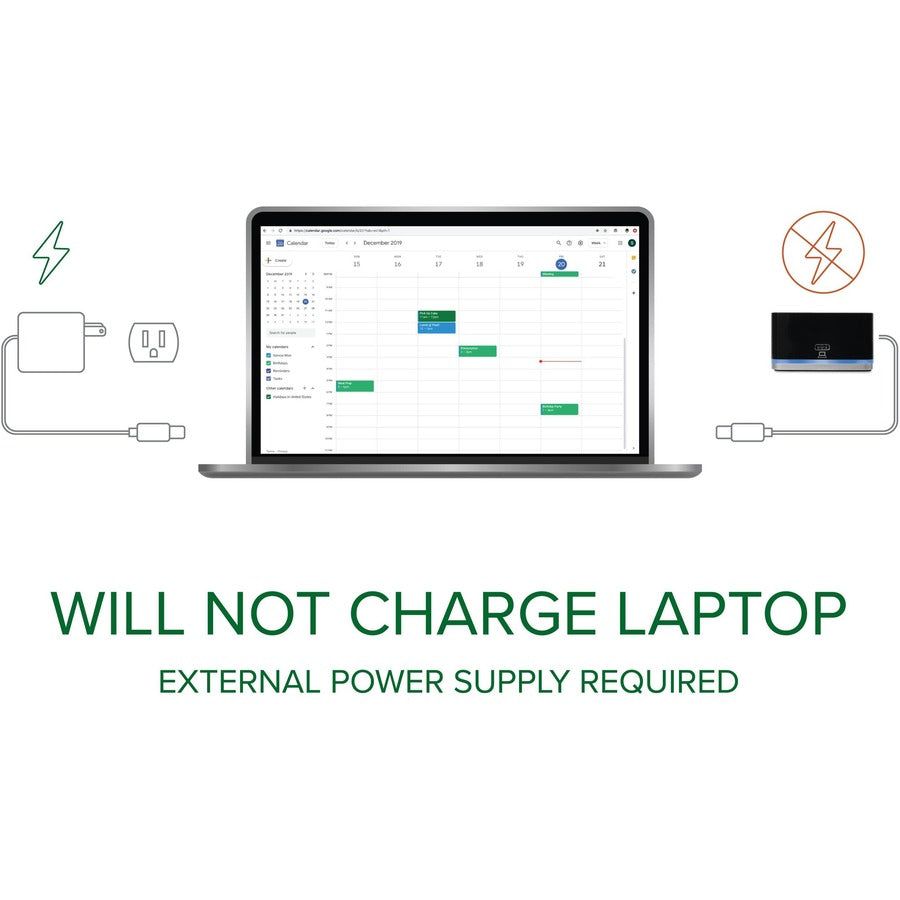

Power and Charging
The docing station UD-CUBE does not provide Power Delivery over USB-C, i.e., it will not charge your host system. Your system may report that the system is charging or you may see a charging icon, but you must keep your original power adapter attached in order to charge your computer.

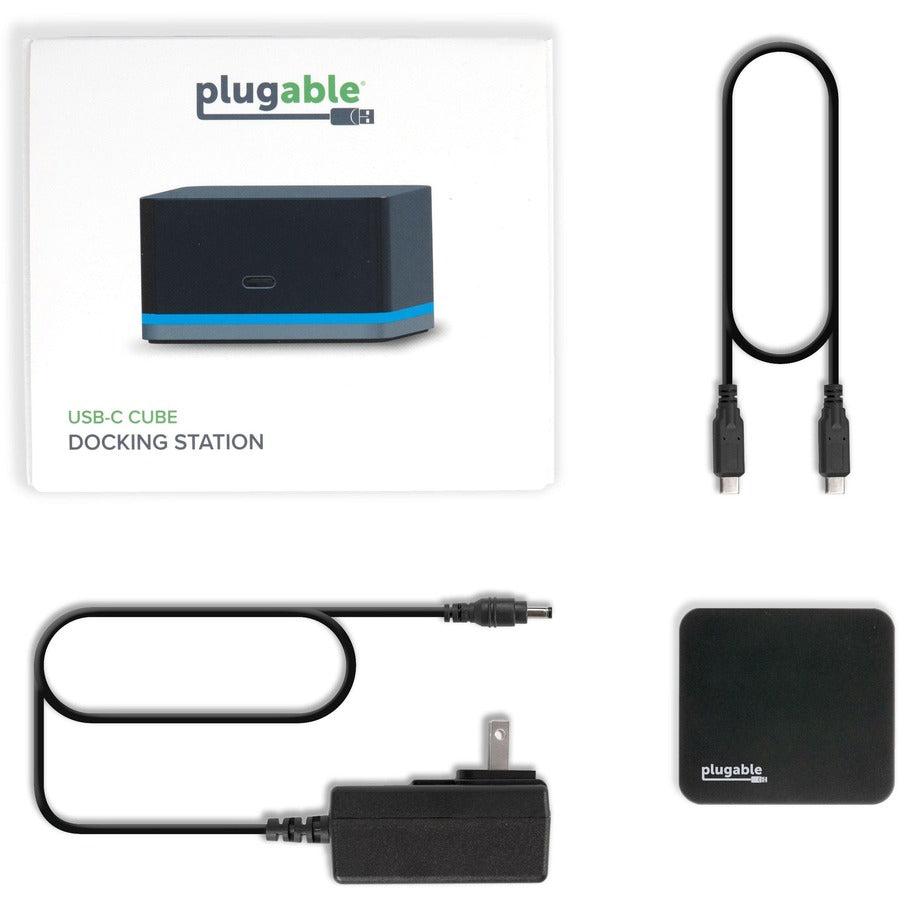

In the Box
Plugable UD-CUBE Mini Dock, USB 3.1 Type-C to Type-C Cable, Power Adapter (20W 5V/4A, UL60950-1), Quick Start Guide

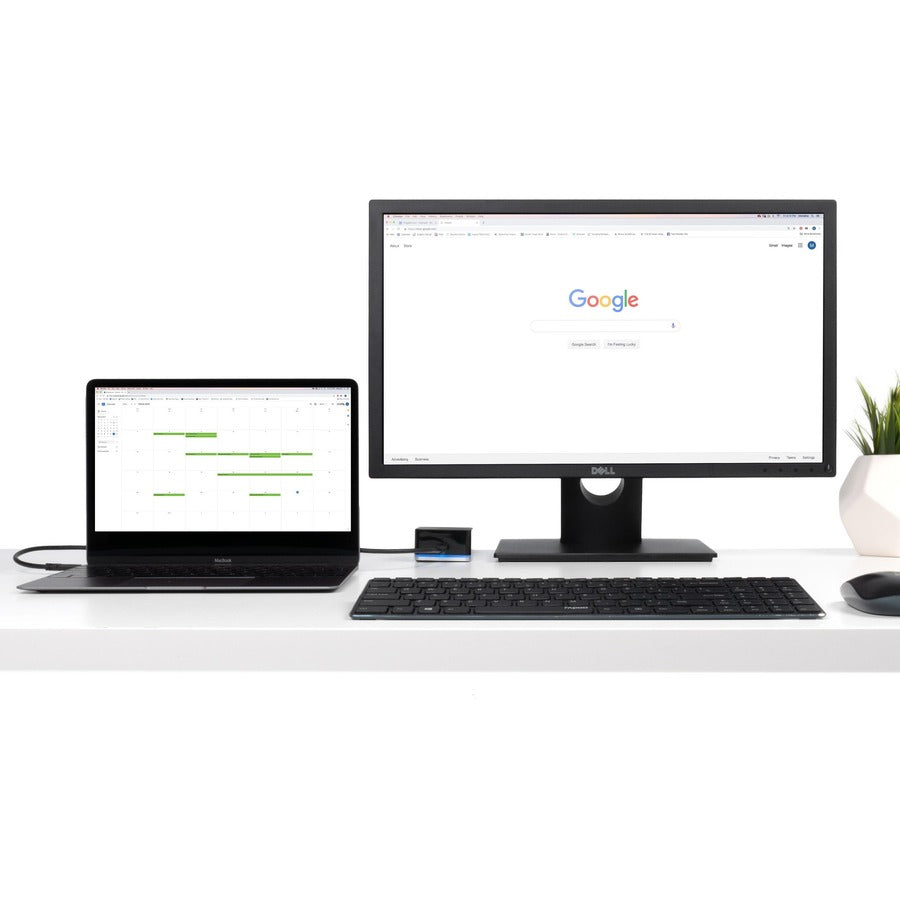

- Supports a single HDMI display for mirroring or extending your desktop with resolutions up to 4K@30Hz, 25601440@60Hz & 19201080/1080P@60Hz

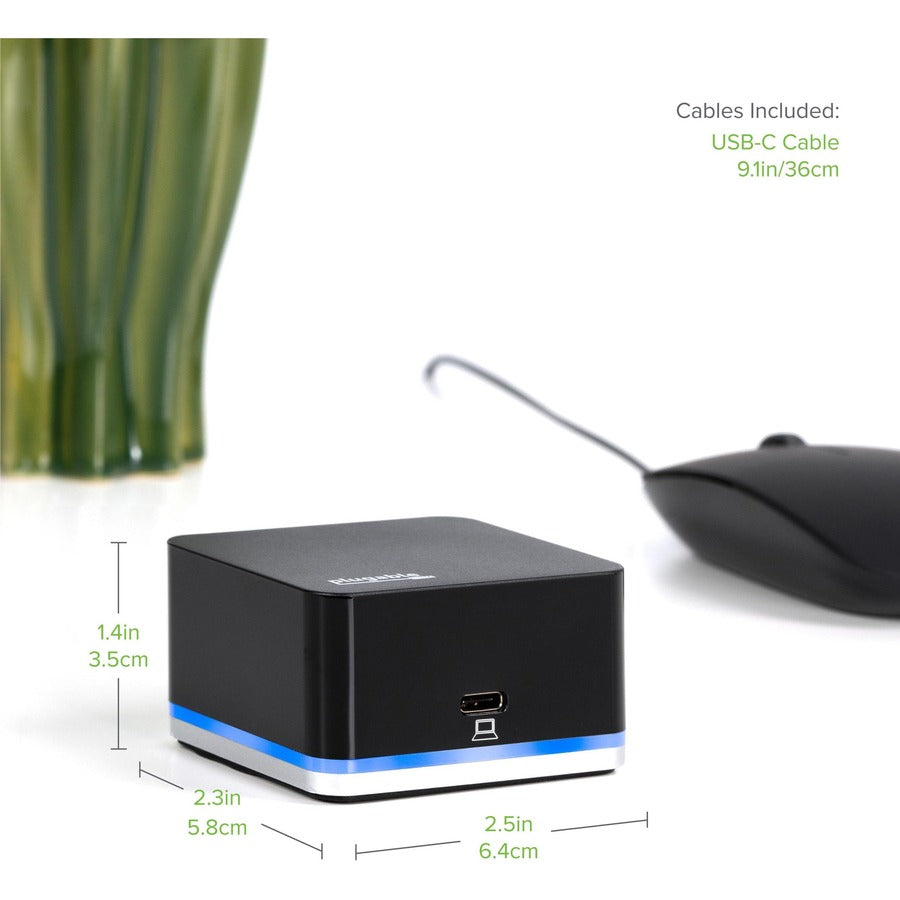

- Compact size with detachable USB-C cable making it ideal for clutterless workstations while portable for travel

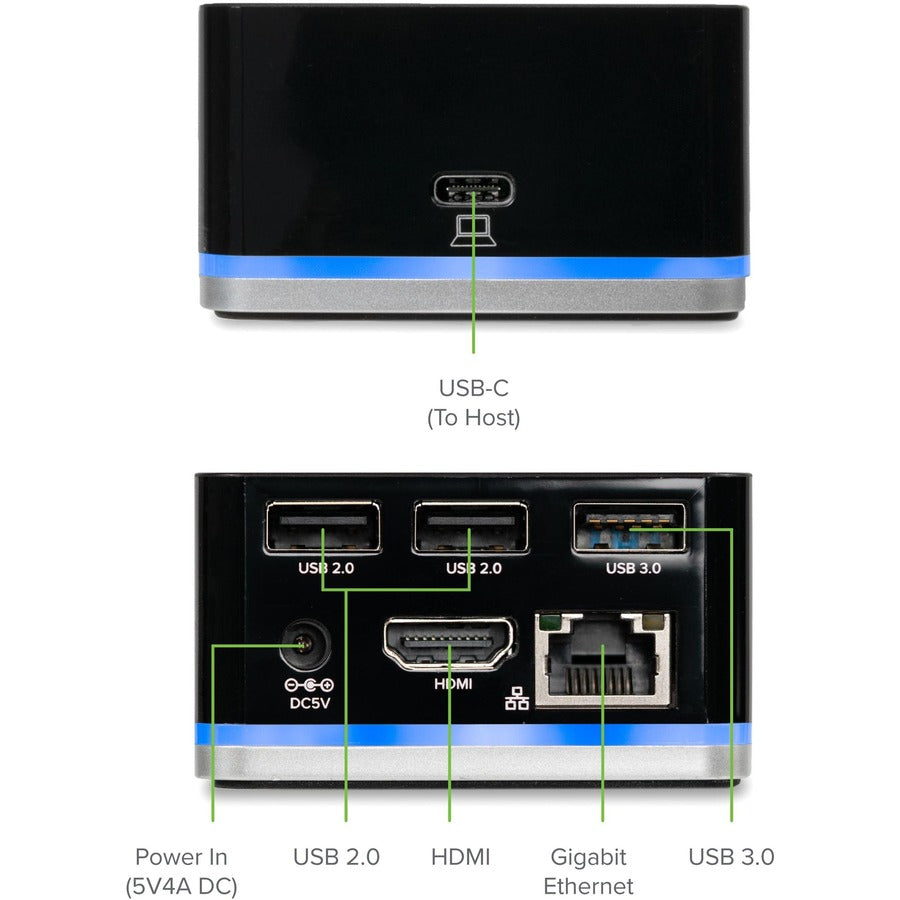

- Three total USB Type-A ports; One USB 3.0 port and two USB 2.0 ports on the rear
- Functional both on the desk and optionally on the road
- Wired gigabit network connectivity via one RJ45 Ethernet port
- Plug and Play with no driver installation needed
Product Type: Docking Station
Brand Name: Plugable
Manufacturer: Plugable Technologies
Product Name: Docking Station
Manufacturer Part Number: UD-CUBE
Manufacturer Website Address: http://www.plugable.com
Package Contents:
- Docking Station
- USB 3.1 Type-C to Type-C Cable
- Power Adapter (20W 5V/4A, UL60950-1)
- Quick Start Guide
