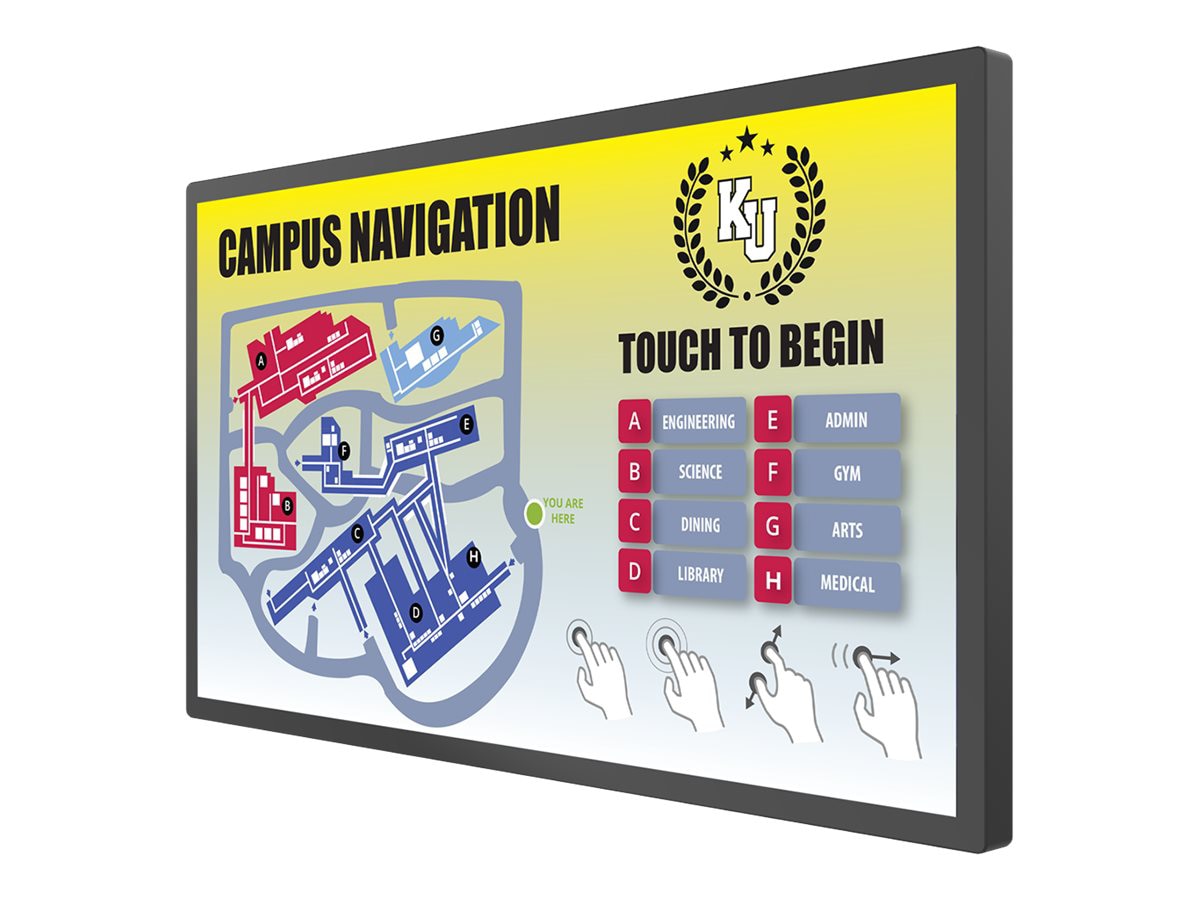

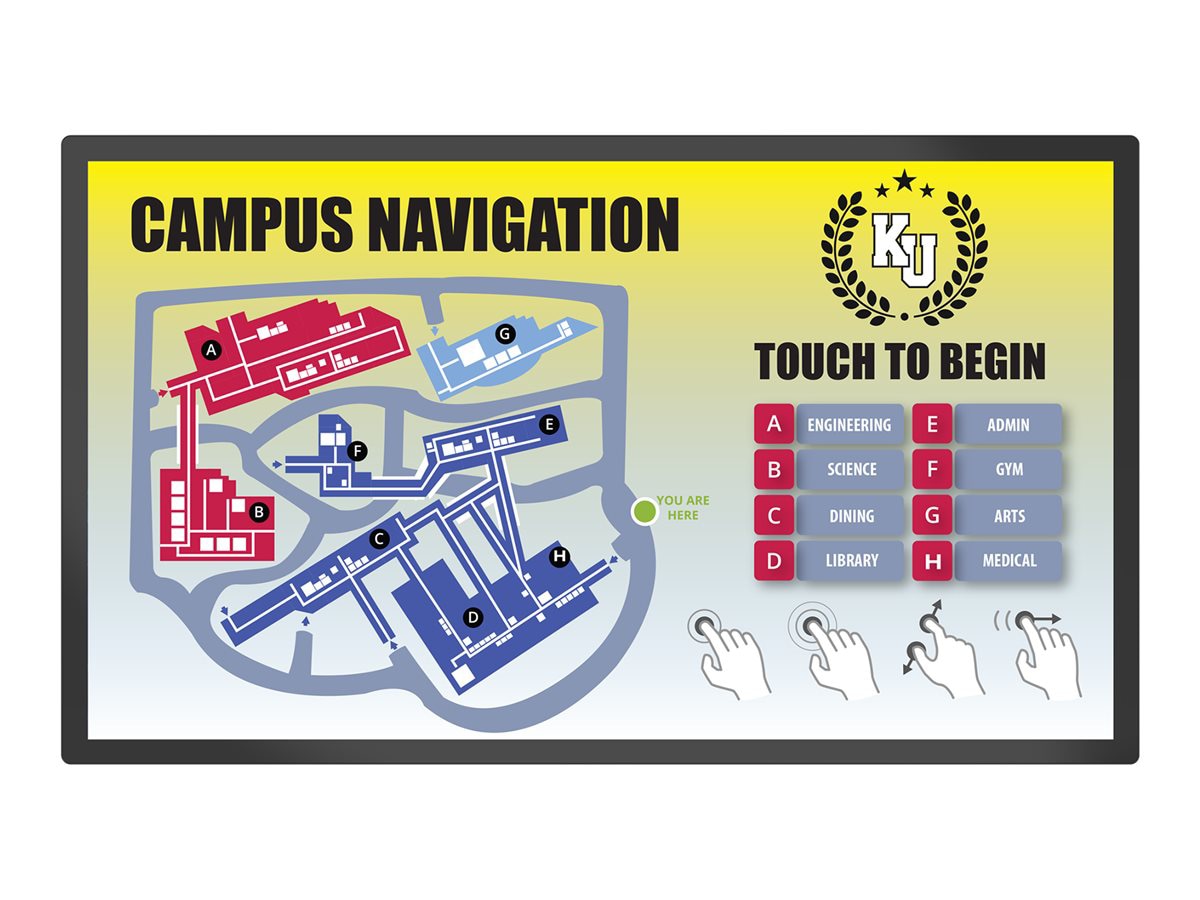

Planar PT3270Q 32" Interactive Touch LCD Monitor
The Planar PT3270Q is a premium 32-inch interactive touch LCD monitor engineered for demanding commercial, retail, and kiosk environments. This 10-point touch screen display combines stunning Quad HD (2560 x 1440) resolution with an advanced IPS panel that delivers 1.07 billion colors and exceptional clarity. Ideal for digital signage, interactive kiosks, point-of-sale systems, and collaborative workspaces, the PT3270Q offers the perfect blend of visual performance and intuitive multi-touch functionality. Its anti-glare surface ensures comfortable viewing from multiple angles, while robust connectivity options make integration seamless in any professional setting.
Key Features
- 32-inch Quad HD IPS LCD display with 2560 x 1440 resolution
- 10-point capacitive touch screen for responsive multi-touch interaction
- 1.07 billion colors with 10-bit color depth for vibrant, accurate imagery
- Anti-glare IPS surface with wide viewing angles (178° horizontal and vertical)

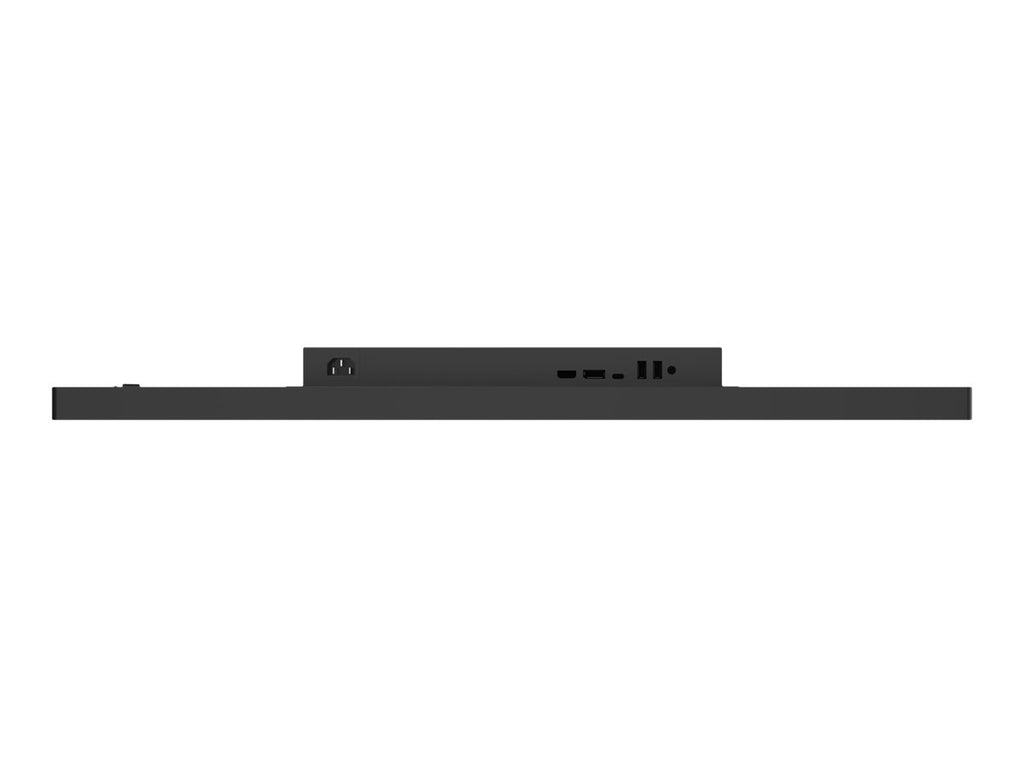

- Multiple connectivity: HDMI, DisplayPort, and USB ports
- Designed for wall-mounted and embedded applications
- Commercial-grade construction for 24/7 operation
- Supports interactive kiosk, retail display, and collaborative applications
Technical Specifications
| Specification |
Details |
| Manufacturer |
PLANAR |
| Part Number |
998-2949-00 |
| Screen Size |
32 inches diagonal |
| Panel Type |
IPS LCD |
| Resolution |
2560 x 1440 (Quad HD) |
| Touch Technology |
10-point capacitive touch |
| Color Depth |
10-bit (1.07 billion colors) |
| Surface Finish |
Anti-glare |
| Viewing Angles |
178° horizontal and vertical |
| Connectivity |
HDMI, DisplayPort, USB |
| Form Factor |
Mounted/embedded applications |
| Use Cases |
Commercial displays, retail kiosks, interactive signage, point-of-sale |
Frequently Asked Questions
What is a 10-point touch screen and why does it matter?
A 10-point touch screen can simultaneously recognize up to 10 individual touch points, enabling true multi-touch gestures like pinch-to-zoom, rotation, and complex interactions. This makes the Planar PT3270Q touch monitor ideal for collaborative applications, interactive kiosks, and modern retail environments where multiple users may interact with the display simultaneously.
Is the Planar PT3270Q suitable for outdoor or high-brightness environments?
The PT3270Q features a bright IPS panel with anti-glare coating, making it suitable for well-lit indoor commercial spaces. While not specifically rated for outdoor use, its high brightness and anti-glare surface provide excellent visibility in retail stores, airports, and other high-ambient-light environments.
What connectivity options does the 32-inch interactive monitor provide?
The Planar PT3270Q interactive LCD monitor includes HDMI, DisplayPort, and USB connectivity, ensuring compatibility with a wide range of commercial systems, media players, and control devices. This flexibility makes integration into existing kiosk and display infrastructure straightforward.
Can the PT3270Q be wall-mounted or embedded into custom installations?
Yes, the Planar PT3270Q is specifically designed for mounted and embedded applications. Its robust construction and flexible mounting options make it ideal for custom installations in retail environments, digital signage networks, and interactive display systems.
