The Eclipse P400A has a range of possible fan and radiator locations up to 360mm for both 120mm and 140mm fans.
The P400A supports 2x 3.5" HDDs and 2x 2.5" SDDs out of the box with easy-to-use trays and vibration dampening. There is space for an additional 4x drives with the optional PH-HDDKT_02 brackets.
OPTIONAL UPGRADES
Upgrade your Evolv X with the following complementary products.
HDD Bracket
PH-HDDKT_02
Vertical GPU Bracket
PH-VGPUKT_02
(Riser Cable Is Included)
HALOS Digital Fan Frames
FOR: PH-EC400ATG_DBK/PH-EC400ATG_DWT
PH-FF120DRGBP / PH-FF140DRGBP /
PH-FF120DRGBA / PH-FF140DRGBA
D-RGB LED Strip Combo
FOR: PH-EC400ATG_DBK/PH-EC400ATG_DWT
PH-DRGBLED_CMBO_01
| P400 FAN CONTROLLER | |||

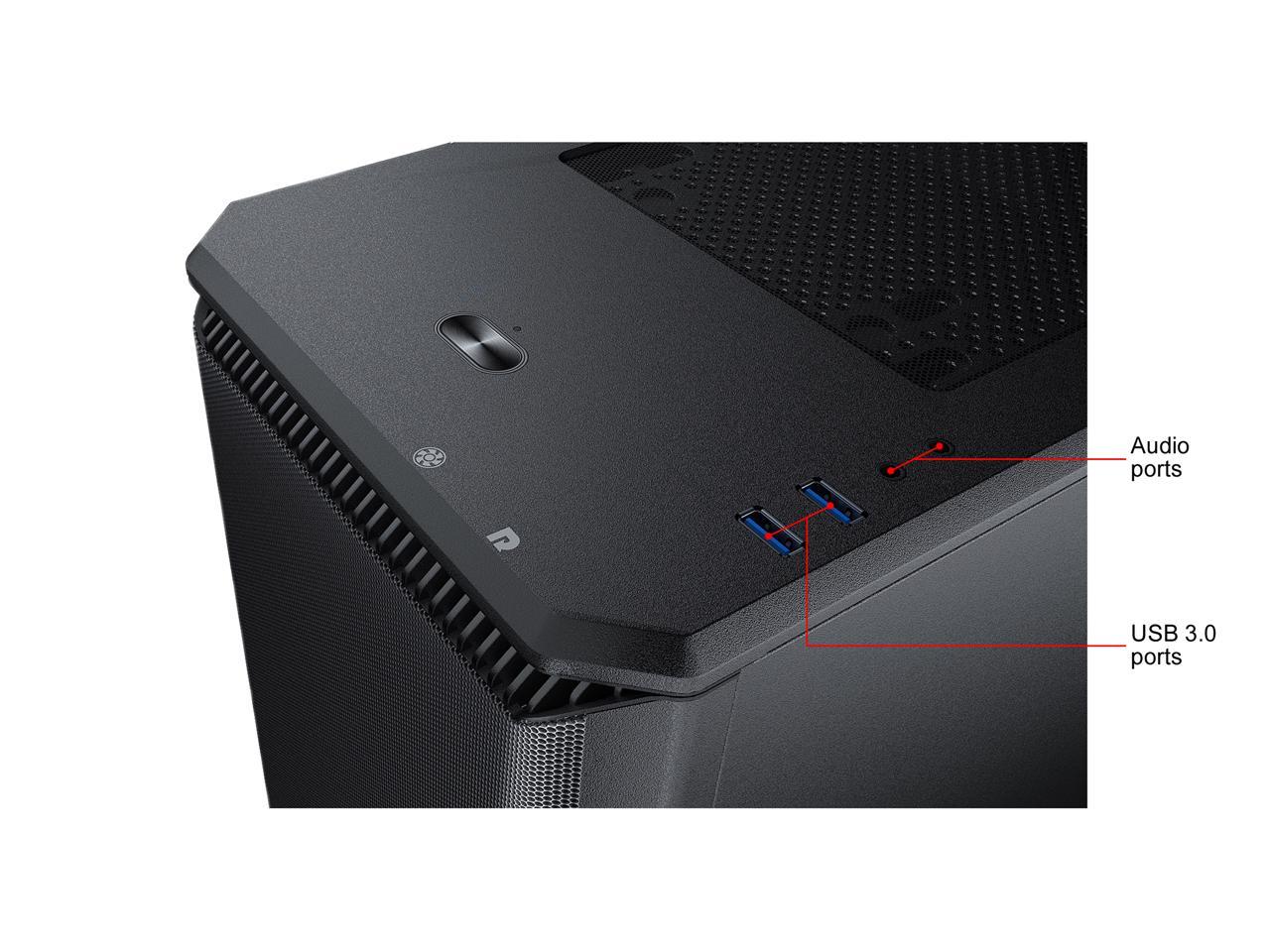

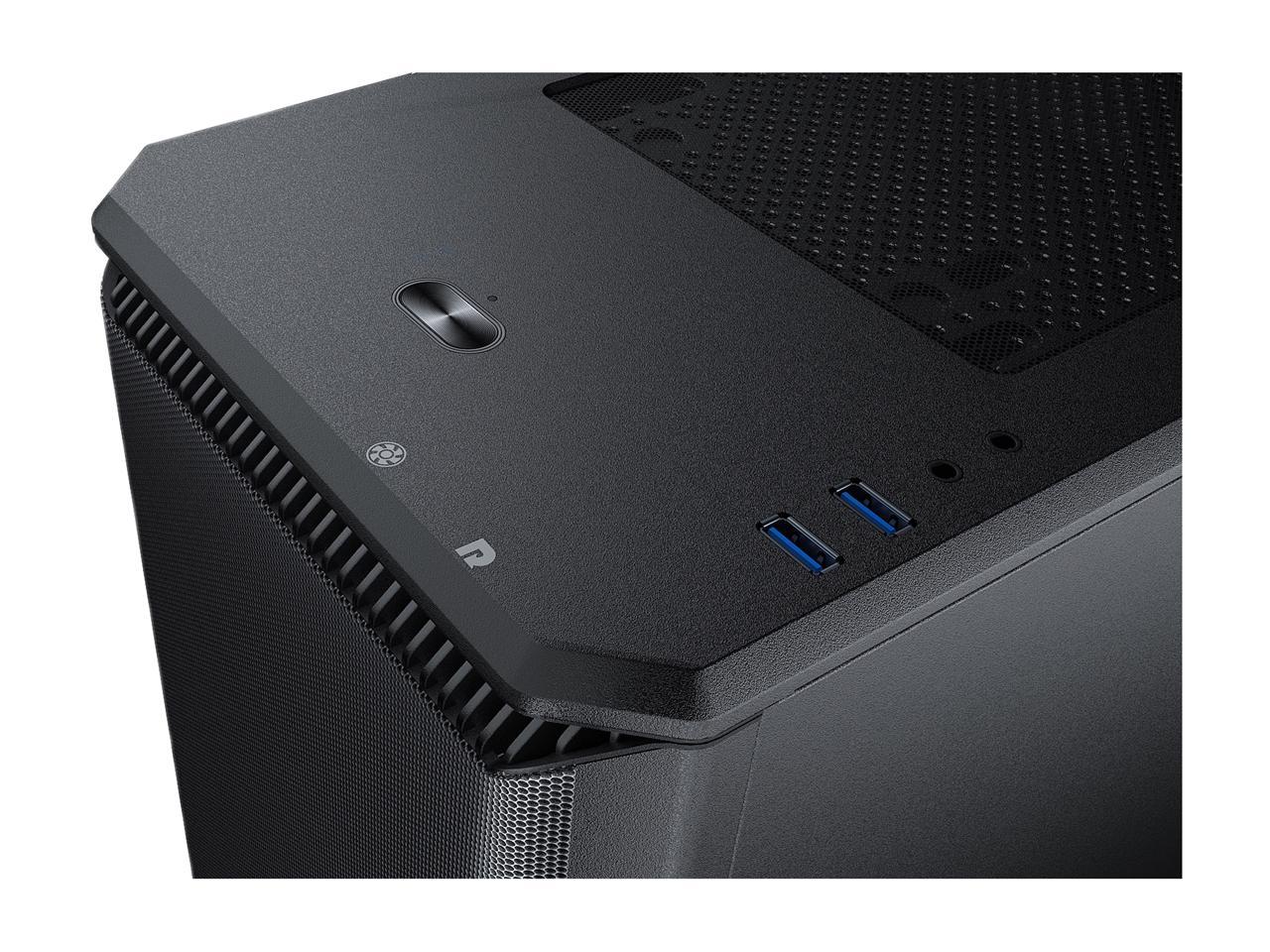

| Front I/O | 2x USB 3.0, Mic, Headphone, Power Button, Reset Button & Fan Speed Button | ||
| Fan Controller | 3 Speeds: Low/Medium/Full, 3x 3-Pin Fan Connectors | ||
| Included Accessories | 2x 120mm Black Phanteks Case Fans | ||
| P400A DIGITAL-RGB CONTROLLER | |||
| Front I/O | 2x USB 3.0, Mic, Headphone, Power Button, Reset Button, D-RGB Mode, D-RGB Color | ||
| Included Accessories | 3x 120mm Digital-RGB Phanteks Case fans | ||
| CASE SPECIFICATIONS | |||
| Dimension (WxHxD) | 210 mm x 465 mm x 470 mm 8.3 in x 18.3 in x 18.5 in |
||
| Form Factor | Mid-Tower | ||
| Materials | Powder coated steel chassis Tempered glass side panel |
||
| MB Support | ATX, Micro-ATX, Mini-ITX, E-ATX (up to 272 mm wide if optional HDD trays are used) | ||

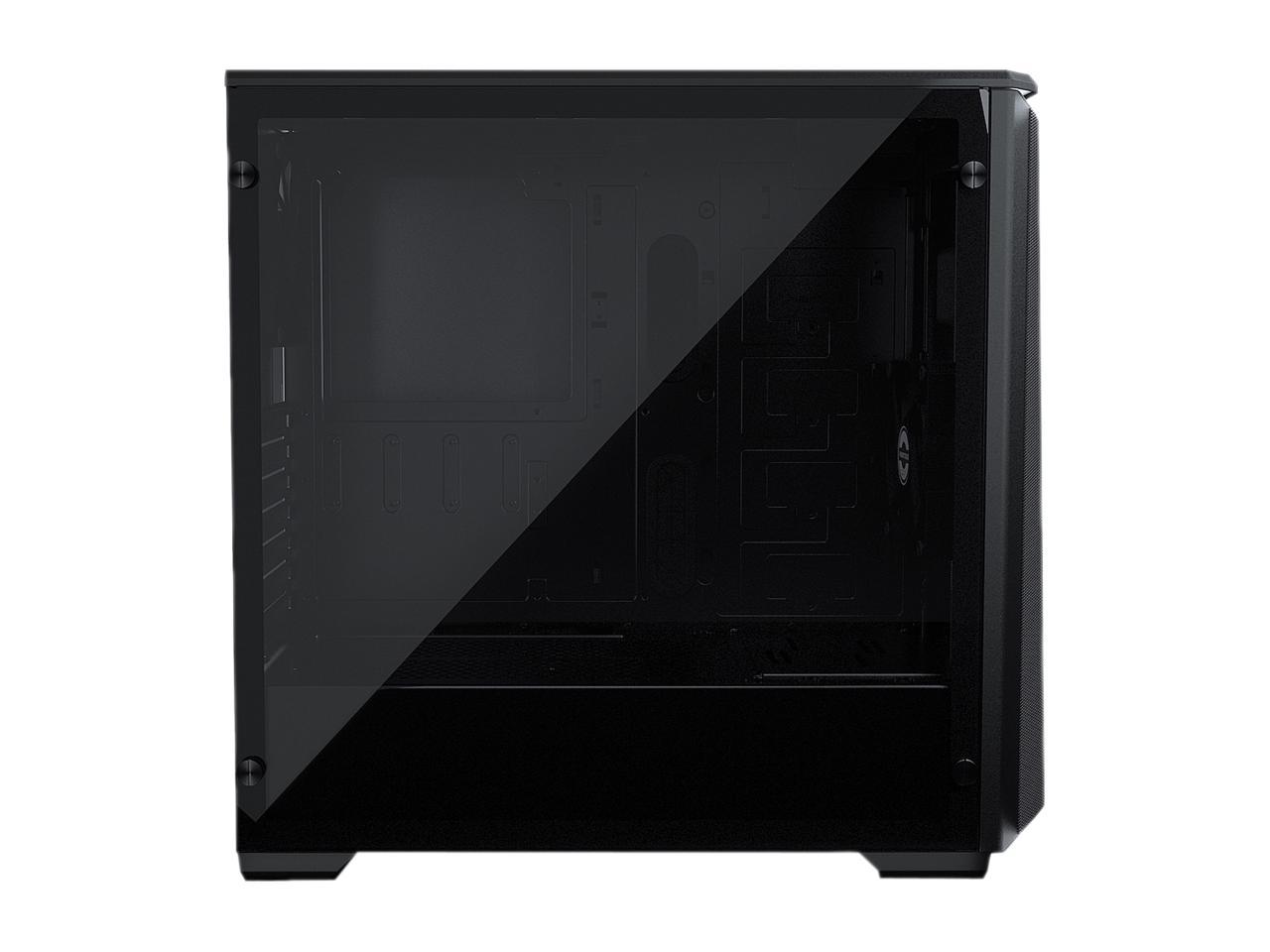

| Side Window | Yes, Tempered glass | ||
| PCI SLOTS & DRIVE BAYS | |||
| PCI Slots | 7x | ||
| Internal 3.5" | 2x (2 Included) | ||
| Internal 2.5" | 2x (2 Included) | ||
| FAN | 120mm | 140mm | |
| Front | 3x | 2x | |
| Top | 2x | 2x | |
| Rear | 1x | - | |
| RADIATOR | 120mm | 140mm | |
| Front | Up to 360 | Up to 280 | |
| Top | - | - | |
| Rear | 120 | - | |
| CLEARANCE | |||
| CPU Cooler | 160mm (6.3") | ||
| Graphics-Card Length | 420mm (16.7") | ||
| 280mm (11.0") When Optional HDD Brackets Are Installed | |||
| PSU (Including Cable) | 270mm (10.7") | ||
| PACKAGING INFORMATION | |||
| Package Dimension (WxHxD) | 300 mm x 555 mm x 520 mm | ||
| 11.8 in x 21.9 in x 20.5 in | |||
| Net Weight | 7kg | ||
| Gross Weight | 8kg | ||
| MODELS | PH-EC400ATG_BK01 | PH-EC400ATG_DBK01 | PH-EC400ATG_DWT01 |
| Color | Satin Black | Satin Black | Glacier White |
| Warranty | 5 Years | 5 Years | 5 Years |
