Peerless Plav70-Unlp Articulating Dual-Arm With Vertical Adjustment

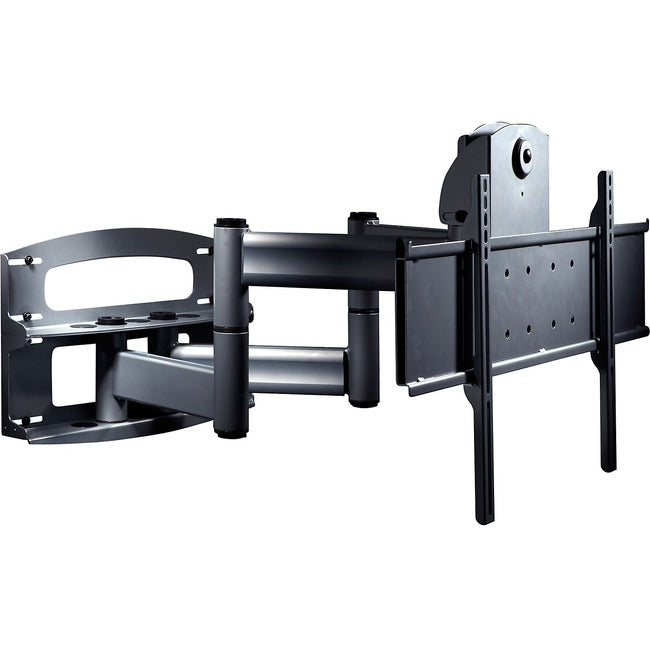

Peerless PLAV70-UNLP Articulating Dual-Arm with Vertical Adjustment

Designed to handle the heaviest displays, the PLAV70 features dual-arm, all-steel construction that holds displays up to 95" and weighing up to 200lb. The PLAV70's self-lubricating bushingsenable your display to smoothly articulate, while adjustable tilt and pivot allow you to position your display for the optimal viewing angle. Swing, tilt and extend your display, even in and outof recessed cubby holes and custom frames with the vertical adjustment feature that providesthe capability to raise or lower your display for a perfectly aligned installation.

• Arm extends up to 32.52"(826mm) from wall


• Up to 180 degree swivel


• +7 / -7 of roll for post installation display leveling


• +-1" (24mm) vertical adjustment located within reach behind display


• +10/-5 of tilt


• Universal models accommodate 42" to 95"displays with mounting hole patterns up to 730 x 433mm (28.75"W x 17.05"H)


• Three horizontal arm positions at 2.6" (66mm) centers for flexible lateral display placement


• Includes mesh cord sheath and cable ties to neatly manage cables

Product Type: Mounting Arm
Vesa Mount Standard: 600 x 400
Product Color: Black
Product Material: Steel
Country Of Origin: United States
Brand Name: Peerless-AV
Compatibility: Plasma and LCD Flat Panel Screens: 42" - 60"
Manufacturer: Peerless Industries, Inc
Product Model: PLAV70-UNLP
Product Name: PLA Series Articulating Dual Wall Armwith Vertical Adjustment For 42" to 95" Dis
Manufacturer Part Number: PLAV70-UNLP
Manufacturer Website Address: http://www.peerless-av.com
Packaged Quantity: 1
Package Contents:

• PLAV70-UNLP Articulating Dual-Arm with Vertical Adjustment


• 1 x Wall plate


• 1 x Tilt-roll assembly


• 1 x Arm assembly


• 2 x Wall support arm axle


• 3 x Vinyl trim


• 8 x Screw bolt (M10 x 1.5 x 15 mm)


• 1 x Nylon washer (.505 x .75 x .062" )


• 1 x Tilt adjustment knob


• 1 x Carriage bolt (3/8"-16 x 3.25" )


• 4 x Delrin washer (1.525 x 2 x .062" )


• 2 x Socket head cap screw (#8-32 x .375" )


• 6 x Plastic finishing cap


• 2 x Holding pin


• 2 x Retainer plug


• 8 x Wood screw (5/16 x 3")


• 8 x Washer (.250 x 1 x .068" )


• 1 x Allen wrench (9/64")


• 8 x Cable management clips


• 8 x Cable tie


• 2 x Polyester mesh sleeve (36")


• 1 x Allen wrench (6 mm)


• 1 x Adapter bracket


• 2 x Shallow adapter bracket


• 2 x Deep adapter bracket


• 1 x Allen wrench


• Phillips Adapter Bracket Fasteners


• 4 x (M6 x 20 mm)


• 4 x (M6 x 30 mm)


• 6 x Multi-washer


• 6 x (M8 x 16 mm)


• 4 x (M8 x 40 mm)


• 6 x (M4 x 12 mm)


• 4 x (M4 x 25 mm)


• 4 x (M5 x 12 mm)


• 4 x (M5 x 25 mm)


• 4 x (M6 x 12 mm)


• 4 x (M6 x 25 mm)


• 4 x (I.D. 5.6 mm)


• 4 x (M8 x 25 mm)


• 4 x (I.D. 8.7 mm)
