Aorus GP-AG70S1TB 1000 GB Solid State Drive - M.2 2280 Internal - PCI Express (PCI Express NVMe 4.0 x4)

Aorus GP-AG70S1TB 1000 GB Solid State Drive - M.2 2280 Internal - PCI Express (PCI Express NVMe 4.0 x4)

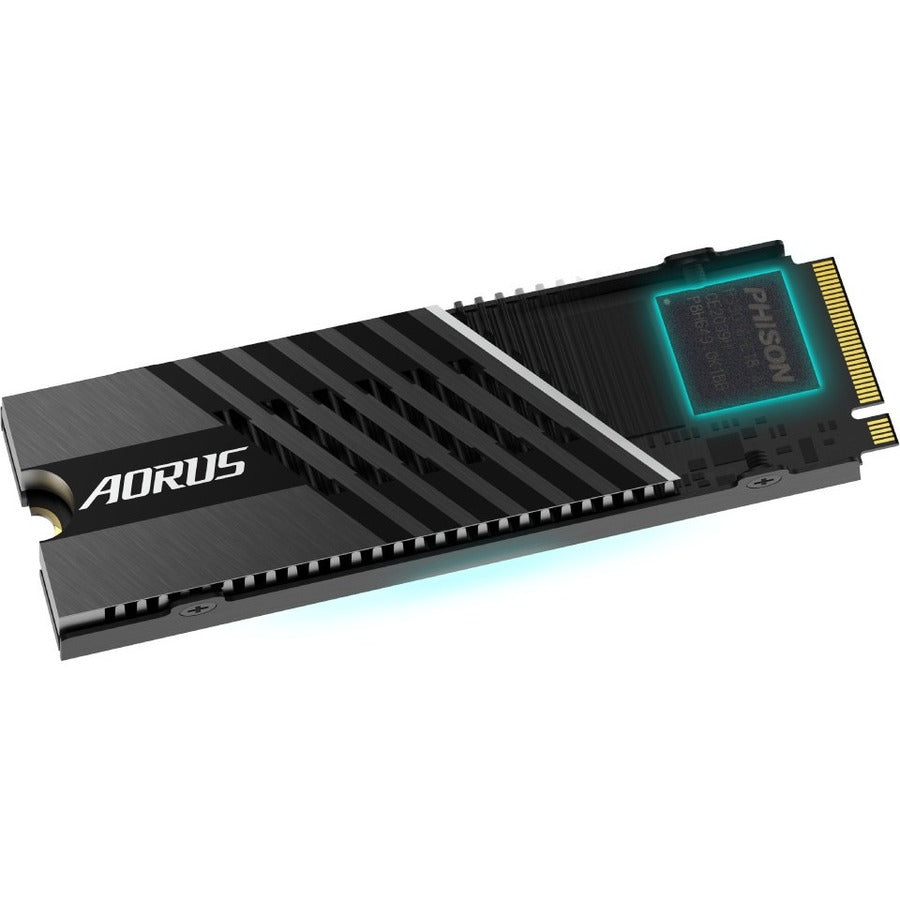

2nd Generation PCIe 4.0x4 Controller

The 2nd generation PCIe 4.0 controller PS5018-E18 deliver sequential read/write up to 7GB/s with 3D TLC NAND Flash. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 SLC caching and meets NVMe 1.4.

NAND Flash Selected for High Quality and Performance | Selected High Speed 3D TLC NAND Flash (1200MT/s)

The 3D TLC NAND Flash(96L) is operating at 1200MT/s, Which is 50 % more than the prevision version that leads to better performance.

Xtreme Storage Performance

With 2nd generation PCIe 4.0 controller E18, AORUS Gen4 7000s SSD delivers blazing speeds: up to 7,000 MB/s for sequential read, and up to 5,500MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 2 times faster than the PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.

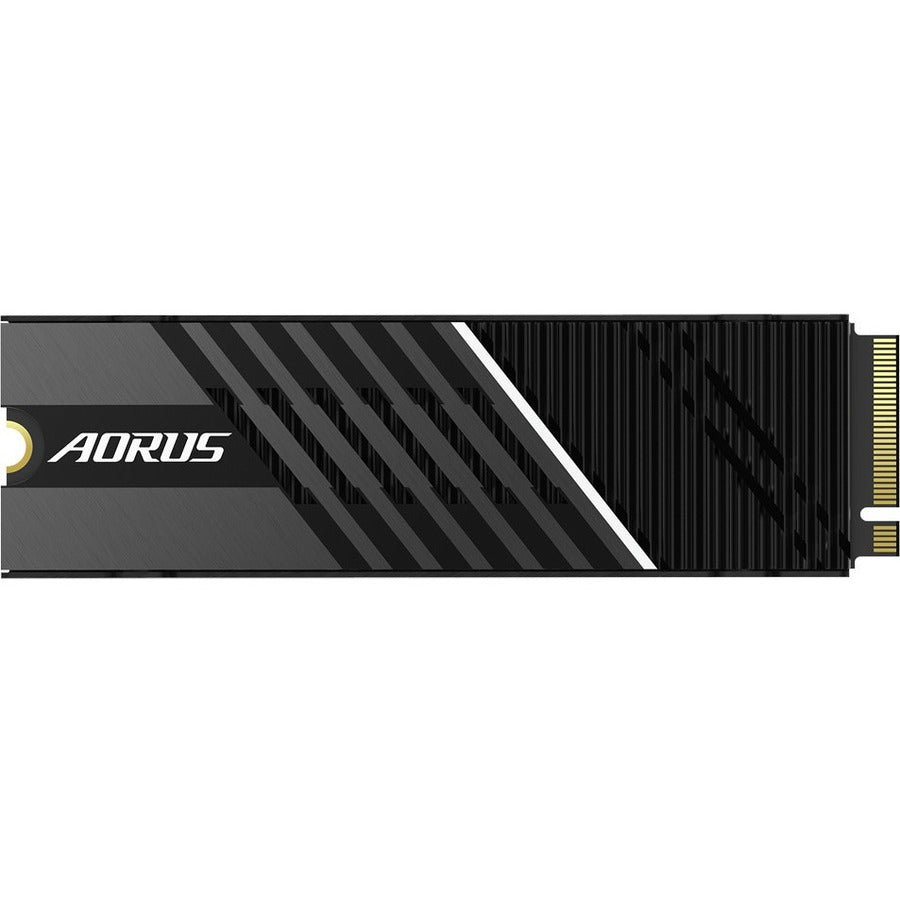

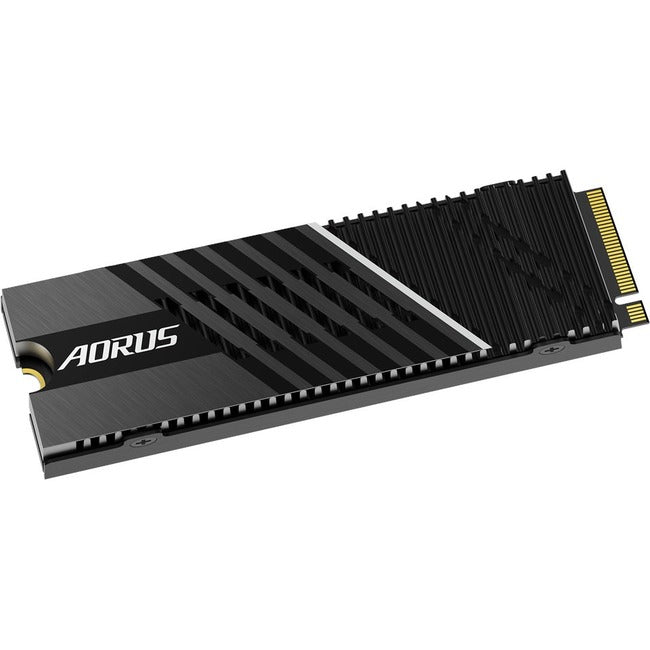

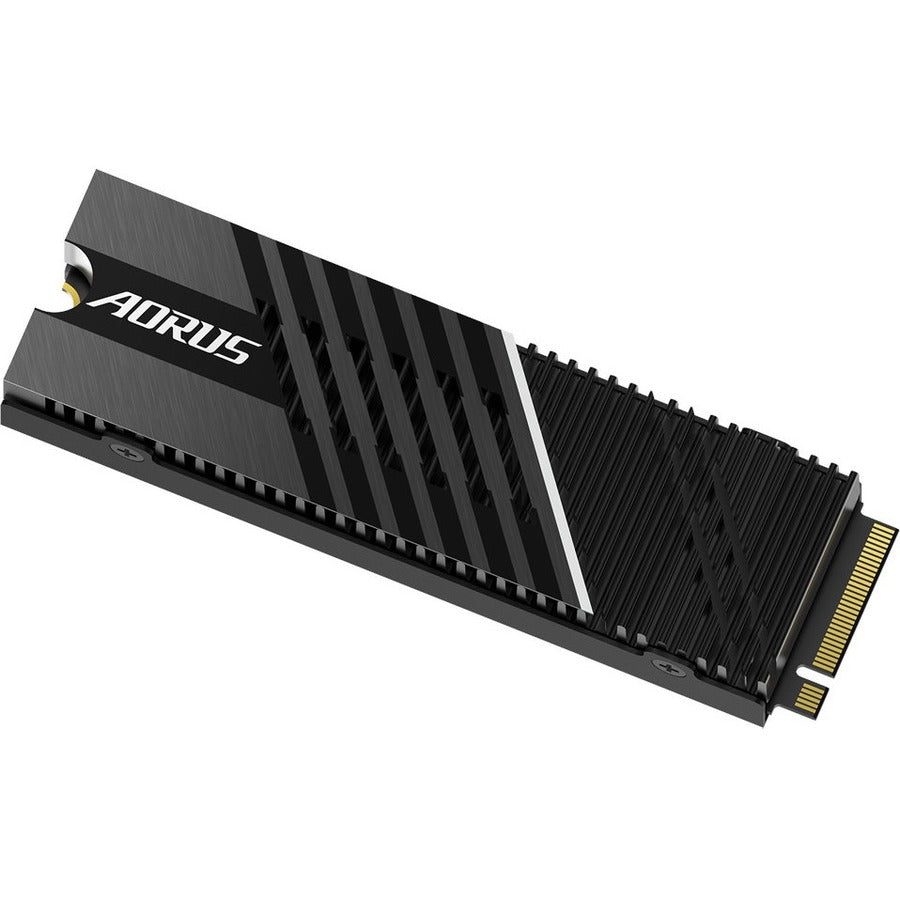

Optimized Aluminum Heat Spreaders with Nanocarbon Coating for 20% Cooler

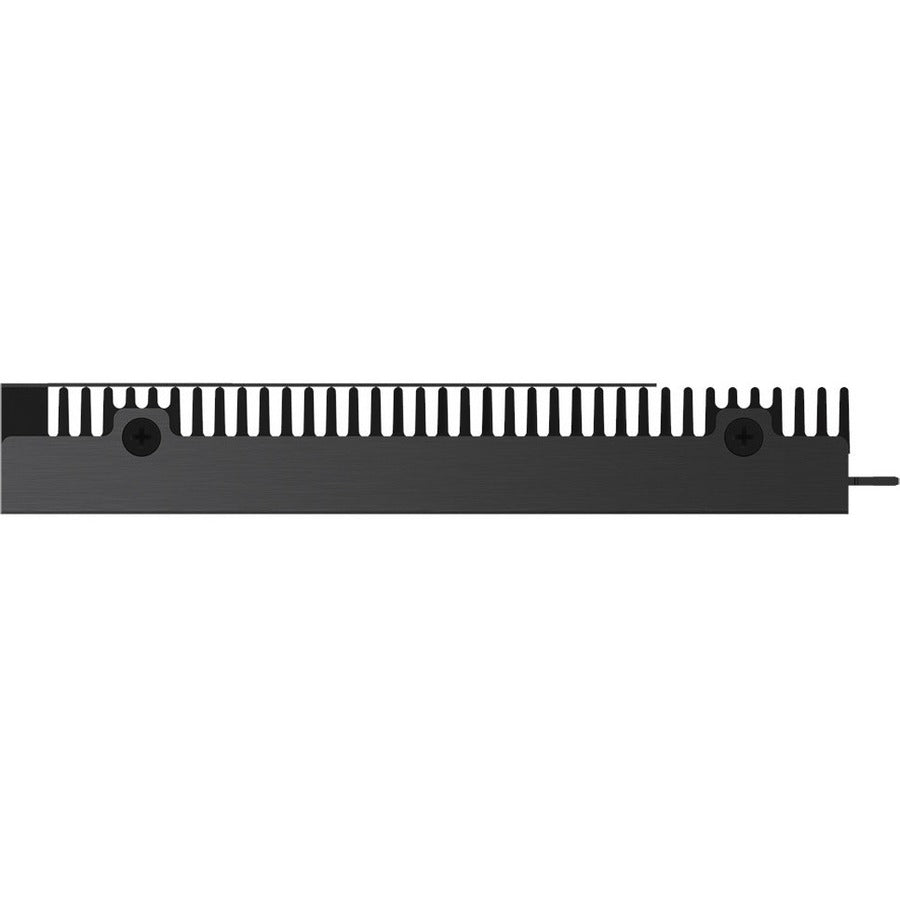

Challenged passive cooling to maximize surface area for heat dissipation with advanced thermal technology Nanocarbon coating. Applied with dual side high conductivity thermal pad ensures the heat transferring to the heatsink. The 7mm height heatsink is compatible with all the M.2 slots including the one under graphic card.

Efficient Heat Spreader Design

Compared with regular heat spreader, the new high efficient heat spreader improves thermal dissipation to extend 46% more time running at high speed. In addition, compared to the one without heatsink, AORUS 7000s Gen4 SSD running 5 times longer at 7GB/s. Enjoy the smoother & upgraded storage performance.

WHY IS KEEPING AN SSDS AT LOWER temperatures so important?

Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. With Heat Spreaders, the AORUS Gen4 7000s SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can running at extreme performance longer.

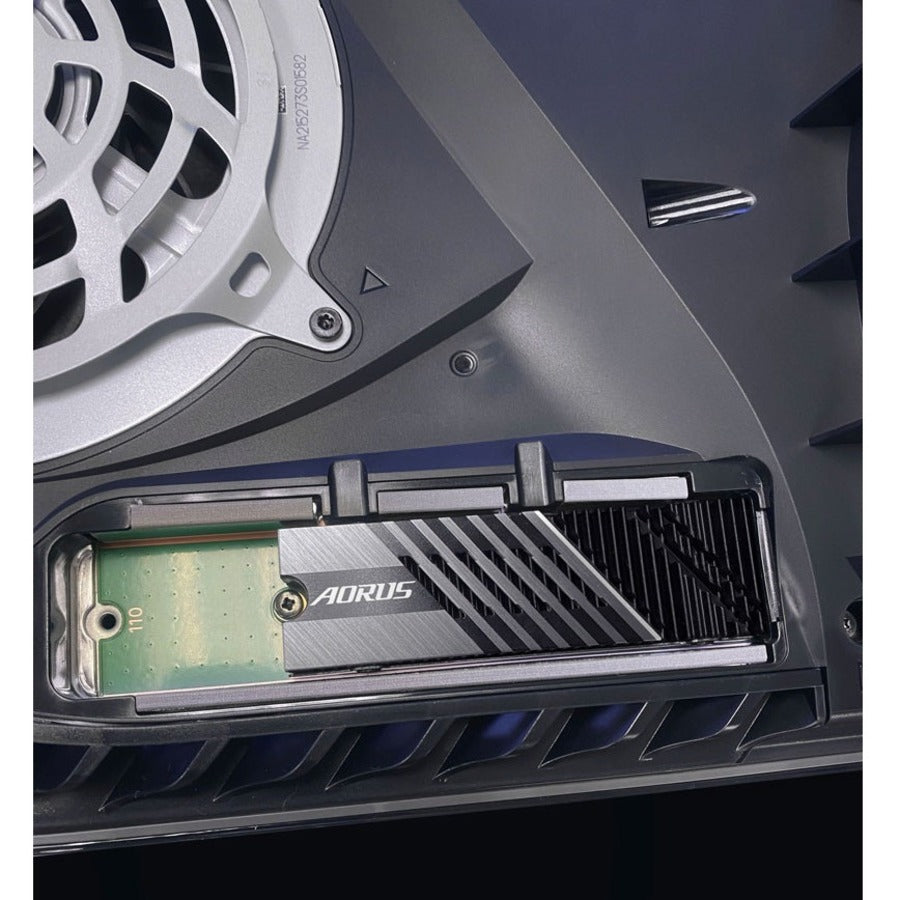

AORUS Gen4 7000s SSD meets SSD expansion requirements of PS5

AORUS Gen4 7000s SSD meets the required performance and dimensions of PS5 M.2 SSD.

According to the expansion requirements of PS5, SSD Sequential read speed needs to be up to 5,500MB/s. However, AORUS Gen4 7000s SSD delivers blazing speeds: up to 7,000 MB/s for sequential read, which is better than regular Gen4 SSDs.

Adopting by Aluminum Heat Spreaders with Nanocarbon Coating, AORUS Gen4 7000s SSD improves thermal dissipation and helps to prevent throttling.

Looking for the best partner for your PS5? Enjoy the thrilling gaming experience by applied AORUS Gen4 7000s SSD to your PS5 to expand more capacities.

• Provides sufficient storage capacity of 1000 GB for your computer


• 256-bit encryption protects your PC from hackers and thieves by encoding all your data


• With the stunning reading speed of 7000 MB/s, get faster boot times and improved overall computing performance


• Write speed of 5500 MB/s enables you to perform write-related tasks in seconds rather than minutes


• With PCI Express NVMe 4.0 x4 interface get superb reliability and high-speed data transfer

Product Type: Solid State Drive
Brand Name: Aorus
Drive Type: Internal
Compatibility:

• PS5
• Microsoft Xbox Series X
