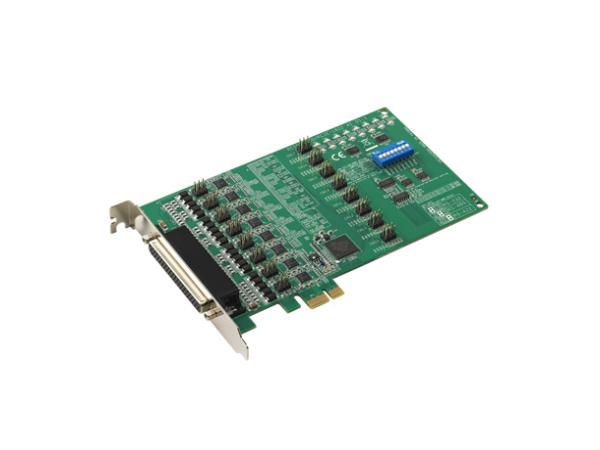

8-Port RS-232/422/485 PCI Express Communication Card with Isolation
The PCIE-1622C-AE is a professional-grade 8-port RS-232/422/485 PCI Express communication card engineered for demanding industrial and multitasking environments. This PCIe x1 serial communication card delivers reliable connectivity with galvanic isolation up to 2,500 VDC, protecting your systems from electrical surges and ground loops. Ideal for industrial automation, data acquisition, legacy device integration, and mission-critical serial communications, the PCIE-1622C-AE combines high-speed transmission with robust EFT protection to ensure uninterrupted operation in harsh environments.
Key Features
- Eight independent RS-232/422/485 ports with automatic protocol detection
- PCI Express x1 interface for universal compatibility with modern systems
- High-speed transmission up to 921.6 kbps per port
- Galvanic isolation protection up to 2,500 VDC per port
- EFT (Electrical Fast Transient) surge protection on all serial lines
- Advanced PCIe958 UART processors with 128-byte FIFOs to minimize CPU overhead
- Supports multitasking and concurrent multi-port operations
- Industrial-grade reliability for 24/7 continuous operation
Technical Specifications
| Specification |
Details |
| Manufacturer |
B+B SmartWorx |
| Part Number |
PCIE-1622C-AE |
| Serial Ports |
8 independent ports |
| Interface Standards |
RS-232, RS-422, RS-485 (auto-selectable) |
| Bus Interface |
PCI Express x1 |
| Max Baud Rate |
921.6 kbps per port |
| Isolation Voltage |
2,500 VDC galvanic isolation |
| UART Processor |
PCIe958 with 128-byte FIFO buffers |
| Surge Protection |
EFT protection on all serial lines |
| Operating Environment |
Industrial multitasking systems |
Frequently Asked Questions
What is an 8-port RS-232/422/485 communication card used for?
An 8-port serial communication card connects multiple legacy serial devices, industrial equipment, and sensors to modern computers. The PCIE-1622C-AE supports all three protocols (RS-232, RS-422, RS-485), making it ideal for SCADA systems, data acquisition, PLC connectivity, and industrial automation applications requiring reliable serial connectivity.
How does 2,500 VDC isolation protect my system?
Galvanic isolation physically separates the serial communication circuits from your computer's ground, preventing ground loop noise and protecting against voltage surges. The 2,500 VDC isolation rating ensures your system remains safe even when connected to equipment operating at significantly different electrical potentials, critical in industrial environments with multiple power sources.
Can the PCIE-1622C-AE handle high-speed industrial data transmission?
Yes. With transmission speeds up to 921.6 kbps and advanced PCIe958 UART processors featuring 128-byte FIFOs, this PCI Express serial card efficiently handles high-speed data streams while minimizing CPU load. The independent port architecture allows simultaneous multi-port operation without performance degradation.
Is this card compatible with modern PCI Express systems?
Absolutely. The PCIE-1622C-AE uses the standard PCI Express x1 interface, compatible with any modern motherboard or industrial computer with available PCIe slots. It supports both legacy and contemporary operating systems with appropriate drivers.
