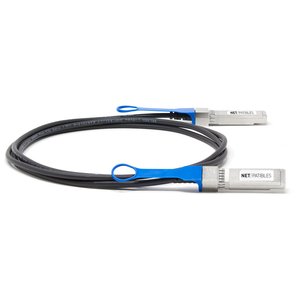

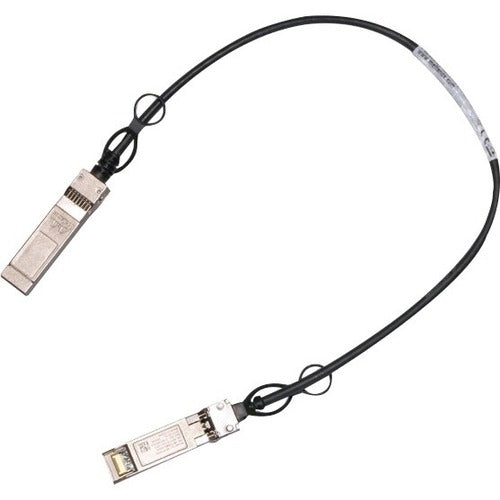

Netpatibles Passive Copper Cable, ETH, up to 25Gb/s, SFP28, 3m, Black, 26AWG, CA-N
Mellanox® MCP2M00-A0xxxxxx direct attach copper cables are high speed, cost-effective alternatives to fiber optics in 25GbE Ethernet applications.
MCP2M00 passive copper cables contain a single high-speed copper pair, operating at data rates of up to 25GbE. The cables are compliant SFF-8402 SFP28 standard. Each SFP28 port comprises an EEPROM providing product information, which can be read by the host system.
MCP2M00 cables up to 2m support IEEE 802.3by CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 4m to 5m support IEEE 802.3by CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and
durability
- Allows you to access all of the networked data, swiftly and securely
- Features SFP28 cable type
- Features Passive
- Fully compatible with network devices
Product Type: Network Cable
Jacket Material: Low Smoke Zero Halogen
Product Color: Black
Brand Name: Netpatibles
Manufacturer: Netpatibles
Product Name: Passive Copper Cable, ETH, up to 25Gb/s, SFP28, 3m, Black, 26AWG, CA-N
Product Line: LinkX
Manufacturer Part Number: MCP2M00-A003E26N-NP
Manufacturer Website Address: http://www.netpatibles.com
