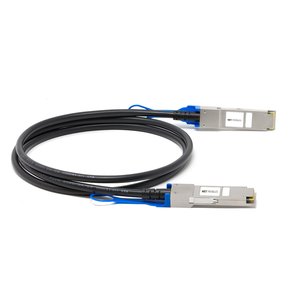

Netpatibles MCP1600-C005E26L Ethernet Passive Copper Cable 100GbE QSFP28 5m Black 26AWG CA-L
Mellanox® MCP1600-C0xxxxxx direct attach copper (DAC) passive cable assemblies are high speed, costeffective alternatives to fiber optics in 100Gb/s Ethernet applications. Mellanox QSFP28 passive copper cable contains four high-speed copper pairs, each operating at data rates of up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can be read by the host system.
Mellanox's unique quality, passive, copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
MCP1600 cables up to 2m support IEEE 802.3bj CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled(1).
For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L. Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
- Offers a reliable network connectivity
- Features Fiber Optic cable type
- Features Passive
- Fully compatible with network devices
Product Type: Network Cable
Product Color: Black
Brand Name: Netpatibles
Manufacturer: Netpatibles
Product Name: MCP1600-C005E26L Ethernet Passive Copper Cable 100GbE QSFP28 5m Black 26AWG CA-L
Product Line: LinkX
Manufacturer Part Number: MCP1600-C005E26L-NP
Manufacturer Website Address: http://www.netpatibles.com
