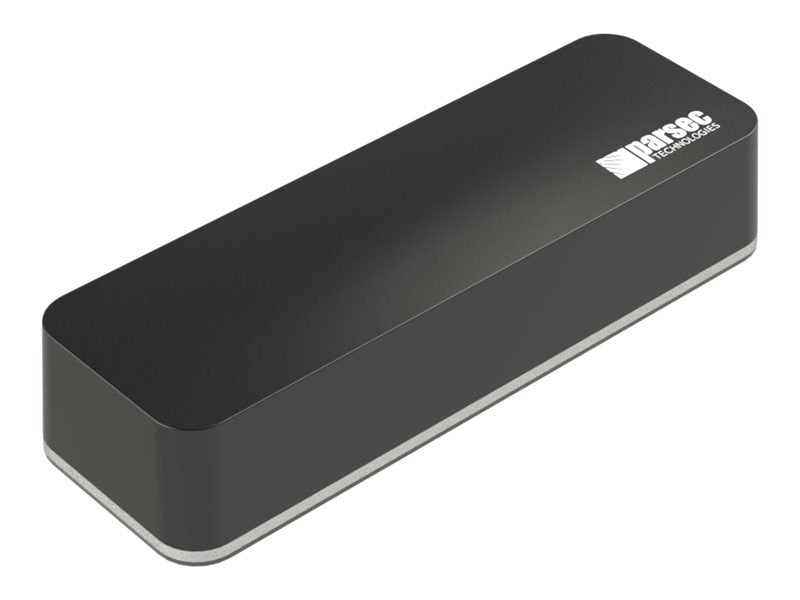

Parsec Irish Setter PRO Series 5G Antenna
The Irish Setter PRO Series antenna is a high-performance 5G MIMO antenna engineered for demanding IoT, kiosk, and NEMA enclosure deployments. This 4x4 MIMO cellular and 2x2 MIMO Wi-Fi antenna delivers omnidirectional coverage across 600 MHz to 6 GHz frequencies with integrated GPS and Bluetooth capabilities. Built with an IP67 rating for harsh environments, the PRO Series supports dual SIM configurations across two antennas in a 4x4 setup, allowing close mounting within six inches without interference—ideal for compact industrial and commercial applications requiring reliable cellular connectivity.
Key Features
- 5G and 4G LTE cellular connectivity with 4x4 MIMO technology
- 2x2 MIMO Wi-Fi antenna for dual-band wireless performance
- Omnidirectional radiation pattern for 360-degree coverage
- IP67-rated enclosure protection for outdoor and harsh environments
- Integrated GPS and Bluetooth for location and IoT applications
- Dual SIM support across two antennas in 4x4 MIMO configuration
- Low-profile design optimized for kiosks and NEMA enclosures
- Frequency range: 600 MHz to 6 GHz for comprehensive spectrum coverage
- Close-proximity mounting capability—two antennas within six inches without signal degradation
- Industrial-grade reliability for IoT deployments and critical infrastructure
Technical Specifications
| Specification |
Details |
| Manufacturer |
Parsec Technologies |
| Part Number |
PRO7IS4L2WG03BS |
| Product Series |
Irish Setter PRO Series |
| Antenna Type |
5G/4G LTE Cellular, Wi-Fi, GPS, Bluetooth |
| Cellular Configuration |
4x4 MIMO |
| Wi-Fi Configuration |
2x2 MIMO |
| Frequency Range |
600 MHz to 6 GHz |
| Radiation Pattern |
Omnidirectional |
| IP Rating |
IP67 (dust and water resistant) |
| SIM Support |
Dual SIM across two antennas |
| Mounting Proximity |
Two antennas mountable within 6 inches without interference |
| Applications |
Kiosks, IoT devices, NEMA enclosures, industrial deployments |
Frequently Asked Questions
What is a 4x4 MIMO antenna and why does it matter?
A 4x4 MIMO (Multiple-Input Multiple-Output) antenna uses four separate transmit and receive paths to increase data throughput and signal reliability. The Irish Setter PRO Series 4x4 MIMO cellular antenna delivers superior 5G and LTE performance, making it ideal for high-bandwidth IoT applications and kiosks requiring consistent connectivity in challenging environments.
Can the Irish Setter PRO Series antenna be used in outdoor NEMA enclosures?
Yes. The IP67 rating ensures the antenna withstands dust, moisture, and submersion up to 1 meter for 30 minutes, making it perfect for outdoor NEMA enclosures, industrial kiosks, and harsh-environment deployments where weather protection is critical.
How close can two Irish Setter PRO Series antennas be mounted together?
Two antennas can be mounted within six inches of one another without signal interference, thanks to the optimized 4x4 MIMO design. This close-proximity capability is essential for compact kiosk installations and space-constrained IoT applications requiring dual cellular paths.
What frequencies does this 5G antenna support?
The Irish Setter PRO Series antenna covers 600 MHz to 6 GHz, supporting sub-6 GHz 5G, 4G LTE, Wi-Fi, GPS, and Bluetooth across a comprehensive frequency spectrum. This broad range ensures compatibility with current and emerging cellular standards for long-term IoT deployment reliability.
