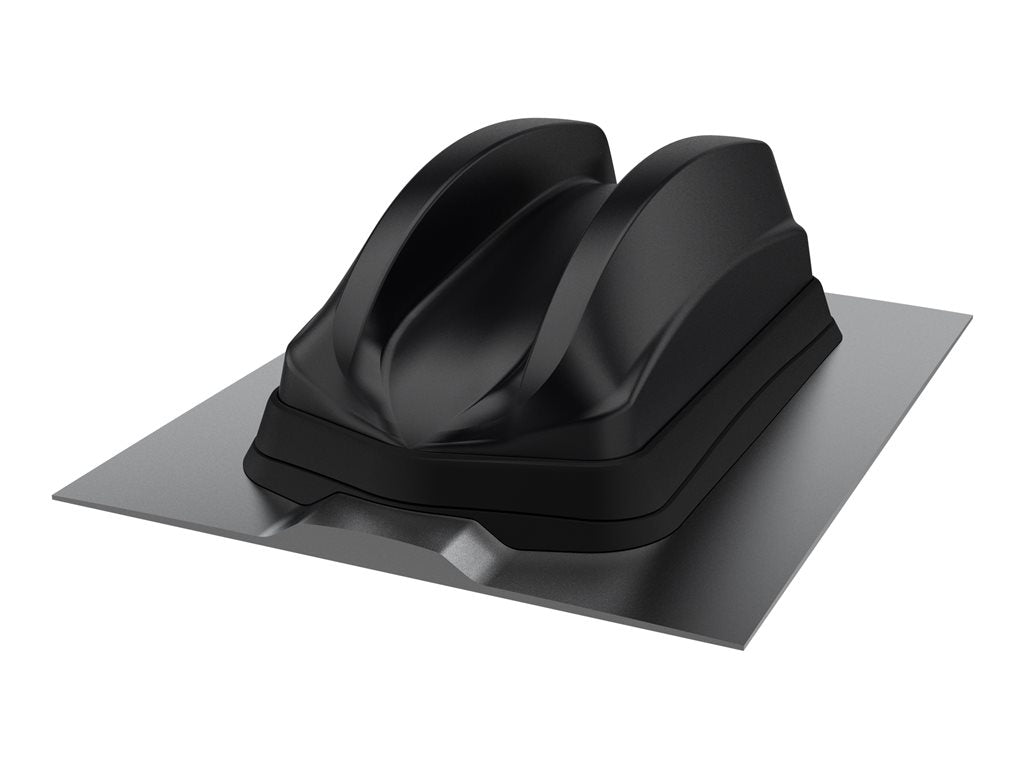

Panorama GP-IN2679 8-in-1 4G/5G MIMO Antenna Kit with GPS
The GP-IN2679 8-in-1 antenna kit delivers enterprise-grade connectivity for vehicles and industrial IoT applications requiring simultaneous 4G/5G, WiFi 6e, and GPS/GNSS coverage. This dual sharkfin MIMO antenna system combines 4x4 MIMO cellular elements with 3x3 MIMO WiFi antennas in a single integrated housing, eliminating the need for multiple external antennas while maximizing signal strength and data throughput. Built for demanding environments, the GP-IN2679 supports ultra-wideband frequencies from 617–960 MHz and 1427–6000 MHz, including LTE band 71, making it ideal for fleet management, mobile surveillance, remote monitoring, and connected vehicle deployments where reliable multi-band reception is critical.
Key Features
- 8-in-1 integrated antenna solution combining 4x4 MIMO 4G/5G, 3x3 MIMO WiFi 6e, and GPS/GNSS in one sharkfin housing
- Ultra-wideband cellular coverage: 617–960 MHz and 1427–6000 MHz frequency bands
- LTE band 71 support for extended low-band 4G connectivity
- Dual-band WiFi 6e MIMO antennas for high-speed wireless networking
- GPS/GNSS positioning and timing for location-based services
- Complete extension cable set included for flexible vehicle and industrial mounting
- Compact dual sharkfin design reduces aerodynamic drag and installation complexity
- Multi-band MIMO technology improves signal diversity and reduces dead zones
Technical Specifications
| Specification |
Details |
| Manufacturer |
Panorama Antennas |
| Part Number |
GP-IN2679 |
| Antenna Type |
8-in-1 Multi-Band MIMO Kit |
| Housing Style |
Dual Sharkfin |
| Cellular MIMO Configuration |
4x4 MIMO |
| WiFi MIMO Configuration |
3x3 MIMO |
| Cellular Frequency Range |
617–960 MHz, 1427–6000 MHz |
| LTE Support |
Band 71 and extended bands |
| 5G Support |
Sub-6 GHz and mmWave ready |
| WiFi Standards |
WiFi 6e Dual-Band |
| GNSS Support |
GPS/GNSS positioning |
| Included Accessories |
GPSD4-6-60-T antenna, extension cable set |
| Applications |
Vehicle connectivity, industrial IoT, fleet management, mobile surveillance |
Frequently Asked Questions
What is a 4x4 MIMO antenna and why does it matter?
4x4 MIMO (Multiple-Input Multiple-Output) uses four separate antenna elements to transmit and receive cellular signals simultaneously, increasing data throughput and signal reliability compared to single-antenna systems. The GP-IN2679's 4x4 MIMO 4G/5G configuration ensures superior coverage in vehicles and industrial environments with challenging RF conditions.
Can the GP-IN2679 antenna kit support both 4G and 5G networks?
Yes, the GP-IN2679 4G/5G MIMO antenna covers both LTE and 5G frequencies across its ultra-wideband range (617–960 MHz and 1427–6000 MHz), providing seamless connectivity as networks transition from 4G to 5G. LTE band 71 support ensures extended low-band 4G coverage in rural and remote areas.
What vehicles and applications is this 8-in-1 antenna kit designed for?
The GP-IN2679 is engineered for fleet vehicles, mobile surveillance units, connected cars, industrial IoT gateways, and remote monitoring systems requiring simultaneous 4G/5G, WiFi 6e, and GPS connectivity. The compact sharkfin design minimizes aerodynamic impact while the multi-band MIMO technology optimizes signal reception in moving and stationary applications.
Does the antenna kit include all necessary cables and mounting hardware?
The GP-IN2679 includes a complete extension cable set and the GPSD4-6-60-T antenna component, providing a ready-to-deploy solution. Mounting options are flexible for vehicle rooftops, industrial enclosures, and other installations requiring multi-band antenna coverage.
