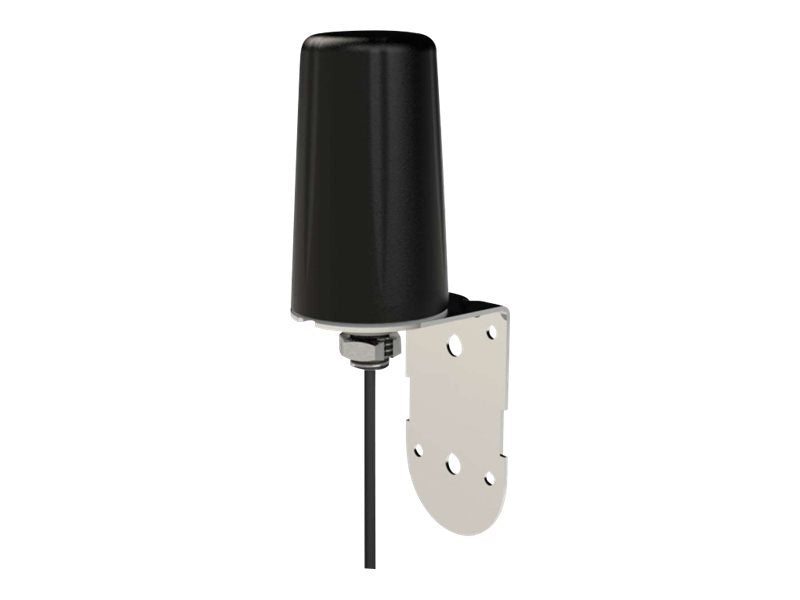

Panorama B4BE-6-60-2SP - Antenna - radome - cellular - 3.5 dBi (for 1.7 - 2.7 GHz), 2 dBi (for 698 - 960 MHz), 7 dBi (for 4.9 - 6 GHz), 5 dBi (for 3.4 - 3.8 GHz) - omni-directional - outdoor, wall-mountable, mast, indoor, panel mountable
-
Versatile mounting options
Designed for flexibility, the Panorama B4BE-6-60-2SP can be installed indoors, on masts, outdoors, panel-mounted, or wall-mounted, ensuring optimal placement for maximum signal reception.
-
Wide frequency range
Covers a broad frequency range from 617 MHz to 6000 MHz, making it compatible with 2G, 3G, 4G, and 5G networks. This wide coverage ensures reliable connectivity across various cellular bands.
-
Enhanced durability
Constructed from ASA plastic, aluminum, and zinc-plated steel, the antenna is built to withstand harsh environmental conditions, evidenced by its IP66 rating, which protects against dust and water.
-
Optimized performance
Features include omnidirectional directivity, vertical polarization, and a VSWR less than 2.5:1, ensuring efficient operation and improved signal quality for a superior cellular connection.
-
High gain for extended range
Offers varying gain levels up to 7 dBi, enhancing signal strength and coverage area, which is particularly beneficial for reaching distant cellular towers and ensuring stable, high-quality connections.
The B4BE[E] antenna is a cost effective omni-directional broad band antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz and is suitable for external or internal installation.
The design of the mounting bracket enables simple wall mounting using the supplied screws and wall plugs or mast mounting using a pipe clip or cable Ɵ es (not supplied). The omni-directional radiation pattern allows easy placement of the antenna in an elevated position.
The B4BE variant is supplied with integrated 5mm double shielded CS29 coaxial cable while the B4BEE variant is supplied with RG174 cable for shorter cable runs. This antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.
- Cost effective 2G/3G/4G/5G coverage
- Wall, mast or panel mount
- Integrated low loss cable
