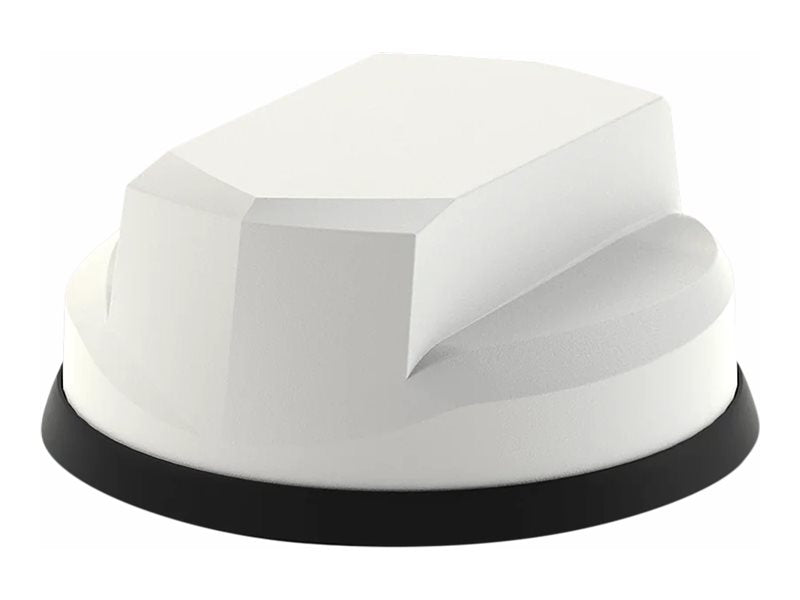

Panorama Antennas L[G]M[X]M[X]-6-60[-24-58] - Antenna - dome - navigation, cellular, Wi-Fi - 5 dbi (for 617 - 960 MHz),

Panorama Antennas L[G]M[X]M[X]-6-60[-24-58] - Antenna - dome - navigation, cellular, Wi-Fi - 5 dbi (for 617 - 960 MHz), 9 dBi (for 1710 - 3800 MHz), 10 dBi (for 4900 - 6000 MHz) - omni-directional - magnetic mountable, panel mountable

• Up to 9 functions inside a low-profile housing
• Ground plane independent antenna solution
• All-in-one vehicle router antenna
• High-performance MI-MO cellular antenna
• Suitable for FirstNet and ESN

This product has been designed to provide 2x2 4G/5G MI-MO performance from 617 to 960 / 1427 to 6000 MHz in a robust low-profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS / GNSS and up to 6 x 6 MI-MO Wi-Fi 2.4 / 4.9 to 7.2 GHz. The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables and a halogen-free flame retardant radome the antenna is suitable for many environments and applications. The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo and Compass with 26 dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimize potential in-band interference. The antenna meets IK10 for vandal resistance and IP69K for ingress protection.

• Robust design
  The IP69K rating ensures the antenna can withstand dust and high-pressure water, making it suitable for outdoor environments.
• Enhanced connectivity
  With compatibility for multiple technologies like GPS, 4G, and 5G, this antenna supports a wide array of communication needs.
• High performance
  The antenna delivers gain with 5 dBi for 617 - 960 MHz, 9 dBi for 1710 - 3800 MHz, and 10 dBi for 4900 - 6000 MHz, ensuring reliable connectivity.
• Easy installation
  Designed to be panel mountable, it allows for straightforward setup in a variety of locations.
• Signal reception
  An amplifier gain of 26 dB enhances the reception capability, making it a suitable choice for navigation and cellular applications.
