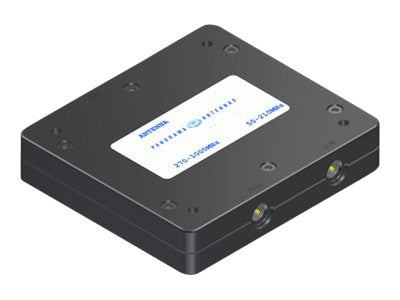

VHF/UHF Diplexer DPX-210-270 | Panorama Antennas
The DPX-210-270 VHF/UHF diplexer is engineered for professional radio operators and communication systems requiring flexible antenna configurations. This dual-band diplexer enables you to use a single multiband antenna with two separate radios, or connect a dual-band radio to two independent single-band antennas. Built with low insertion loss and exceptional port-to-port isolation, the DPX-210-270 delivers reliable signal separation in demanding RF environments. The compact, durable housing with integrated FME plug connectors makes installation straightforward and maintenance-free.
Key Features
- Dual-band VHF/UHF diplexer design for flexible antenna configurations
- Low insertion loss for minimal signal degradation
- Excellent port-to-port isolation ensures clean signal separation
- Integrated FME plug connectors for secure, reliable connections
- Compact and durable housing suitable for mobile and fixed installations
- Supports single multiband antenna with two radios or dual-band radio with two single-band antennas
Technical Specifications
| Specification |
Details |
| Manufacturer |
Panorama Antennas |
| Part Number |
DPX-210-270 |
| Product Type |
VHF/UHF Diplexer |
| Frequency Range |
VHF/UHF Band |
| Connector Type |
Integrated FME Plug |
| Key Performance |
Low Insertion Loss, High Port-to-Port Isolation |
| Housing |
Compact Durable Design |
Frequently Asked Questions
What is a VHF/UHF diplexer used for?
A VHF/UHF diplexer allows you to connect multiple radios to a single antenna or connect a dual-band radio to separate antennas. It provides signal separation between frequency bands while maintaining low insertion loss and excellent port-to-port isolation for clear communications.
Can the DPX-210-270 work with dual-band radios?
Yes. The DPX-210-270 is specifically designed to connect a dual-band radio with a single connector to two separate single-band antennas, or use a single multiband antenna with two independent radios.
What are the benefits of low insertion loss in a diplexer?
Low insertion loss minimizes signal degradation, ensuring stronger reception and transmission performance. This is critical for maintaining communication quality in professional radio systems.
Are FME connectors standard for this diplexer?
Yes. The DPX-210-270 features integrated FME plug connectors, which provide secure, weatherproof connections ideal for both mobile and fixed-installation applications.
