Panorama Antennas - Antenna - plate - navigation, cellular, Wi-Fi - 5 dBi (for 5 GHz), 4 dBi (for 2.4 GHz), 2 dBi (for 698 - 960 MHz), 3 dBi (for 1710 - 2170 MHz), 5 dBi (for 2.5 - 6 GHz) - omni-directional - under-the-dash, car
-
Versatile compatibility
Offers compatibility with a range of networks including GPS, 2G, 3G, 4G, Wi-Fi, GNSS, and 5G, providing connectivity options.
-
High performance
Features MIMO technology which improves throughput and signal quality for a reliable connection across various applications.
-
Wide frequency range
Operates within a frequency range of 698 - 6000 MHz, ensuring adaptability for different devices and transmission needs.
-
Strong gain
Provides gain levels of 2 dBi to 5 dBi across different frequencies, optimizing performance for both Wi-Fi and cellular communications.
-
Durable construction
Made from ASA plastic, this antenna is built to withstand various environmental conditions, ensuring longevity and reliability.
The Panorama BATG range is designed for Telematics applications requiring high speed data with MiMo 4G / 5G and fallback 3G/2G support along with optional positioning through GPS/GNSS, and optional dual band 2.4/5.0-7.2GHz Wi-Fi 6e. The isolated dual 4G/5G antennas cover 617-960/1710-6000MHz and the efficient element design ensures a high first time connection rate and an ongoing, robust communications link even in many low coverage areas.

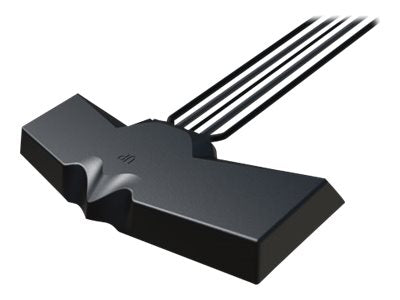

The antenna is designed to be mounted on or under a vehicle dashboard but can be mounted on any non-conductive surface. The BAT range is supplied with up to five integrated low loss cables which are flame retardant and meet the requirements of UN ECE 118.
- Covert undercover antenna
- Up to 5-in-1 solution
- MiMo LTE product with distinctive BAT design
- 4G/5G LTE MiMo covering 600-6000MHz
- SiSo or MiMo Wi-Fi
- Active GPS/GNSS with advanced B13/14 filtering
- For mounting on or under any conductive surface
- Provides robust in-vehicle connectivity
- Discreet covert antenna
