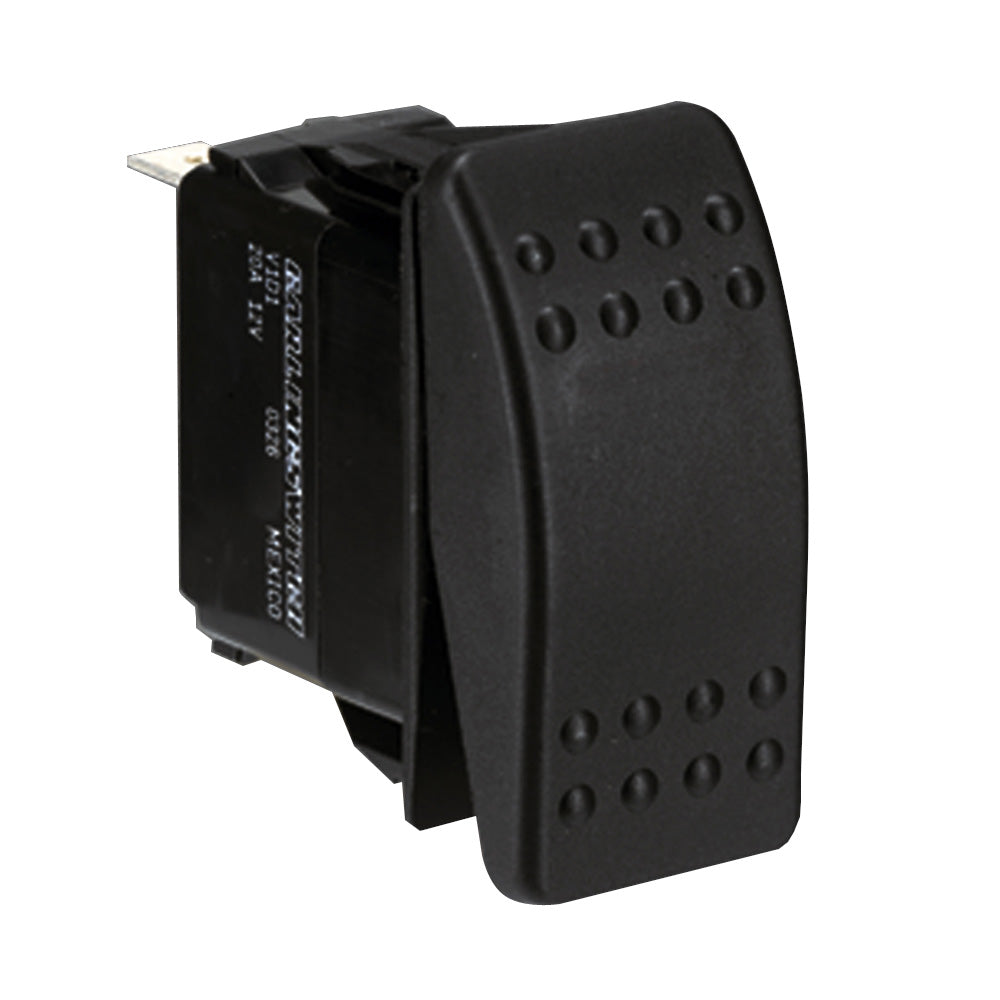

Rocker Switch (Waterproof Contura)
- Single or double pole, and maintaining or momentary configurations are available
- Sealed IP68 rated per IEC 529
- Ignition protection construction meets requirements of UL 1500 and ISO 8846
- Black textured actuators (hard surface with bumps)
- Red incandescent 12VDC 80mA Status Indicators
- Contacts are rated at 12VDC 20A, or 24VDC 15A (ABYC E-11.12.1.1)
- DC moisture resistant Per Mil-Std 202F, Method 107F
- Optional rubber gaskets provide a watertight panel seal meets IP67 (P/N 004-176
- 1/4" male tab terminals are standard without barries (ABYC E-11-14.5.4 Exception)
- Hole plug - Black (P/N 001-295)
Color = Black | Throw/Pole = SPST | Action = On/On
Manufacturer Part Number: 004-246
