Name: Paneltronics SPDT (ON)/OFF/(ON) Start/Stop Rocker Switch - Momentary Configuration
Brand: Paneltronics
SKU: 29772-cwr
Price: 24.00 CAD
Availability: OutOfStock

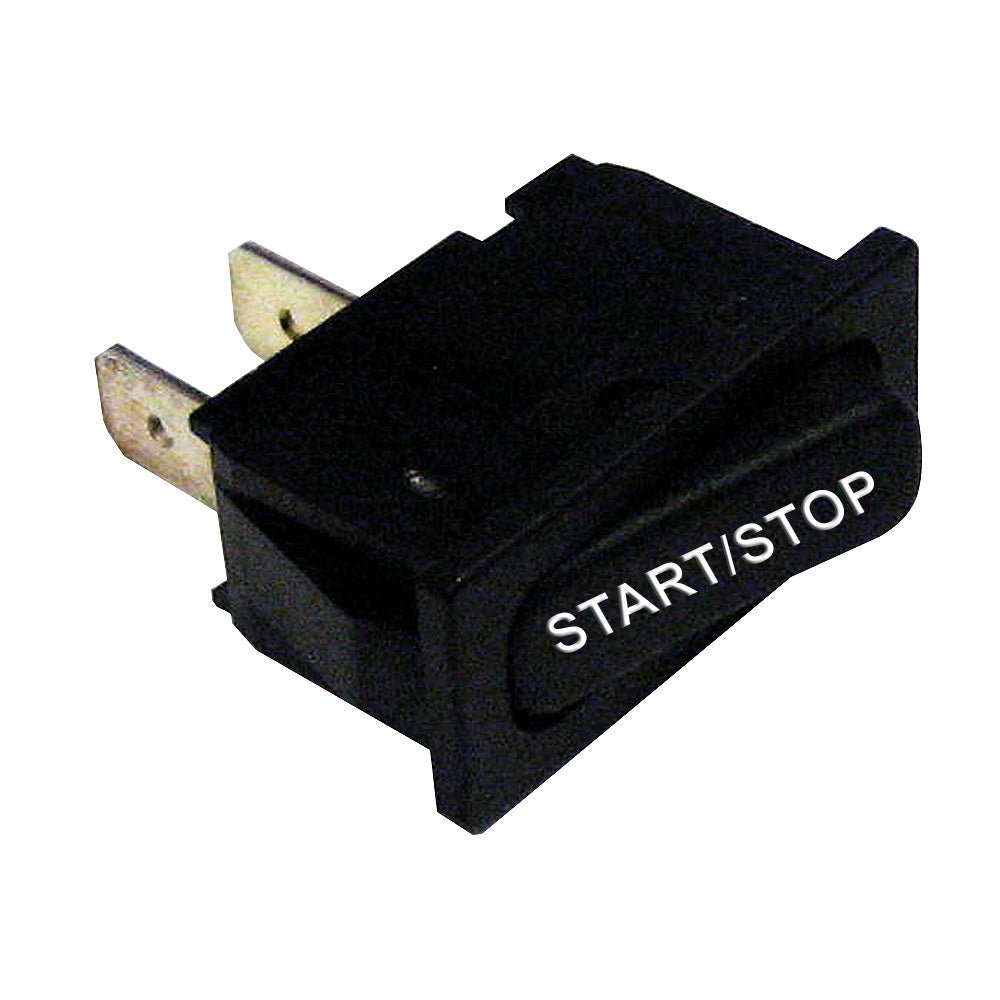

Paneltronics SPDT (ON)/OFF/(ON) Start/Stop Rocker Switch - Momentary Configuration

Roll over image to zoom in Click on image to zoom

Rocker Switch

UL Recognized and CSA Certified
Single Pole Non-Illuminated
Snap-in Mounting
Replacement Switches for Paneltronics' Deluxe and Premier Panels

Specifications:

Maximum Contact Rating: 6 Amps @ 125VAC or 4 Amps @ 250VAC
Contacts: Silver Plated Copper
Terminals: Silver Plated Copper 1/4" (6.3mm) Quick Connects
Operating Temperature: -4 deg F (-20 deg C) to 131 deg F (55 deg C)
Housing and Actuator: Black Thermoplastic
Flammability Rating: UL 94 V-2
Rated IEC 60529: IP40
Panel Thickness: 1/8" (3.18mm)
Recommended Panel Cut-Out: 1.188" (30.18mm) x 0.468" (11.89mm)

Color = Black | Throw/Pole = SPDT | Action = (On)/Off/(On)

Manufacturer Part Number: 001-330

General Information

Manufacturer	Paneltronics
Manufacturer Part Number	001-330
Product Type	Electrical \| Switches & Accessories
UPC	602290100059
