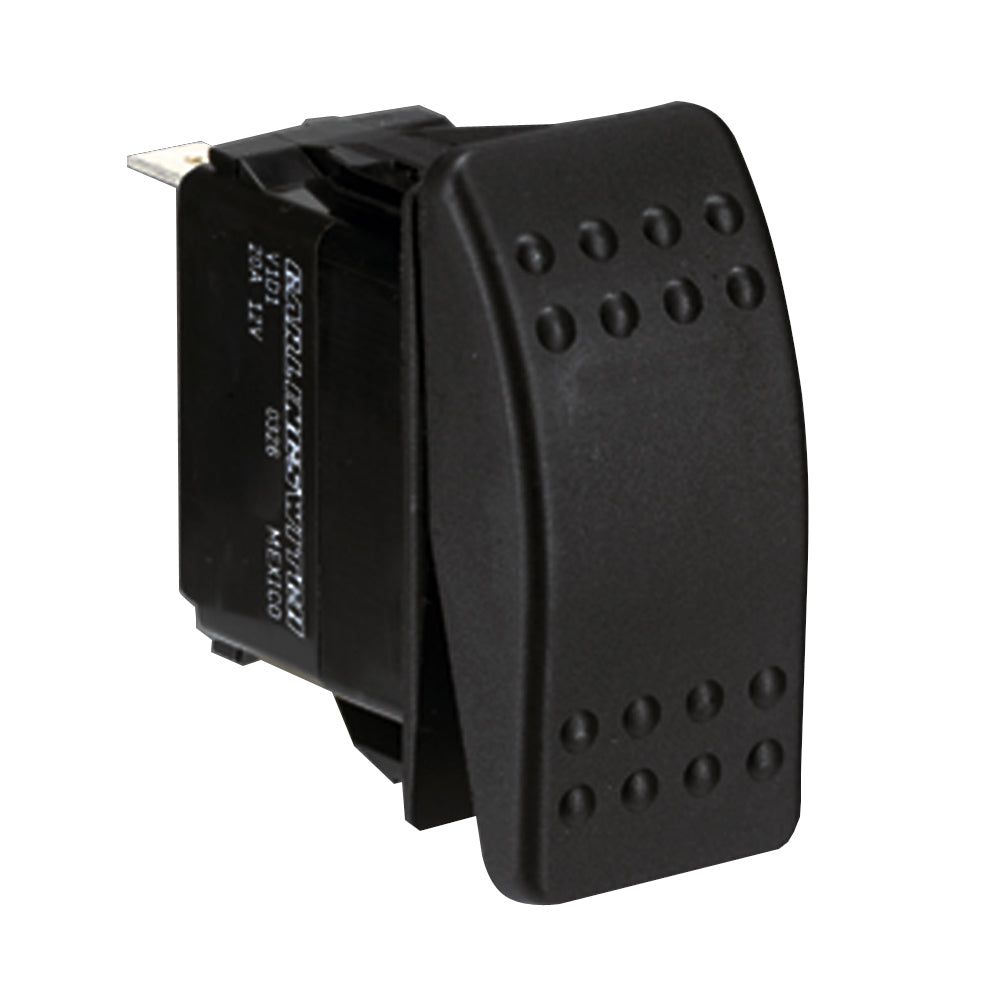

Rocker Switches (Waterproof Contura)
- Double pole/Double Throw w/momentary configurations
- Sealed IP68 rated per IEC 529
- Ignition protection construction meets requirements of UL 1500 and ISO 8846
- Black textured actuators (Hard surface with bumps)
- Contacts are rated at 12VDC 20A, or 24VDC 15A (ABYC E-11.12.1.1)
- DC moisture resistant Per Mil-Std 202F, Method 107F
- Optional rubber gaskets provide a watertight panel seal meets IP67 (P/n 004-176)
- 1/4" male tab terminals are standard without barriers (ABYC E-11-14.5.4 Exception)
- Hole plug - Black (P/N 001-295)
Color = Black | Throw/Pole = DPDT | Action = (On)/Off/(On)
Manufacturer Part Number: 001-453
