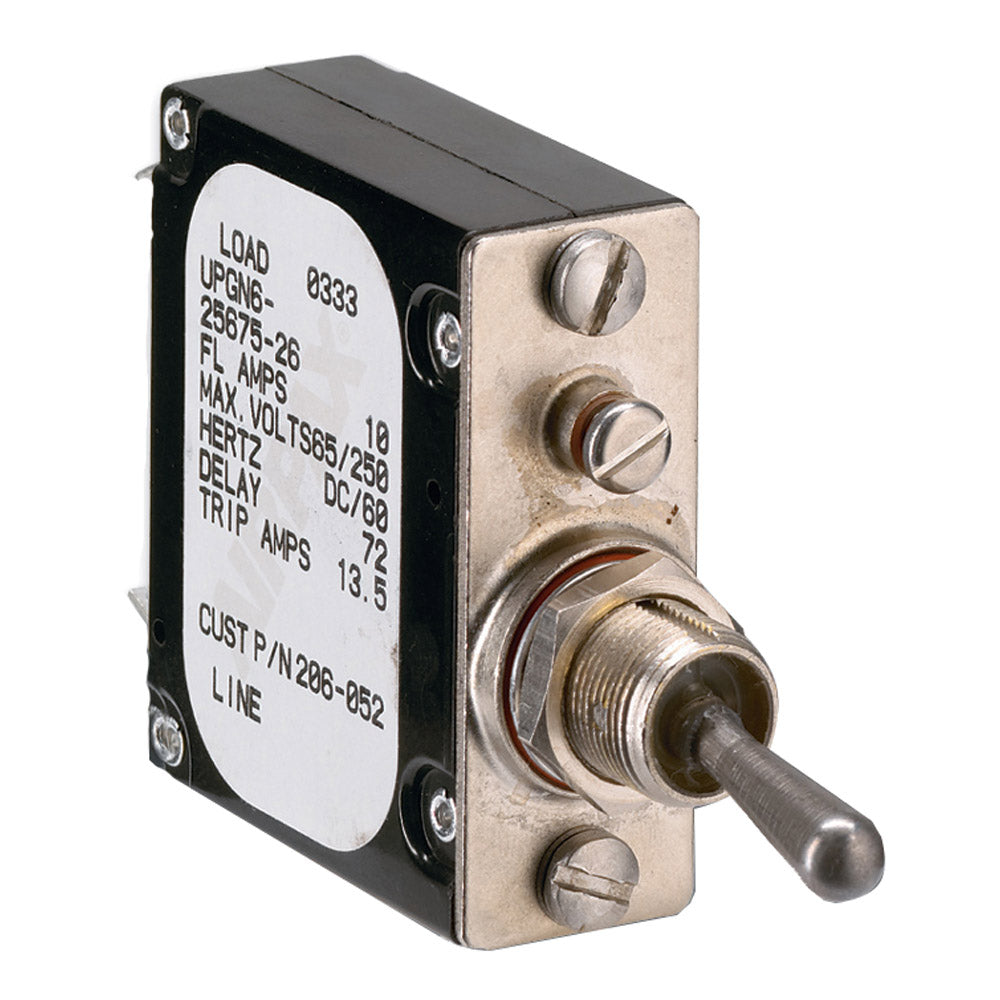

Paneltronics Breaker 30 Amps A-Frame Magnetic Waterproof

Roll over image to zoom in Click on image to zoom

Panel Seal / Waterproof "A" Frame Magnetic Circuit Breakers

Branch AC or DC circuit breaker for Paneltronics electrical distribution panels
Meets all American Boat and Yacht Council (ABYC) Standards for non ignition protected circuit breakers
UL Recognized (UL 1077) for use in the U.S.A., and CSA Certified for use in Canada
Trip free (ABYC E-11.10.1.5.4 and E-11.10.2.1.1)
Manual reset (ABYC E-11.10.1.5.6 and E-11.10.2.1.1)

Specifications

Handle Color Metal with Silicon rubber seal
Maximum Amperage 50 Amps
Maximum Voltage /AIC 32 VDC/ 2,500 Amps with no Back-up Fuse (ABYC E-11.10.1.5.5)
Rated Switch Cycles Rated Switch Cycles 10,000 actuations at rated current and voltage
Electrical Hardware Screw 10-32 x 3/8" pan combo head (P/N 197-188)
Mounting Hardware Hex nut 1/2-32 (supplied with circuit breaker)
Lockwasher 1/2" internal tooth (supplied with circuit breaker)
Optional Boot Black silicone rubber (P/N 048-015)

Color = Stainless | Throw/Pole = SPST

Manufacturer Part Number: 206-056S

General Information

Manufacturer	Paneltronics
Manufacturer Part Number	206-056S
Product Type	Electrical \| Switches & Accessories
UPC	602290201459
