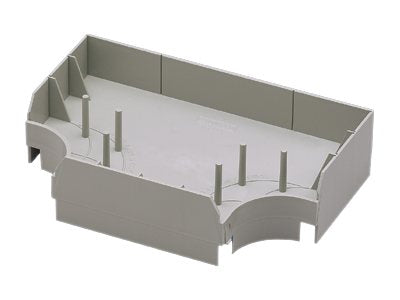

Panduit Pan-Way T-70 Surface Raceway System - Cable raceway tee fitting - gray
- 1" bend radius control fittings
- Snap-on faceplates
- Channel has a 70mm opening
- Highly tamper resistant
- Non-metallic construction
- Designer profile
T-70 non-metallic multi-channel capable surface raceway shall be used to route, protect, and conceal data, voice, video, fiber optic and power cabling. A full complement of fittings with a 1" minimum bend radius compliant with TIA/EIA-568-B, must be available as well as device brackets and internal junction boxes to install a variety of communication and electrical devices. Divider walls must be available to form separate channels in the multi-channel raceway. "Snap-on" faceplates for data and power terminations shall be available. An offset box shall be available, with versions for Panduit "snap-on" as well as "screw mount" faceplates, for mounting the power receptacle outside of the raceway channel. T-70 raceway will be manufactured from impact-resistant material with flammability rating of V-0. T-70 raceway must be tamper resistant yet, also allow access for moves, adds and changes. T-70 raceway finish shall be pure color and will resist scratches and dents and will not peel or corrode. T-70 raceway shall be available in three standard colors and shall be optimized for use with the panduit Pan-Net communication system.
-
Snap-on faceplates
Faceplates snap directly onto the raceway base; cabling can be quickly accessed by removing only the faceplate, which requires less labor and lowers the cost of maintenance.
-
Channel has a 70mm opening
Accept any manufacturer's NEMA standard snap-on or screw-on power or communication faceplates.
-
Highly tamper resistant
Very difficult for untrained personnel to enter the raceway or remove faceplates; provides maximum security for communication cabling and maximum safety for power cabling.
-
Non-metallic construction
Lightweight reduces installer fatigue; solid color throughout profile will not chip peel, rust, corrode, or scratch; easy to cut reducing the need for special cutting devices; high impact resistance; durable.
-
Designer profile
Aesthetically pleasing and matches a wide variety of decors.
