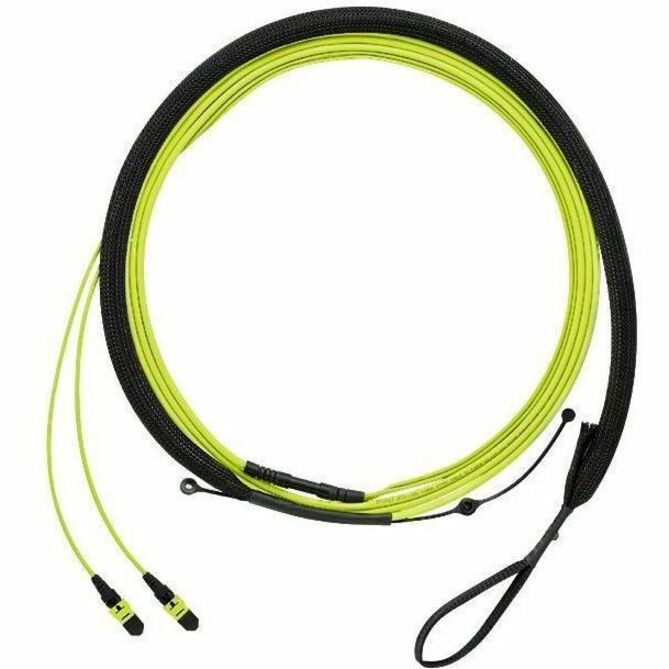

Panduit OM5 Signature Core 24-Fiber Trunk Cable Assembly
The OM5 Signature Core 24-fiber trunk cable is a premium low-smoke zero halogen (LSZH) multimode fiber solution engineered for modern data center environments. Featuring dual PanMPO female connectors and HD Flex transition technology, this 24-fiber trunk cable assembly delivers ultra-low insertion loss and exceptional density in space-constrained infrastructure. Built to integrate seamlessly with Panduit QuickNet fiber optic systems, it meets ISO/IEC 11801 and TIA/EIA-568-C.3 standards for reliable, future-ready connectivity.
Key Features
- 24-fiber multimode design with PanMPO female connectors on both ends
- HD Flex transition with Method A for ultra-low insertion loss performance
- Low-smoke zero halogen (LSZH) jacket for enhanced fire safety
- Small-diameter cable design maximizes space efficiency in high-density deployments
- Extended reach capability for complex data center topologies
- QuickNet fiber optic systems compatible architecture
- Meets ISO/IEC 11801 and TIA/EIA-568-C.3 compliance standards
Technical Specifications
| Specification |
Detail |
| Manufacturer |
Panduit Corp |
| Part Number |
FWUYL7575KAM075 |
| Fiber Count |
24 fibers |
| Fiber Type |
OM5 Multimode |
| Connector Type |
PanMPO Female to PanMPO Female |
| Jacket Material |
Low-Smoke Zero Halogen (LSZH) |
| Transition Method |
HD Flex with Method A |
| Standards Compliance |
ISO/IEC 11801, TIA/EIA-568-C.3 |
| Application |
High-Density Data Center Deployments |
| System Compatibility |
Panduit QuickNet Fiber Optic Systems |
Frequently Asked Questions
What is an OM5 multimode fiber cable used for?
OM5 multimode fiber is designed for high-speed, short-to-medium distance data center applications. The OM5 Signature Core 24-fiber trunk cable specifically supports dense interconnect scenarios where multiple fiber strands are bundled into a single trunk assembly, reducing cable clutter and improving airflow in equipment racks.
Why choose PanMPO connectors for fiber trunk cables?
PanMPO female connectors provide standardized, high-density connectivity with consistent performance. The dual PanMPO configuration on this trunk cable enables rapid deployment and reconfiguration in data centers while maintaining the low insertion loss critical for signal integrity.
Is LSZH cable required in data centers?
Low-smoke zero halogen (LSZH) jackets are increasingly required in enclosed spaces due to fire safety regulations and environmental concerns. This 24-fiber trunk cable assembly with LSZH construction ensures compliance with building codes while protecting equipment and personnel in the event of a fire.
How does HD Flex transition improve cable performance?
The HD Flex transition with Method A minimizes insertion loss by optimizing fiber alignment and reducing stress points. This technology ensures the OM5 Signature Core trunk cable maintains signal quality across extended reaches, critical for reliable high-density data center operations.
