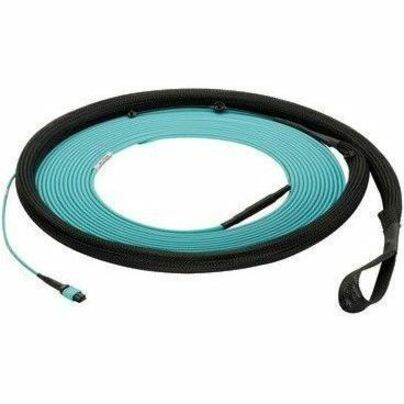

Panduit OM4 96-Fiber Trunk Cable Assembly for High-Density Data Centers
The Panduit FYZYP88Y005F084 is a 96-fiber OM4 trunk cable assembly engineered for demanding data center and telecommunications room environments. This 84-foot plenum-rated fiber optic cable delivers the bandwidth and reliability required for high-density deployments, while its integrated pulling eyes and OptiPull technology enable rapid, stress-free installation through conduits. Built to meet TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B standards, this QuickNet HD Flex trunk cable integrates seamlessly with Panduit's structured fiber solutions for mission-critical network infrastructure.
Key Features of This OM4 Trunk Cable Assembly
-
96-Fiber Configuration — Maximizes density and throughput for large-scale data center interconnects
-
Plenum-Rated OFNP Jacket — Safe for air-handling spaces and compliant with fire safety codes
-
OptiPull Pulling Eye End A — Reduces installation time and fiber stress during conduit pulls
-
84-Foot Length — Ideal for backbone and trunk routing in medium to large facilities
-
Polarity B Configuration — Ensures correct fiber alignment and compatibility with structured cabling systems
-
QuickNet HD Flex Technology — Supports high-speed, high-density network deployments
-
TIA-568.3-D & ISO/IEC 11801 Certified — Meets international standards for telecommunications infrastructure
Technical Specifications
| Specification |
Detail |
| Manufacturer |
Panduit Corp |
| Part Number |
FYZYP88Y005F084 |
| Fiber Count |
96 fibers |
| Fiber Type |
OM4 Multimode |
| Cable Length |
84 feet |
| Jacket Rating |
Plenum (OFNP) |
| Polarity |
Polarity B |
| Pulling Eye |
OptiPull, End A |
| Standards Compliance |
TIA-568.3-D, ISO/IEC 11801, ANSI/TIA-942-B |
| Application |
Indoor data center and telecommunications room trunk routing |
| Product Line |
QuickNet HD Flex |
Frequently Asked Questions About OM4 Trunk Cable Assemblies
What is an OM4 96-fiber trunk cable assembly used for?
An OM4 trunk cable assembly serves as a backbone connection in data centers and telecommunications rooms, linking multiple equipment racks and network nodes. The 96-fiber configuration supports high-density deployments where multiple parallel connections are required, making it ideal for campus networks and large facility interconnects.
Why is plenum-rated fiber optic cable important?
Plenum-rated cables like this OFNP-jacketed trunk cable are required by building codes for installation in air-handling spaces (plenums) above drop ceilings and in HVAC ducts. The plenum rating ensures the cable produces minimal smoke and toxic fumes if exposed to fire, protecting building occupants and meeting fire safety compliance.
How does OptiPull technology reduce installation time?
The integrated OptiPull pulling eye on End A allows installers to pull the entire trunk cable assembly through conduits using a single attachment point, rather than wrapping around the cable jacket. This minimizes fiber stress, reduces installation labor, and decreases the risk of damage during deployment in tight spaces.
Is this OM4 trunk cable compatible with existing TIA-942 data center infrastructure?
Yes. The Panduit FYZYP88Y005F084 is certified to ANSI/TIA-942-B standards, ensuring compatibility with modern data center cabling architectures. It also meets TIA-568.3-D and ISO/IEC 11801 requirements, making it suitable for integration with Panduit's QuickNet HD Flex structured fiber solutions and third-party compliant systems.
