✅⚠️DO NOT ORDER WITHOUT CONFIRMING STOCK. This item has limited availability. Contact us via chat or sales@tecisoft.com to verify before purchasing. Unconfirmed orders may be canceled.
Description

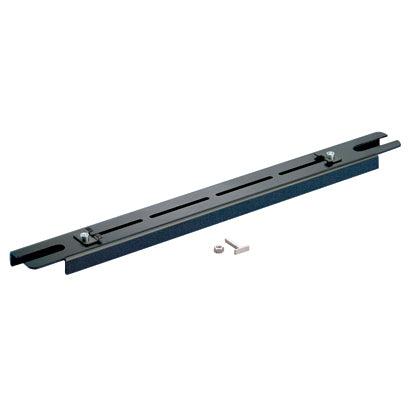

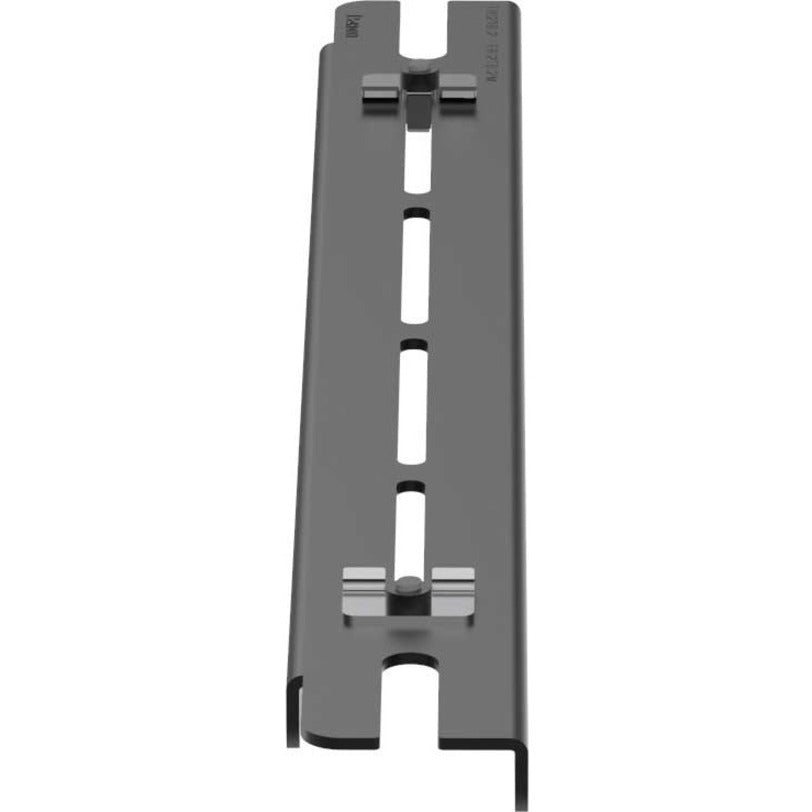

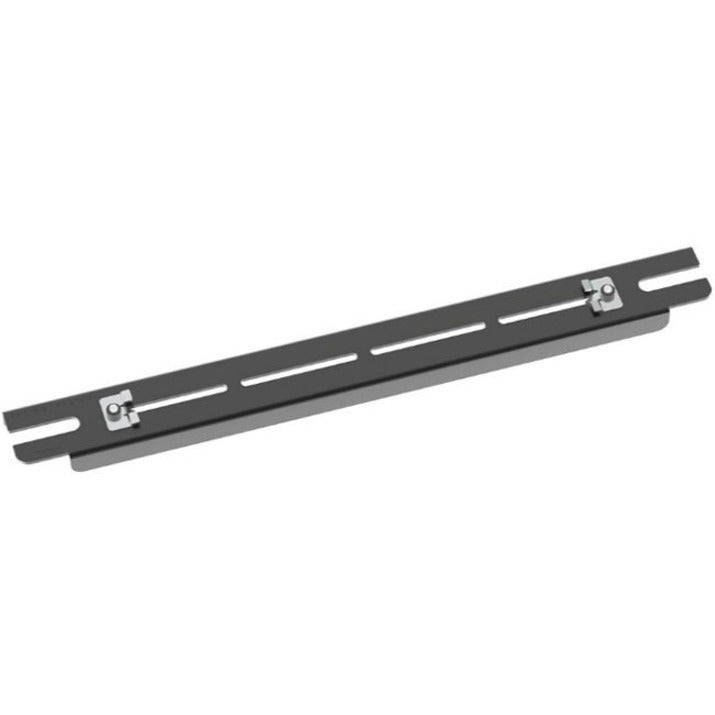

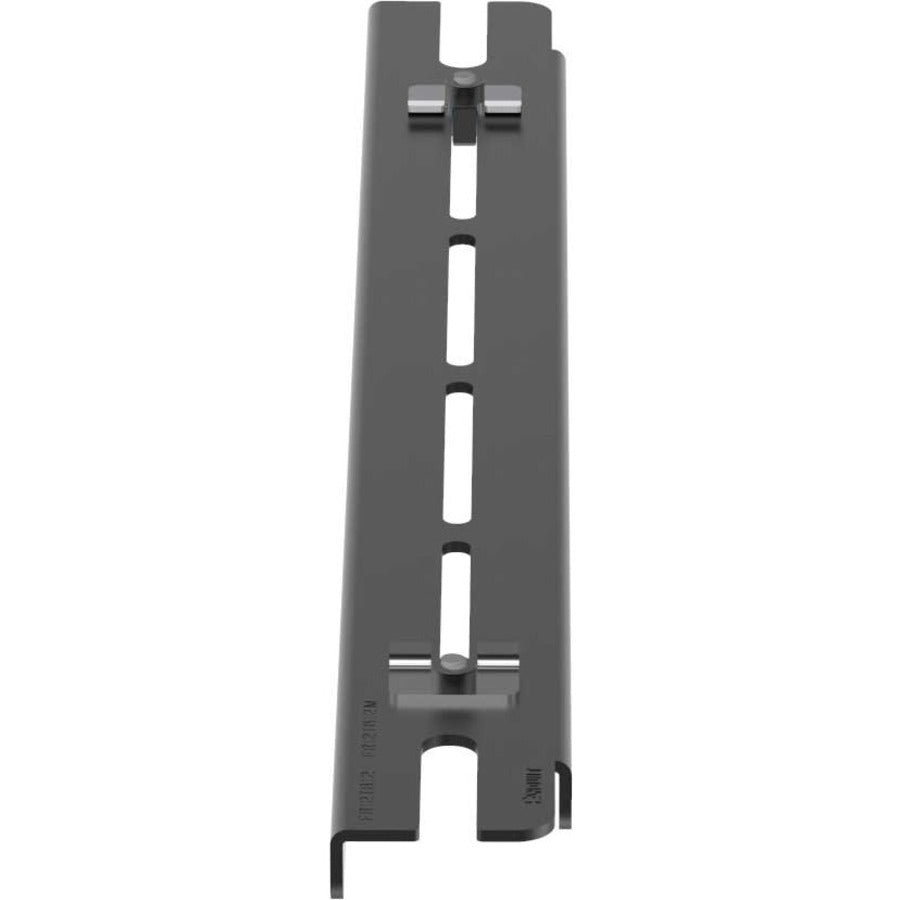

"Minimum Order Quantity: 10" Trapeze QuikLock™ Bracket for 12x4 System
Panduit FR12TB12. Product colour: Black, Material: Steel, Certification: RoHS. Length: 546.6 mm, Width: 57.3 mm, Height: 21.8 mm
Used to support the 12x4 system by spanning two threaded rod drops that are 18in apart. Can be installed from above or below. Bracket is secured to each threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps, For 1/2in threaded rod.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
FR12TB12
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Line
QuikLock
Product Name
FiberRunner Trapeze Bracket
Product Type
Mounting Bracket
UPC
0074983847464
Product Color
Black
Height
0.9"
Width
2.3"
Miscellaneous
Package Contents
1 x Bracket Assembly
4 x 1/2 Helical Spring Lock Washers
4 x 1/2-13 Heavy Hex Nuts
1 x 1/4-20 T-Bolt
1 x 1/4-20 Hex KEPS Nut
Features
Cable Management
Warranty
Limited Warranty
1 Year
