Name: Panduit Fr12Cs58 Cable Trunking System Accessory
Brand: Panduit
SKU: FR12CS58
Price: 69.00 CAD
Availability: InStock

Panduit Fr12Cs58 Cable Trunking System Accessory

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

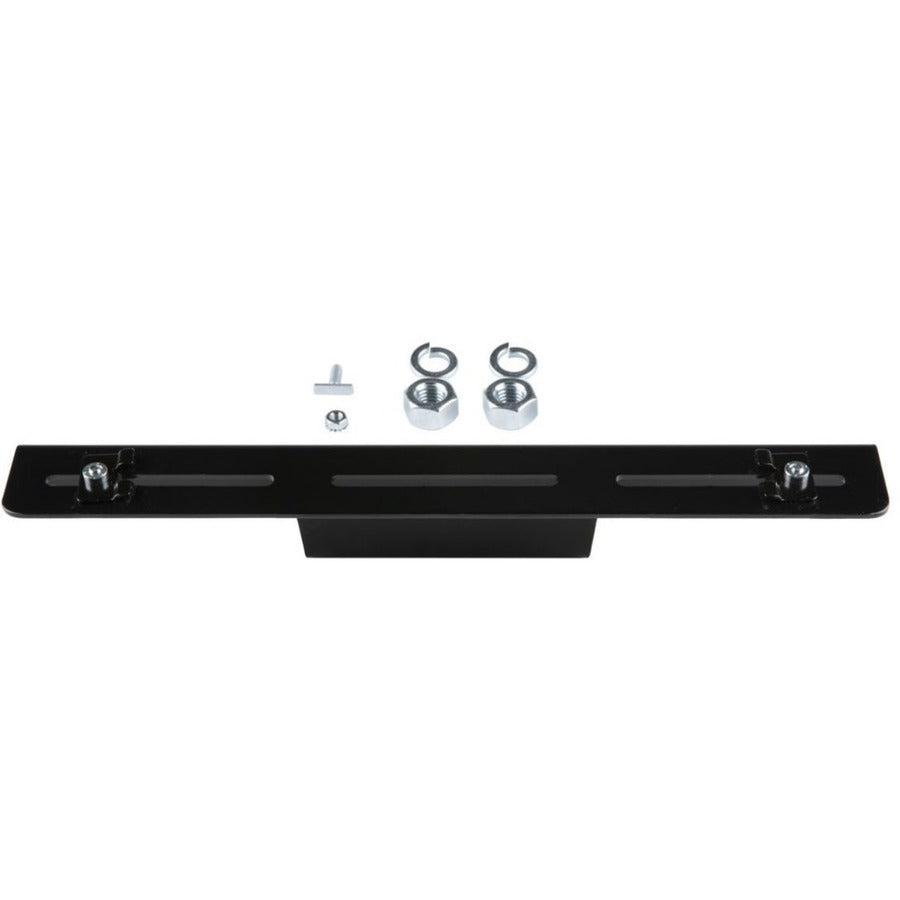

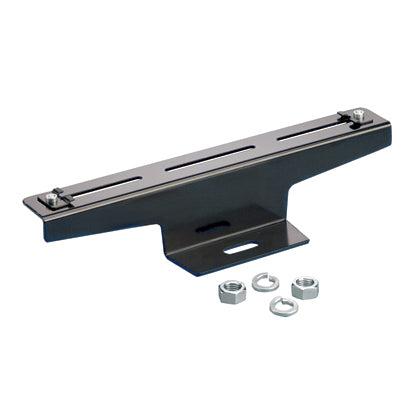

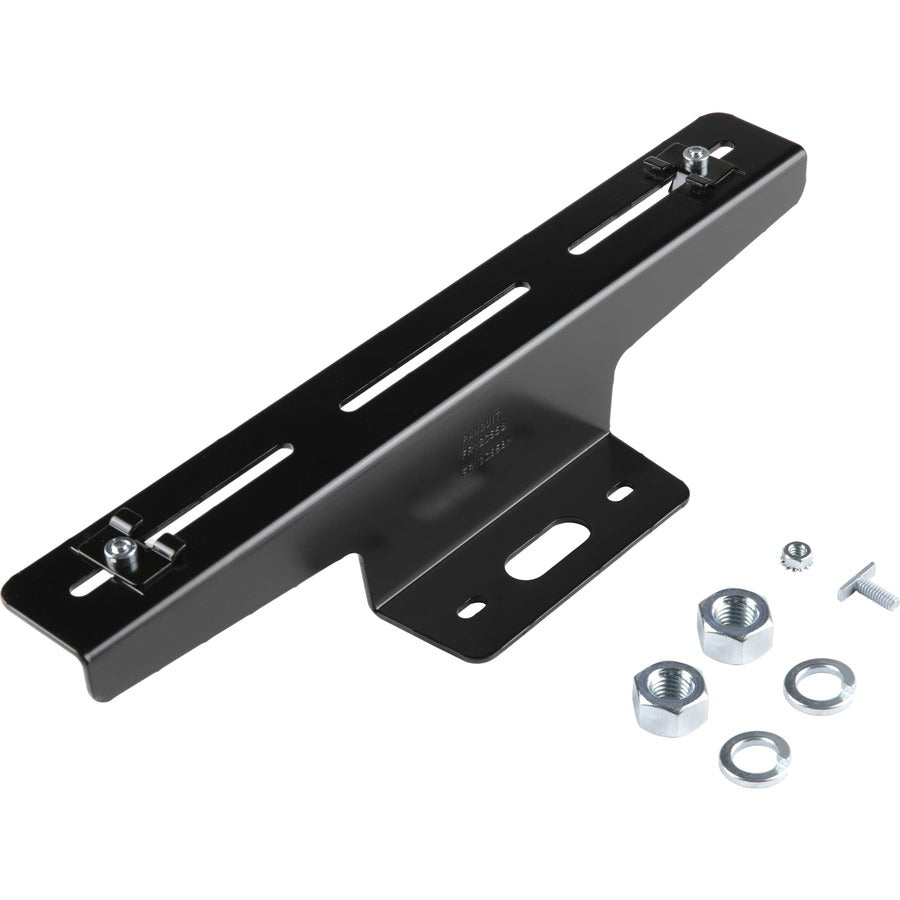

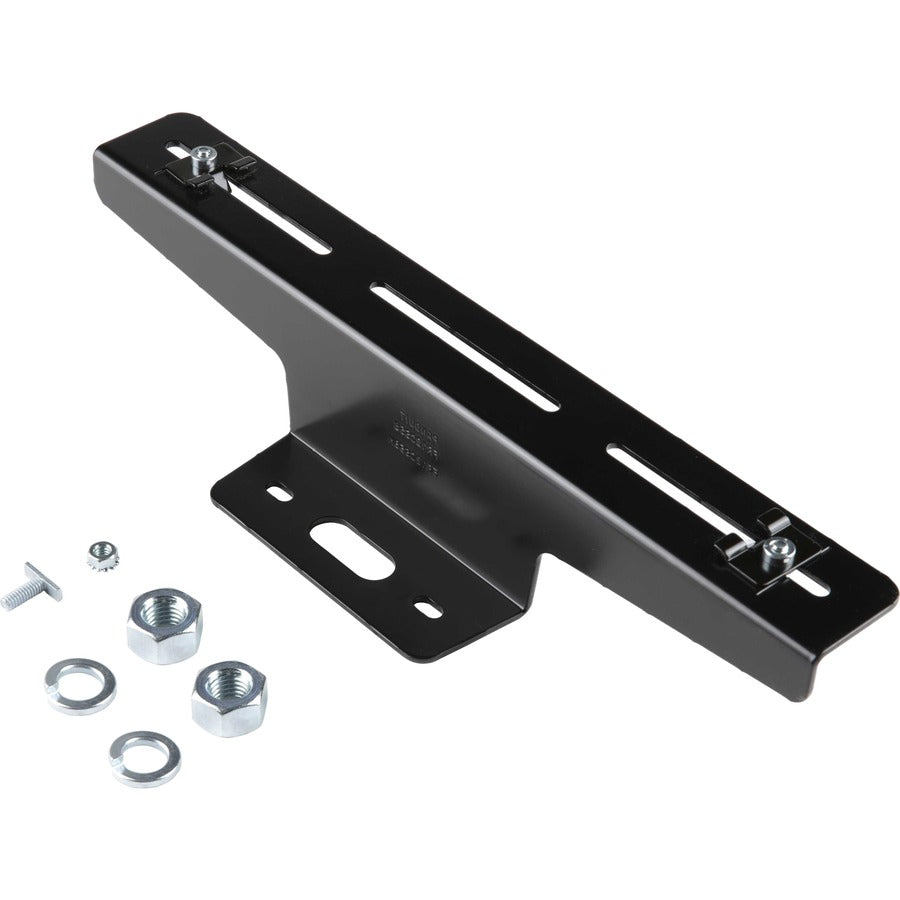

Center Support QuikLock™ Bracket for 12x4 System

Panduit FR12CS58. Product colour: Black, Material: Steel, Certification: RoHS. Length: 298.8 mm, Width: 101.6 mm, Height: 76.2 mm

Used to support the 12x4 system from below with new threaded rod. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps. Also can be secured directly to the top of cabinets, For 5/8in threaded rod.

General Information

Manufacturer	PANDUIT CORP
Manufacturer Part Number	FR12CS58
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Line	QuikLock
Product Name	FiberRunner Center Support
Product Type	Mounting Bracket
UPC	0074983835904

Product Color	Black
Height	3"
Width	15.7"

Miscellaneous

Package Contents	1 x Bracket 1 x T-Fastener 1 x 1/4-20 "KEPS" Lock Out 2 x Bracket Clip Assemblies 2 x 1/4-20 Hex Head Machine Screws 2 x 1/4 Helical Spring Lockwashers 2 x 5/8-11 Hex Nuts 2 x 5/8 Helical Spring Lockwashers
Features	Cable Management

Warranty

Limited Warranty	1 Year
