Name: Panduit Fr12Cs12 Cable Trunking System Accessory
Brand: Panduit
SKU: FR12CS12
Price: 69.00 CAD
Availability: InStock

Panduit Fr12Cs12 Cable Trunking System Accessory

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

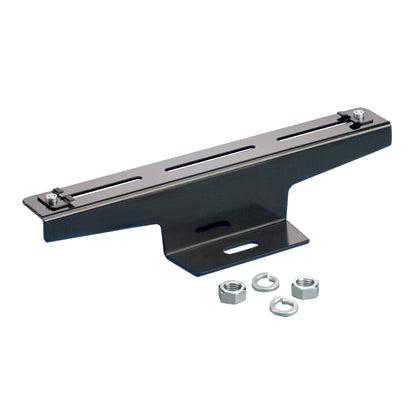

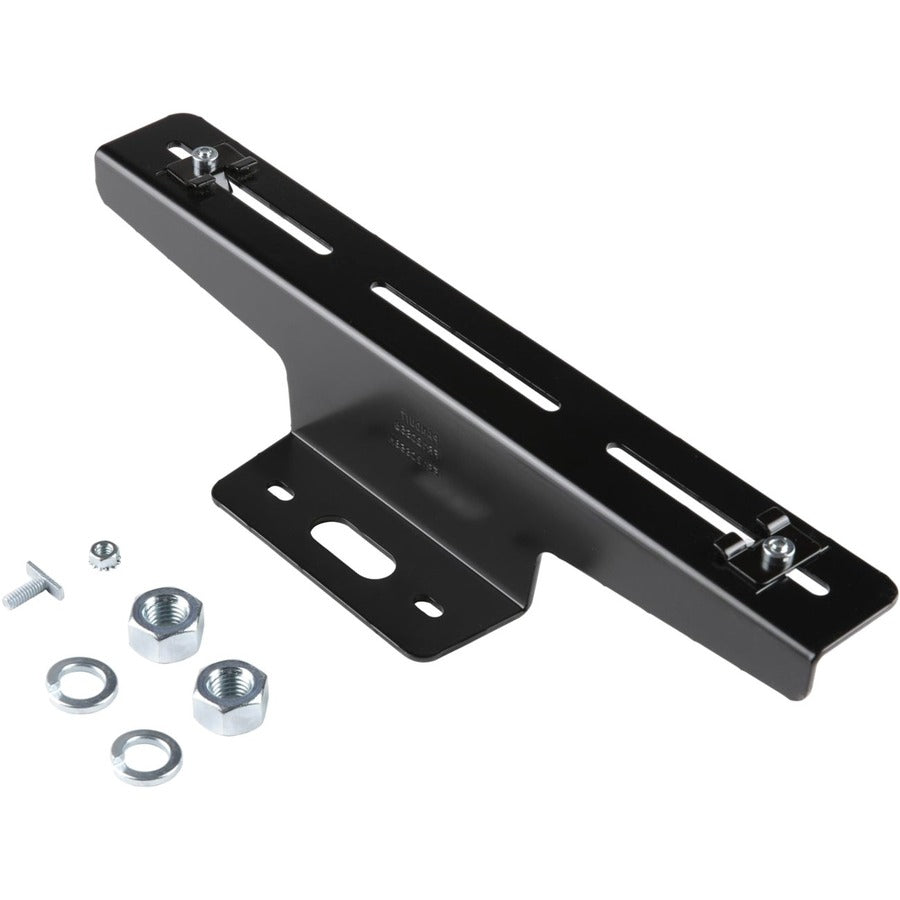

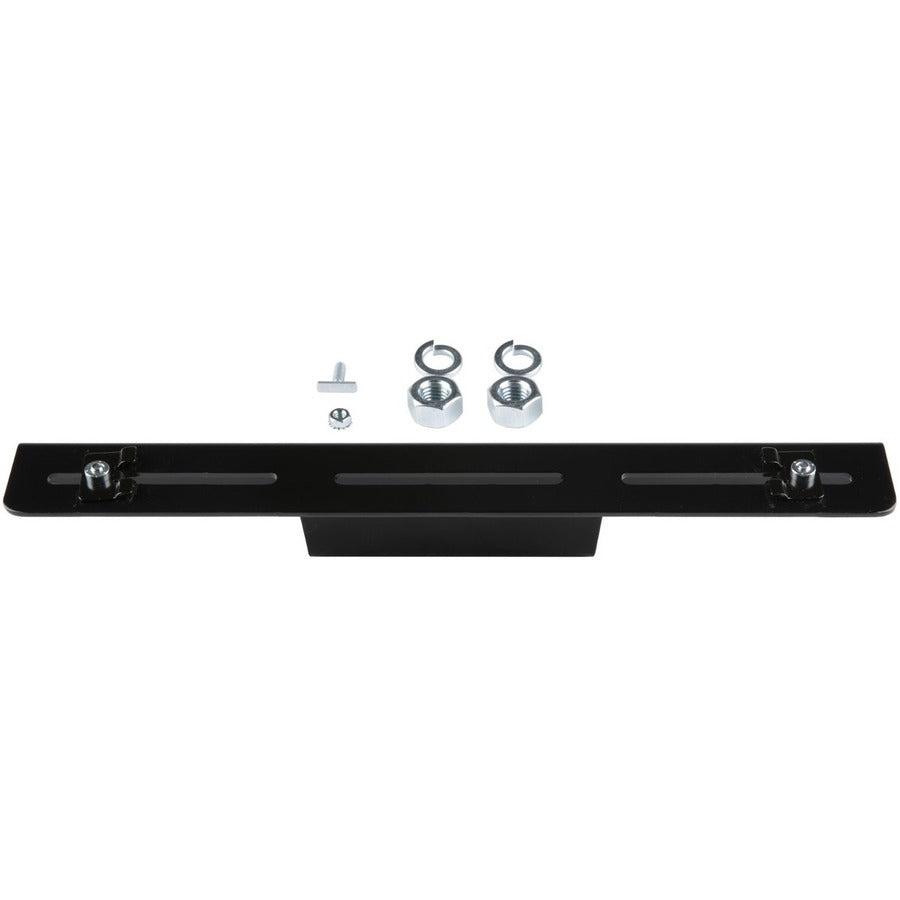

Center Support QuikLock™ Bracket for 12x4 System

Panduit FR12CS12. Product colour: Black, Material: Steel, Certification: RoHS. Length: 398.8 mm, Width: 101.6 mm, Height: 76.2 mm

Used to support the 12x4 system from below with new threaded rod. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps. Also can be secured directly to the top of cabinets, For 1/2in threaded rod.

General Information

Manufacturer	PANDUIT CORP
Manufacturer Part Number	FR12CS12
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Line	FiberRunner
Product Name	FiberRunner Mounting Bracket
Product Type	Mounting Bracket
UPC	0074983835898

Product Color	Black
Height	3"
Width	15.7"

Miscellaneous

Package Contents	1 x Bracket 1 x T-Fastener 1 x 1/4-20 "KEPS" Locknut 2 x Bracket Clip Assemblies 2 x 1/4-20 Hex Head Machine Screws 2 x 1/2-13 Hex Nuts 2 x 1/2 Helical Spring Lockwashers

Canada: Prices in CAD. Ships nationwide in 2–5 business days. GST/HST/PST calculated at checkout. Shipping policy.

Panduit Fr12Cs12 Cable Trunking System Accessory

Description

Panduit Fr12Cs12 Cable Trunking System Accessory
