Description

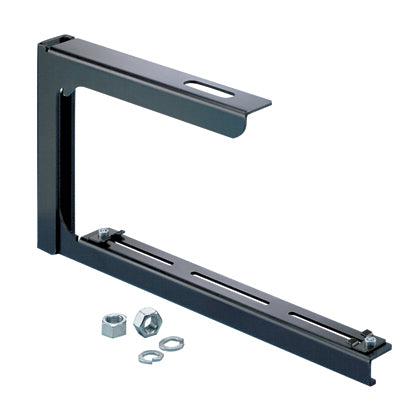

Top Support Adjustable "C" QuikLock™ Bracket, for 12x4 System
Panduit FR12ACB12M. Product colour: Black, Housing material: Steel. Width: 450.7 mm, Depth: 42.2 mm, Height: 221.5 mm
Used to support the 12x4 system from any new threaded rod extending down directly from the ceiling, grid, or ladder rack system. Two position height adjustments to accommodate system with or without hinged cover. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16" nut driver on slide clamps.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
FR12ACB12M
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Line
QuikLock
Product Name
FiberRunner Top Support Adjustable "C"
Product Type
Mounting Bracket
UPC
0074983839551
Product Color
Black
Height
8.7"
Width
1.7"
Miscellaneous
Package Contents
1 x Bracket Assembly
2 x M12X 1.75 Hex Nuts
2 x 1/2 Helical Spring Lockwashers
1 x 1/4-20 T-Bolt
1 x 1/4-20 Hex KEPS Lock Nut
Features
Cable Management
Warranty
Limited Warranty
1 Year
