Name: Panduit Fr12Acb12 Cable Trunking System Accessory
Brand: Panduit
SKU: FR12ACB12
Price: 74.00 CAD
Availability: InStock

Panduit Fr12Acb12 Cable Trunking System Accessory

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

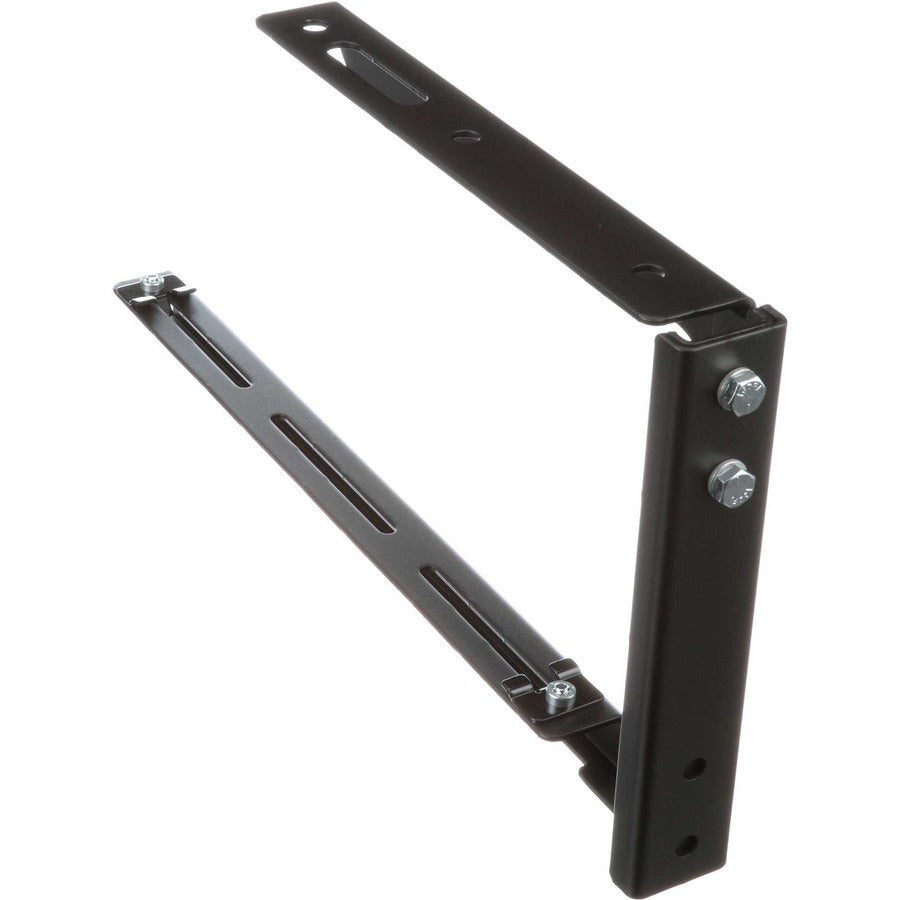

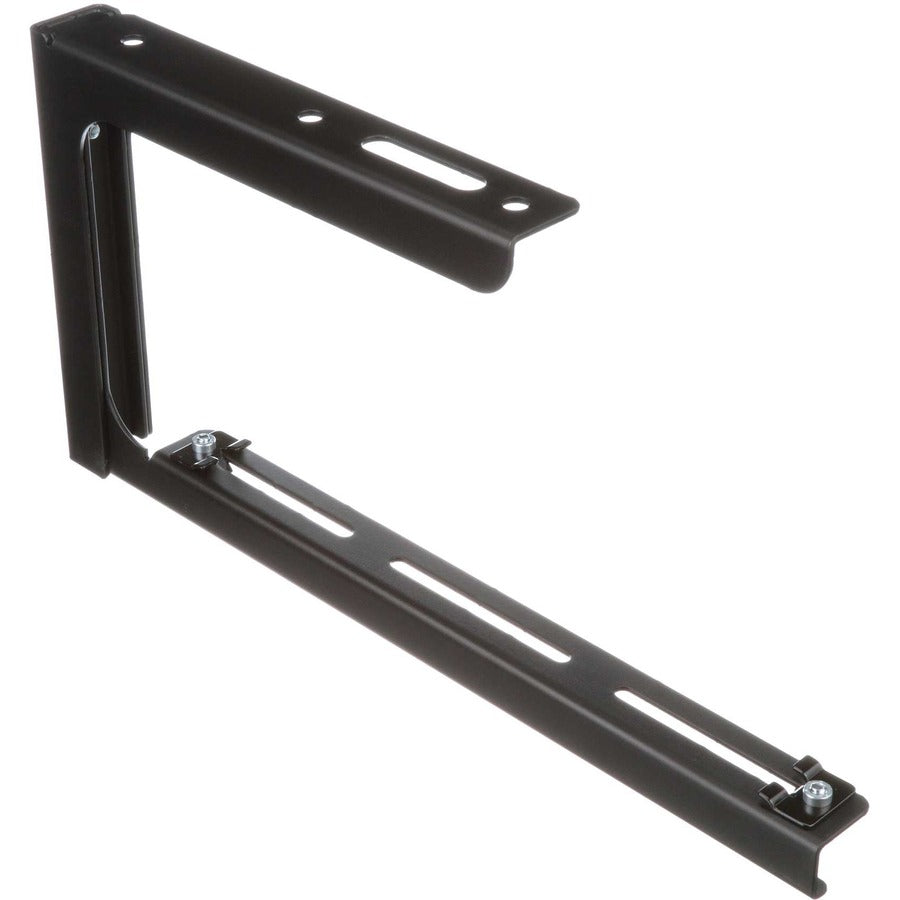

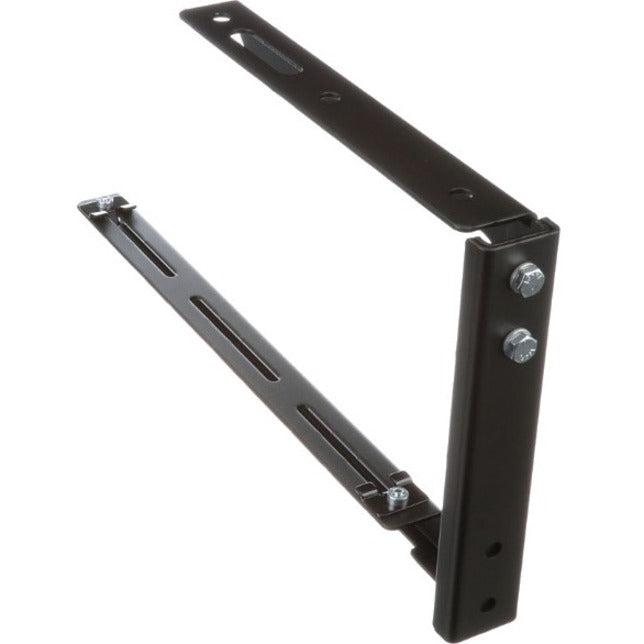

Top Support Adjustable "C" QuikLock™ Bracket for 12x4 System

Panduit FR12ACB12. Product colour: Black, Material: Steel, Certification: RoHS. Length: 450.7 mm, Width: 42.2 mm, Height: 221.5 mm

Used to support the 12x4 system from any new threaded rod extending down directly from the ceiling, grid, or ladder rack system. Two position height adjustments to accommodate system with or without hinged cover. Bracket is secured to threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps, For 1/2in threaded rod.

General Information

Manufacturer	PANDUIT CORP
Manufacturer Part Number	FR12ACB12
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Line	QuikLock
Product Name	FiberRunner Adjustable C Bracket for Top Support
Product Type	Mounting Bracket
UPC	0074983835935

Product Color	Black
Height	8.7"
Width	1.7"

Miscellaneous

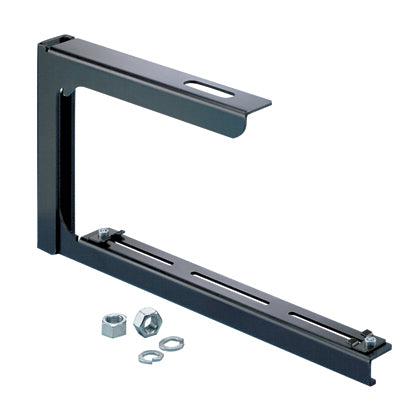

Package Contents	1 x Bracket Assembly 2 x 1/2 -13 Heavy Hex Nuts 2 x 1/2 Helical Spring Lockwashers 1 x 1/4-20 T-Bolt 1 x 1/4-20 Hex KEPS Lock Nut
Features	Adjustable
