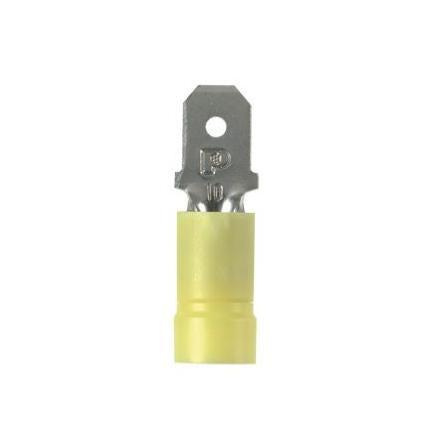

The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in yellow vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.98" (24.9 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a brazed seam barrel. It comes in bottles of 50.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
DV10-250M-L
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Name
Terminal Connector
Product Type
Terminal Connector
UPC
0007498382410
Product Color
Yellow
Width
6.4"
Features
Flame Retardant
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
