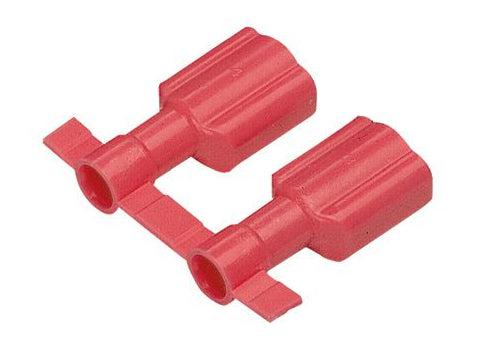

The vibration resistant male disconnect is made of brass and is nickel-plated. It is fully insulated in red premium nylon oversized housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.92" (23.4 mm) long and 0.46" (11.7 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 1000.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
DPF18-250FIMB-K
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Name
Terminal Connector
Product Type
Terminal Connector
UPC
0074983206421
Product Color
Red
Width
0.5"
Features
Flame Retardant
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
